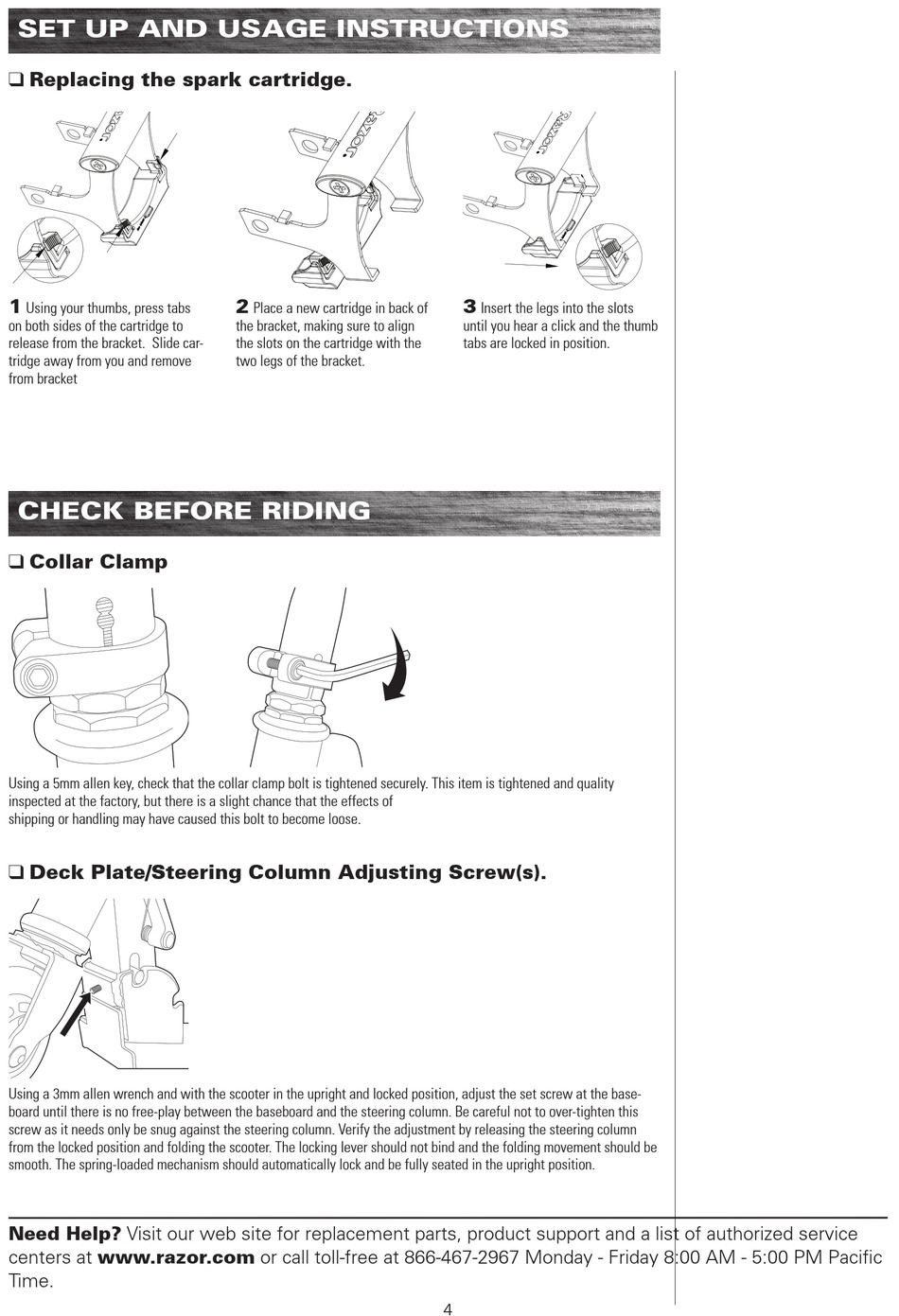

SET Up aND USagE iNSTRUCTiONS

q Replacing the spark cartridge.
1
Using your thumbs, press tabs
on both sides of the cartridge to
release from the bracket. Slide car-
tridge away from you and remove
from bracket

CHECk BEFORE RiDiNg

q Collar Clamp
Using a 5mm allen key, check that the collar clamp bolt is tightened securely. This item is tightened and quality
inspected at the factory, but there is a slight chance that the effects of
shipping or handling may have caused this bolt to become loose.
q Deck plate/Steering Column adjusting Screw(s).
Using a 3mm allen wrench and with the scooter in the upright and locked position, adjust the set screw at the base-
board until there is no free-play between the baseboard and the steering column. Be careful not to over-tighten this
screw as it needs only be snug against the steering column. Verify the adjustment by releasing the steering column
from the locked position and folding the scooter. The locking lever should not bind and the folding movement should be
smooth. The spring-loaded mechanism should automatically lock and be fully seated in the upright position.
Need Help? Visit our web site for replacement parts, product support and a list of authorized service
centers at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM Pacific
Time.
2
Place a new cartridge in back of
the bracket, making sure to align
the slots on the cartridge with the
two legs of the bracket.
3
Insert the legs into the slots
until you hear a click and the thumb
tabs are locked in position.
4
