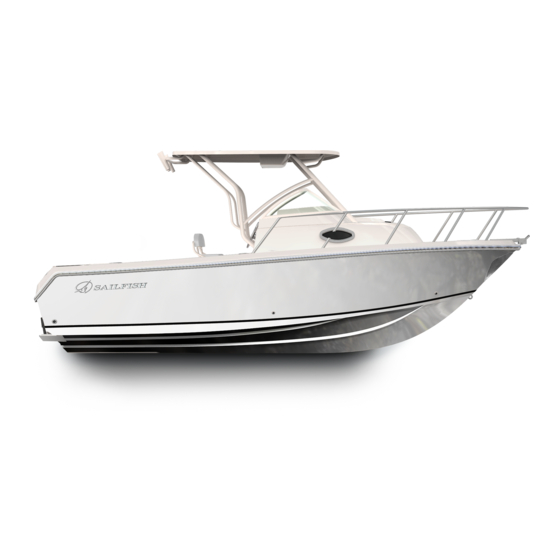

- Page 1 Title Sailfish 220 CC Demand T h e Dif fer e nc e Sailfish 220 WAC Owner’s Manual 10/15/2014 Sailfish 270CC Owner’s Manual | sailfishboats.com 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
-
Page 2: Table Of Contents
Table of Contents 2. Boat Specification 15. Bilge Access and Explanation 3. Sailfish Boats Trailer Measurement Chart 16. Bilge Pumps 4. Boat Layout 17. Raw Water Washdown System 5. Breaker Panel Schematic 18. Freshwater Washdown and Shower System 6. Switch Panel Schematic 19. -
Page 3: Specifications
Sailfish 220 WAC Specifications SPECIFICATIONS STANDARD FEATURES • Walk Thru Transom Door w/ Wave Guard Step • NBT Vinyl Protection (Stain Resistant Mildew LOA Hull Only ..........21’ 3” Electrical Inhibitor UV Protector) Length Rigged ..........23’ 6” • Dual Battery System w/ Switch Beam ..............8’ 6” • Full Digital Instrumentation Cabin Amenities Fuel Capacity ........93 Gallons • Stereo (Bluetooth Capable, Satellite Ready, AM/ • Cabin Butane Stove / Sink / Freshwater / Table Fresh Water ..........6 Gallons FM w/ 4 Speakers) • Cabin 25 qt. Cooler Weight .............4,950 lbs. • Helm Stereo Remote • Cabin V-Berth Cushions & Filler Cushions... -
Page 4: Sailfish Boats Trailer Measurement Chart
Sailfish Boat Trailer Measurement Chart Boat Models 208 CC 78 in. 53 in. 28 in. 11 in. 82 in. 218 in. 235 in. 27 in. 1900 BB 88 in. 66 in. 37 in. 10.5 in. 99.5 in. 198 in. 217 in. -
Page 5: Boat Layout
Sailfish 220 WAC Boat Layout Description Description Boarding Ladder Helm Area Fresh Water Fill Cabin Door 30 Gallon Livewell Fuel Fill Bilge Access Full Wraparound Windshield Fuel Sender and Pick-up Access (under Anchor Locker cooler) Full Bow Rail Leaning Post 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 6: Breaker Panel Schematic
Breaker Panel Schematic 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 7: Switch Panel Schematic
Switch Panel Schematic 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 8: Battery Installation: Perko Switch
Connect all ground wires to the negative post on battery Perko battery switch has a #1, #2 and ALL position to switch to. When switched to the ALL position, battery #1 and #2 are hooked up in parallel. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 9: Fuel System Layout
Fuel System Layout Description Primer Bulbs - Yamaha Only Fuel Filter Access - Yamaha Only Fuel Tank Location Fuel Pickups Fuel Sender Fuel Fill 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 10: Plumbing Diagram
Plumbing Diagram - 220 WAC 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 11: Helm Area
Helm Area Description Compass Optional Garmin Unit Brand Specific Motor Guages Switch Panel Trim Tab Actuator Switches Binnacle Tilt Helm w/ Stainless Wheel and Power Knob Breaker Panel Ignition Switches and Emergency Shut-off Cord 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 12: Uflex Steering System
Sailfish 220 WAC UFLEX Steering System UFLEX has been the choice for steering for Sailfish boats for the last three years because of the quality of the USA built products. Every helm comes standard with a full stainless steel shaft; cylinders are built with carbon steel pistons, coupled with extra-large end caps to prevent leakage. -
Page 13: Ignition Switches, Engine Shut-Off Cord/Lanyard
Sailfish 220 WAC Ignition Switches, Engine Shut-off Cord/Lanyard Each Sailfish boat will be equipped with a Yama- ha or Mercury ignition switch with an emergency engine shut off cord/lanyard. This lanyard should be worn at all times while operating the vessel, if the vessel operator falls... -
Page 14: Plug And Play Wiring
Fuel-Water Separator - Yamaha All Sailfish Boats Rigged with Yamaha motors are factory installed with 10 Micron Yamaha fuel water separators. Each engine will have its own filter. These filters can be accessed in the bilge access door located at the aft of the boat. -
Page 15: Console/Head Area
Console/Head Area Description Large panel for easy access to Console Components Portable Propane Grill Freshwater Sink Cooler Storage Cabin Door Standard CD Player/Stereo Porta Potti 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 16: Bilge Access And Explanation
You may also access it through the two access plates in the splash-well. The bilge area of your sailfish boat should be checked before, during and after each operation. A small amount of water in this area is normal but large amount of water could point to a major issue such as a leak. -
Page 17: Bilge Pumps
Sailfish boats 240CC and larger are equipped with a forward bilge pump that is an electronic sensor pump. These pumps have a state of the art internal water... -
Page 18: Raw Water Washdown System
Sailfish 220 WAC Raw water Washdown system The raw water wash down on your Sailfish Boat is powered Description by a Shur-flo Pro Blaster Pump which creates a pressur- ized system, once the pump is turned on and pressure is... -
Page 19: Freshwater Washdown And Shower System
Sailfish 220 WAC Freshwater Washdown and Shower System The freshwater washdown and shower system on your Sailfish Boat is powered by a Shur-flo Pro Blaster Pump which creates a pressurized system, once the pump is turned on and pressure is created throughout the freshwater hoses;... -
Page 20: Livewell Operation
In order to fill the livewell, place the white stand pipe with the strainer into the center drain hole. • To drain the livewell remove the stand pipe and the water will flow out the drain hole. CLOSED 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 21: Trim Tab Maintenance
CLEAN THE TRIM TAB BLADES. • Periodically test system for smooth MARYKATE’S ON & OFF PRODUCT operation. IS A GOOD CHOICE. RINSE THOR- OUGHLY UPON COMPLETION. BIODEGRADABLE, BUT PLEASE FOLLOW THE MANUFACTURER’S INSTRUCTIONS BEFORE APPLYING. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 22: Optional Marine Head With Waste Tank
Optional Marine Head with Waste Tank Type III MSD Waste Management System 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 23: Msd Waste Management System
Optional Marine Head with Waste Tank Type III MSD Waste Management System Description Battery Fuse Waste Management System Master Switch Controller for Waste Management System Description Vent Inlet Toilet Deck Pumpout Waste Holding Tank Vertical Loop Outlet 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... - Page 24 When Storing the system for more than two weeks, thor- tissues especially designed to disintegrate rapidly (unlike household oughly clean toilet and hoses by flushing with Thetford’s tissues), such as Thetford’s Aqua-Soft (2ply) and RV/Marine Toilet Aqua-Kem, EcoSmart or Aqua-Clean. Tissue (1ply). 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
- Page 25 Discharge hose from macerator pump is Water is siphoning out of bowl due to Bowl drains dry after flush pulled down. Straighten hose so that top of discharge hose pulled down. discharge hose is in line with toilet nozzle Note: This Troubleshooting guide is intended to provide a basic service aid in the case of incorrect toilet operation. If the suggested actions above do not resolve the issue, it may be necessary to bring unit in for professional service. Thetford Customer Service – 1-800-521-3032. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
- Page 26 7/8 full or after the pump is set to run, the pump will shut down and indi- greater. cate a fault check pump and plumbing for a blockage. Empty Button: This button needs to be pressed and held for 3 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
-
Page 27: Winter Storage
• 1 x 1” Overboard discharge port macerator pump out. Dis- the dash in the first panel charge: connect to the overboard discharge thru-hull fitting. coming off the bus bar, * See plumbing diagram for recommended installation. pictured to the left. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 28: Optional Porta Potti
RV Dealer. Thetford SupremeGreen NEVER use scouring powders, For warranty issues or more infor- Thetford Aqua-Kem acids or concentrated cleaners, mation, call Thetford’s Customer Thetford Campa-Chem which can damage plastic parts Relations Department: 1-800-521-3032. and rubber seals. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... - Page 29 RV Dealer. Thetford SupremeGreen NEVER use scouring powders, For warranty issues or more infor- Thetford Aqua-Kem acids or concentrated cleaners, mation, call Thetford’s Customer Thetford Campa-Chem which can damage plastic parts Relations Department: 1-800-521-3032. and rubber seals. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
-
Page 30: Vinyl Care And Cleaning
Dry cleaning fluids and lacquer solvents should not be used as they will remove printed pattern and gloss. Waxes should be used with caution as many contain dyes or solvents that can permanently damage the protective coating. *Suntan lotion, tree pollen, wet leaves, and some other products can contain dyes that stain permanently. *Always Remove Stains Immediately! 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 31: Aluminum Cosmetic Corrosion (Pitting)
Concentrated alkaline based solutions. formed at local shipyards and dry Many concentrated soaps fall into this docks. category. Be aware of local sources that Chlorine, sulfurs, solvents and ammonia can expose your new boat to based products. corrosive chemicals. 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 32: Caring For Aluminum
Below are some metal protection products that are readily available at marine retailers. Woody Wax Woody Wax CPR woody-wax.com 800-619-4363 PMS Products, Inc. Boeshield T-9 boeshield.com 800-962-1732 Aquatech Premier Polish aquatech-marine.com 800-853-7760 Lear Chemical Corrosion Block learchem.com 800-256-2548 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 33: Caring For Stainless Steel
The grade of Stainless Steel is primarily Stainless Steel typically has a recycled determined by the amount of the Chro- content of between 65% & 80% which mium and Nickel alloys contained in the makes it one of the highest average con- 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 34: Stainless Steel
Clean with fresh water periodically. purposes. denatured alcohol, clean water, or a Touch up scratches and areas where commercially available plastic polisher paint has chipped off with touch-up 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... -
Page 35: Gel Coat
After washing with a mild soap may occur. or detergent, give the surface a good 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com... - Page 36 To restore the gloss to the affected area, use a high-grade marine or automotive Apply the mixture to the pit, chip or gouge wax. with a single-edge razor blade, matching the surface and contour of the area being 02/23/2015 Sailfish 220 WAC Owner’s Manual | sailfishboats.com...
