ASSEMBLY INSTRUCTIONS

USER INSTRUCTIONS

Meridian 3 with side burner

Meridian 4 with side burner

0063/09

PIN: 0063BU7867

98500

98501

MERIDIAN 4 WITH SIDE BURNER

98501

PATIO LIVING

Please note: Your product may differ from the

image on the front cover

503-0061 LEV2

Need help?

Do you have a question about the Meridian 3 98500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cadac Meridian 3 98500

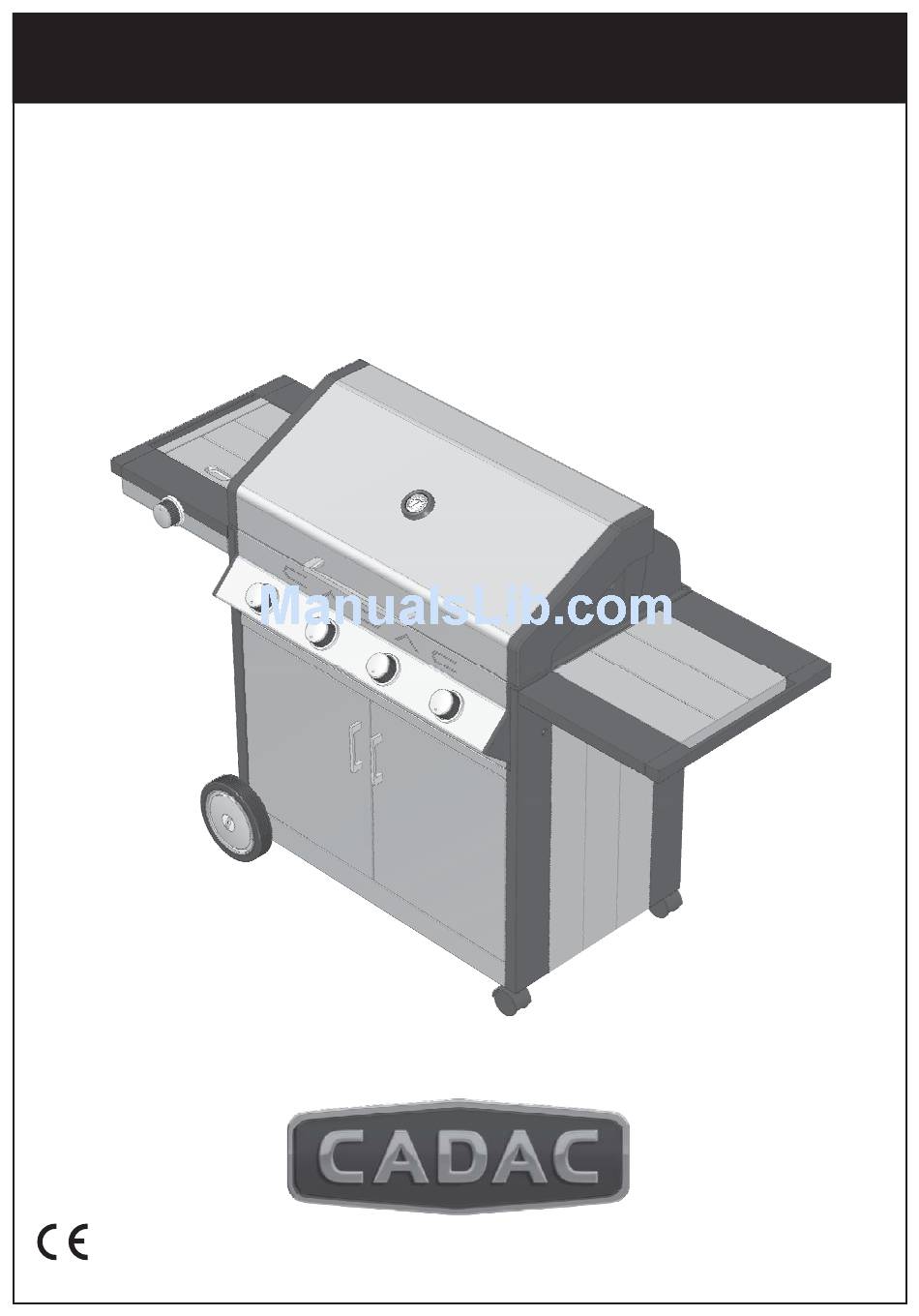

Page 1 ASSEMBLY INSTRUCTIONS USER INSTRUCTIONS Meridian 3 with side burner 98500 Meridian 4 with side burner 98501 MERIDIAN 4 WITH SIDE BURNER MERIDIAN 4 WITH SIDE BURNER 98501 98501 PATIO LIVING 0063/09 Please note: Your product may differ from the Please note: Your product may differ from the image on the front cover image on the front cover PIN: 0063BU7867...
Page 2 Tel: 0064 3 313 0076 . Fax: 0064 3 313 6890 Email: dave@hotsmoke.co.nz . jeremy@hotsmoke.co.nz . jayne@hotsmoke.co.nz Website: www.hotsmoke.co.nz CADAC SA P.O. Box 43196, Industria, 202, South Africa Tel: +27 11 473 8600 . Fax: +27 11 474 3875 . Email: info@cadac.co.za Website: www.cadac.co.za...
Page 3 Part No. Description Photo Warming Rack Side Burner Assembly Side Table Bottom Panel Bottom Beam Wheel Wheel Cap Wheel Axle...
Page 4 Back Panel Door Beam Drip Bowl Drip Pan Flame Tamer Large Grids (265mm) Right Door Left Door Dome & Burner...
Page 5 Castor Right Side Panel Left Side Panel Fire Box Seperation Panel Drip Pan Handle Small Grids (105mm) Grill Plate...
Page 6 HARDWARE M6*16 Bolt 4pcs M6*12 Bolt 16pcs Door Pin 2pcs φ10 Washer 2pcs φ6 Elastic Washer 18pcs φ10 Elastic Washer 2pcs φ6 Washer 20pcs Specific Screw 4pcs VE Washer 4pcs ST3.9*10 4pcs Self-Tapping Screw M4*10 Bolt 4pcs φ4 Elastic Washer 4pcs φ4 Washer 4pcs...
Page 7 Step 1: Screw the two Castors(18) onto Right Side Panel(19) Step 2: Use the M6*12 Bolt (B), through the φ6 Spring Washer (E), φ6 Washer (G) to join the Back Panel (9) and Side Panels (19,20).
Page 8 Step 3: Push axle (8) through the Wheel (6), φ10 Spring Washer (F), φ10 Washer(D) and hole on the Left Side Panel (20). Screw it onto the weld-nut and clip on the Wheel Cap (7). Step 4: Push the M6*12 Bolt (B) through the φ6 Spring Washer (E), φ6 Washer (G) and fix Bottom Beam (5) to the two side panels (19 &...
Page 9 Step 5: Push the M6*12 Bolt (B) through the φ6 Spring Washer (E), φ6 Washer (G) and fix the Bottom Panel (4) in position by screwing it into the riv-nuts on the side panels. Step 6: Use the M6*12 Bolts, Ø6 Spring Washers and Ø6 Washers to fix the Door Beam(10) to the frame by screwing it onto the Side Panels in the position shown below.
Page 10 Step 7: Align the slots in the brackets underneath the side tray with the studs in the Right Hand Side Panel (19). Push the bracket inwards, just enough to clear the studs, and clip the bracket onto the studs. Step 8: To fix the Side Burner Assembly (2) to the Left Side Panel (20), take Screw (H) and place it through Ø6 Spring Washer (E), Ø6 Washer (G) and holes in Left Side Panel (20) and screw it into the riv-nuts on the left Side Panel.
Page 11 Step 9: Use the ST9*10 Self-Tapping screws (J) to fix the Top Plate (22) in place. Ensure the cut-outs face forward as shown below. Step 10: Place the Dome & Burner Assembly (17) onto the Frame Assembly and use the M6*16 Bolts (A) and Vitreous Enameled Washers (I) to fix the Dome &...
Page 12 Step 11: Route the flexible hose underneath the Side Burner through the hole situated at the back of the Left Side panel (20). Connect the Side Burner flexible hose connection to the Burner Box inlet fitting situated at the rear of the Burner Box, see the below diagram. Use a spanner to tighten the connection.
Page 13 Step 12: Fit the Fire Boxes (21) to the BBQ and bend the tags underneath the Fire Boxes over to permanently fix it in place. Zoom View Step 13: Place a Flame Tamer (13) over each burner.
Page 14 Step 14: Place the Grids, Grill Plates and Warming Rack into the BBQ as shown below. Step 15: Fit the Drip Pan Handle (23) onto the Drip Pan (12) by sing the M4*10 Bolts (K), Ø4 Spring Washer and Ø4 Washer supplied. Refer to the below diagram.
Page 15 Step 16: Align the pin underneath the Right hand Door (15) with the corresponding hole on the Bottom Beam Assemble the door in place by aligning the hole on top of the door with the corresponding hole on the Beam and push the Door Pin (C) into the hole. Assemble the Left hand Door (16) the same way.
Page 16 Step 18: Hang the Drip Bowl (11) onto the Drip Pan (12) as shown below.
