R E D R O C K E T- X I N S TA L L AT I O N I N S T R U C T I O N S

HD-SDI SLOT FILLER CONNECTORS

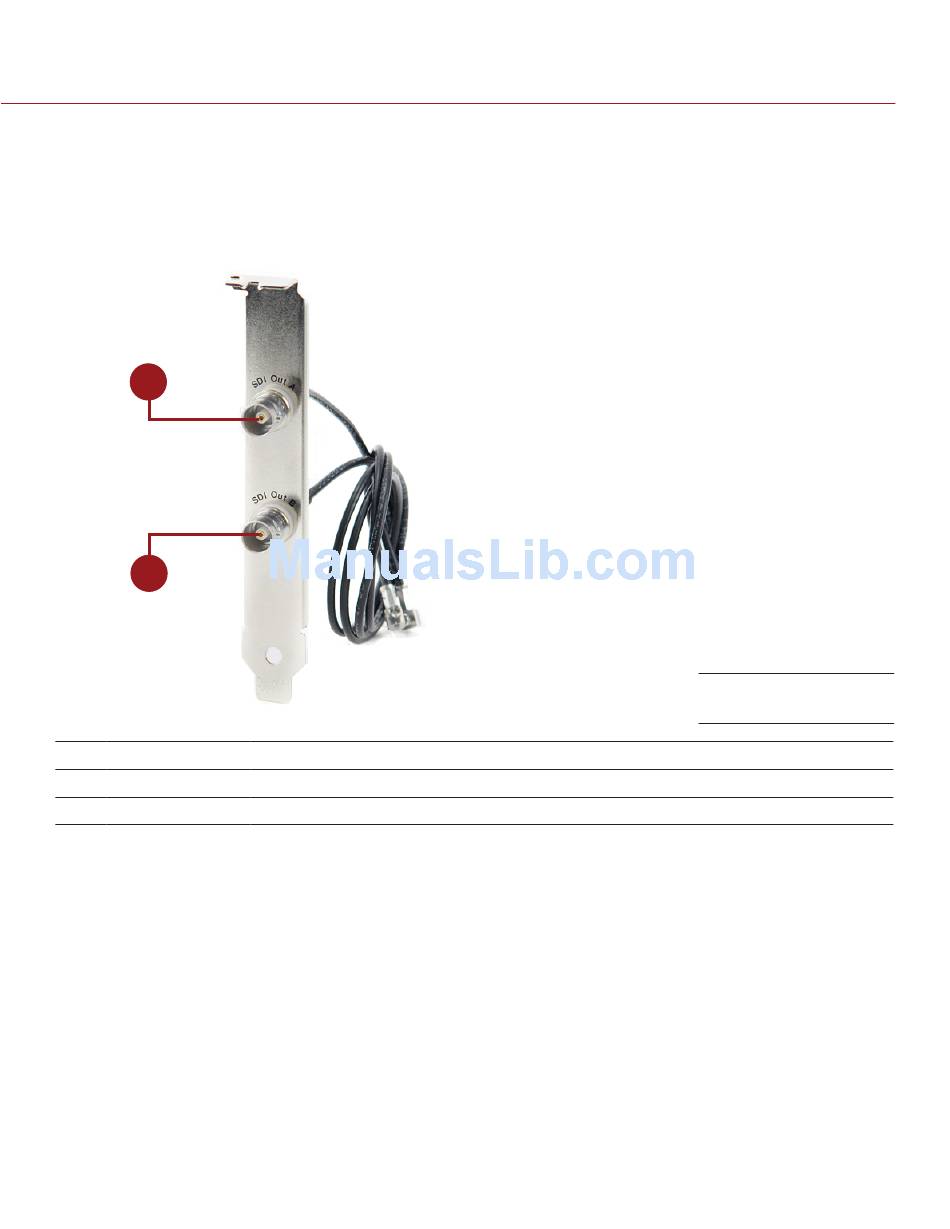

The HD-SDI slot filler provides optional high-definition serial digital interface (HD-SDI) connectors for the
RED ROCKET-X. Installing the HD-SDI slot filler is optional. Review your system and project requirements
before you decide whether or not to install the HD-SDI slot filler.
For more information, go to
1
2
# CONNECTOR
1 SDI Out A
2 SDI Out B
COPYRIGHT © 2015 RED.COM, INC
"Supported HD-SDI Signals" on page
DESCRIPTION
BNC connector for an output of digital video signals (serial digital interface, port A)
BNC connector for an output of digital video signals (serial digital interface, port B)
46.
HD-SDI Slot Filler
|
955-0033, REV-E 9
