R E D R O C K E T- X I N S TA L L AT I O N I N S T R U C T I O N S

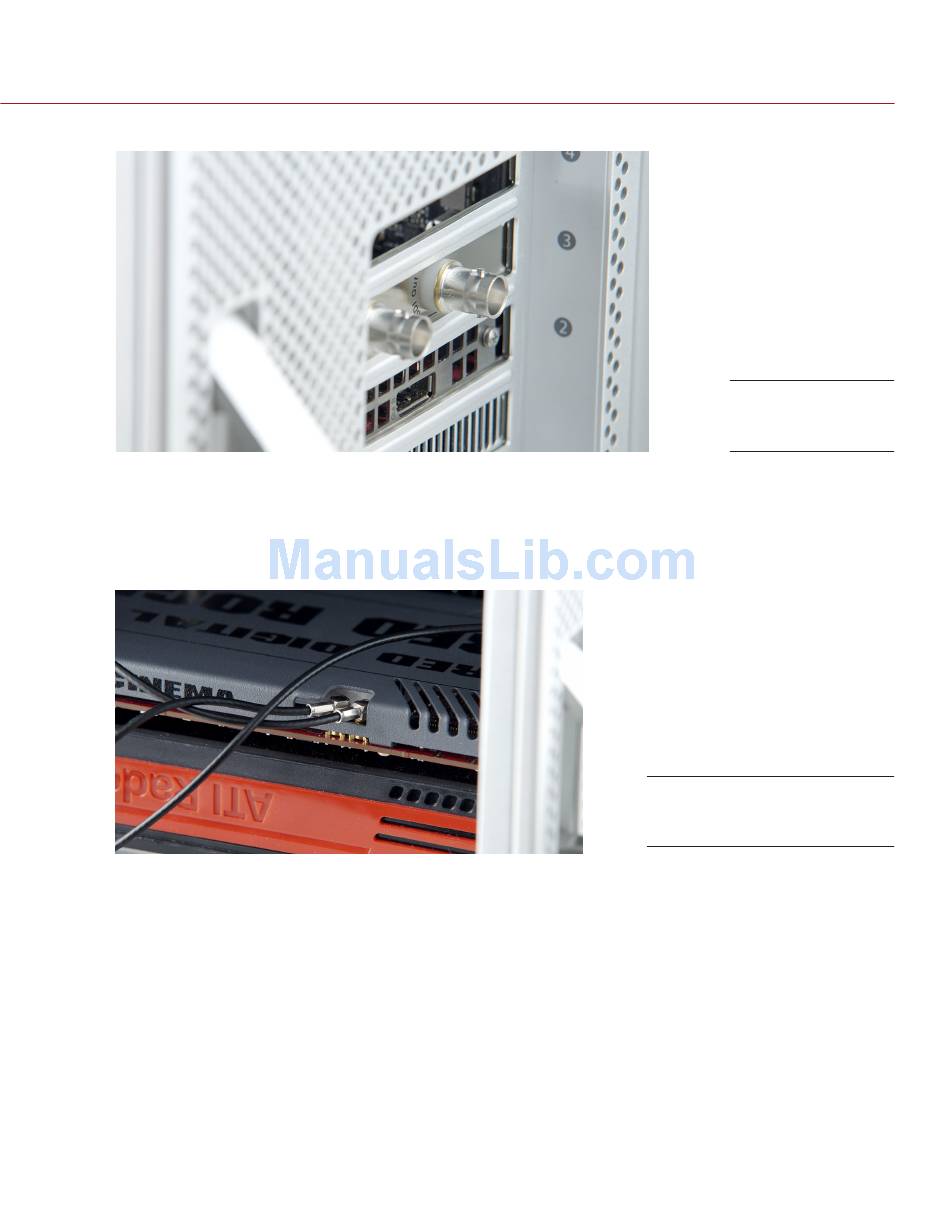

B. Slide the HD-SDI slot filler into the empty slot so that the SDI Out B connector is toward the back.
CAUTION: Ensure that the HD-SDI slot filler or connectors DO NOT contact other components inside the
computer.
C. Connect the SDI Out A cable on the HD-SDI slot filler to the SDI Out A connector on the RED ROCKET-X.
The SDI Out A connector is the right connector when the RED ROCKET-X is installed.
D. Connect the SDI Out B cable on the HD-SDI slot filler to the SDI Out B connector on the RED ROCKET-X.
The SDI Out B connector is the left connector when the RED ROCKET-X is installed.
COPYRIGHT © 2015 RED.COM, INC
Install HD-SDI
Slot Filler
Connect HD-SDI Slot
Filler to RED ROCKET-X
955-0033, REV-E
|
14
