R E D R O C K E T- X I N S TA L L AT I O N I N S T R U C T I O N S
02
RED ROCKET-X
CONNECTORS

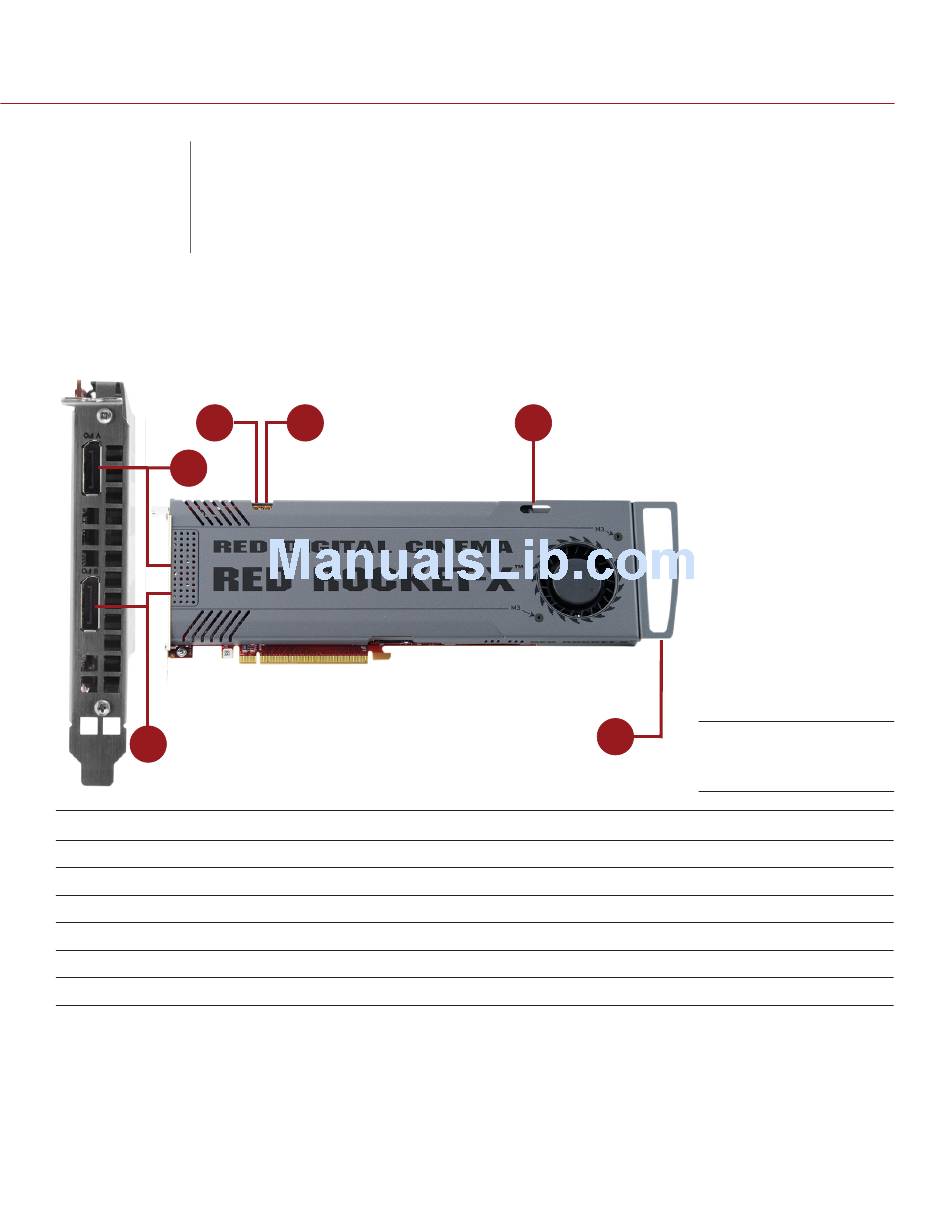

RED ROCKET-X CONNECTORS
3
1
2
# CONNECTOR
1 Out A
1
2 Out B
2
3 SDI Out A
4 SDI Out B
5 Power
6 PC extender
1. HDMI adaptor for HDMI over DisplayPort is not supported.
2. Disabled.
COPYRIGHT © 2015 RED.COM, INC
4
DESCRIPTION
Dual-mode DisplayPort (DP++) output connector
Dual-mode DisplayPort (DP++) output connector
Connection for SDI Out A on the HD-SDI Slot Filler
Connection for SDI Out B on the HD-SDI Slot Filler
6-pin PCIe female connector
PC extender to fit the RED ROCKET-X
5
6
RED ROCKET-X
Connectors
securely in the PCIe slot and card holder
®
|
955-0033, REV-E 8
