Ductless Recirculating Kit; This Kit Includes; Installing The Deflector To The Chimney Support - Zephyr ZRC-00AL Use, Care, And Ins Tallation Guid E

READ AND SAVE THESE INSTRUCTIONS

This kit includes:

1 charcoal filter
1 charcoal filter support
1 metal bracket
1 deflector
3,5 x 6,5 x 8 screws for fixing the charcoal filter support and the deflector

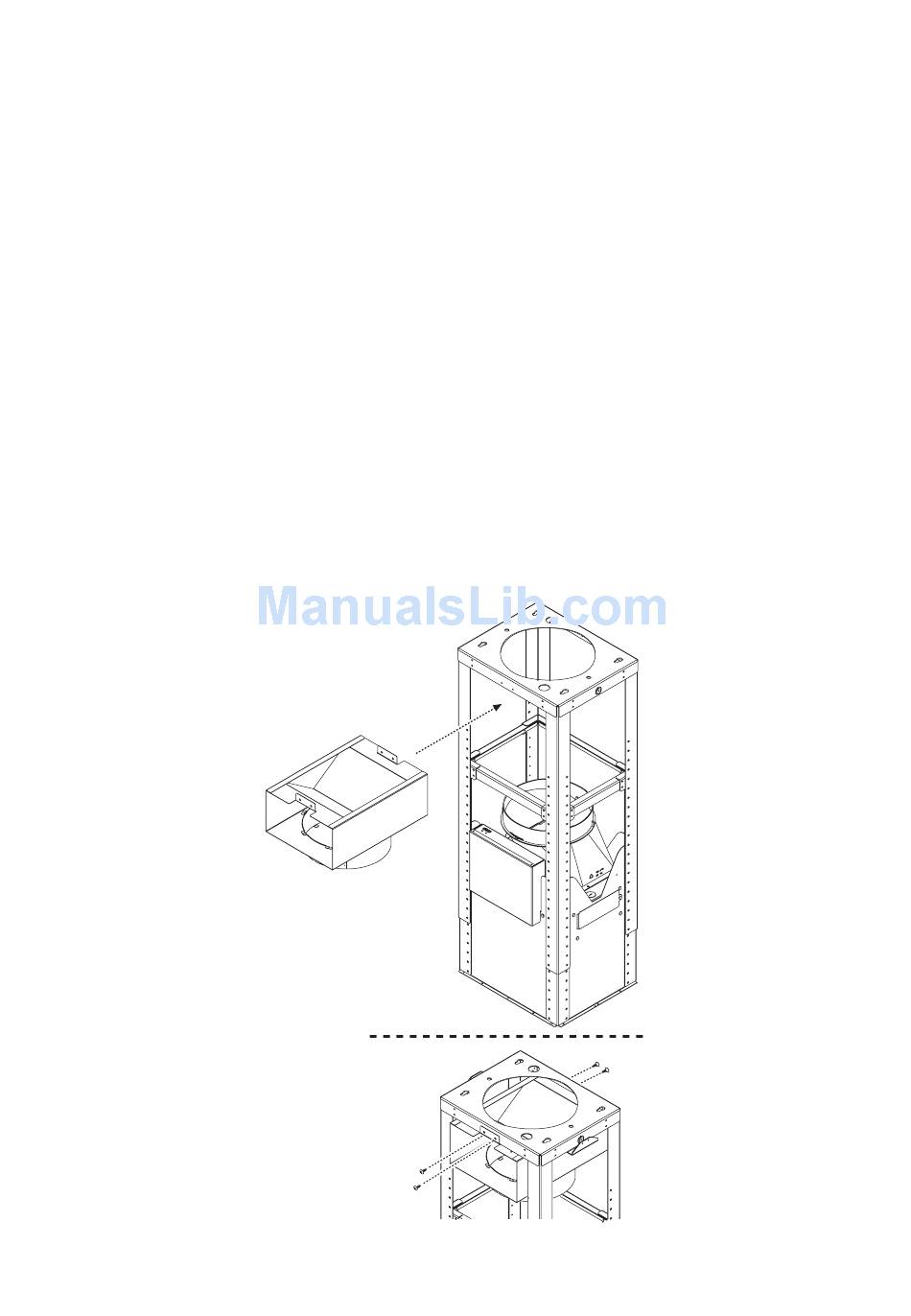

Installing the deflector to the chimney support:

a. Fix the deflector to the bracket with 4 screws (2 per side).
b. Install a 8" duct long enough to reach the deflector. Seal with tape.
Note: further adjustements of chimney structure may be necessary for easy passage of
deflector.

Ductless Recirculating Kit

Ductless (recirculating) version
For installations ONLY
FRONT
