TREEHOUSE SEE-THRU
VENTED DECORATIVE GAS LOG SET
MODELS
LTH1118ST-1
LTH1124ST-1
LTH1130ST-1
For use on burner models:
B3(L,M,R)STHK(18,24,30)N-1
CONGRATULATIONS on the purchase
of your new DECORATIVE VENTED GAS
LOG SET! Your Decorative Gas Log Set is
designed and intended for installation in
an approved, existing, fully vented, wood-
Once you place the base logs, you are free
to arrange the remaining logs to suit your
taste and even re-arrange them from time
to time to suit your whimsy. The log place-
ment shown in this manual replicates the
set-up shown in the brochure and provides
35720-0-0515
INSTALLATION
INSTRUCTIONS
WARNING: If the information in this manual
may result causing property damage, per-
sonal injury or loss of life.
IMPORTANT! Read these instructions carefully
before installing or operating this gas appli-
ance. These instructions should be left with the
homeowner for future reference.
WARNING: This log set is to be installed only
The vent damper must also have a damper
accidentally closing during operation.

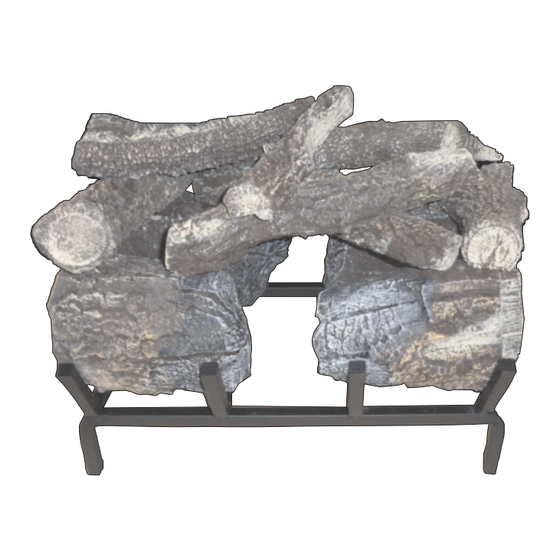

LTH1118ST Shown
Page 1
