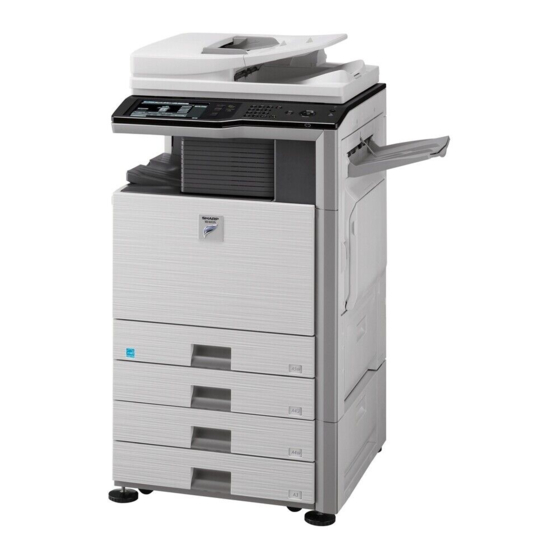

Sharp MX-2600N Safety Manual

Digital full colour multifunctional system
Hide thumbs Also See for MX-2600N:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
DIGITAL FULL COLOUR MULTIFUNCTIONAL SYSTEM
Safety Guide
Safety Guide
Safety Guide
Before installing this product, be sure to read the
"CAUTIONS" and "INSTALLATION
REQUIREMENTS" sections.
Keep this manual close at hand for reference
whenever needed.
Please see opposite side to access
to "Software Setup Guide" and "Sharpdesk
Installation Guide".
These manuals are combined for environmental protection.
MODEL:
CAUTIONS
INSTALLATION REQUIREMENTS
SUPPLIES
SPECIFICATIONS
INFORMATION ON DISPOSAL
TO THE ADMINISTRATOR OF THE MACHINE
MX-2600N
MX-3100N

Advertisement

Table of Contents
loading

Related Manuals for Sharp MX-2600N

Summary of Contents for Sharp MX-2600N

  • Page 1 MODEL: MX-2600N MX-3100N DIGITAL FULL COLOUR MULTIFUNCTIONAL SYSTEM Safety Guide Safety Guide Safety Guide Before installing this product, be sure to read the "CAUTIONS" and "INSTALLATION REQUIREMENTS" sections. CAUTIONS INSTALLATION REQUIREMENTS SUPPLIES SPECIFICATIONS INFORMATION ON DISPOSAL Keep this manual close at hand for reference whenever needed.
  • Page 2 Caution! For complete electrical disconnection, pull out the main plug. The socket-outlet shall be installed near the equipment and shall be easily accessible. Shielded interface cables must be used with this equipment to maintain compliance with EMC regulations. ➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢ Required in IEC-950 (EN 60 950) - Europe •...
  • Page 3 For the users of the fax function FAX interface cable and Line cable: These special accessories must be used with the device. The Declaration of Conformity can be viewed at the following URL address. http://www.sharp.de/doc/MX-FXX2.pdf...

  • Page 4: Table Of Contents

    • Aside from instances provided for by law, SHARP is not responsible for failures occurring during the use of the product or its options, or failures due to incorrect operation of the product and its options, or other failures, or for any damage that occurs due to use of the product.

  • Page 5: Cautions

    To prevent the loss of important documents in the unlikely event of a hard drive failure, keep the originals of important documents or store the original data elsewhere. With the exception of instances provided for by law, Sharp Corporation bears no responsibility for any damages or loss due to the loss of stored document data.

  • Page 6: Laser Information

    CAUTIONS Laser information Wave length 790 nm ±10 nm Pulse times 4.9 µs ±4.9 ns /7 mm (North America and Europe) Output power Max 0.6 mW (LD1+LD2) Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Digital Equipment is CLASS 1 LASER PRODUCT (IEC 60825-1 Edition 1.2-2001) For North America: SAFETY PRECAUTIONS...

  • Page 7: Installation Requirements

    INSTALLATION REQUIREMENTS Improper installation may damage this product. Please note the following during initial installation and whenever the machine is moved. 1. The machine should be installed near an accessible power outlet for easy connection. 2. Be sure to connect the power cord only to a power outlet that meets the specified voltage and current requirements.

  • Page 8: Supplies

    Standard supplies for this product that can replaced by the user include paper, toner cartridges, and staple cartridges for the finisher. Be sure to use only SHARP-specified products for the toner cartridges, finisher staple cartridge, saddle stitch finisher staple cartridge, and transparency film.

  • Page 9: Specifications

    (21 lbs.)) 500 sheets, heavy paper 200 sheets Paper types: SHARP-recommended plain paper, recycled paper, coloured paper, and heavy paper * First copy out time is measured with original on the document glass in full ready condition with fuser at operating temperature and mirror motor at operating speed in each of black and white mode and colour mode, actual time may vary based on environment conditions.
  • Page 10 209 g/m (28 lbs. bond to 110 lbs. index)) Paper types: SHARP-recommended plain paper, recycled paper, coloured paper, and heavy paper Output method: Face-down output (A3W and 12" x 18" paper can be output to right tray, finisher, or saddle stitch finisher) Output capacity: 500 sheets (using SHARP-recommended A4 or 8-1/2"...

  • Page 11: Continuous Copying Speeds

    SPECIFICATIONS Continuous copying speeds* Model MX-2600N MX-3100N Copy ratio 100% / Reduced / Enlarged Copy mode Colour copying Black and white copying Colour copying Black and white copying A3, 11" x 17", 8K 13 copies/min. 13 copies/min. 14 copies/min. 14 copies/min.

  • Page 12: Acoustic Noise Emission

    Standby mode MX-2600N: 5.8 B MX-3100N: 5.8 B Sound pressure level L (actual measurement) MX-2600N Colour: 51 dB (A) Black and white: 51 dB (A) Bystander positions MX-3100N Colour: 51 dB (A) Black and white: 51 dB (A) Printing mode...

  • Page 13: Exit Tray Unit (Right Tray) Specifications

    Output method Face-down output Output capacity* 100 sheets (using SHARP-recommended A4 or 8-1/2" x 11" paper) When tray is folded up: 289 mm (W) x 405 mm (D) x 52 mm (H) (11-3/8" (W) x 15-61/64" (D) x 2-3/64" (H))

  • Page 14: Stand/2X500 Sheet Paper Drawer Specifications

    500 sheets (80 g/m Paper capacity (21 lbs.)) x 2 tray Paper types SHARP-recommended plain paper, recycled paper, and coloured paper When "Auto-AB" detection is selected: Automatic paper size A3, B4, A4, A4R, B5, B5R, 216 mm x 330 mm (8-1/2" x 13") detection When "Auto-Inch"...

  • Page 15: Finisher Specifications

    SPECIFICATIONS Finisher specifications Model MX-FNX9 A3W, A3, B4, A4, A4R, B5, B5R, A5R, envelopes, 12" x 18", 11" x 17", 8-1/2" x 14", Paper sizes 8-1/2" x 13-1/2", 8-1/2" x 13-2/5", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2"R, 5-1/2"...

  • Page 16: Saddle Stitch Finisher Specifications

    SPECIFICATIONS Saddle stitch finisher specifications* Model MX-FN10 A3W, A3, B4, A4, A4R, B5, B5R, A5R, envelopes, 12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13-1/2", Paper sizes 8-1/2" x 13-2/5", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2"R, 5-1/2" x 8-1/2"R, 8K, 16K, 16KR Thin paper (55 g/m to 59 g/m...

  • Page 17: Punch Module Specifications (For Finisher)

    SPECIFICATIONS Punch module specifications (for finisher) Model MX-PNX1A MX-PNX1B MX-PNX1C MX-PNX1D Hole punching 2 holes 2 holes or 3 holes 4 holes 4 holes, broad width A3, B4, A4, A4R, B5, 2 holes: A3, A4 A3, B4, A4, A4R, B5, B5R, 11"...

  • Page 18: Printer Specifications

    SPECIFICATIONS Printer specifications Type Built-in Same as continuous copying speed (When printing same document continuously on A4 Continuous printing speed (8-1/2" x 11") plain paper in non-offset mode, excluding processing time.) Printing resolution 600 x 600 dpi / 1200 x 1200 dpi Printer driver type PCL5c, PCL6, PostScript 3 compatible* , XPS*...

  • Page 19: Network Scanner / Internet Fax Specifications

    SPECIFICATIONS Network scanner / Internet Fax* specifications Type Built-in 100 x 100, 200 x 200, 300 x 300, 400 x 400, 600 x 600 Scanning resolution (dpi) Internet Fax: 200 x 100, 200 x 200, 200 x 400, 400 x 400, 600 x 600 (200 x 100, 200 x 200 when file type is TIFF-S) Halftone can be selected for resolutions other than 200 x 100 dpi.

  • Page 20: Facsimile Specifications

    SPECIFICATIONS Facsimile specifications Model MX-FXX2 Applicable telephone line Public switched telephone network, PBX Scanning resolution 8 x 3.85 lines/mm (Standard), 8 x 7.7 lines/mm (Fine, Fine-Halftone), 8 x 15.4 lines/mm (Super Fine, Super Fine - Halftone), 16 x 15.4 lines/mm (Ultra Fine, Ultra Fine - Halftone) (supports ITU-T standards) Transmission speed...

  • Page 21: Information On Disposal

    If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.
  • Page 23 Information that the administrator of the machine requires is printed on the back of this page. (Separate this page from the manual and keep it in a safe place. In addition, fill in the name of the administrator and the administrator's contact information in the left hand margin.)

  • Page 24: To The Administrator Of The Machine

    TO THE ADMINISTRATOR OF THE MACHINE (Separate this page from the manual and keep it in a safe place.) Factory default passwords When accessing the system settings, the administrator password is required to log in with administrator rights. The system settings can be configured in the Web pages as well as on the operation panel. To access the system settings using the Web pages, a password is also required.

  • Page 25: Trademark Acknowledgments

    • IBM, PC/AT, and PowerPC are trademarks of International Business Machines Corporation. • Sharpdesk is a trademark of Sharp Corporation. • Sharp OSA is a trademark of Sharp Corporation. • RealVNC is a trademark of RealVNC Limited. • All other trademarks and copyrights are the property of their respective owners.

This manual is also suitable for:

Mx-3100n
