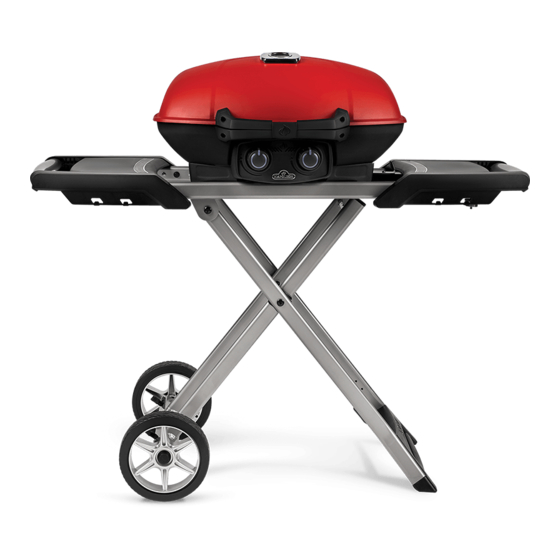

Napoleon TQ285X Manual
Hide thumbs Also See for TQ285X:

Advertisement

This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
DANGER
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING!
Failure to follow these
instructions exactly could result in fire,
or explosion which could cause property
damage, personal injury or death.
Adults and especially children should be alerted to the hazards of high surface temperatures.
Young children should be supervised near the gas grill.
Notice to Installer: Leave these instructions with the grill owner for future reference.
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: 1-705-726-4278 Fax: (705)725-2564
Customer service: 1-866-820-8686 or wecare@napoleonproducts.com
Do not try to light this appliance without
reading the "LIGHTING" instructions section
of this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. An L.P. cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
Napoleon Group of Companies
www.napoleongrills.com
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
TQ285X
WARNING
SAI Global
SAI-400093
AS4557
N415-0304 -AU JUL 08.14
PG.15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TQ285X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Napoleon TQ285X

  • Page 1 Adults and especially children should be alerted to the hazards of high surface temperatures. Young children should be supervised near the gas grill. Notice to Installer: Leave these instructions with the grill owner for future reference. Napoleon Group of Companies 214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: 1-705-726-4278 Fax: (705)725-2564 www.napoleongrills.com SAI Global Customer service: 1-866-820-8686 or wecare@napoleonproducts.com...
  • Page 2 NAPOLEON will not be responsible for the installation, labor or any other costs or expenses related to the re-installation of a warranted part, and such expenses are not covered by this warranty.
  • Page 3: Safe Operating Practices

    • This instruction manual contains important information necessary for the proper assembly and safe use of the appliance. • Read and follow all warnings and instructions before assembly and using the appliance. • Follow all warnings and instructions when using the appliance. Safe Operating Practices •...
  • Page 4 Location Locating Your Outdoor Gas Grill It is important when selecting a location for your gas grill to ensure clearances to adjacent combustibles are met. This appliance is intended for installation on an outdoor patio or in your yard. ‘This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.’...
  • Page 5 DIMENSIONS 37 cm X 54 cm (IRREGULAR) = 1840 cm OVERALL HEIGHT www.napoleongrills.com...
  • Page 6: Handle With Care

    Handle With Care CAUTION! Use care when handling or transporting your grill to prevent damage and misalignment of internal components. Although this grill has been designed with mobility in mind, rough handling or abuse will result in damage to internal components, preventing your grill from operating properly. General Information This gas grill is certified for outdoor use and should be installed to conform to local codes.
  • Page 7 Optional Supply Hose Instructions: An optional hose is available from your Napoleon Dealer that allows the grill to be connected to a 20 lb (9.1 kg) cylinder. A dented or rusted cylinder may be hazardous and should be checked by your propane supplier. Never use a cylinder with a damaged valve.
  • Page 8: Leak Testing Instructions

    Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Care department and have the grill inspected by a certified gas installer. If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the grill inspected by a certified gas installer or dealer.
  • Page 9: Lighting Instructions

    Lighting Instructions Burner Control WARNING! Open lid WARNING! Ensure all burner controls are in the off position. Connect a disposable cylinder or slowly turn on the gas supply valve (large propane cylinder). Main Burner Lighting 1. Open grill lid 2. Push and turn any main burner control knob slowly to the ‘hi’ position. This action will ignite the selected burner.
  • Page 10: Cooking Instructions

    Either trim the fat or reduce temperatures to inhibit this. Should a flare-up occur, move food away from the flames and reduce the heat. Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Cleaning Instructions WARNING! Always wear protective gloves and safety glasses when servicing your grill.
  • Page 11: Maintenance Instructions

    Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.
  • Page 12 WARNING! Hose (optional): Check for abrasions, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer. www.napoleongrills.com...
  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Causes Solution Low heat / Low flame Blockage of gas. Check for spider webs in the burner or orifice. when valve turned to high. Improper preheating. Preheat grill with main burners on high for 5 to 10 minutes. Cylinder freezing up.
  • Page 14: Ordering Replacement Parts

    KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY. Ordering Replacement Parts Warranty Information MODEL: DATE OF PURCHASE: SERIAL NUMBER: (Record information here for easy reference) Before contacting the Customer Care Department, check the NAC Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleongrills.com.
  • Page 15: Getting Started

    CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.
  • Page 16 2 x N105-0016 2 x N450-0043 If necessary the axle cap can be tapped with a rubber mallet. Si nécessaire, le essieu peut être enfoncé avec un maillet en caoutchouc. www.napoleongrills.com...
  • Page 17 www.napoleongrills.com...
  • Page 18 www.napoleongrills.com...
  • Page 19 2 x N570-0110 3/8”(10mm) www.napoleongrills.com...
  • Page 20 Fold unit as per instructions on page 17. Remove screws. Attach bracket and retighten screws. www.napoleongrills.com...
  • Page 21 www.napoleongrills.com...
  • Page 22: Parts List

    Parts List Item Part # Description N325-0085-SS1SG handle cart N120-0023 cap nylon Z570-0036 screw 1/4-20 x 7/8” N325-0086-SS1SG handle cart shelf N120-0022 cap shelf N120-0021 cap shelf N570-0013 screw #8 x 5/8” N590-0237 shelf left / right N570-0076 screw #8 x 1/2” N570-0111 screw #14 x 1 1/4”...
  • Page 23 Parts List Item Part # Description N010-0806-SS1SG cart wheel side N745-0007 wheel 8” N015-0007 axle N105-0016 wheel bushing N160-0026 clip tubing N450-0043 nut axle cap N655-0156 support lid handle left N655-0157 support lid handle right N390-0003 latch handle N051-0009 bezel temperature gauge N685-0015 temperature gauge N330-0021...
  • Page 24 www.napoleongrills.com...
  • Page 25 www.napoleongrills.com...
  • Page 26 NOTES www.napoleongrills.com...
  • Page 27 NOTES www.napoleongrills.com...
  • Page 28 N415-0304-AU...
