Functional Description and Specifications
safety measures reduce the risk of starting the tool accidentally.
SAFETY SWITCH
RELEASE BUTTON
UPPER GUARD
LOWER
GUARD LIFT
LEVER
Model number
Maximum Capacities
Blade
Blade arbor hole
Depth of cut at 90°
Depth of cut at 45°
Depth of cut at 51°
NOTE: For tool specifications refer to
the nameplate on your tool.
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive

Circular Saws

TRIGGER
LOWER GUARD
5280
7-1/4"
5/8" Round
2-7/16"
1-15/16"
1-11/16"

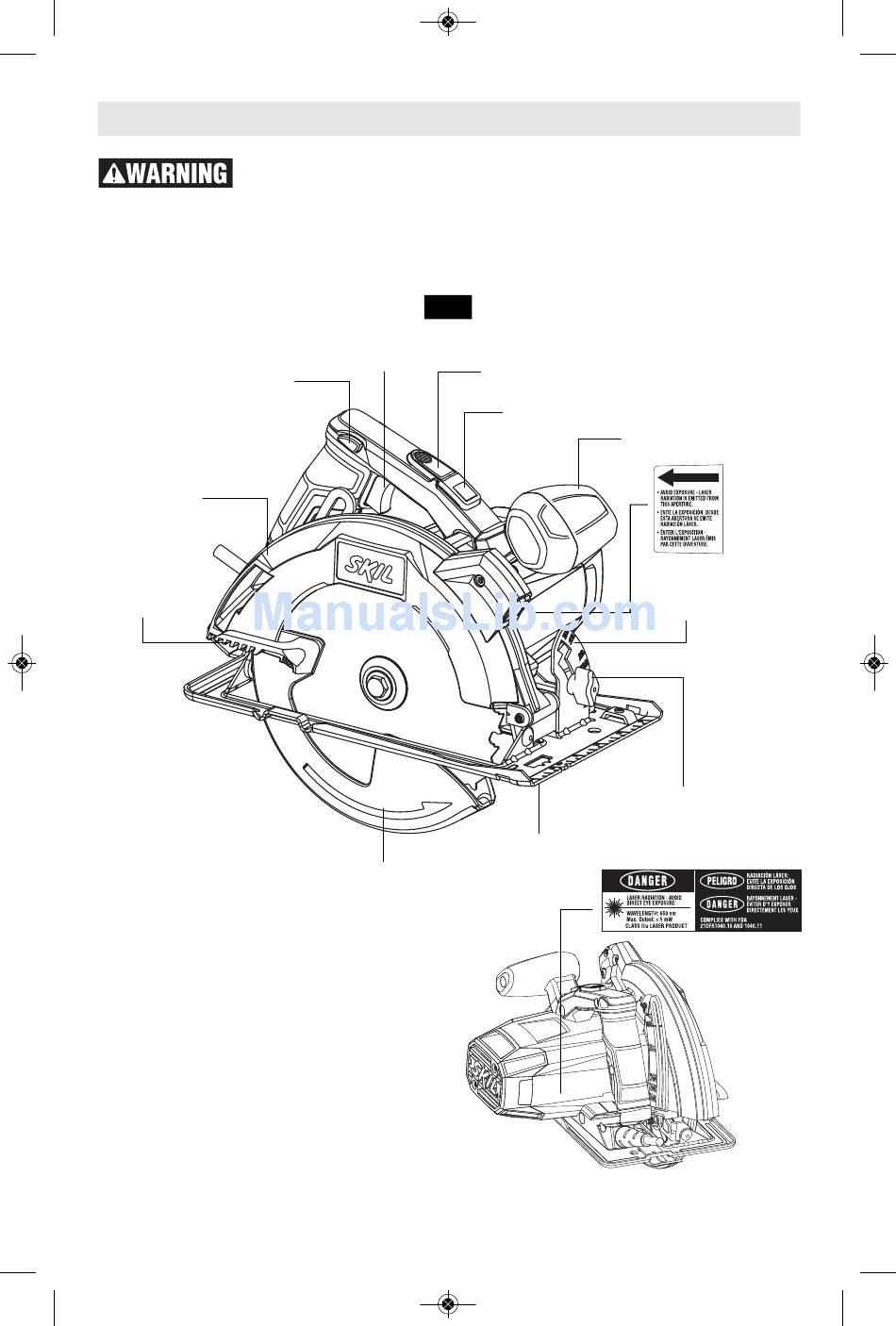

FIG. 1
LASER BUTTON
POWER INDICATOR LIGHT
FOOT
-8-
AUXILIARY HANDLE
CALIBRATED
BEVEL
QUADRANT
BEVEL
ADJUSTMENT
WING NUT
