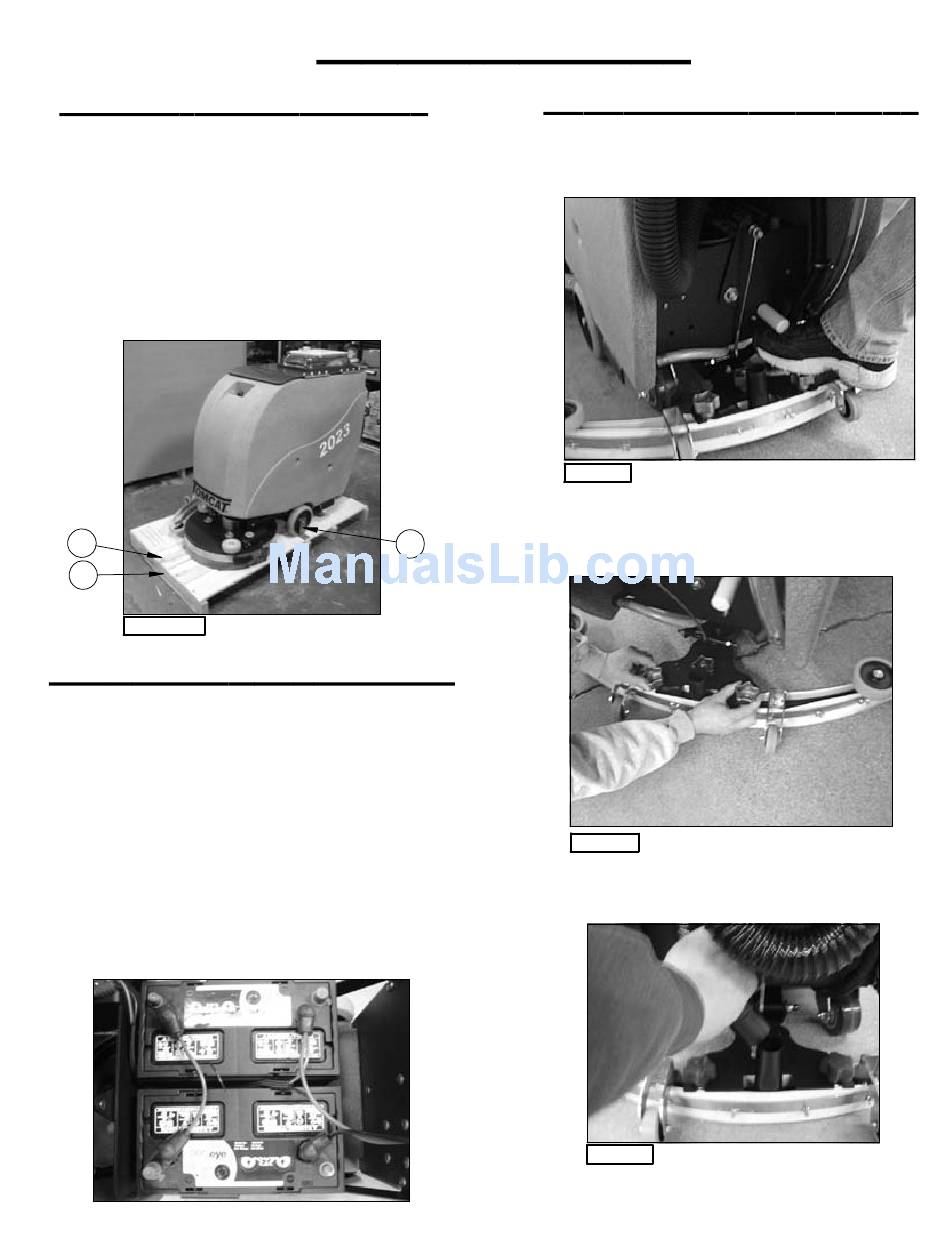

UNCRATING MACHINE

CAREFULLY CHECK THE CRATE FOR ANY SIGNS OF
DAMAGE AND THAT THE BATTERIES ARE IN THE UNIT.
TO UNCRATE THE MACHINE, REMOVE BANDING FROM
AROUND THE CRATE. TAKE OFF THE TOP AND SIDES
AND DISPOSE OF PROPERLY. REMOVE BRACKETS
FROM MACHINE WHEELS. REMOVE BOLTS
PALLET THEN REMOVE BOARD
THE MACHINE OFF OF THE BASE. NOTIFY THE CARRIER
IMMEDIATELY IF CONCEALED DAMAGE IS DISCOVERED .
(SEE FIGURE 5.)
B
C
FIGURE 5.
CONNECTING BATTERIES
YOUR MACHINE IS EQUIPPED WITH (TWO) 12 VOLT,
DEEP CYCLE, 140 OR 205 AMP HOURS BATTERIES,
WHICH FORM A 24 VOLT SYSTEM. MAXIMUM BATTERY
DIMENSIONS ARE 7" W X 15" L X 15" H. SEE PICTURE
BELOW FOR CORRECT CABLE CONECTIONS.
1. TURN ALL SWITCHES TO THE OFF POSITION AND
REMOVE KEY (IF MACHINE IS EQUIPPED WITH
OPTIONAL KEY SWITCH).
2. TURN ON MAIN POWER SWITCH AND CHECK
THE BATTERY CONDITION METER TO ENSURE
CORRECT INSTALLATION. CHARGE BATTERIES IF
NEEDED. (SEE: BATTERY CHARGING)
*BATTERY CABLE CONNECTIONS*

MACHINE SETUP

(A)
(B) FROM
. CAREFULLY ROLL
(C)
A
PAGE 9
ATTACHING SQUEEGEE
1. LOWER THE SQUEEGEE MOUNTING PLATE BY
ROTATING THE LIFT LEVER COUNTER-CLOCKWISE.
(SEE FIGURE 6.)
FIGURE 6.
2. LOOSEN THE TWO KNOBS ON THE SQUEEGEE
AND SLIDE THEM INTO THE SLOTS IN THE SQUEEGEE
MOUNTING PLATE. THE SQUEEGEE TRAIL WHEELS
SHOULD FACE OUTWARD. (SEE FIGURE 7.)
FIGURE 7.
3. TIGHTEN THE TWO KNOBS, AND CONNECT
VACUUM HOSE FROM THE MACHINE TO THE
SQUEEGEE. (SEE FIGURE 8.)
FIGURE 8.
4. YOU MAY HAVE TO ADJUST THE SQUEEGEE PITCH.
(SEE ADJUSTING SQUEEGEE NEXT PAGE) .
