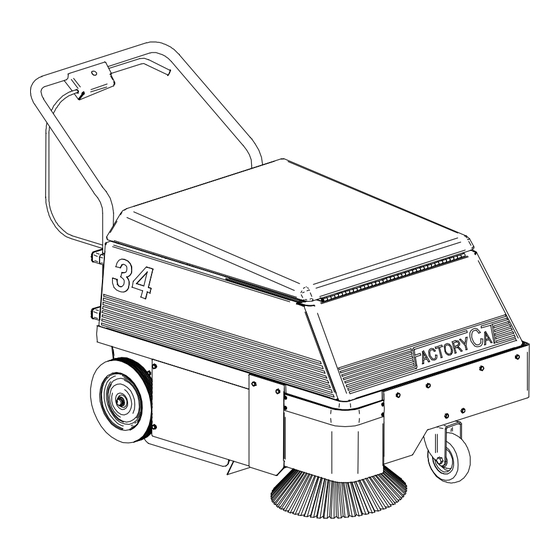

FactoryCat 34 Operator, Parts, & Service Manual

Industrial sweeper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

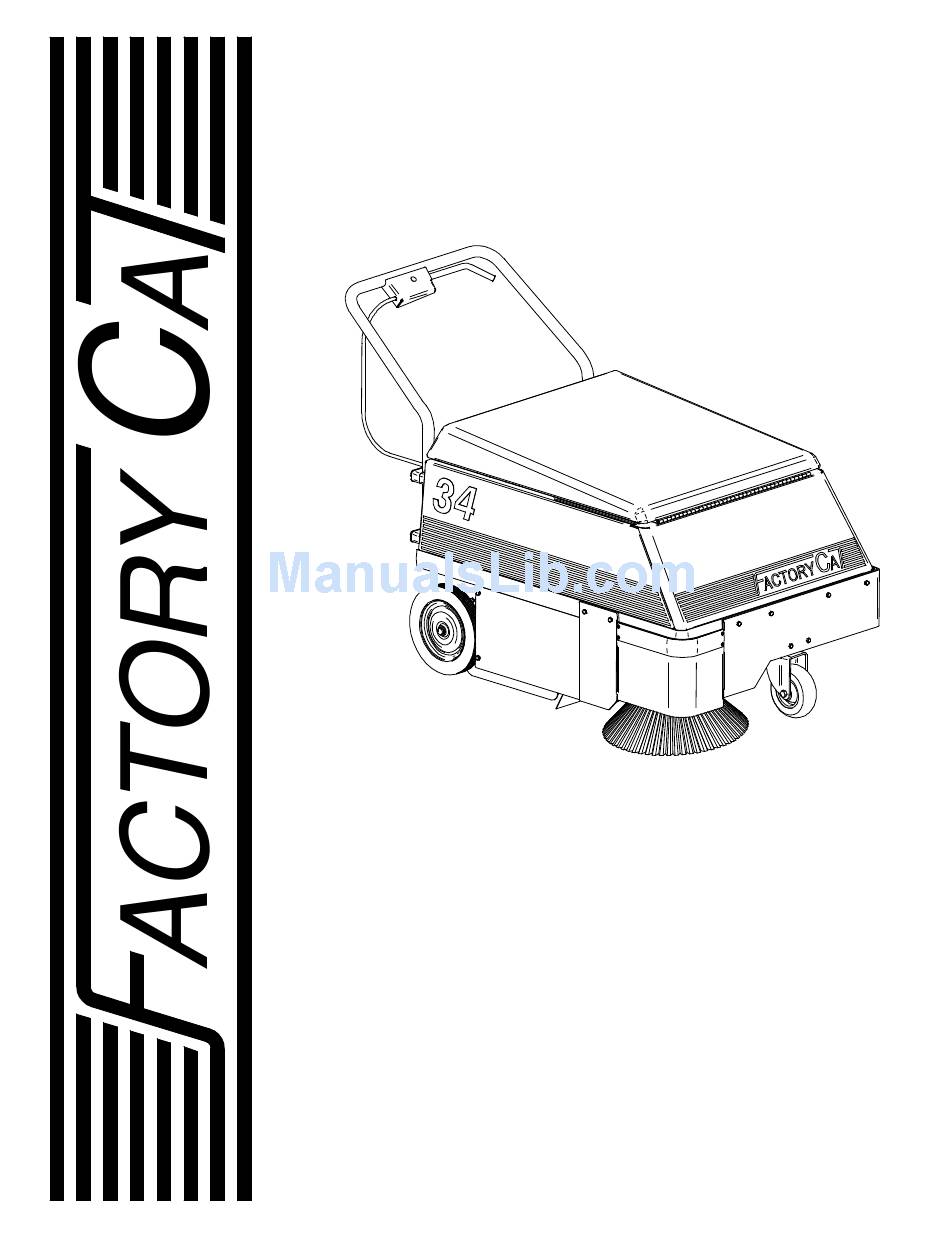

Operator, Parts, &

Service Manual

Model 34
Industrial Sweeper
R.P.S. Corporation
Phone: 1-800-634-4060
P.O. Box 368
Fax:
1-866-632-6961
Racine, Wisconsin 53401
www.factorycat.com
Copyright R.P.S. Corporation 2002
Edition 7, World Rights Reserved.

Advertisement

Table of Contents
loading

Related Manuals for FactoryCat 34

Summary of Contents for FactoryCat 34

  • Page 1: Service Manual

    Operator, Parts, & Service Manual Model 34 Industrial Sweeper R.P.S. Corporation Phone: 1-800-634-4060 P.O. Box 368 Fax: 1-866-632-6961 Racine, Wisconsin 53401 www.factorycat.com Copyright R.P.S. Corporation 2002 Edition 7, World Rights Reserved.

  • Page 2: Safety Warnings

    SAFETY WARNINGS! 1. READ THIS MANUAL CAREFULLY BEFORE OPERATING, ADJUSTING OR REPAIRING THIS MACHINE. 2. CHARGING THE BATTERY WILL PRODUCE EXPLOSIVE HYDROGEN GAS. Do not smoke or allow an open flame near a charging battery. Do not charge battery with the hood (lid) of the machine closed or hydrogen gas may accumulate within. 3.
  • Page 3 SHORT LIST OF DO'S AND DON'TS The main Pull on the Let go of the 3. TO SWEEP: 1. TO GO: 2. TO STOP: broom has to be on the floor. clutch lever gently, to propel clutch lever to roll to a stop. Use left-hand lever to lower it.
  • Page 4 SHORT LIST OF DO'S AND DON'TS 10. SIDE BROOM ADJUSTMENT. Very Important. Your side broom must not be squashed flat, but must look like this. RIGHT! The broom must be mounted in the top hole of the broom shaft, and the adjusting screw must be screwed in so broom just touches the floor in front.
  • Page 5 IDENTIFYING THE CONTROLS Main Broom Position Lever. Side Broom Position Lever. Main Power On/Off Switch. (On single switch machines, this switch has three positions, and can also turn on the side broom.) Side Broom On/Off Switch. (Not found on single switch machines.) Clutch and Brake Lever.

  • Page 6: How It Works

    HOW IT WORKS FORWARD MOTION Main Broom, which is tubular in shape, CLEAN AIR and extends across width of machine, rotates in direction shown, pushing dirt and debris into hopper. MAIN BROOM Side broom (when used) picks up dirt in corners and pushes it toward the middle of the machine where the main DIRT broom picks it up.

  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Clutch and Brake Lever Stop (Brake) PLEASE CAREFULLY READ WARNINGS ON PAGE TWO OF THIS MANUAL. Neutral Forward Refer to Page 4 for location of controls. To make the machine move under its own power - without sweeping: -Turn on Main Switch Pull the lever toward you to go forward.
  • Page 8 OPERATING INSTRUCTIONS To Remove The Dirt Hopper: To Sweep a Wet Floor. If you are going to sweep a wet surface, you should do so with the air system shut off. Otherwise, the vaccuum fan will pull water into the filter, making it muddy and hard to clean. To shut off the air to the filter, open the small door at the end of the back painted filter housing (Page 4, Item 12).
  • Page 9 OPERATING INSTRUCTIONS Recharging Battery. Built-In Battery Charger. If your machine is equipped with a built-in battery charger, simply turn off the machine, set the brake, open the hood (lid), and plug in the charger to a wall outlet with the correct voltage. In North America, our chargers are usually equipped for a single phase 110V (60Hz) operation, the same power as used in houses.

  • Page 10: About Batteries

    ABOUT BATTERIES: We do not recommend use of anything but a deep cycle battery, one made to run a long time between recharging. An automotive battery, designed to be recharged (by the cars alternator) right after short use, will give poor service. We do not recommend use of a battery that weighs more than 120lbs, since this could make steering difficult.

  • Page 11: Machine Maintenance

    MACHINE MAINTENANCE MAIN BROOM The highest maintenance item BATTERIES: on your machine will be its storage battery. Please read the "About Batteries" section of this book. Replace the main brooms MAIN BROOMS: when they stop sweeping to your standards. Vee-Broom. Preferred Style We recommend you use our brooms.

  • Page 12: Side Broom Adjustment

    MACHINE MAINTENANCE SIDE BROOM ADJUSTMENT Side broom will not sweep if it is flat on the TO REPLACE SIDE BROOM: 1. Turn off machine and unplug battery. ground. 2. Raise side broom off of ground with Fiber should touch the ground in an 11 O'Clock control lever.

  • Page 13: Brake Adjustment

    Clutch Adjustment: MACHINE MAINTENANCE When set properly, machine should not "creep" in CLUTCH AND BRAKE ADJUSTMENT neutral, but lever should begin to take hold when As explained in "How it Works", (Page 5), the clutch lever is depressed 1/2" or so. To set neutral, a thin and brake operate with the same control and by business card should just barely fit between way of the same clutch donut.

  • Page 14: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Check for Cause of Problem in Order Shown: PROBLEM: MAIN MOTOR WILL NOT RUN. Check that the hoods safety switch, (Page 4, Item 17), is firmly down. Check battery voltage. (When voltage is too low, circuit breaker will cut out). Check for loose circuit wiring.
  • Page 15 TROUBLESHOOTING GUIDE PROBLEM: BROOMS ROTATE, BUT MACHINE DOES NOT SWEEP WELL. Main Broom may be worn out. While machine can sweep with as little as one half inch of main broom fiber, main broom should have 1.0" of fiber or more to sweep really well. 2.
  • Page 16 SPARE PARTS BOOK Walk-Behind Sweepers Spare parts are sold through authorized Dealers. If you have forgotten your dealer's name, or you have moved the machine to a new location, please Call us at: 1 (800) 634-4060, or and we will re-establish a dealer contact for you. Fax us at: 1 (866) 901-3335 TO ORDER PARTS: Please provide the machine's Serial No.

  • Page 17: Wiring Schematics

    Wiring Schematics For machines after Serial No. "BY-2220" with Side Broom Circuit Breaker = Battery (12 Volt) = Main Relay = Main Broom Motor = Side Broom Motor = Side Broom Circuit Breaker (6 Amp) = Main Circuit Breaker (80 Amp) = Safety Switch = Master Switch = Side Broom Switch...
  • Page 18 Wiring Schematics For machines after Serial No. "CI-3200" with Single Electrical Switch for Main and Side Brooms = Battery (12 Volt) = Main Relay = Main Broom Motor = Side Broom Motor = Side Broom Circuit Breaker (6 Amp) = Main Circuit Breaker (80 Amp) = Safety Switch = Main and Side Broom Switch = Hour Meter...
  • Page 19 Upper Body Assy CLUTCH LEVER ASSY P/N 4-134 COMPLETE HANDLEBAR ASSY P/N 4-121 HANDLEBAR MNTG BKT ASSY P/N 4-122 PAGE 17...
  • Page 20 Item Part No. Description Comments 4-101 SERIAL NO. PL. (FACTORY CAT) 21-0101 SERIAL NO. PL. (TOMCAT) 4-110 HOOD 4-111 MAIN BODY 4-112 2" BLK STRIP BUMPER 12 FT SECTION 4-122A HANDLEBAR MTG BKT 4-122 INCL. 4-122A, 4-122B, & HARDWARE 4-122B BLACK PLASTIC CLAMP 4-122 INCL.

  • Page 21: Air System

    Air System COMPLETE FILTER ELEMENT P/N 4-500. PAGE 19...
  • Page 22 Item Part No. Description Comments 4-111 MAIN BODY 4-125 MOTOR SUPT BRACKET 4-201 12V,TWIN SHAFT MOTOR 4-201B MOTOR CRADLE 4-210 TERMINAL CLIP 4-232 CIR. BREAKER - 12V/80A 4-233 12V SOLENOID 4-301 MAIN DRIVE PULLEY 4-501 FILTER HOOD P/N 4-502 INCL. P/N 4-502K, SEAL KIT 4-502 FILTER ELEMENT P/N 4-503 INCL.
  • Page 23 Lower Body Assy 52 46 45 53 38 30 COMPLETE FLOOR SEAL KIT COMPLETE HOPPER ASSEMBLY P/N 4-550 P/N 4-118 PAGE 21...
  • Page 24 Item Part No. Description Comments 4-108 DOOR MNT ANGLE 4-111 MAIN BODY 4-113 R. INNER SIDE PANEL 4-114 SKIRT PLATE, RT 4-115 SKIRT PLATE REAR 4-116 CASTER MTG BRACKET 4-117 FRONT CROSS PANEL 4-118B HOPPER BODY 4-119 BROOM ACCESS HATCH 4-118 INCL.
  • Page 25 Side Broom Assy RIGHT LIFT ARM ASSY P/N 4-455 DRIVE TUBE ASSY SIDE BROOM MOTOR ASSY P/N 4-445 P/N 4-425 PAGE 23...
  • Page 26 Item Part No. Description Comments 4-111 MAIN BODY 4-113 R. INNER SIDE PANEL 4-220 SIDE BROOM MOTOR P/N 4-425 INCL. ITEMS 3,15,16,17,18 & HARDWARE 4-376 BROOM LIFT LEVER P/N 4-455 INCL. ITEMS 4,5,6,7,8,19 & HARDWARE 4-378 BROOM LIFT SHAFT 4-381 LIFT LEVER BASE, RT 4-385 LIFT LEVER COLLAR...
  • Page 27 Main Broom Assy MAIN BROOM LIFT BROOM LAT ARM ARM ASSY, P/N 4-449 ASSY, P/N 4-415 IDLER ARM ASSY LIFT SUPT ASSY P/N 4-435 P/N 4-423 PAGE 25...
  • Page 28 P/N 4-435 INCL. 4-430, 4-432, 4-432A, & HARDWARE 4-432A IDLER DRUM SPACER P/N 4-435 INCL. 4-430, 4-432, 4-432A, & HARDWARE 4-436 ADJ. BROOM LIFT P/N 4-449 INCL. ITEMS: 10,11,12, 1 4,15,33,34,39,51,52 & HDWE 4-437 BROOM LONG LINK 4-438 BROOM ROTARY LINK 4-439...

  • Page 29: Drive System

    Drive System 38 43 CLUTCH DONUT P/N 4-332 TRANSMISSION ASSY P/N 4-375 REAR TIRE, WIDE P/N 4-358 PAGE 27...
  • Page 30 Item Part No. Description Comments 4-111 MAIN BODY 4-113 R. INNER SIDE PANEL 4-120 REAR INNER PANEL, LT 4-125 MOTOR SUPT BRACKET 4-201 12V,TWIN SHAFT MOTOR 4-201B MOTOR CRADLE 4-210 TERMINAL CLIP 4-301 MAIN DRIVE PULLEY 4-311 BELT, 4L260 4-312 TRANS INPUT PULLEY P/N 4-375 INCL.

  • Page 31: Power Supply

    Power Supply COMPLETE BATTERY BUCKLE P/N 4-136 PAGE 29...
  • Page 32 Item Part No. Description Comments 4-111 MAIN BODY 4-125 MOTOR SUPT BRACKET 4-128 BATTERY TRAY 4-128A BATTERY TRAY LINER 4-136A 1" HD BLACK WEBBING P/N 4-136 INCL. 4-136A, 4-137, & 4-137A 4-137 BATTERY BUCKLE P/N 4-136 INCL. 4-136A, 4-137, & 4-137A 4-137A TRIGLIDE P/N 4-136 INCL.
  • Page 33 SWEEPER MAINTENANCE RECORDS Operator's Name: Week Of: Monday Tuesday Wednesday Thursday Friday Maintenance Item Daily Park Machine with Brooms Up Shake Filter with Crank Remove and Empty Hopper Open Hood Plug In Charger to 110V Outlet Clean Machine with "Pledge" and Cloth Check Main Broom for Debris Weekly Check Battery Water Level...

  • Page 34: Standard Warranty Policy

    STANDARD WARRANTY POLICY Eighteen (18) Months Coverage Replacement parts will be supplied free for from date of delivery to PARTS: 18 months or 750 hours customer. This parts warranty includes all parts on the machine except normal wear parts. These exceptions are: The brooms (main and side).
  • Page 35 Wiring Schematics For machines after Serial No. "BY-2220" with Side Broom Circuit Breaker = Battery (12 Volt) = Main Relay = Main Broom Motor = Side Broom Motor = Side Broom Circuit Breaker (6 Amp) = Main Circuit Breaker (80 Amp) = Safety Switch = Master Switch = Side Broom Switch...
  • Page 36 Wiring Schematics For machines after Serial No. "CI-3200" with Single Electrical Switch for Main and Side Brooms = Battery (12 Volt) = Main Relay = Main Broom Motor = Side Broom Motor = Side Broom Circuit Breaker (6 Amp) = Main Circuit Breaker (80 Amp) = Safety Switch = Main and Side Broom Switch = Hour Meter...
