Summary of Contents for Teka NF1 650

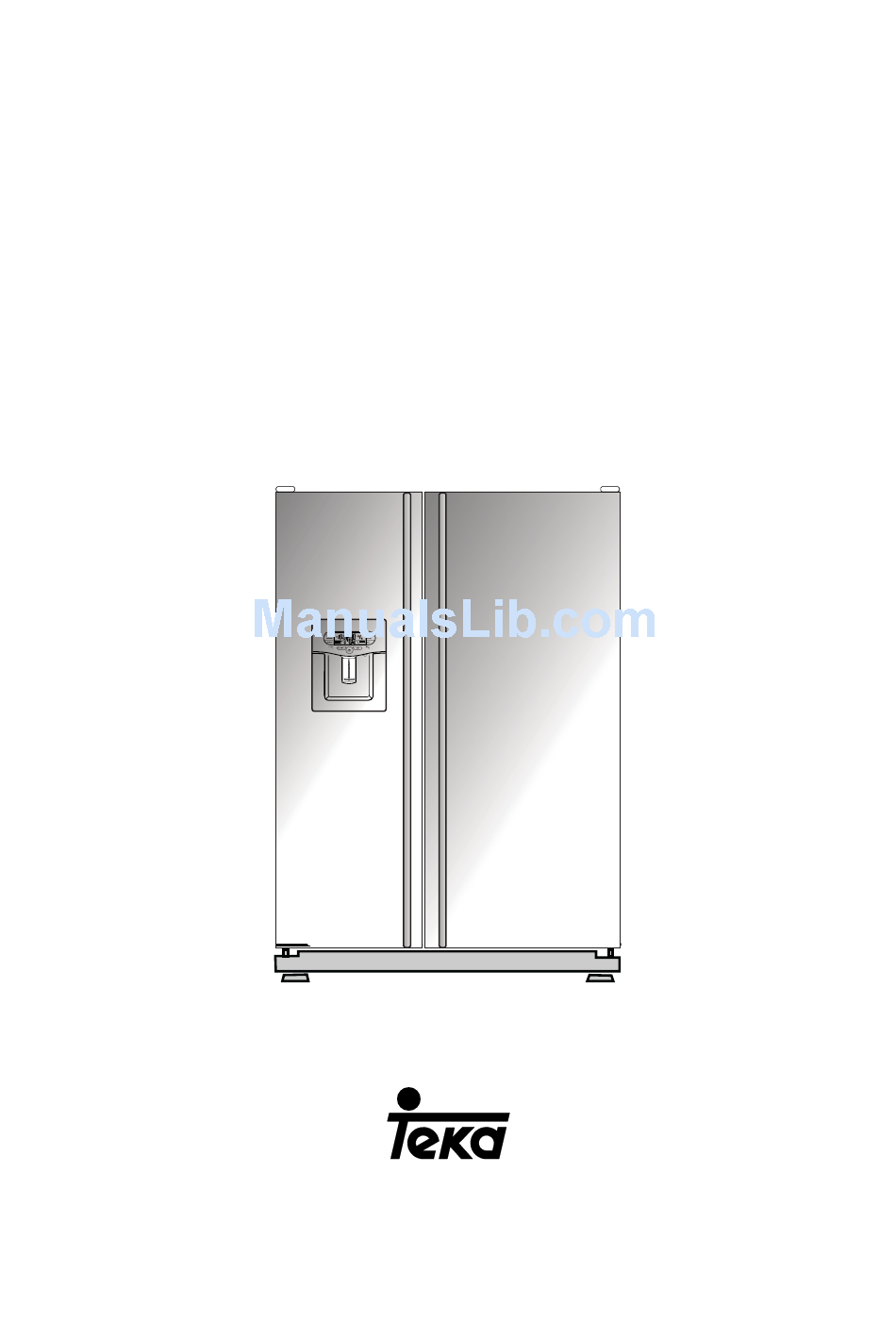

- Page 1 NF1 650 EN-Instruction Manual FR-Notice d’Utilisation...
-
Page 2: Table Of Contents
Contents > 3 Technical specifications of your refrigerator > 4 Prior to operating your refrigerator Why No-Frost? ..........5 Safety precautions›........6 Installing Your Refrigerator......7 Operating your refrigerator ......14 > 15 Using your refrigerator Using the accessories ........18 Placing the food..........24 Things to be done for saving energy ....25 Changing the illumination lamp ....23 >... -
Page 3: The Refrigerator
The Refrigerator Freezer compartment Fridge Compartment glass shelves Fridge compartment Egg holder Fresh Freeze compartment Fridge Compartment door racks Ice container Fridge Compartment interior light Freezer Compartment interior light Snack tray Freezer Compartment glass shelves Crisper compartment Ice duct lid Crisper or Chiller Compartment Freezer compartment drawers Crisper or Chiller Compartment... - Page 4 The Refrigerator MAIN BOARD COVER: NEVER REMOVE THIS COVER Power mains cable Icematic water supply pipe Water pipe cover Cold water mains inlet valve REAR COVER: NEVER REMOVE THIS COVER...
-
Page 5: Prior To Operating Your Refrigerator
Technical specifications of your refrigerator Model NF1 650 Refrigerator/deep-freeze for domestic use Product Category Energy Class Annual Energy Consumption (Actual consumption varies depending on (kWh/year) where and how the appliance is used) Fridge Compartment Volume (Net-lt) Frozen Food Compartment Volume... -
Page 6: Why No-Frost
Prior to operating your refrigerator • Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed. This product is designed for domestic use. • Your refrigerator must run smoothly without Prior to operating your refrigerator, any vibration. -
Page 7: Safety Precautions
Safety precautions • When you want to dispose/scrap the product, refrigerator's mains supply by either turning we recommend you to consult the authorized off the relevant fuse or unplugging your service in order to learn the required appliance. information and authorized bodies. •... -
Page 8: Installing Your Refrigerator
Placing and Assembly of Your Refrigerator Caution: sources, humid places and direct sunlight. Never plug the refrigerator in to the wall outlet during installation. Otherwise, There must be appropriate air ventilation risk of death or serious injury may arise. around your refrigerator in order to achieve an efficient operation. - Page 9 Door height adjustment Floor balance adjustment In case there is a problem with the If your refrigerator is not level, you can level alignment of the doors, with respect to it by turning the front feet as illustrated in the each other, they may be aligned by figure below.
- Page 10 Loosen the three screws of the hinges of • If the freezer compartment door is lower the lower door, which you wish to escalate, than the fridge compartment door, bring them with the help of a screwdriver as shown in to the same level by turning the turning the the figure below.
- Page 11 Installation Requirements In order to operate the automatic ice maker/dispenser and chilled water dispenser, your appliance needs to be plumbed into the cold mains water supply in your house via a standard 1/2 “ valve fitting. In case this valve is not present or in case you are not sure, consult a qualified plumber.
- Page 12 Connection of the Water Pipe to the Cold Water Mains Line Caution: Secure the water pipe to suitable Separate the nut from the tap adaptor. points by means of the pipe clips supplied Figure A) to avoid any damage or displacement or As shown in the figure, assemble the tap accidental disconnection.
- Page 13 Water Filter Water Pipe Water Pipe Filter By-pass Cover Bypass Cover To fit the water filter follow the instructions appear on the screen after about 6 months. below referring to figures supplied: The warning light will remain on for about 15 days before it starts to flash.
- Page 14 for 2 seconds and the warning will be reactivated. Caution: Water filter is for cleaning some foreign particles in the water. It does not purify water from microorganisms. Caution: Ice off button must always be REMOVE pressed during replacement of the water filter or installing the bypass cover.
-
Page 15: Operating Your Refrigerator
of 1 minute until water comes from the 8 bars for the operation of Ice/water Dispenser Dispenser. Water flow may be irregular in the smoothly. For this, check that 1 glass of water beginning. Irregular water flow will be (100 cc) can be filled in 10 seconds. normalized after the air in the system is discharged. -
Page 16: Using Your Refrigerator
Using your refrigerator Setting Buttons and Temperature Control Control buttons allow you to make the settings of your refrigerator easily and without opening the doors. Thus, heat loss is avoided. Fridge Set/ Vacation button Freezer Set button Fresh Quick Freeze Cool Button button... - Page 17 Freezer Fridge Compartment Compartment Explanations Adjustment Adjustment -18°C 4°C This is the normal recommended setting. -20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C. Fresh freeze Use this when you wish to freeze your food or make ice in a Display will show 4°C short time.
- Page 18 Quick Cool Function When you press “Quick Cool” button, the compartment temperature setting will switch temperature of the compartment will be to 1°C whilst the Quick Cool is active. To colder than the adjusted values. This function cancel this function press Quick Cool button can be used for food placed in the fridge again.
-
Page 19: Using The Accessories
Using the accessories Ice/Water Dispenser With its three different functions, the dispenser efficiently meets your cold water, cube ice Note: and crushed ice needs without having to open • Water or ice can be dispensed for a the door of the refrigerator. It is a continuous maximum of 60 seconds at each use. - Page 20 cubes and a decrease in the form of ice is • In case you see condensation on the normal in case ice is not obtained from dispenser (water drops) or in case you connect dispenser for a long time or in case of power your device to the water mains, make sure outages.
- Page 21 Humidity control in the crisper Humidity level can be adjusted by sliding the humidity adjustment slider to the right or left. • If you want to maintain humidity in this compartment, set the humidity adjustment slider to the closed position. (Left) •...
- Page 22 Fresh Freeze This compartment freezes your food quickly and preserves their tastes and nutritional values. Crisper and Chiller Compartment Crisper or Chiller (0°C i. e. zero degree centigrade compartment (1) • The drawer at the bottom of the fridge compartment can be converted into a salad c r i s p e r o r a C h i l l e r C o m p a r t m e n t .
- Page 23 Freezing Fresh Food • It must be preferred to wrap or cover the specifications of your refrigerator.) food before placing them in the refrigerator. • Periods given in the information about deep • Hot food must cool down to the room freeze must be obeyed for storage times.
-
Page 24: Changing The Illumination Lamp
Replacing the Interior Light Bulb Should the light fail to work, proceed as 3. First check that the bulb hasn't worked follows: loose by ensuring that it is screwed securely in the holder. Replace the plug and switch on. 1. Switch off at the socket outlet and pull out If the bulb works, replace the light cover by the mains plug. -
Page 25: Placing The Food
Placing the food... -
Page 26: Things To Be Done For Saving Energy
Things to be done for saving energy 4. Do not install your refrigerator under direct 1. Do not keep the doors of your refrigerator sunlight or near heat emitting appliances such open for a long time. as oven, dishwasher or radiator. 2. -
Page 27: Cleaning Your Refrigerator
Cleaning your refrigerator Warning!!! upwards from the base. • To remove a freezer drawer, pull it as far Never use gasoline, as possible, and then tilt it upwards, and then benzene or similar pull it out completely. A S E B E N •... - Page 34 48 4501 0000...
