Summary of Contents for Reflecta Super 8

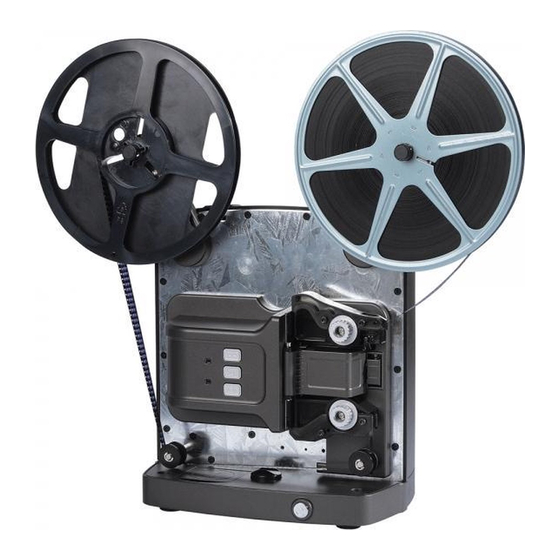

- Page 1 Quick Installation Guide Super 8 Roll Film Digitizer...
- Page 3 2) Take-up Reel (Arm) 1) Supply Reel (Arm) COMPONENTS Front (Figure 1): 1) Supply Reel (Arm) 2) Take-up Reel (Arm) 3) Feed Sprocket 4) Forward Button • Press briefly (1 sec)—feeding frame one by one, • Press and hold (more then 3 seconds)--- Continuously 3) Up Feed Sprocket feeds the frames 5) Stop Button...
- Page 4 Super 8 scanner Quick guide Before Installing Scanner Check your Super 8 Film Reel, Film and Hard Disk Space х х х х ○ ○ Film Reel : Super 8 Scanner support 1”~8” standard Super 8 film reel Film: 1. Please make sure your film is smooth, if not Fig.
- Page 5 Super 8 scanner Quick guide Calibration Light Source (First time use) Open the Case Wait for LED light to turn Orange click “Calibration” button Activate the Turn on Power CyberView S8 Software After Finish Calibration click “OK” button Connect to USB to PC Create a New Movie Plan and click “Next”...
- Page 6 Wait for LED light to turn Orange Install movie film reel to Supply Reel Arm and Take-up Reel Arm Open the Reel Arm Activate the Install film to Super 8 Scanner CyberView S8 (Please see “How to install film”) Software Make Sure the Reel is...
- Page 7 Super 8 scanner Quick guide How to install film to Super 8 Scanner Click Stop Button Feeding film into the Film Rollers Press the Forward Button until film Turn on Power Feeding film into Up Feed is rolling tight then press Stop...
- Page 8 Super 8 scanner Quick guide How to clean your film with Super 8 Scanner Open the cover of the Feeding film into the Take-up Reel Turn on Power Activate the Film Cleaner CyberView S8 Software Add cleaning solvent to Install movie film reel to Supply...
- Page 9 CyberView S8 Software Quick guide Installing the CyberView S8 Software 1. Install the CyberView S8 2. Connect the USB to the PC 3. Push the Power Button to turn the unit on 4. Install film to S8 Digitizer 5. Open the CyberView S8 Create a new movie 1.
- Page 10 CyberView S8 Software Quick guide Preview Widow Capture interface 1. Check the preview window 2. Click “up” and “down” to check your first Frame Control button capture frame 3. Click “Capture” to start digitizing S8 movie Auto Brightness 4. After you finish digitizing the S8 movie, the Brightness adjustment bar software will auto stop capture...
- Page 11 CyberView S8 Software Quick guide Preview Widow Combine interface 1. Check the preview window 2. Choose your super 8 movie frame rate(18 or 24 frame rate/ sec) Output Size 3. Click apply button to preview digitized frames 4. Choose output size “1080p” or “720p”...
- Page 12 CyberView S8 Software Quick guide Advanced Setting More detail operation function, setting and troubleshooting please check user manual (in Cyberview S8 CD) or go to reflecta website www.reflecta.de...
