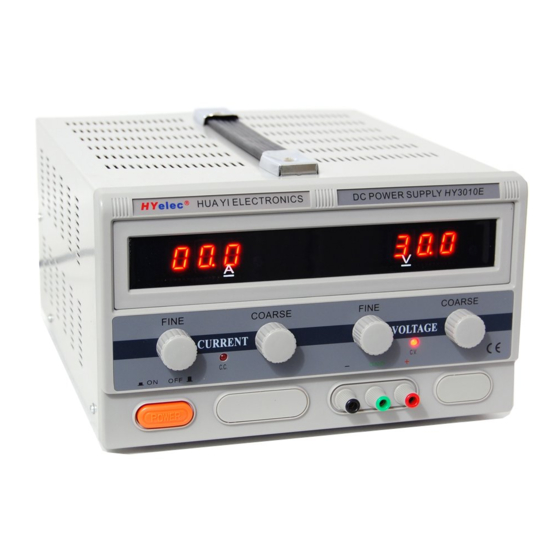

Mastech HY3010E User Manual

Mastech HY3010E User Manual

Dc regulated power supply

Advertisement

USER'S MANUAL
DC REGULATED POWER SUPPLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY3010E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mastech HY3010E

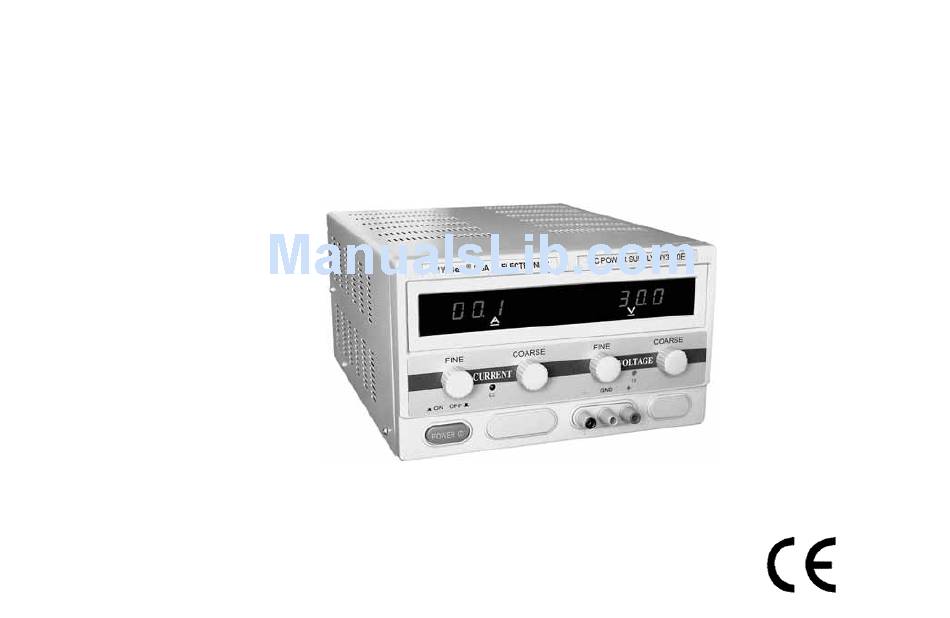

  • Page 1 USER’S MANUAL DC REGULATED POWER SUPPLY...
  • Page 2 DC POWER SUPPLY BRIEF INTRODUCTION: The HYXXXXE series Switching DC power supply are very stable, DC power supplies allowing continuous adjustment of both the output voltage and output current levels. MODELS: MODEL HY3010E HY3020E HY3030E HY3050E HY5005E HY5010E HY5020E HY10010E...
  • Page 3 1.2 Line regulation : CV≤0.02%+3mV CC≤0.5%+3mA 1.3 Load regulation : CV≤0.02%+10mV(I≤6A) CC≤0.5%+10mA(I≤6A) CV≤0.1%+5mV(I>6A) CC≤0.5%+20mA(I>6A) 1.4 Protection : constant current and short-circuit protection 1.5 Voltage indication accuracy : LED±1%+2digits, analogue display 2.5% 1.6 Current indication accuracy : LED±2%+2digits, analogue display 2.5% 1.7 Environment : 0 ~+40 relative humidity : <90% 2 OPERATION...
  • Page 4 (11) Constant current mode indicator (12) Constant voltage mode indicator 2.2 OPERATING PROCEDURE 2.2.1 For constant voltage mode adjust controls 3 & 4 clockwise to the maximum position. Switch on the power ON/OFF switch 7 and adjust controls 5 & 6 to set the desired output voltage. Connect the load to the output terminals 8 &...
  • Page 5 3.2 The mains power must be switched off before servicing and servicing should be referred to a qualified person. 3.3 The unit should be stored in a dry and well ventilated place and the power cord removed if storing for long periods. 4 ACCESSORIES 4.1 Power cord-------------------------------one piece 4.2 Instruction manual----------------------one piece...

This manual is also suitable for:

Hy3030eHy3050eHy3020eHy5005eHy5010eHy5020e ... Show all
