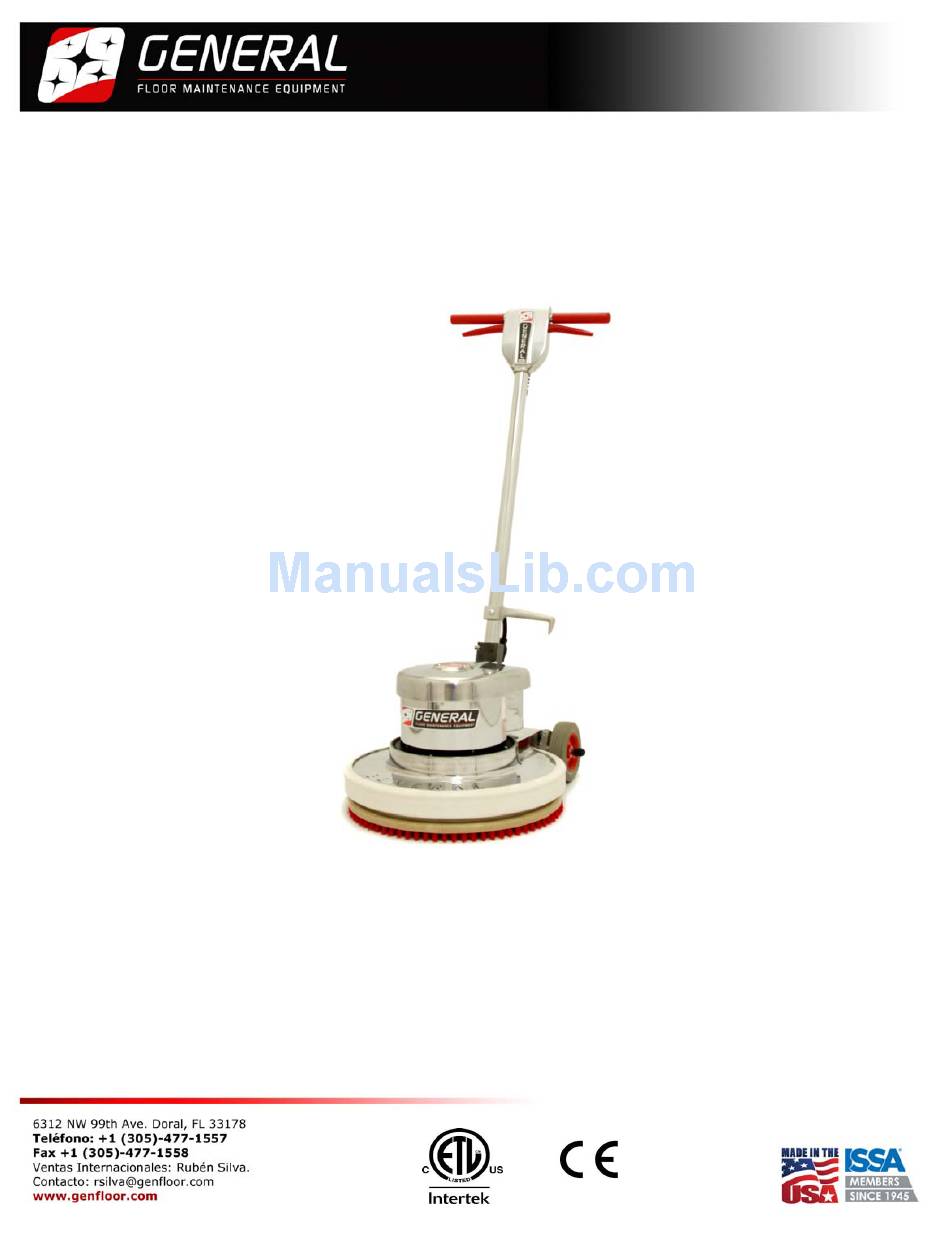

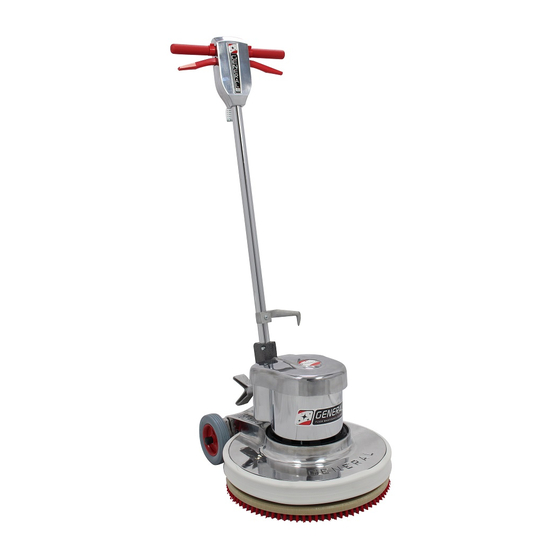

- Page 1 KC SERIES 17, 19 & 21 HEAVY DUTY LOW SPEED 220 V 60 Hz OWNERS MANUAL OPERATION PARTS -WARRANTY- CARE SAFETY -STORAGE - ACCESSORIES IMPORTANT: READ OWNERS MANUAL CAREFULLY Please fill out and return your Product & Warranty Registration Form...
-
Page 2: Table Of Contents
CONGRATULATIONS on choosing General Floorcraft for your Floor Maintenance Equipment Line. Welcome to the family of General Floorcraft. We appreciate your business and will do everything in our power to keep you satisfied. As a family member of America’s Oldest and Most Trusted Manufacturer of Floor Maintenance Equipment, you purchased the highest quality equipment with the best warranties in the industry. -
Page 3: Machine Assembly
201430 Washer 201420 Bolt 701225 Clutch Plate 310016 17” Pad Driver w/Clutch Plate 310018 19” Pad Driver w/Clutch Plate 310020 21” Pad Driver w/Clutch Plate Note: Pad drivers and brushes sold separately. KC Series 17, 19 & 21 Page 3... -
Page 4: Handle Assembly
Insulator, Cover for Terminal 505168 Crimp Connector, Insulated 501067 Handle Tube, Chromed 201227 Grommet, Rubber Handle Tube 505193 Plug, Switchbox 505160 Wire, Tube Assembly Black 500022 Handle Assembly, Complete w/Cable Carton 501071 Cable Hook KC Series 17, 19 & 21 Page 4... -
Page 5: Lower Machine Assembly
4 25 160530 Handle Adaptor, KC Series 1 14 201550 Bolt, Motor Moun ng 19" & 21" 4 A 180510 Carriage, Polished 1 15 165518 Pivot Sha , Wheel 1 B 201462 Bolt, Carriage 4 16 135517 Pin, Pivot Sha 2 C 201415 Washer, Carriage Assembly 4 KC Series 17, 19 & 21 Page 5... -
Page 6: Motor Assembly
1 9 16 135625 Strain Relief, Motor 1 17 135492 Capacitor, Start 1 18 135515 Frame and Field Assembly, Chrome 1 205005 Motor, AC 1 HP with Gear Box Box 10 11 12 13 14 15 16 17 18 INNOVATIVE CLEANING EQUIPMENT…..ENGINEERED TO LAST KC Series 17, 19 & 21 Page 6... -
Page 7: Gearbox Assembly
Needle Bearing 4 14 13 135448 Helical Gear 2 12 14 135486 Planet Cage, 2 Planet 1 15 15 135339 Idler Sha 2 16 135454 Ball Bearing 1 16 17 135450 Gear Box Housing 1 131329 Gear Box Assembly, 2 Planet Complete Box 17 KC Series 17, 19 & 21 Page 7... -
Page 8: Delivery & Safety Instructions
All information and specifications printed in the manual and parts list are current at the time of printing: however, because of General Floorcraft’s policy of continual product development, we reserve the right to make changes at any time without notice. If any addi-... -
Page 9: Safety Instructions
Make sure the machine is plugged into an electrical outlet with the same voltage and frequency rating as shown on the nameplate of the machine. Do not attempt to plug a 115-volt machine into a 230-volt outlet. KC Series 17, 19 & 21 Page 9... -
Page 10: Safety & Grounding Instructions
If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus- trated in Figure 1 below. KC Series 17, 19 & 21 Page 10... -
Page 11: Assembly & Operation Instructions
7.) Carefully push the Safety Lock Tabs located on either side of the switchbox and compress the on/off levers to start machine. Note: When the switch levers are released, the machine shuts off immediately. KC Series 17, 19 & 21 Page 11... -
Page 12: Maneuvering & Storage Instructions
8.) Store the machine in a clean, dry place. TECHNICAL SPECIFICATIONS KC‐17 KC‐19 KC‐21 Motor HP 1 1 1 Pad Diameter 17" 19" 21" Speed RPM 175 175 175 dBA 62 62 62 Weight lbs. 98 107 114 KC Series 17, 19 & 21 Page 12... -
Page 13: Livraison Et Consignes De Securite
LORSQUE LA MACHINE EST REMIS Vous êtes responsable de l'inspection de la commande dès réception . General Floorcraft n'est pas responsable des dommages si vous avez signé pour les marchandises et de ne pas noter les dommages sur le bon de livrai- son . -
Page 14: Consignes De Securite
Assurez-vous que l'appareil est branché sur une prise électrique avec la même tension et la fréquence , comme indiqué sur la plaque signalétique de la machine. Ne tentez pas de brancher une machine de 115 volts dans une prise de 230 volts . KC Series 17, 19 & 21 Page 14... -
Page 15: Securite Et Instructions De Mise
électricien qualifié. Cet appareil doit être utilisé sur un circuit nominal de 120 volts et a une fiche de terre qui ressemble à celle illustrée à la figure 1 ci-dessous. KC Series 17, 19 & 21 Page 15... -
Page 16: Montage Et Mode D'emploi
7). Poussez délicatement les pattes de verrouillage de sécurité situés de chaque côté de l'armoire et de com- presser ON / OFF leviers pour démarrer la machine. Note: Lorsque les leviers de commutation sont libérés, la machine s'arrête immédiatement . KC Series 17, 19 & 21 Page 16... -
Page 17: Manoeuvrer & Stockage Instructiona Age
MANOEUVRER & STOCKAGE INSTRUCTIONS COMMENT MANOEUVRER VOTRE MACHINE ETAGE: 1.) Soulever légèrement la poignée et la machine ira vers la droite. Lorsque vous élevez, plus vite il ira vers la droite. 2.) Abaissez la poignée et la machine ira vers la gauche. Le plus vous baissez, plus vite il ira vers la gauche. 3) Note:. -
Page 18: Warranty
All other components, except as noted, carry a ONE (1) year warranty. Parts and labor are covered in accordance with our flat rate schedule. Warranty claim form must be filled out and returned to General for labor or parts claim. -
Page 19: Product Registration Form
Product & Warranty Registration Form Thank you for registering your General Floorcraft Equipment. As a registered user, you will receive free technical support, special offers and new product information. By returning this form, we can also confirm the date of purchase of your equipment for your warranty from the date of purchase. Please attach a copy of your invoice with the serial number(s) on it as proof of purchase.
