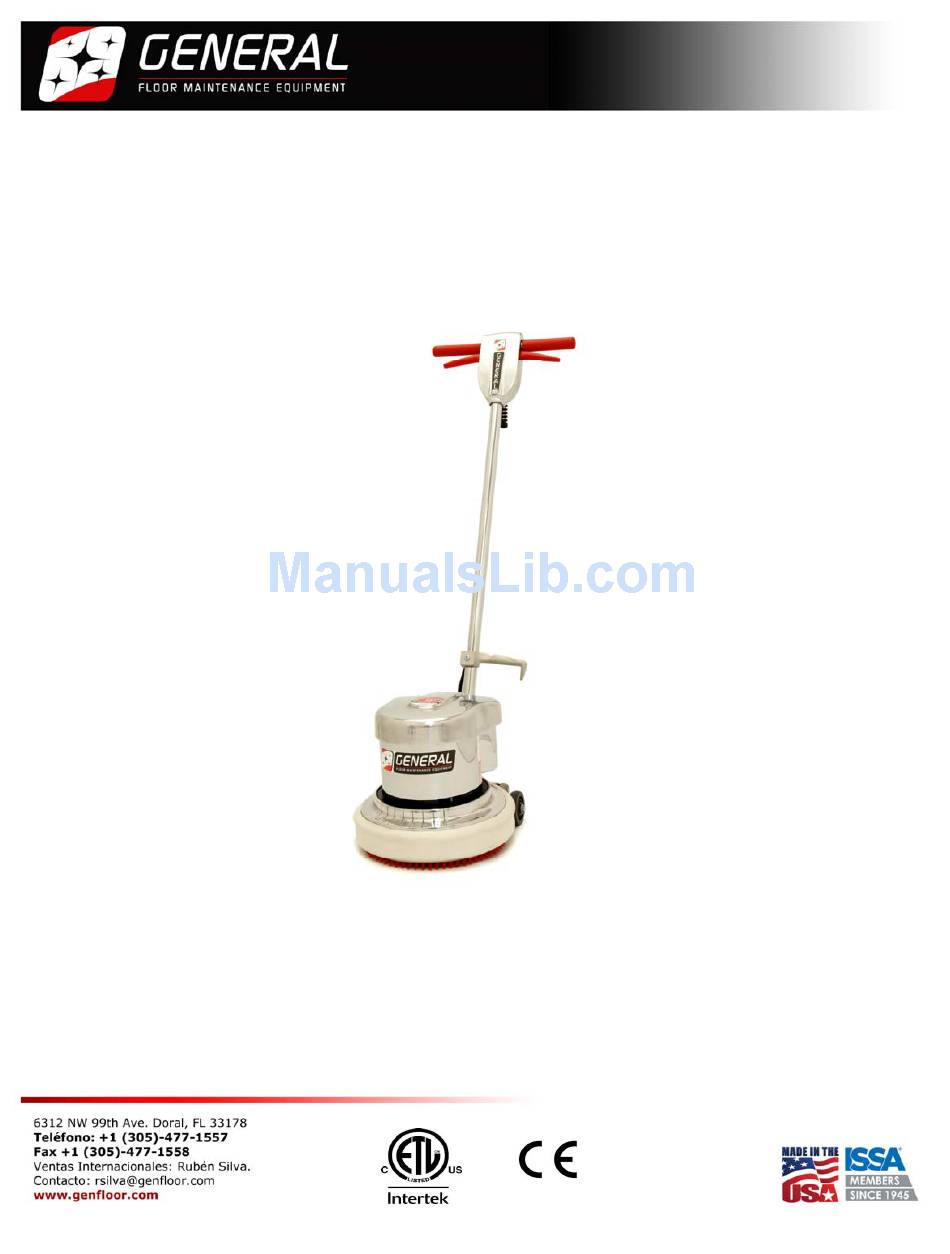

KC 13
HEAVY DUTY LOW SPEED
120 V 60 Hz
OWNERS MANUAL
OPERATION PARTS -WARRANTY- CARE
SAFETY -STORAGE - ACCESSORIES
IMPORTANT: READ OWNERS MANUAL CAREFULLY
Please fill out and return your Product & Warranty Registration Form
Revised: 9/22/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC 13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General KC 13

Summary of Contents for General KC 13

  • Page 1 KC 13 HEAVY DUTY LOW SPEED 120 V 60 Hz OWNERS MANUAL OPERATION PARTS -WARRANTY- CARE SAFETY -STORAGE - ACCESSORIES IMPORTANT: READ OWNERS MANUAL CAREFULLY Please fill out and return your Product & Warranty Registration Form Revised: 9/22/2015...

  • Page 2: Table Of Contents

    CONGRATULATIONS on choosing General Floorcraft for your Floor Maintenance Equipment Line. Welcome to the family of General Floorcraft. We appreciate your business and will do everything in our power to keep you satisfied. As a family member of America’s Oldest and Most Trusted Manufacturer of Floor Maintenance Equipment, you purchased the highest quality equipment with the best warranties in the industry.

  • Page 3: Machine Assembly

    MACHINE ASSEMBLY THIS KC-13 DRAWING AND PARTS LIST IS BROKEN DOWN IN SUB ASSEMBLIES FOR EASY REFERENCE. AT RIGHT ARE SHOWN ALL THE SUB ASSEMBLIES AND CERTAIN PARTS THAT ARE NOT SHOWN ON ANY OTHER DRAWINGS. WHEN ORDERING PARTS, ALWAYS USE PART NUMBERS—DO NOT USE REFERENCE NUMBERS! GIVE MODEL NUMBER, SERIAL NUMBER AND PART NUMBER WHEN ORDERING.

  • Page 4: Handle Assembly

    HANDLE ASSEMBLY 1, A  37  3, B  2  4  36  34  35  33  13  6  7  9  10  32  5  16  30  11  8  14  29  17  31  15  12  18  19  20  Pre-5/2013 Old Parts 21  28  F  C  23  22  G ...

  • Page 5: Lower Machine Assembly

    LOWER MACHINE ASSEMBLY Old Parts   120523  ‐ Screw, Handle Knob   120524  ‐ Handle  Adaptor   120526  ‐ Link, Handle  Adaptor   505130  ‐ Washer, Handle  Adaptor   505124  ‐ Knob, Handle  Adaptor 17  18  20  21  19  Reference #  Part Number  Descrip on  Required  1  125017  Axle, Wheel  2  2  135502  Washer, Axle  4  3  125010  Wheel, 3" Solid  2  4  165517  Pivot Arm  2 ...

  • Page 6: Motor Assembly

    1 HP MOTOR ASSEMBLY IMPERIAL ELECTRIC MOTOR ONLY Reference #  Part Number  Descrip on  Required  1  1  301347  Bolt, Thru   4  2  135406  Screw, Access Cover  2  3  135412  Cover, Wire Connec on Access Cover  1  4  135488  Top End Bell  1  3  5  135496  Switch, Sta onary  1  6  135406  Screw, Sta onary Switch  2 ...

  • Page 7: Gearbox Assembly

    GEARBOX ASSEMBLY 2 PLANET GEARBOX 1  2  IMPERIAL ELECTRIC MOTOR ONLY. 3  4  5  6  Reference #  Part Number  Descrip on  Required  7  1  135459  Screw, Cap  6  8  2  135458  Retainer Plate  1  3  135452  Ball Bearing  3  9  4  135401  End Shield  1  10  5 ...

  • Page 8: Delivery & Safety Instructions

    WHEN THE MACHINE IS DELIVERED You are responsible for inspecting the order upon receipt. General Floorcraft is not responsible for damage if you have signed for the goods and do not note any damages on the shipping receipt. Note any visible damage on deliv- ery receipt immediately.

  • Page 9: Safety Instructions

    Turn off all controls before unplugging.  When servicing machine, use only manufacturer’s replacement parts. All service should be performed only by General Floorcraft authorized service centers.  Do not immerse or use this machine in standing water. Such use can cause electric shock.

  • Page 10: Safety & Grounding Instructions

    SAFETY & GROUNDING INSTRUCTIONS WARNING!  DO NOT use extension cords more than 50 feet (15 m) long.  Replace the cord if the ground pin is damaged or broken. FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL VOID THE WARRANTY.

  • Page 11: Assembly & Operation Instructions

    ASSEMBLY & OPERATION INSTRUCTIONS PREPARE THE MACHINE FOR OPERATION (SETTING UP) The KC machine is packed in two separate boxes. The machine is in box 1 of 2, and the handle is in carton 2 of 2. Unpack the machine and handle carefully. Insert the handle into the handle adaptor socket and tighten the two square head screws to hold the handle firmly in place.

  • Page 12: Maneuvering & Storage Instructions

    MANEUVERING & STORAGE INSTRUCTIONS HOW TO MANEUVER YOUR FLOOR MACHINE: 1.) Machine is designed to operate side to side. Raise handle slightly and the machine will go to the right. The higher you raise it, the faster it will go to the right. 2.) Lower the handle and the machine will go to the left.

  • Page 13: Livraison Et Consignes De Securite

    LORSQUE LA MACHINE EST REMIS Vous êtes responsable de l'inspection de la commande dès réception . General Floorcraft n'est pas responsable des dommages si vous avez signé pour les marchandises et de ne pas noter les dommages sur le bon de livrai- son .

  • Page 14: Consignes De Securite

    CONSIGNES DE SÉCURITÉ ATTENTION! Pour réduire le risque d'incendie , de choc électrique ou de blessure: Ne pas permettre que soit utilisé comme un jouet. Une attention particulière est nécessaire lorsqu'il est utilisé par ou près des enfants . Ne manipulez pas la fiche ou l'appareil avec les mains mouillées . Ne pas débrancher en tirant sur le cordon .

  • Page 15: Securite Et Instructions De Mise

    SÉCURITÉ ET INSTRUCTIONS DE MISE ATTENTION! NE PAS utiliser de rallonges de plus de 50 pieds (15 m) de long. Remplacez le cordon si la broche de terre est endommagé ou cassé. NON-RESPECT DES CONSIGNES DE GARDE ci-dessus ANNULE LA GARANTIE. INSTRUCTIONS DE MISE Cet appareil doit être mis à...

  • Page 16: Montage Et Mode D'emploi

    MONTAGE ET MODE D'EMPLOI PRÉPARATION DE LA MACHINE POUR LE FONCTIONNEMENT (mise en place ) Le KC -13 machine est emballée dans deux boîtes séparées . La machine est en zone 1 de 2, et la poignée est en carton 2 sur 2 . Déballez la machine et manipuler avec précaution . Insérez la poignée dans la prise de l'adaptateur de la poignée et serrez les deux vis à...

  • Page 17: Manoeuvrer & Stockage Instructiona

    MANOEUVRER & STOCKAGE INSTRUCTIONS COMMENT MANOEUVRER VOTRE MACHINE ETAGE: 1.) Soulever légèrement la poignée et la machine ira vers la droite. Lorsque vous élevez, plus vite il ira vers la droite. 2.) Abaissez la poignée et la machine ira vers la gauche. Le plus vous baissez, plus vite il ira vers la gauche. 3) Note:.

  • Page 18: Warranty

    All other components, except as noted, carry a ONE (1) year warranty. Parts and labor are covered in accordance with our flat rate schedule. Warranty claim form must be filled out and returned to General for labor or parts claim.

  • Page 19: Product Registration Form

    Product & Warranty Registration Form Thank you for registering your General Floorcraft Equipment. As a registered user, you will receive free technical support, special offers and new product information. By returning this form, we can also confirm the date of purchase of your equipment for your warranty from the date of purchase. Please attach a copy of your invoice with the serial number(s) on it as proof of purchase.
