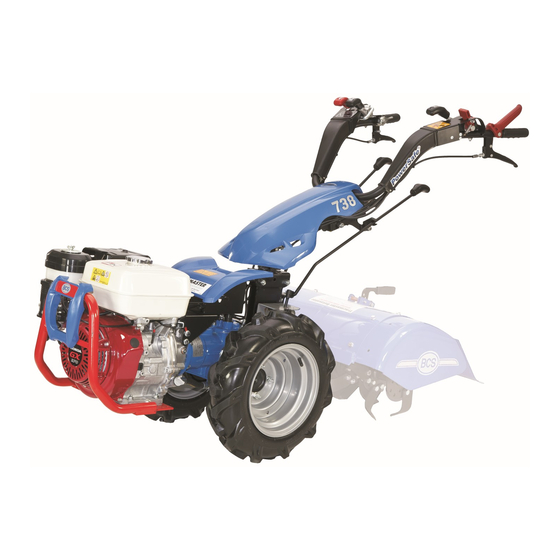

BCS 710 Operating Instructions Manual
Two wheel tractors with powersafe clutch
Hide thumbs
Also See for 710:
- Use & care manual (36 pages) ,
- Owner's use & care manual (51 pages) ,
- Owner's use and care manual (4 pages)
Subscribe to Our Youtube Channel
Related Manuals for BCS 710
Summary of Contents for BCS 710
- Page 1 Two Wheel Tractors with PowerSafe Clutch ® MODELS 710 ● ● ● Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
-
Page 2: Table Of Contents
Two Wheel Tractor Power Unit Contents Page 3 Safety Page 4 Controls Diagrams - 710 & 728 Page 5 Controls Diagrams - 738 & 740 Page 6 Controls Description Page 7 Assembly Instructions Page 8 How to Start Petrol Engine... - Page 3 Two Wheel Tractor Power Unit Safety ALWAYS start the engine in the open air DO NOT smoke when refuelling DO NOT mix OIL with the fuel ALWAYS stop the engine before making any adjustments, refuelling, moving or cleaning, or when the unit is unattended USE ONLY fuel from containers designed for this purpose - refuel outdoors only and replace the tank cap securely IN CASE of petrol spillage move the machine away from the area of spillage and allow...
- Page 4 Two Wheel Tractor Power Unit Controls BCS 710 BCS 728 Page 4 TWT/PU/0413...
- Page 5 Two Wheel Tractor Power Unit Controls BCS 738 BCS 740 Page 5 TWT/PU/0413...
-
Page 6: Controls Description
Two Wheel Tractor Power Unit Controls Description SEE PICTURES ON PAGES 2 & 3 MACHINE STOP LEVER (red lever that stops the machine when released) ENGINE STOP LEVER CLUTCH CONTROL LEVER GEAR LEVER (the location of different gears are shown on the selector) PTO LEVER (there is a safety device that prevents engagement with reverse gear) THROTTLE LEVER HANDLEBAR HEIGHT ADJUSTMENT LEVER... -
Page 7: Assembly Instructions
Two Wheel Tractor Power Unit Assembly Instructions 1. Remove the machine from its packing case. 2. Rotate the handlebar stem to the operating position and fit the handlebars - check operation and routing of cables. 3. Fit the wheels, ensuring the correct rotation (see diagram A below) and check the tyre pressures (20psi). 4. Fit the gearbox dipstick. 5. Assemble the rear flap on the digging unit ensuring the sticker labels are on the outside (see diagram B below) and attach the unit to the machine. - Page 8 Two Wheel Tractor Power Unit To Start Petrol Engine Using the dipstick provided, check the engine oil level. Top up with 10w/40 oil if necessary. Check fuel level. Only use unleaded petrol from a clean container. Never re-fuel when the engine is hot or running. Leave 1” air space in the fuel tank. Turn the fuel tap to ‘ON’ position, if the engine is cold set the choke lever to ‘ON’ position. Before starting the engine ensure the gear lever (D) is in neutral position and the power take-off (PTO) lever is disengaged (E).
-
Page 9: Operation
Two Wheel Tractor Power Unit Operation Use handlebar adjuster (G) to set handlebar height. Hold the handlebar and pull up the clutch lever (C). Depress the red stop lever (A) and select the correct working speed using the gear lever (D). Ensure forward/reverse lever is in the correct position to move forward (L): If the handlebars are positioned over the engine then this lever should be in the fully back position. -
Page 10: Maintenance Guide
Two Wheel Tractor Power Unit Maintenance Guide For engine maintenance please refer to engine manufacturers manual. After every hour of operation stop the engine and remove the spark plug cap. Check engine oil level (recommended oil SAE 10w/40). Replace the spark plug cap. Do not turn the machine on its side for cleaning. -
Page 11: Maintenance Programme
Two Wheel Tractor Power Unit Maintenance Programme OPERATION EVERY EVERY EVERY EVERY 6 WEEK MONTH MONTHS ENGINE Check engine oil level 10w/40 See separate engine manual GEARBOX Check gearbox oil level & (see page 13) CONTROLS Check nuts & bolts Ensure clutch cable has free play Check tyre pressure (20psi) Lubricate control cable/linkages... -
Page 12: Service Information
Two Wheel Tractor Power Unit Service Information Every Week • With the machine on a level surface, check the gearbox oil level, top up as necessary using the correct oil as listed below. The gearbox oil level should reach between the two notches on the dipstick (fig. 2, C) . - Page 13 Two Wheel Tractor Power Unit Service Information Gearbox Oil Quantities BCS 710 / 728 / 738 = approx 2.3 litres BCS 740 = approx 2.6 litres Oil Type Fuchs Titan Hyp 90 Valvoline 80w-90 GL-5 Morris EP80w/90 API GL5 Castrol EPX 80w-90...
-
Page 14: Troubleshooting Guide
Two Wheel Tractor Power Unit Troubleshooting Guide PROBLEM POSSIBLE CAUSE REMEDY Unable to select gear Pressure washing has removed Grease the detent ball and lubrication of gear lever detent quadrant. ball. Unable to pull engine over Machine has been tipped on Remove spark plug and air side for cleaning and engine filter. Stand to one side and... -
Page 15: Risk Assessment
Two Wheel Tractor Power Unit Risk Assessment HAZARDS RISK LEVEL ACTION NEEDED General The machine should only be used by trained operators. Machine tipping over Do not use on slopes over 25 Machine running away Red stop lever disengages the drive to the implement if the operator releases the handlebars. -
Page 16: Service Record
Two Wheel Tractor Power Unit Service Record To ensure your machine is kept in peak condition, we recommend that you have it serviced regularly by one of Tracmaster’s Authorised Agents. To find out who your local Authorised Agent is, contact Tracmaster on 01444 247689. SERVICE SCHEDULE First 2 Weeks or 30 Hours of Work - whichever is sooner (see page 13) First PowerSafe oil filter replacement (part number 58056249) ®... -
Page 17: Warranty Registration
Address: ................................................. Postcode: ........Email: ....................Phone: ....................MACHINE DETAILS Machine: BCS TWO WHEEL TRACTOR Model Number: ....................Serial Number: ....................Engine Serial Number: ....................Purchase Date: ....................SUPPLIER DETAILS (if not supplied directly by Tracmaster) Dealer Name: .................... - Page 18 • Complete the online warranty form. • View and download spare parts diagrams. • View and download owners manuals and operating instructions. • See working video clips of machines from our BCS and CAMON ranges. T: 01444 247689 Page 18 TWT/PU/0413...
- Page 19 Two Wheel Tractor Power Unit IMPORTANT READ THE OWNER’S MANUAL FOR THE RELEVANT WORKING IMPLEMENT. PLEASE CONTACT TRACMASTER ON 01444 247689 FOR ANY FURTHER INFORMATION OR ASSISTANCE OR VISIT WWW.TRACMASTER.CO.UK Page 19 TWT/PU/0413...
- Page 20 © Tracmaster Ltd 2013. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
