BU1203MC/MCF
Users Guide
Rev.1.20
December 25
2015
th
Doc. No. 4300-0223
Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved.

Advertisement

   Related Manuals for Toshiba BU1203MC

   Summary of Contents for Toshiba BU1203MC

  • Page 1

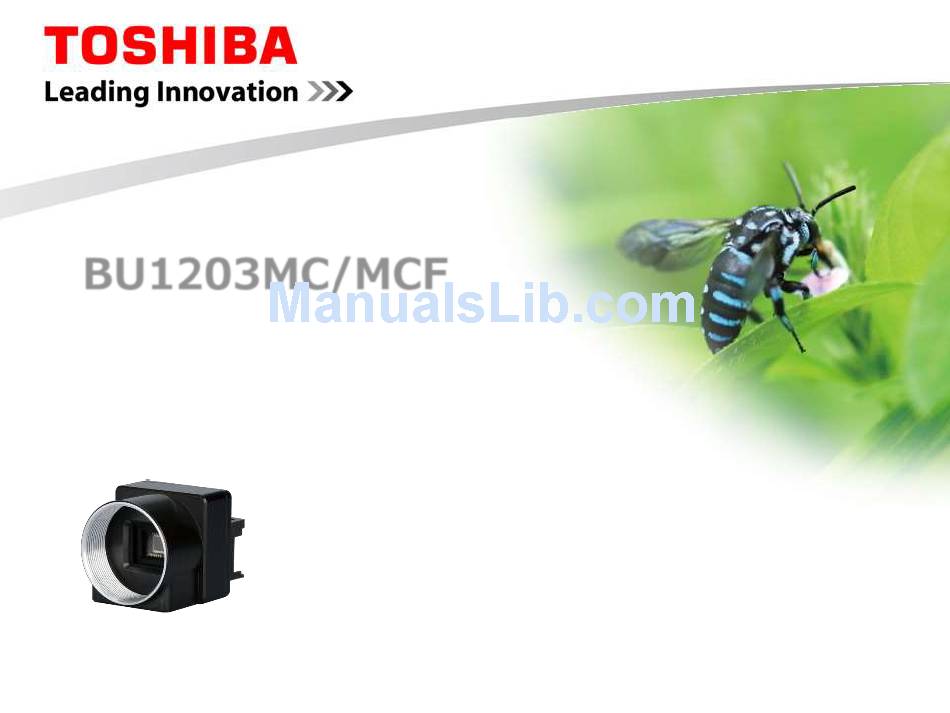

    BU1203MC/MCF Users Guide Rev.1.20 December 25 2015 Doc. No. 4300-0223 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved.

  • Page 2

    Please refer our HP or contact our sales person for your  enquiry and the latest information. * Some of the names and logos of company, organization, standard might be registered trade mark of each. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 3

    Product range of USB3 Vision cameras  Advantage of BU1203MC/MCF  Spec comparison  Feature comparison  Advanced function  Related documents  [Appendix] Shutter function Introduction of USB3.0 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 4

    USB3 Vision Camera Product Range Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 5

    : with IR cut filter Contact our persons in charge of sales for your enquiry.  BU602, BU1203 : Rolling shutter type CMOS sensor  Dec. 2015 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 6: Image Size

    2L : 1/1.8 type, Low-fps 1.0 type 120 : 12.0 mega pixels 4.0 Mega Pixels Type 12.0 Mega Pixels Type 1.0 type 1/1.7 type 1.1 type Rev.1.04 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 7

    Advantage of BU1203MC/MCF Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 8

     Free supply of Software developing package “TeliCamSDK”  Quality warranty  Full of 3 years warranty * STARVIS or STARVIS logo might be trade mark of Sony Corporation. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 9

    Newly developed TELI original IP core “TELI IP Core” built in! TELI IP Core <example> response time of software trigger A company camera: 4msec BU/DU series: 5μsec (average) 2015/12/25 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. Doc. No. 4300-0223...

  • Page 10

    As a result, sensitivity is well kept diode. As a result, sensitivity is reduced. without hindrance of wiring layer. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 11

    Specification comparison Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 12

    Image Size Optical Type 1/1.7 Type 1/1.2 Type 2/3 (1“) Type 1/1.8 Format 4:3 / 17:9 Aspect Ratio 16:10 Frame Rate 34.97fps / 29.97fps 164.5fps 350fps 15fps Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 13

    ○ : Function available × : No function Sequential shutter ○ : Function available × : No function Overlapping trigger ○ : Function available × : No function Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 14

    【6. Operational environmental conditions All items Common specification 【7. Product structure】 All items Common specification 【8. Options】 All items Common specification 【9. Complying Law・regulations】 All items Common specification Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 15

    Performance Comparison Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 16

    Bayer color, resolution must be reduced because of calculation between pixels. However, tone can be recognized in 2,000 pixel resolution Evaluating Lens : KOWA LM25XC (for 4/3 inch) Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 17

    CMOS, apparently image by BU1208MCF has higher resolution due to its 2 times resolution And, image by BU1203 does not obviously show color false peculiar to single sensor camera. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 18

    With lens for image sensor more than 1 inch, image is clear up to about 2,000 line pairs resolution. Even with video camera lens which is not for mega pixel, resolution in about 1,000 to 1,600 line pairs can be achieved. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 19

    Advanced Function Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 20

    Bayer array by neighbor pixel calculation after RGB conversion, and interpolation by calculation with dynamic switching on detected brightness in horizontal and vertical. RGB pixel interpolation RGB output Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 21

    U=-0.17R-0.33G+0.50B V=0.50R-0.42G-0.08B ⇩ Output Y signal among above as mono chrome signal from camera. Might be Cb/Cr or Pb/Pr depend on calculation coefficient. RGB signal YUV(YCbCr) signal Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 22

    (4) Frame Transfer Start : Start of transferring Streaming data (5) Frame Transfer End : End of Transferring Streaming data (6) Exposure Start : Start of Exposure (7) Exposure End : End of Exposure Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 23

     Correction function of pixel defect : BU(CMOS) series have correction function of pixel defect. This function can be switched on and off depend on occasion. Corrected Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 24

    Documents Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 25

    Reference Documents • Specification sheet (for BU1203MC/MCF) • Instruction manual (for BU1203MC/MCF) These documents are available in our HP to download;  http://www.toshiba-teli.co.jp/en/products/industrial/ Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 26

    [Appendix] Explanation of Shutter function Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 27: Shutter Mode

     Global reset; reset➡exposure➡・・・  A mode of reset which reset all pixels in one time  Rolling reset; Repeating above  This resets on each line. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 28

     Easier to make low noise type sensor as structure of less pixel transistor number.  As disadvantage, motion image shot under continuous light will be distortive. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 29

    Image comparison by shutter mode  Output comparison of rotating subject Global shutter  Output image of moving subject is distortive Rolling shutter Complete image of moving  subject Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 30

    Resetting and time is different starting exposure in each line. Last line: exposure in each line. Moving direction Exposure time length is same in all the line Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 31

    Rolling shutter Global reset still Constant light Constant Constant Strobe light light needed moving Constant light Constant Strobe Strobe light needed needed Moving direction Moving direction Moving direction Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 32

    In case of global reset, problem might be caused as lower lins have fainting.) * Image Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 33

    As a result, low cost advantage will be offset by additional cost of strobe. There is a certain advantage of easier measurement in exposure starting time comparing with rolling shutter. Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 34

    In case of global reset, the lower part becomes brighter due to duration time of output and exposure time. ⇒ Proper light (strobe) is necessary Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 35

    : exposure line : exosure Exposure line : exposure line : exposure in sensor line : exposure nライン目: 露光 * verification under actual condition is necessary Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 36

    : exposure line : exposure line : exposure in sensor line : exposure line : exposure line : exposure * verification under actual condition is necessary Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 37

    Exposure line : exposure line : exposure Hence no problem for shooting. in sensor line : exposure line : exposure * verification under actual condition is necessary Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 38

    : exposure line : exposure line : exposure in sensor line : exposure line : exposure line : exposure * verification under actual condition is necessary Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 39

    (rolling shutter + rolling reset) Double exposure Non exposure line ⑤ ⑧ ✕ (✕) Global reset ◎ ◎ ⑦ ⑥ (rolling shutter + global reset) V shading V shading BU1203MCF Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 40

    (rolling shutter + rolling reset) Double exposure Unexposed line Double exposure distortion ✕ ✕ Global reset ◎ ◎ (rolling shutter + global reset) Unexposed line Unexposed line BU1203MCF Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 41

    [Appendix] Introduction of USB3.0/USB3 Vision Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 42

    20 years since USB1.0 in 1996. Data rete 12Mbps 480Mbps 5Gbps  USB3.1 standard will start following the tremendous performance Max. improvement of USB3.0. 500mA 900mA current Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 43

    USB3.0 standard ■Lower compatibility USB3.0 device can be connected to USB2.0 port (works as USB2.0 )  USB2.0 device can be connected to USB3.0 port  Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 44

    No.6 : USB3.0 Signal sending line (-) No.7 : USB3.0 Signal sending line (+) No.8 : No.9 : USB3.0 Signal receiving line (-) No.10 : USB3.0 Signal receiving line (+) Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 45

     High band width of 5Gbps (440 MByte/s)  Easy connection with Plug & Play  Standardized software interface with GenICam  Much improved robust than USB2.0 Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 46

    Connector size ○ △ Connector ◎ ◎ ◎ ○ ○ reliability 4.5m (at first) Maximum cable <100m <10m <100m (no limit in (no limit in length standard) standard) Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 47

    : CMOSIS CMV4000 resolution : 2048 x 2048 (4.2MP) GigEVision Camera USB3 Vision Camera Max. frame rate 25fps Max. frame rate 90fps Data rate 105MB/s Data rate 377MB/s Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 48

    Camera ■USB3.0 : compliancy to burst transfer bus band can be used efficiently with burst transfer of USB3.0 Host PC DATA DATA DATA DATA time camera Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 49

    1394.b Link Frame Grabber Medium High Cable Medium High External External Power Supply / PoE / PoCL Camera Medium Medium 4 Camera System Cost Medium Medium High Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 50

    (6.5M) : JPY280k board : JPY8k board : JPY100k cable : JPY8k cable : JPY30k (power) : JPY10k Big cost down by replacing Camera Link system with USB3.0 system! Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 51

    USB2.0 data check by CRC packet retransmission in protocol layer level Physical Layer bit error ratio in physical layer level is less than 1x10 bits Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 52

    CPU processing and communication is stable because of less CPU load as image data is deployed on memory at one time by DMA transfer. time header Image data Trailer Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. 2015/12/25 Doc. No. 4300-0223...

  • Page 53

    Copyright © 2015 TOSHIBA TELI CORPORATION, All rights reserved. Doc. No. 4300-0223...
