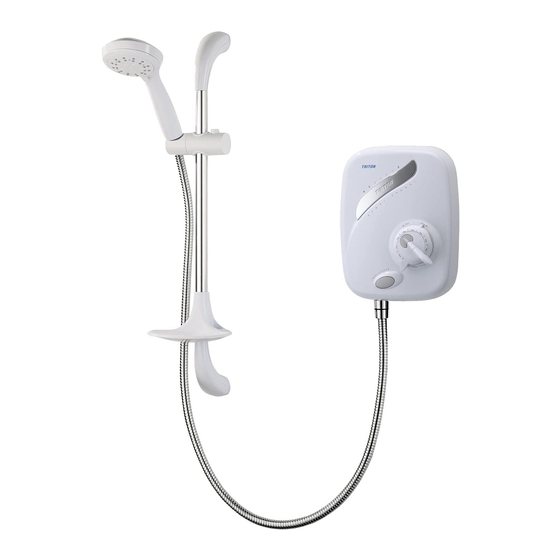

AS2000X
power shower
Installation and
operating
instructions
I
nstallers please note these InstructIons are to be left wIth the user
2180403L - June 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS2000X and is the answer not in the manual?

Questions and answers

Summary of Contents for Triton AS2000X

  • Page 1 AS2000X power shower Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180403L - June 2012...
  • Page 2: Table Of Contents

    Fault finding ................21 − 22 Water/Cable entry points diagram ........23 Guarantee, service policy, etc...........rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730...
  • Page 3 Aquasensation AS2000X PLUMBING NOTES ELECTRICAL NOTES 1.1 All installations must comply with Water 2.1 The installation must comply with BS 7671 Regulations or Water Bylaws. ‘Requirements for electrical installations’ (IEE wiring regulations). Make sure the 1.2 Supply pipes must be flushed to clear incoming hot and cold water supplies to debris before connecting the shower unit.
  • Page 4: Introduction

    A 30mA residual current device (RCD) MUST be installed in all UK 230V electric and pumped shower circuits. This may be part of Replacement parts can be ordered from Triton the consumer unit or a separate unit. Customer Service. See ‘spare parts’ for details and part...
  • Page 5: Main Components

    Aquasensation AS2000X MAIN COMPONENTS Fig.1 1. Top pipe entry and cable entry 2. Terminal block 3. Cover screw fixing 4. Motor retaining bracket 5. Rear pipe entry and cable entry 6. Wall fixing holes 7. Pipe inlet elbow - top (contains single check valves) 8.
  • Page 6: Site Requirements

    Aquasensation AS2000X SITE REQUIREMENTS Fig.3 illustrates all the incorrect connections that must be avoided. Water All pipework to the shower unit must be routed The installation must be in accordance with where it remains below the level of water in Water Regulations/Bylaws and BS 6700.
  • Page 7: General Installation Notes

    Aquasensation AS2000X the infill rate from the float operated valve meets 5. The unit must be mounted onto the finished the output requirements.. wall surface (on top of tiles). It is recommended that there is a minimum DO NOT tile up to the unit after fixing to of approximately 114 litres (25 gallons) of hot the wall.
  • Page 8: Siting Of The Shower

    Aquasensation AS2000X SITING OF THE SHOWER Potentiometer Fig.4 (schematic view ) WARNING! The shower must not be positioned Switch where it will be subject to freezing Thermal conditions. fuse Motor IMPORTANT: If fitting to a tiled wall, always mount the unit on the surface of the tiles.
  • Page 9: Removing The Cover

    Aquasensation AS2000X REMOVING THE COVER To remove the cover, first pull off the cover trim (fig.6) to reveal the retaining screw. Undo the screw and pull off the inner temperature control. Now remove the outer flow control assembly comprising of the flow control, maximum temperature stop and temperature disc (fig.7).
  • Page 10 Aquasensation AS2000X 25 mm below the cold feed connection to the Fig.9 hot water cylinder on the opposite side of the cistern to the float operated valve (see fig.2). This minimises air ingress into the pipework. Plumbing options other than those outlined in these fitting instructions could impair the performance.
  • Page 11 Aquasensation AS2000X Note: Pipework must be clipped or fixed to the Fig.11 wall so that it cannot be moved or removed without the aid of a tool. Note: The pipe inlets contain filters. These should be periodically removed and cleaned...
  • Page 12: Fitting The Shower To The Wall

    Aquasensation AS2000X FITTING THE SHOWER TO THE WALL Fig.15 IMPORTANT: Before fitting the shower, make sure the pipework is flushed out to remove all debris, flux, etc. For top pipe entry or top cable entry, remove the relevant cut-outs by either breaking out or by using a knife or junior hacksaw (fig.15).
  • Page 13: Electrical Connections

    Aquasensation AS2000X ELECTRICAL CONNECTIONS Fig.18 WARNING! This unit must be earthed. Isolate the supply before starting. The supply cable must conform to relevant tables in current IEE regulations. In most cases 1 mm² twin and earth will be adequate. The electrical rating of the shower is on the rating label within the unit.
  • Page 14: Commissioning

    Aquasensation AS2000X COMMISSIONING Fig.20 WARNING! Before normal operation of the shower, it is essential that the commissioning and setup procedure are correctly completed. Failure to do so could cause the pump to run dry without water and invalidate your guarantee.
  • Page 15 Aquasensation AS2000X RESISTANCE IS FELT, DO NOT FORCE THE Fig.24 CONTROL FURTHER. Note: The temperature control rotates less than one complete turn (fig.22). DO NOT force it beyond these limits. To stop the water flow, switch off the electricity supply at the isolating switch.
  • Page 16 Aquasensation AS2000X With your fingers, rotate the valve spindle fully anti-clockwise (fig.27) to the fully hot position. Fig.27 Replace the flow control so that it aligns with the ‘min’ position. Fit the temperature disc (it will only fit one way) and maximum temperature stop (fig.28).
  • Page 17: Fitting The Riser Rail

    Aquasensation AS2000X *FITTING THE RISER RAIL Fig.31 Fig.30 WARNING! Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is Fig.32...
  • Page 18 Aquasensation AS2000X To remove a trim, push a small screwdriver or similar through the slot in the trim end and Fig.35 carefully pull away from the wall bracket. Slide the soap dish down the rail so that its bracket engages on top of the lower finishing trim.
  • Page 19: Operating The Shower

    Aquasensation AS2000X OPERATING THE SHOWER Fig.40 Check all plumbing and electrical supplies are connected and switched on. To start the shower, press the ‘Start/Stop’ button (fig.40). Adjust the control (fig.41) until the flow rate is satisfactory. For maximum flow, turn the flow control fully anti-clockwise.
  • Page 20: Adjusting The Maximum Temperature Stop

    Aquasensation AS2000X ADJUSTING THE MAXIMUM Fig.44 TEMPERATURE STOP As a safety feature the shower has a built-in maximum temperature stop to prevent you accidentally exceeding your highest desired temperature. This is set in the factory to provide a maximum temperature based on the hot and cold water supplies being 65°C and 15°C...
  • Page 21: Cleaning The Filters

    Aquasensation AS2000X INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY CLEANING THE FILTERS Fig.46 Upper filter shown Note: Turn off the electricity and both hot and cold water supplies to the unit before Filter proceeding further. Filter cover To remove the cover, first pull off the flow knob cover trim (fig.6) to reveal the retaining screw.
  • Page 22: Spare Parts

    Aquasensation AS2000X SPARE PARTS Ref. Description Part No. Terminal block ......22001320 Plastic inlet elbow plug x1 ..7052140 Pump and motor assembly ..84000130 Pipe inlet elbow ......83305320 c/w filters and check valves Temperature valve ..... 83305280 Link pin ........22009060 PCB unit ........
  • Page 23: Fault Finding

    Aquasensation AS2000X FAULT FINDING IMPORTANT: Switch OFF the electricity at the mains supply and remove the correct circuit fuse before attempting any fault finding inside the unit. Symptom Cause Action/Cure 1 Water too hot. 1.1 Not enough cold water 1.1.1 Turn the temperature control clockwise.
  • Page 24: Fault Finding

    8 Unit running 8.1 Blanking plugs not 8.1.1 Fit blanking plugs into unused inlets. erratically. fitted into unused inlets. In the unlikely event of a fault occurring please contact Triton Customer service. DO NOT remove the shower from the installation.
  • Page 25 Aquasensation AS2000X Entry Points Diagram Key: Water Entry Points Cable Entry Points...
  • Page 26 Aquasensation AS2000X...
  • Page 27 Aquasensation AS2000X...
  • Page 28 E-mail: serviceenquiries@tritonshowers.co.uk Triton is a division of Norcros Group (Holdings) Limited Extended Warranty AVAILABLE NOW. Call 0844 980 0740 for more details. 3-1-2012 TRITON reserve the right to change product specification without prior notice. E&OE. © TRITON SHOWERS 2012...
