- This guide contains safety information and basic troubleshooting and
maintenance guidance. For more detailed information, refer to the user manual
included with the product or contact your supplier.
- For your safety, carefully read the Maintenance Guide before you install and
use the product.

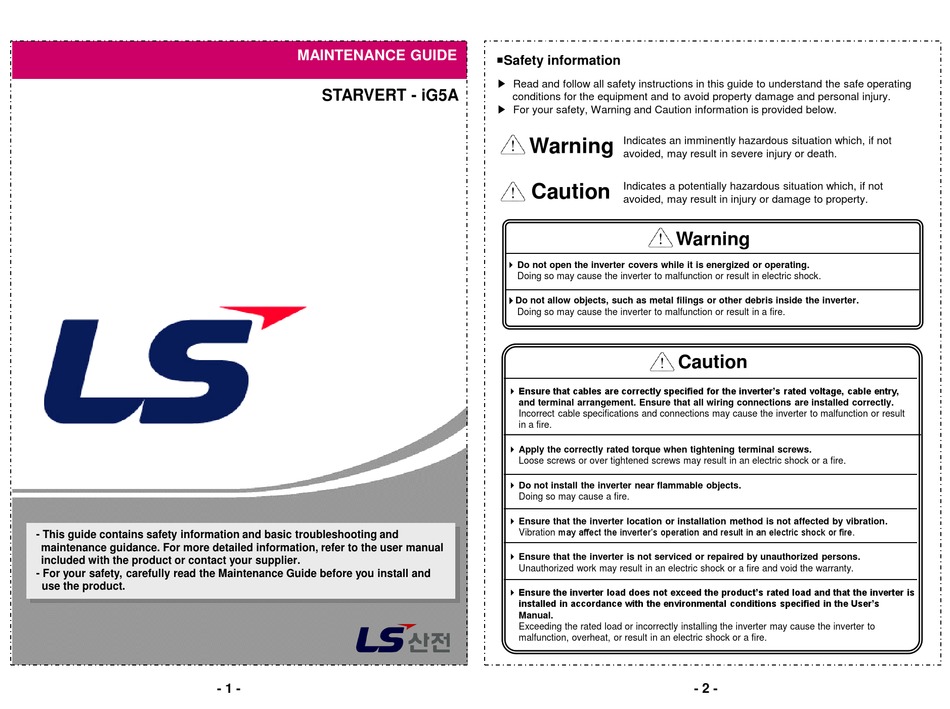

MAINTENANCE GUIDE
STARVERT - iG5A
- 1 -
Safety information
▶ Read and follow all safety instructions in this guide to understand the safe operating
conditions for the equipment and to avoid property damage and personal injury.
▶ For your safety, Warning and Caution information is provided below.
Indicates an imminently hazardous situation which, if not
Warning
avoided, may result in severe injury or death.
Indicates a potentially hazardous situation which, if not
Caution
avoided, may result in injury or damage to property.
Do not open the inverter covers while it is energized or operating.
Doing so may cause the inverter to malfunction or result in electric shock.
Do not allow objects, such as metal filings or other debris inside the inverter.
Doing so may cause the inverter to malfunction or result in a fire.
Ensure that cables are correctly specified for the inverter's rated voltage, cable entry,
and terminal arrangement. Ensure that all wiring connections are installed correctly.
Incorrect cable specifications and connections may cause the inverter to malfunction or result
in a fire.
Apply the correctly rated torque when tightening terminal screws.
Loose screws or over tightened screws may result in an electric shock or a fire.
Do not install the inverter near flammable objects.
Doing so may cause a fire.
Ensure that the inverter location or installation method is not affected by vibration.
Vibration may affect the inverter's operation and result in an electric shock or fire.
Ensure that the inverter is not serviced or repaired by unauthorized persons.
Unauthorized work may result in an electric shock or a fire and void the warranty.
Ensure the inverter load does not exceed the product's rated load and that the inverter is
installed in accordance with the environmental conditions specified in the User's
Manual.
Exceeding the rated load or incorrectly installing the inverter may cause the inverter to
malfunction, overheat, or result in an electric shock or a fire.
Warning
Caution
- 2 -
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for LS Starvert-iG5A
Summary of Contents for LS Starvert-iG5A
-
Page 1: Safety Information
MAINTENANCE GUIDE Safety information ▶ Read and follow all safety instructions in this guide to understand the safe operating STARVERT - iG5A conditions for the equipment and to avoid property damage and personal injury. ▶ For your safety, Warning and Caution information is provided below. Indicates an imminently hazardous situation which, if not Warning avoided, may result in severe injury or death. - Page 2 Safety information – Inverter wiring Selecting inverter capacity Selecting the correct inverter capacity Things to check before wiring 1) Check that the required output for the load is within the inverter’s rated 1) Ensure the inverter is turned off before wiring. 2) After the inverter is turned off, ensure that the inverter’s charging output [KVA].
- Page 3 Inverter operating conditions Cautions for peripherals and optional device configuration Ideal operating conditions Name Description - Connect the inverter to the specified input power Item Description AC Power supply. (Phase to phase voltage: within 15 % (Power source) below - 10 % over, nominal supply voltage.) -10 ℃...
- Page 4 Protective functions Fault trip troubleshooting Trip Display Cause Remedy Type Function Description Name Deceleration time is too Set the Acc/Dec time. short. Over Inverter output current exceeds 200 % of the The inverter output current Decrease the load or Current rated current.
- Page 5 Fault trip troubleshooting Fault trip troubleshooting Keypad Keypad Cause Remedy Cause Remedy display display Deceleration time is too Increase the acceleration short for load inertia time. The load is higher than the Ensure the motor and the i (GD2).
- Page 6 Troubleshooting other faults Troubleshooting other faults Type Cause Remedy Type Cause Remedy There are large load Adjust the load to the rated There is an input power Ensure the input voltage is fluctuations. value. fault. correct. Check the The motor ...
- Page 7 Head Office LS Tower (South Korea) environment, including ambient temperature and ventilation efficiency. It also depends on the use rate, load, and time operating under load. (Address) LS Tower, 127, LS-ro, Dongan-gu, Anyang-si, Gyeonggi-Do, 431-848 (Tel) INV : PLC/HMI : ...
