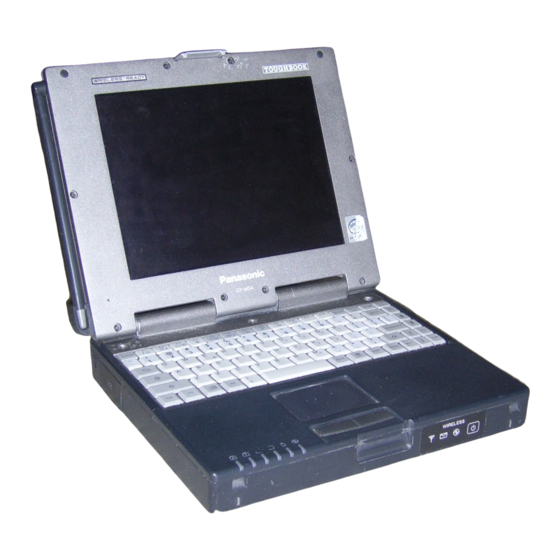

Panasonic TOUGHBOOK CF-M34 Series Operating Instructions Manual

Hide thumbs Also See for TOUGHBOOK CF-M34 Series:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Operating Instructions Manual
98
[Additional Manual]
Reference Manual
This manual can be accessed on your computer. Refer
to page 14 on how to access the Reference Manual.
ing illustrations not featuring the hand
strap for convenience of explanation.
Please read these instructions carefully before using this product and save this manual for future use.

OPERATING INSTRUCTIONS

Model No.
Contents

Getting Started

Read Me First..................................................
First-time Operation ........................................
Reference Manual .........................................
•
Read Me First
•
Key Combination
•
LED Indicators
•
Touch Pad
Operation
Starting Up/Shutting Down ............................
•
•
•
Computing On The Road
•
Battery Power
•
PC Cards
•
RAM Module
•
USB Devices

Troubleshooting

List of Error Codes .........................................
Reinstalling Software ....................................
•
Technical Information
•
DMI Viewer
•
Appendix
Names and Functions of Parts ......................
Specifications ................................................
LIMITED WARRANTY ...................................
Personal Computer
CF-M34
(Basic Operation) ...................................
Reference Manual
•
Touchscreen
•
Display Rotation Tool
•
Panasonic Hand Writing
(Advanced)
Reference Manual
•
External Display
•
Modem
•
Port Replicator
•
Floppy Disk Drive
•
Accessories
•
Hard Disk Drive
•
(Summary) ......................
Reference Manual
•
List of Error Codes
•
Dealing With Problems
®
Series
3
9
13
14
15
17
19
21
22
24
25
26

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TOUGHBOOK CF-M34 Series

Summary of Contents for Panasonic TOUGHBOOK CF-M34 Series

  • Page 1: Table Of Contents

    Reference Manual • • Read Me First Touchscreen • • Key Combination Display Rotation Tool • • LED Indicators Panasonic Hand Writing • Touch Pad (Advanced) Operation Starting Up/Shutting Down ......Reference Manual • • External Display Suspend/Hibernation • Modem Functions •...
  • Page 2 For Product Key, write down the Product Key shown on the “Certificate of Authenticity” located on the bottom of the computer. Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations in this Manual NOTE: NOTE provides a useful fact or helpful information.

  • Page 3: Read Me First

    Excessive RENs on the telephone line Consult the Panasonic Service Center or an experienced ra- may result in the devices not ringing in response to an incoming call. In dio/TV technician for help.
  • Page 4 Read Me First For Canada RESTRICTIONS CONCERNANT LE RACCORDEMENT Industry Canada (IC) Notice for modem DE MATÉRIEL This equipment contains an Industry Canada approved modem unit. The Industry Canada label is affixed on the modem unit. “AVIS: L’étiquette d’Industrie Canada identifie le matériel homologué.
  • Page 5 Lithium Battery Precautions The CF-17/CF-M34 was developed based on thorough research Lithium Battery! into the real-world portable computing environments. Exhaus- This computer contains a lithium battery to enable the date, time, tive pursuit of usability and reliability under harsh conditions and other data to be stored.
  • Page 6 Read Me First Precautions ( Battery Pack ) Care should be exercised with regard to the following in If the battery pack will not be used for a long period of time order to avoid the possibility of liquid leakage, overheat- (a month or more), charge or discharge (use) the battery pack ing, or bursting.
  • Page 7 Saving Data on the Hard Disk Do not expose your computer to shock. Use care when handling your computer, shock may damage your hard disk or make your software appli- cations and data unusable. Do not power off your computer while software applications are running or HDD indicator ( ) is on. Properly shut Windows* down to avoid problems ([Start] - [Shut Down] ).
  • Page 8 Read Me First Usage Environment Environment Place the computer on a flat stable surface. In use: Temperature: 5 °C to 35 °C {41 °F to 95 °F} Humidity: 30% to 80% RH (No condensation) Not in use: Temperature: -20 °C to 60 °C {-4 °F to 140 °F} Humidity: 30% to 90% RH (No condensation) Places not to use your computer...

  • Page 9: First-Time Operation

    Confirm the inclusion of all parts Make sure the parts shown in the figure have been supplied. If any of these items are missing or is not working properly, contact Panasonic Technical Support. Battery Pack .. 1 Modem Telephone AC Adapter ..1 AC Cord ..
  • Page 10 First-time Operation Slide the battery pack inward until it is firmly in place. CAUTION Be sure the battery pack is properly connected to the connector. The cover is closed by inserting the hook at the right end (see illustration) into the groove.
  • Page 11 Prepare 2HD floppy disks and make sure they are not in the write-protected state, then select [Start] - [Programs] - [Panasonic] - [Create Backup Disk] and follow the on-screen instructions. Place a label identifying the contents on each disk. ( "Creating...
  • Page 12 First-time Operation NOTE When using the files in the following folders available on the retail version of the Windows CD-ROM, it is necessary to run a separate file decompression program. \tsclient \tools To uncompress the file, it is necessary to have about 75 MB of free disk space on the hard disk.

  • Page 13: Touch Pad (Basic Operation)

    Touch Pad (Basic Operation) Use the touch pad to move the cursor on the display and perform normal computer operations. Work Surface For instructions on how to operate, refer to "Touch Pad (Advanced)". NOTE The touch pad has been designed to work only when a finger is used. Therefore, do not use any implement on the touch pad.

  • Page 14: Reference Manual

    Setup Utility works and other useful information. Run the Reference Manual Turn your computer on Select [Reference Manual] in [Start] - [Programs] - [Panasonic] - [On-Line Manuals] When launching the Reference Manual for the first time, the License Agreement will be displayed.

  • Page 15: Starting Up/Shutting Down

    When the CPU temperature rises, the computer may not power on to pre- vent the CPU from overheating. Should this happen, allow the computer to cool down then switch the power on again. If the computer still does not power on, contact Panasonic Technical Support. If security indicator ( ) is displayed, you must first enter your password.
  • Page 16 Starting Up/Shutting Down Select your application You are able to start working on your computer. NOTE The power saving mode ([Power Schemes] in [Control Panel] - [Power Management]) is factory set, so if there is no input from a key, the touch pad, the touchscreen or an external mouse (when one is connected) for a certain interval of time, the power to the LCD and hard disk is may be turned off.

  • Page 17: In This Manual, Descriptions Are Given Us-List Of Error Codes

    If your system displays one of except the messages marked below with an asterisk (*), write down the message and contact Panasonic Technical Support. If your system fails after you make changes in the Setup menus, reset the computer, enter Setup and install Setup defaults or correct the error.
  • Page 18 List of Error Codes 02F5 DMA Test Failed Cannot write to extended DMA (Direct Memory Access) registers. 02F6 Software NMI Failed Cannot generate software NMI (Non-Maskable Interrupt). 02F7 Fail - Safe Timer NMI Failed Fail-Safe Timer takes too long. device address Conflict Address conflict for specified device.

  • Page 19: Dealing With Problems

    Check to see if a fully charged battery is properly installed. tery indicator is not lit Remove the battery pack and disconnect the AC adapter, then connect them again. Input your password. If you have forgotten it, contact Panasonic Technical Support. is displayed [POST Startup Error(s)] is...
  • Page 20 Dealing With Problems (Summary) Display No display after powering At the time of purchase, the display setting is preset for an external display. If you connect an external display, the screen is displayed on the external display. When there is no display to an external display, •...

  • Page 21: Reinstalling Software

    Be sure the AC adapter is connected until the reinstallation procedure is completed. When the computer enter the ECO mode, the power to the LCD is automatically cut. In this case, perform the keyboard operation. When using the Panasonic KXL-RW10A CD-ROM drive, set the switch of the PC Card to 16-bit. Reinstalling...

  • Page 22: Limited Use License Agreement

    LIMITED USE LICENSE AGREEMENT THE SOFTWARE PROGRAM(S) ("PROGRAMS") FURNISHED WITH THIS PANASONIC PRODUCT ("PRODUCT") ® ARE LICENSED ONLY TO THE END-USER ("YOU"), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
  • Page 23 Contrat de licence d'usage limité Le(s) logiciel(s) (les "Logiciels") fournis avec ce produit Panasonic (le "Produit") sont exclusivement concédés en ® licence à l'utilisateur ultime ("vous"), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci- dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et condi- tions des présentes.

  • Page 24: Names And Functions Of Parts

    Names and Functions of Parts USB Port "Touch Pad "USB Devices") (Advanced)", "Touchscreen") Microphone Internal Modem page 13 Touch Pad "Modem") LED Indicators PC Card Slots "LED Indicators") "PC Cards") Power status Battery pack status Hard disk status Scroll Lock (ScrLk) Reset Button Numeric Key (NumLk) Caps Lock...

  • Page 25: Specifications

    Operating System Microsoft Windows 98 Second Edition ® ® (FAT32 File System) Utility Programs Setup Utility, DMI Viewer, Panasonic Hand Writing, Display Rotation Tool In use Temperature 5 °C to 35 °C {41 °F 95 °F} Environment Humidity 30% to 80% RH (No condensation)

  • Page 26: Limited Warranty

    God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any Program.
  • Page 27 No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environ- mental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God.
  • Page 28 The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations. Panasonic Personal Computer Company, Panasonic Canada Inc. 50 Meadowlands Parkway, Panazip 2F-5, 5770 Ambler Drive Mississauga,...
