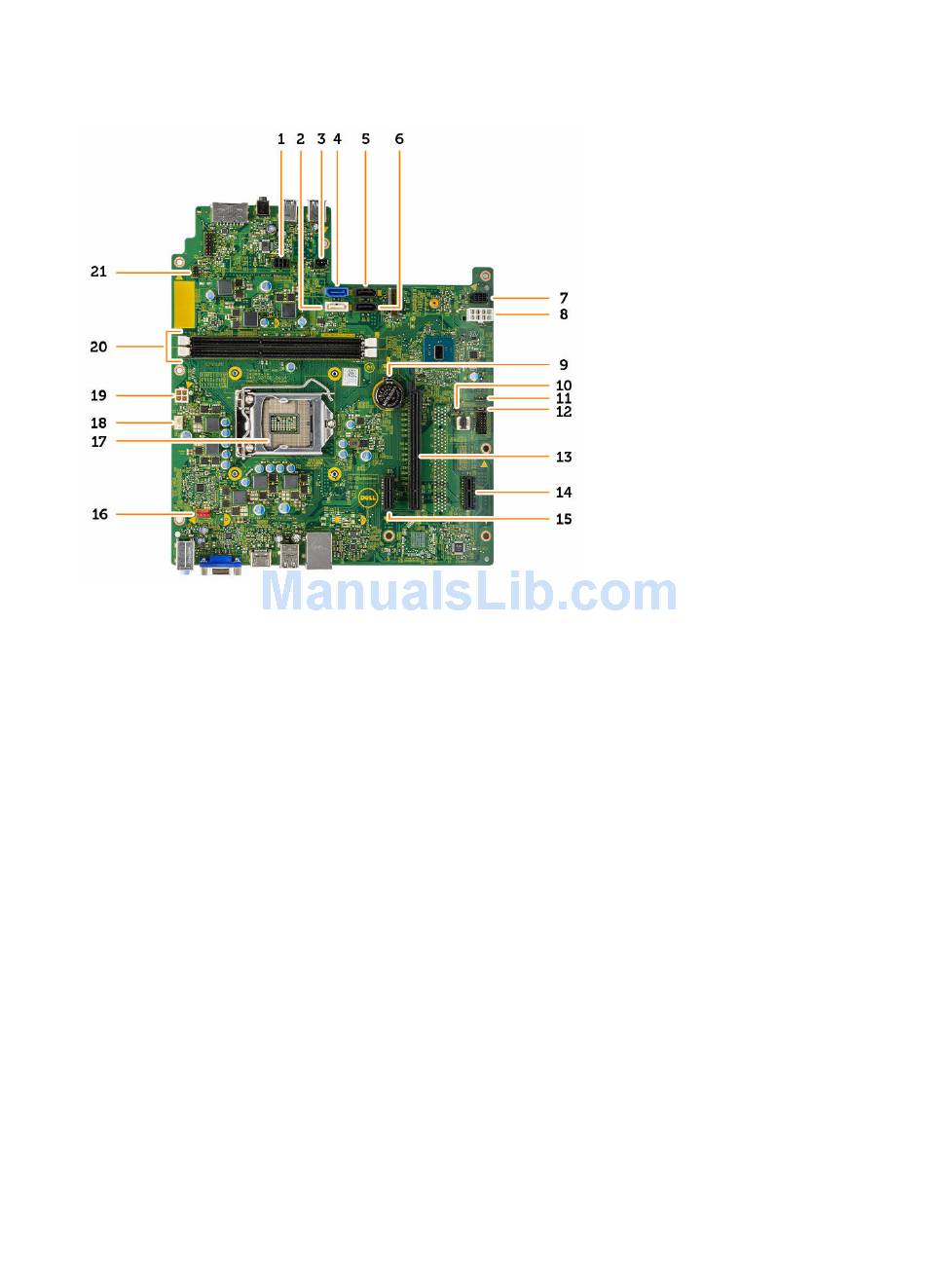

System Board Layout

1. SATA power connector
3. Light bar header
5. SATA3
7. SATA power connector
9. Coin cell battery
11. ME disable jumper
13. PCIex16
15. PCIex1
17. CPU socket
19. PSU connector
21. Power switch connector
22
2. SATA1
4. SATA0
6. SATA2
8. PSU connector
10. Clear CMS jumper
12. Password clear jumper
14. PCIex1
16. System fan connector
18. CPU fan connector
20. Memory module connectors
