DVP-C600D
RMT-D104A
SERVICE MANUAL
US Model
Canadian Model
Mexican Model
SPECIFICATIONS
CD/DVD PLAYER
MICROFILM

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVP-C600D and is the answer not in the manual?

Questions and answers

Related Manuals for Sony DVP-C600D

Summary of Contents for Sony DVP-C600D

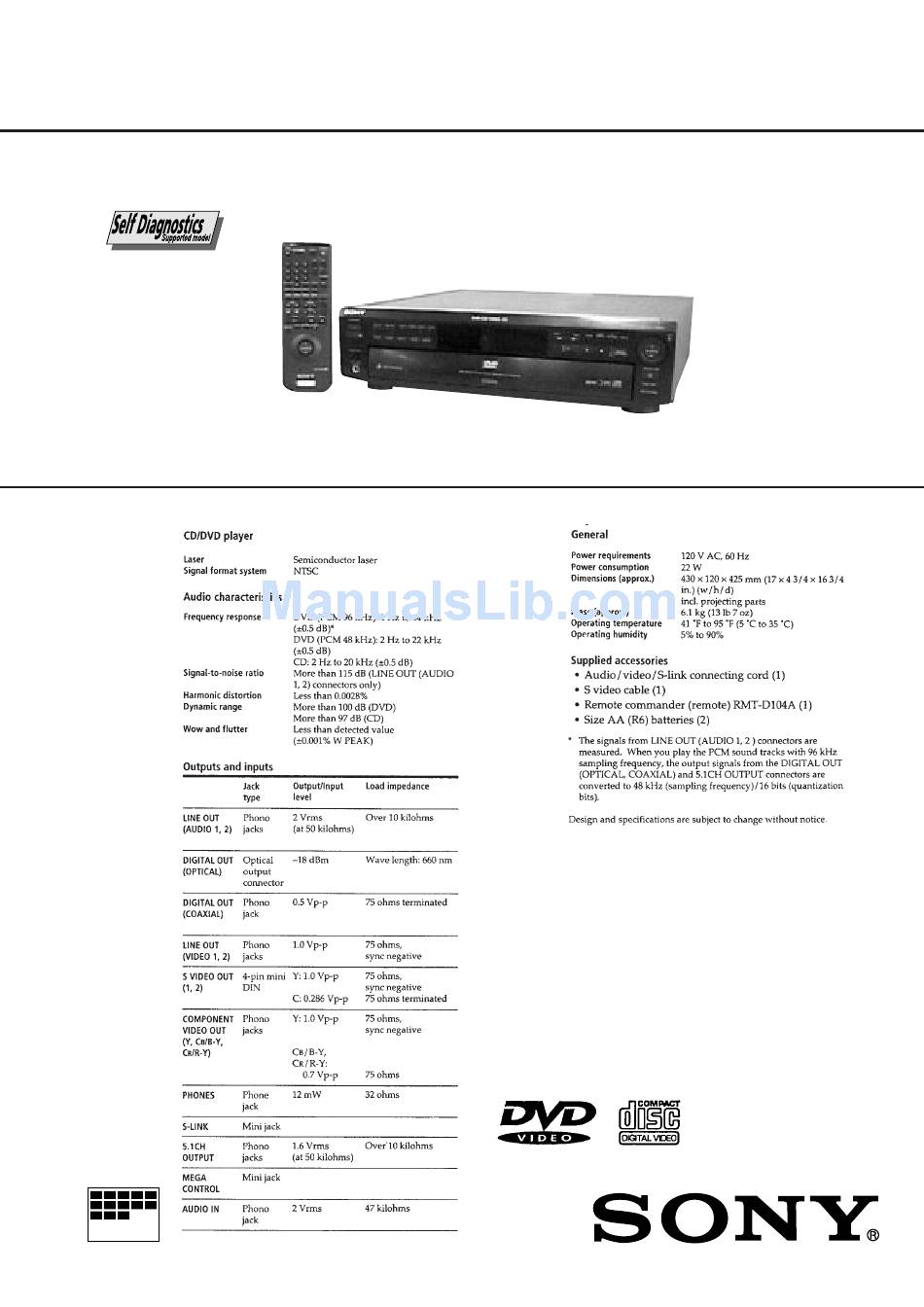

  • Page 1 DVP-C600D RMT-D104A SERVICE MANUAL US Model Canadian Model Mexican Model SPECIFICATIONS CD/DVD PLAYER MICROFILM...
  • Page 2 DVP-C600D TK-48 (RF, SERVO 1) SCHEMATIC DIAGRAM – Ref. No.: TK-48 board; 3,000 series – • Waveforms 4 IC005 !£ (CD play) 1 IC006 %¡ – %™ (DVD play) 270 mVp-p (V) 500 mV/DIV 1 ms/DIV 5 IC005 !∞ (CD play) 2 IC006 ^¡...
  • Page 3 DVP-C600D TK-48 (RF, SERVO 2) SCHEMATIC DIAGRAM – Ref. No.: TK-48 board; 3,000 series – RF, SERVO 2 TK-48 (2/2) 4-10...
  • Page 4 DVP-C600D MB-83 (AC-3 DECODER) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – AC-3 DECODER MB-83 (1/16) 4-15 4-16...
  • Page 5 DVP-C600D MB-83 (M GATE ARRAY) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – M GATE ARRAY MB-83 (2/16) 4-17 4-18...
  • Page 6 DVP-C600D MB-83 (AV DECODER) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – AV DECODER MB-83 (3/16) 4-19 4-20...

  • Page 7: Clock Generator

    DVP-C600D MB-83 (CLOCK GENERATOR) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveforms 1 IC206 8 3.28 Vp-p 27 MHz 2 IC209 1 1.4 Vp-p 27 MHz...

  • Page 8: Video Encoder

    DVP-C600D MB-83 (VIDEO ENCODER) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – VIDEO ENCODER MB-83 (5/16) 4-23 4-24...
  • Page 9 DVP-C600D MB-83 (DRIVE 1) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveforms 1 IC303 !ª, @™, @£ (DVD play) 5.2 Vp-p 160 Hz 2 IC303 !ª, @™, @£ (CD play) 1.84 Vp-p 45 Hz...
  • Page 10 DVP-C600D MB-83 (DRIVE 2), FG-44 (SLED) SCHEMATIC DIAGRAMS • See page 4-11 to 4-14 and 4-26 for printed wiring boards. – Ref. No.: MB-83 board; 2,000 series, FG-44 board; 1,000 series – DRIVE 2, SLED MB-83 (7/16), FG-44 4-29 4-30...
  • Page 11 DVP-C600D MB-83 (DSP 1) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – DSP 1 MB-83 (8/16) 4-31 4-32...
  • Page 12 DVP-C600D MB-83 (DSP 2) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveform 1 IC506 ^∞ 3.6 Vp-p 27 MHz DSP 2 MB-83 (9/16) 4-33 4-34...
  • Page 13 DVP-C600D MB-83 (ROULETTE), CK-78 (CONNECTION), LM-55 (LOADING MOTOR), SE-70 (SENSOR) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series, CK-78, LM-55, SE-70 boards; 1,000 series – ROULETTE, CONNECTION, LOADING MOTOR, SENSOR...
  • Page 14 DVP-C600D MB-83 (BIAS) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 boards; 2,000 series – Note: Note: The components identi- Les composants identifiés par fied by mark ! or dotted une marque ! sont critiques line with mark ! are criti- pour la sécurité.
  • Page 15 DVP-C600D MB-83 (IF µ-COM) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveform 1 IC604 *™ 5.6 Vp-p 4 MHz IF µ-COM MB-83 (12/16) 4-41 4-42...
  • Page 16 DVP-C600D MB-83 (L GATE ARRAY) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveforms 1 IC804 `⁄⁄° 4 IC806 `⁄¤› 225 mVp-p 13.5 MHz 3.0 Vp-p 33 MHz 5 IC806 `⁄¤¤...
  • Page 17 DVP-C600D MB-83 (ARP, DECRYPT) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – ARP, DECRYPT MB-83 (14/16) 4-45 4-46...
  • Page 18 DVP-C600D MB-83 (SYSTEM µ-COM) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – SYSTEM µ-COM MB-83 (15/16) 4-47 4-48...
  • Page 19 DVP-C600D MB-83 (S GATE ARRAY) SCHEMATIC DIAGRAM • See page 4-11 to 4-14 for printed wiring board. – Ref. No.: MB-83 board; 2,000 series – • Waveform 1 IC805 &£ 4.4 Vp-p 20 MHz S GATE ARRAY MB-83 (16/16) 4-49...
  • Page 20 DVP-C600D AU-198 (AUDIO 1) SCHEMATIC DIAGRAM • See page 4-51 to 4-54 for printed wiring board. – Ref. No.: AU-198 board; 1,000 series – AUDIO 1 AU-198 (1/4) 4-55 4-56...
  • Page 21 DVP-C600D AU-198 (AUDIO 2) SCHEMATIC DIAGRAM • See page 4-51 to 4-54 for printed wiring board. – Ref. No.: AU-198 board; 1,000 series – AUDIO 2 AU-198 (2/4) 4-57 4-58...
  • Page 22 DVP-C600D AU-198 (AUDIO 3) SCHEMATIC DIAGRAM • See page 4-51 to 4-54 for printed wiring board. – Ref. No.: AU-198 board; 1,000 series – AUDIO 3 AU-198 (3/4) 4-59 4-60...

  • Page 23: Video Buffer

    DVP-C600D AU-198 (VIDEO BUFFER) SCHEMATIC DIAGRAM • See page 4-51 to 4-54 for printed wiring board. – Ref. No.: AU-198 board; 1,000 series – • Waveforms 1 IC351 !∞ 4 IC851 !∞ 1.1 Vp-p (H) 0.7 Vp-p (H) 2 IC351 !£...
  • Page 24 DVP-C600D FL-89 (FL DRIVER, FUNCTION SWITCH), LE-20 (LED) SCHEMATIC DIAGRAMS – Ref. No.: FL-89, LE-20 board; 1,000 series – FL DRIVER/FUNCTION SW, LED FL-89, LE-20 4-65 4-66...
  • Page 25 DVP-C600D FR-134 (FUNCTION SWITCH), HP-97 (HEAD PHONE) SCHEMATIC DIAGRAMS – Ref. No.: FR-134, HP-97 boards; 1,000 series – FUNCTION SW, HEAD PHONE FR-134, HP-97 4-69 4-70...

  • Page 26: Power Supply

    DVP-C600D HS-934SU (POWER SUPPLY) SCHEMATIC DIAGRAM – Ref. No.: HS-934SU board; 4,000 series – HS-934SU BOARD T101 D211 S2LA20 11.4 L211 11.3 10µH C112 D109 2.6A 0.047µF D1N60 630V C114 R211 Q211 1µF C211 C212 2SJ488 400V 330µF 47µF P211...
