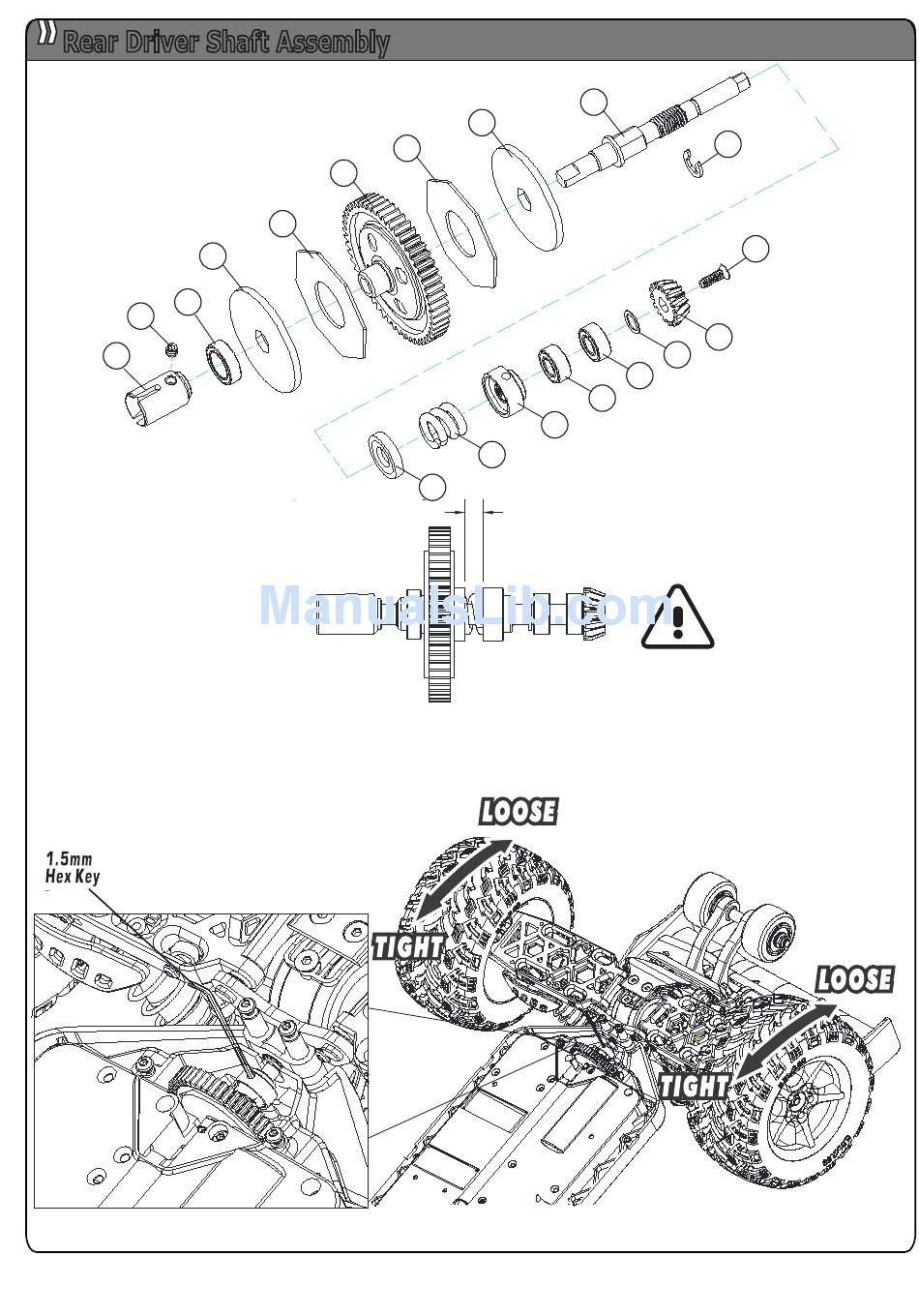

Rear Driver Shaft Assembly

107
5x10x4mm
M3x3mm
98
31
103
TIPS:
The slipper clutch adjstment short cut
Use 1.5mm hex key,Insert the hold as the picture below.
Grasp the both sides of rear wheels,rotate in the same direction.
108
109
108
106
8
110
107
98
98
5x10x4mm
104
105
3.5mm
Adjusting the Slipper clutch
NOTE: the slipper clutch adjustment too loose or tight
may result in damsge the gear during racing.
101
4.0mm
47
M2.5x8
96
97
15T
