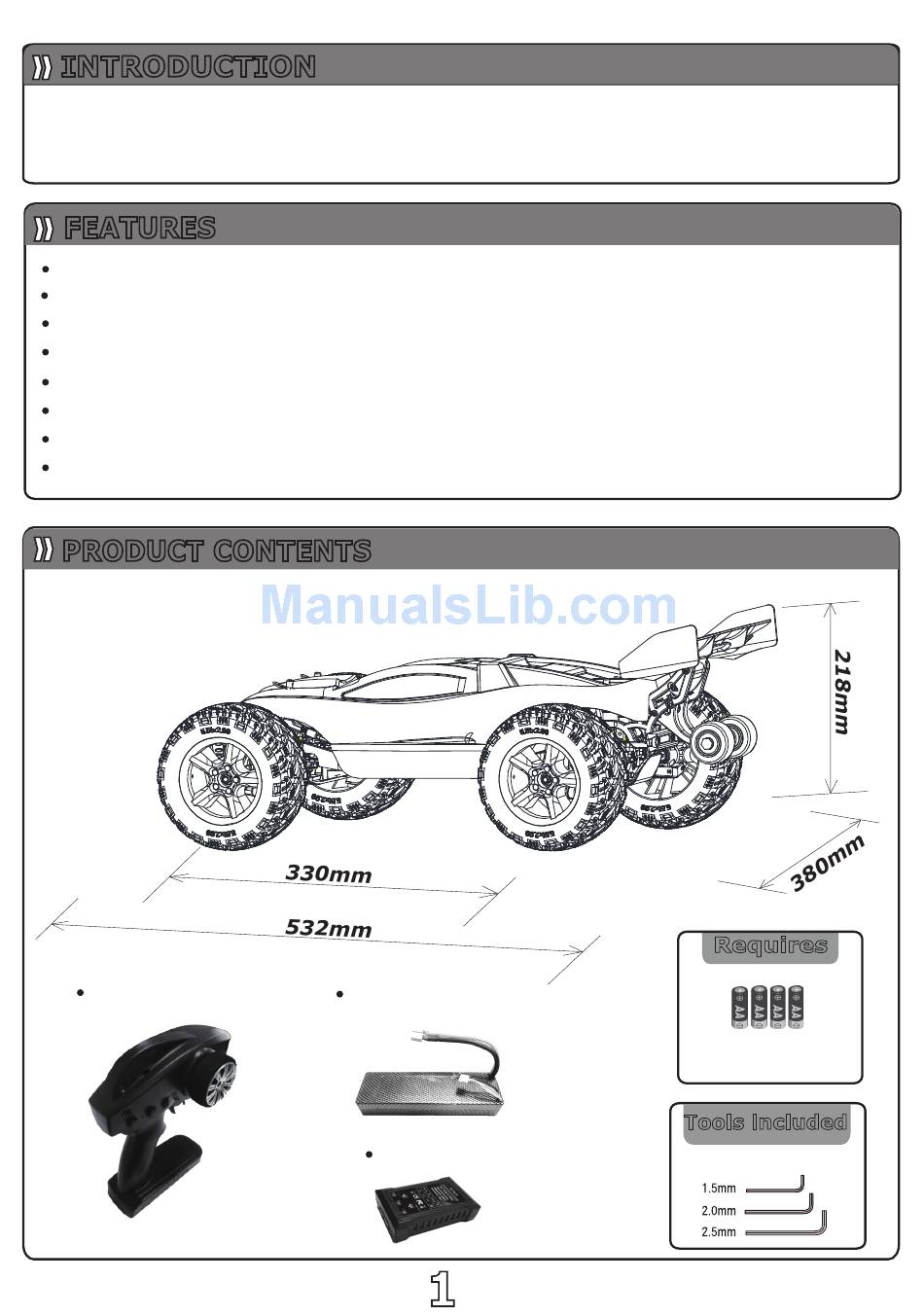

INTRODUCTION
Thank you for purchasing this VKAR racing model.This manual contains
instructions on operating and maintaining the Bison .Please take a monent
to read through this manual to familiarze yourself with this model.
FEATURES
Bright LED
Adjustable wheel bar set
All bearing throughout
Adjustable rear wing
Sealed,tunable limited-slip differentials
All terrain tires & agreessive electroplate wheel
Oil-filled ultra AL shocks with progressive dual-springs
Fully assembled and Ready-To-Race
PRODUCT CONTENTS
Scale：1/10
Drive System:4WD
Transmitter
Power Battery
Charger
1
1
Requires
4 PCS AAA Batteries
(For Transmitter)
Tools lncluded
Hex Key
Advertisement
Table of Contents
Related Manuals for VKAR Bison
Summary of Contents for VKAR Bison
- Page 1 INTRODUCTION Thank you for purchasing this VKAR racing model.This manual contains instructions on operating and maintaining the Bison .Please take a monent to read through this manual to familiarze yourself with this model. FEATURES Bright LED Adjustable wheel bar set...
- Page 2 IMPORTANT INFORMATION The Bison is a powerful RC car that will bring much enjoyment.Howewever,improper use can cause damage and bodily injuries.Please read the following information carefully to avoid casualties. WARNING: This model can be operated with Ni-MH or Lithium Polymer batteries.
-
Page 3: Parts Name
PARTS NAME LED Light Front Bumper Shock Hub Carrier Steer Block Front Shock Stay Wheel Hex Hub Turnbuckle (Camber Link) Suspension Arm Turnbuckle (toe Link) Steering Servo Body Mount Bracket Receiver Support Bracket Power Switch Battery Electronic Speed Control Center Shaft Motor Chassis Motor Mount... - Page 4 RADIO CONTROL INSTRUCTION 2.4G RC with 2-channels setup and fail safe function 1.Power Switch 2.Throttle Trim 3.Steering trim 4.Power /Ted Indlcator 5.Bind Key F/S Set 6.Steering Reverse 7.Steering D/R 8. Throttle Reverse 9.Steering Control Wheel 10.Throttle Trigger 11.Battery Box Blnd Match 1.
-
Page 5: Electronics Setup
ELECTRONICS SRTUP Servo Receiver Black wire “C” Blue wire “B” Model Set Key Switch Red wire “A” Begin to use the new ESC 1.Connect the ESC,motor,receiver,battery and servo according to the following diagram The #A,#B,#C wires of the ESC can be connected with the motor wires freely.If the motor runs in the Power opposite direction,please swap any two wire... -
Page 6: Radio System Setup
Quidck Start Guide 2. Charging the Battery 1. Wing Assembly 3. Loading the Battery RADIO SYSTEM SETUP Steering angle Steering angle is more is less... -
Page 7: Differential Assembly
Differential Assembly 10x15x4mm M2.5x8 10x15x4mm WRONG CORRECT Front Driver Shaft Assembly M3x3mm 5x10x4mm 5x10x4mm M2.5x8mm... -
Page 8: Rear Driver Shaft Assembly
Rear Driver Shaft Assembly 4.0mm M2.5x8 5x10x4mm M3x3mm 5x10x4mm 3.5mm Adjusting the Slipper clutch NOTE: the slipper clutch adjustment too loose or tight may result in damsge the gear during racing. TIPS: The slipper clutch adjstment short cut Use 1.5mm hex key,Insert the hold as the picture below. Grasp the both sides of rear wheels,rotate in the same direction. -
Page 9: Steering Assembly
Steering Assembly 4.0mm 5x8x2.5mm 5x8x2.5mm M3x20mm M3x20mm 5x8x2.5mm 5x8x2.5mm M3.0mm M3x8mm M3.0mm M3x10mm M3.0mm M3x10mm NOTE: M3.0mm Rotating the nut to seek suitable degree of tightness. Motor Mount Assembly NOTE: Rotating the nut to seek suitable degree of tightness. M3x15 NOTE: Look out the interval between motor gear and spur gear... -
Page 10: Shock Assembly
Shock Assembly Shock Aaaembling Steps: 1.Fill shock body with 4/5 silicone fluid(purchase seperately),pump the shock shaft up and down to remove any air bubbles. 2.Wait the air bubbles pumped out,then pull down the shock shaft to the bottom,fill the silicone fluid up to 2 mm,after that ,tighten the shock head 1. 3.Install the spring,shock assembling finished. -
Page 11: Spare Parts
SPARE PARTS ET1001 ET1002 ET1003 ET1004 ET1005 ET1006 Left Right Left Right Front Front Rear ET1007 ET1008 ES1022 ET1010 ET1011 ET1012 Rear Front Rear ET1014 ET1015 ET1016 ET1017 ET1018 ET1013 Left M3x15 Right M3x8 M3x8 ET1020 ET1021 ET1022 ET1023 ET1024 ET1019 M3x10 M4x8... - Page 12 SPARE PARTS ET1043 ET1044 ES1001 ES1002 ES1003 ES1040 M4x12 ES1046 MA309 MA310 MA311 MA330 MA316 MA321 MA319 MA320 MA328 MA336 MA337 MA348 MA349 MA331 MA350 MA354-B MA355 MA357 MA358 SPARE PARTS ET1045 ET1046 MA361 ET1047 ET1048 MA362 M3x16 M3x16 M3x8 M3x8 M3x16 M4x15...
-
Page 13: Electronic Components
ELECTRONIC COMPONENTS SPARE PARTS ET1058 ET1056 ET1057 MA704 ET1053 ET1054 ET1055 100A 3660 2500KV OPTIONAL PARTS ES1073-A MA601 ES1073-B SPARE PARTS BB103 SH103 BB102 BB104 SH102 SH101 BB101 ID 5x12x0.3mm ID 5x7x0.2mm ID 2.5x7x0.2mm 8x12x3.5 5x8x2.5 5x10x4 10x15x4 SPARE PARTS SW104 SW206 SW101... -
Page 14: Exploed View
EXPLOED VIEW... -
Page 15: Parts List
Bill Of Material Number Name Dosage Number Name Specification Dosage Number Name Specification Dosage Specification Hydraulic top button Lower Deck-F Saver Spring Box Post Saver Spring Hydraulic ball head covered Universal _Ball Screw M3x10 Servo Saver-B Nylon Nut Front Suspension Arm Servo Saver-A Shock_picston Rear Suspension Arm...
