ELECTRONICS SRTUP
Model
Power
2.Throttle Range Setting(Throttle Range Calibration)
In order to make the ESC match the throttle range,you must calibrate it when you begin to use a new ESC,
or anew transmitter,or after changing the setting of the neutral position of throttle channel.ATV or EPA
parameters,otherwise the ESC cannot work properly.
Red flashing, loosening
Hold the SET button
Neutral point Top polint of tjll throttle Top polint of tjll broke
Green LED flashes twice
Green LED
flashes once
Servo
Black wire "C"
Blue wire "B"
Red wire "A"
flaches thrice
Green LED
5 5
Receiver
ESC
Begin to use the new ESC

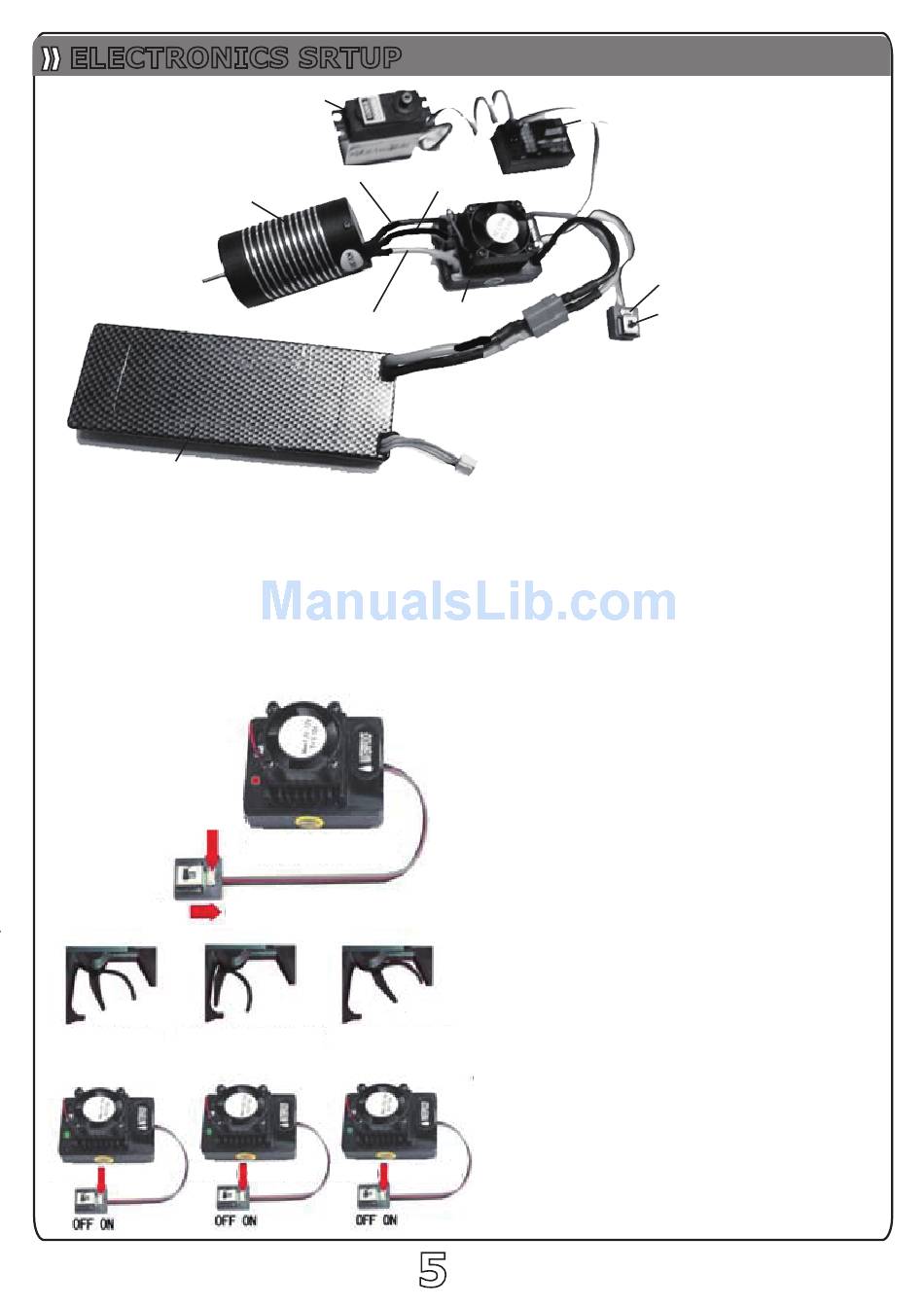

1.Connect the ESC,motor,receiver,battery
and servo according to the following diagram
The #A,#B,#C wires of the ESC can be connected
with the motor wires freely.If the motor runs in the
opposite direction,please swap any two wire
connections.
Note:You can use the transmitter to set the throttle
channel to the "Reverse"direction,and then the
motor will run oppositely.Please calibrate the
throttle range again after changing the direction of
throttle channel.
1).Switch off the ESC, turn on the transmitter, set the
direction of throttle channel to "REV",set the
"EPA/ATV" value of throttle channel to "100%",and
disable the "ABS" brake function of your
transmitter.(Note1)
2).Hold the "SET"key and then switch on the ESC,
when the red LED begins to flash,release the key
immediately.
(Please check the picture on the right side)
3). Set the THREE points according to the
steps shown in the picture on the right side.
a)Neutral point
b)End point of forward direction
c)End point of backward direction
4). When the process of calibration is finished,
the motor can be started after 3 seconds.
Note1: If you don't release the "SET"key
after the red LED begins to flash,the ESC
will enter the program mode,in such a case,
please switch off the ESC and re-calibrate the
throttle range again from step 1 to step 4.
Set Key
Switch
