Unique UGP-2 Manual

Portable camping freezer

Advertisement

Quick Links

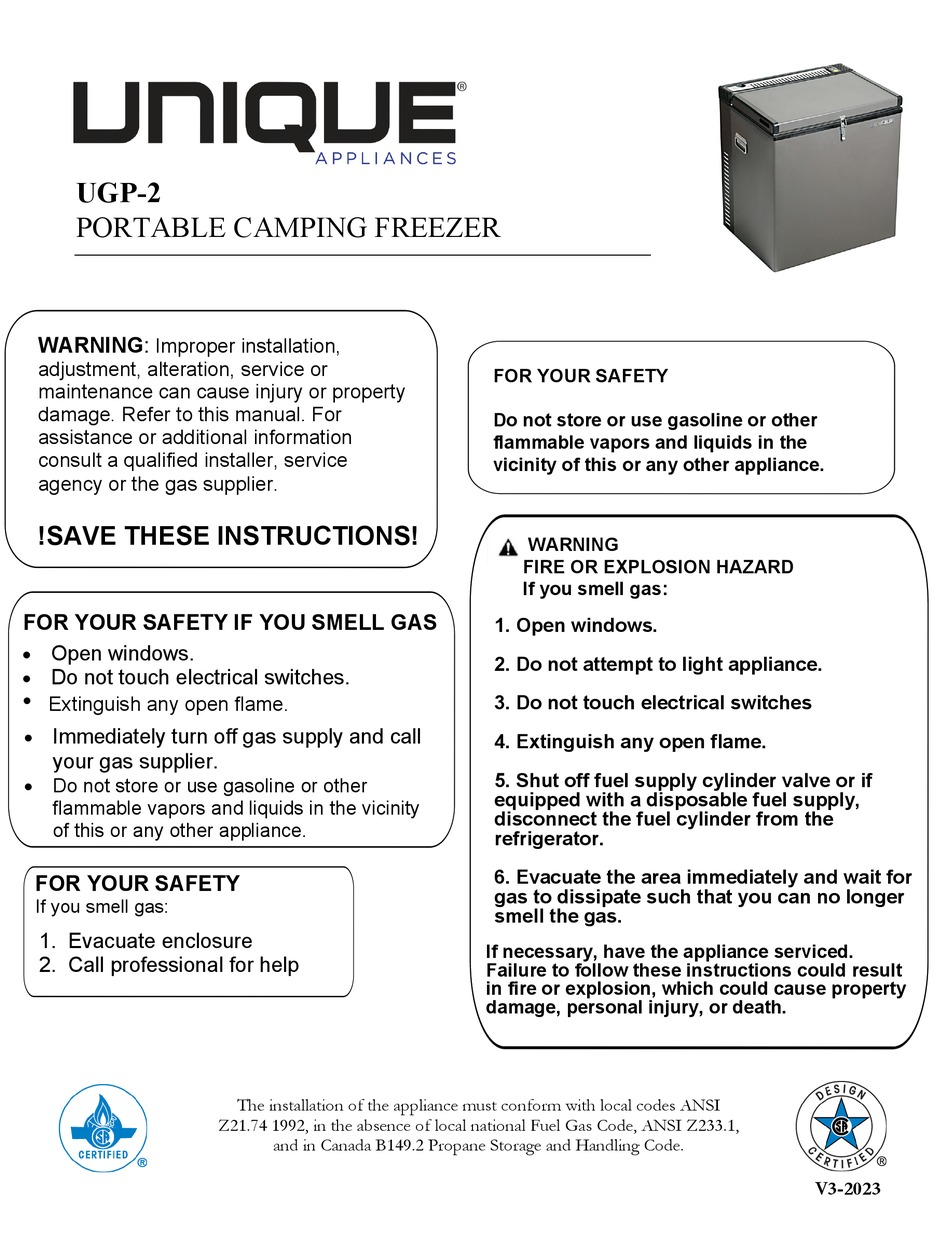

UGP-2
PORTABLE CAMPING FREEZER
WARNING:
Improper installation,
adjustment, alteration, service or
maintenance can cause injury or property
damage. Refer to this manual. For
assistance or additional information
consult a qualified installer, service
agency or the gas supplier.
!SAVE THESE INSTRUCTIONS!
FOR YOUR SAFETY IF YOU SMELL GAS
Open windows.
Do not touch electrical switches.
Extinguish any open flame.
Immediately turn off gas supply and call
your gas supplier.
 Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
FOR YOUR SAFETY
If you smell gas:
1. Evacuate enclosure
2. Call professional for help
The installation of the appliance must conform with local codes ANSI
Z21.74 1992, in the absence of local national Fuel Gas Code, ANSI Z233.1,
and in Canada B149.2 Propane Storage and Handling Code.
FOR YOUR SAFETY
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Open windows.
2. Do not attempt to light appliance.
3. Do not touch electrical switches
4. Extinguish any open flame.
5. Shut off fuel supply cylinder valve or if
equipped with a disposable fuel supply,
disconnect the fuel cylinder from the
refrigerator.
6. Evacuate the area immediately and wait for
gas to dissipate such that you can no longer
smell the gas.
If necessary, have the appliance serviced.
Failure to follow these instructions could result
in fire or explosion, which could cause property
damage, personal injury, or death.
V3-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UGP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Unique UGP-2

  • Page 1 UGP-2 PORTABLE CAMPING FREEZER WARNING: Improper installation, adjustment, alteration, service or FOR YOUR SAFETY maintenance can cause injury or property damage. Refer to this manual. For Do not store or use gasoline or other assistance or additional information flammable vapors and liquids in the consult a qualified installer, service vicinity of this or any other appliance.
  • Page 2 M A N U F A C T U R E D A N D C E R T I F I E D B Y Unique Appliances Ltd “ & ” “ & ” “ & ” 2245 Wyecroft Road #5...
  • Page 3: Table Of Contents

    Table of Contents Chapters Welcome Safety and Warnings Appliances Installation/ Operating Instructions Maintenance & Service Troubleshooting & Suggested Spares Temperature Controls, Food Storage and Cleaning Wiring Diagram Parts & Warranty...
  • Page 4: Chapters

    It contains valuable information on how to properly maintain your new gas freezer. We know you will enjoy your new freezer and thank you for choosing one of our Unique Gas Products. We hope you will consider us for future purchases.
  • Page 5: Safety And Warnings

    U N I Q U E U G P  Safety and Warnings If you smell gas Open windows.  Don’t touch electrical switches.  Extinguish any open flame.  Immediately call your gas supplier.  For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity ...
  • Page 6: Appliances Installation/ Operating Instructions

    Do not place the freezer in a space where air circulation is restricted. Follow “clearance” instructions. This UNIQUE 2 appliance has been certified as a portable camping appliance in North America it must be used as a portable camping appliance for use outdoors in sheltered area.
  • Page 7 Tank Holder Installation Instruction for UGP-2 1. Take out 2 pcs hose clamps, 2 pcs bolts, the regulator and instruction manual. 2. Install these 2 pcs hose clamps on the cabinet side. 3. Insert tank into hose clamps and tighten until snug. Tank should not fall out of holder when fridge is tipped forward.
  • Page 8 U N I Q U E U G P Note: DO NOT install the appliance directly on carpeting. Carpeting must be removed or protected by a metal or wood panel beneath the appliance, which extends at least the full width and depth of the appliance. Keep appliance area clear and free from combustible materials, gasoline and other liquids with flammable vapors.
  • Page 9 U N I Q U E U G P gas connections must be checked for leaks 4. After connecting, all . For this, put a soapy solution on all gas connections, turn on the gas cylinder manual valve and watch for bubbles. Never use an open flame to check for leaks. Note: The gas supply system must incorporate a pressure regulator to maintain a supply pressure of not more than 12”...
  • Page 10 U N I Q U E U G P 1. Make sure that all valves between the gas container and the freezer are open. 2. Turn selector switch (E) to gas. 3. Depress the safety device control (A) and hold it down while immediately depressing the electronic igniter button (C).
  • Page 11 U N I Q U E U G P 12V DC Operation 1. If 110 Volts or LP gas is not available, the freezer can work with DC12V (3- Way models only). 2. Make sure that you turn the main power switch (E) to “DC” position. Then you can connect the 12VDC power to the terminal block which is available in the rear bottom part of the freezer.
  • Page 12 U N I Q U E U G P electronic ignition C discharges sparks onto the burner when the button is pushed. See Figure #1 1. “MAX” Setting of the Thermostat: In gas operation, the thermostat allows the burner to remain on high flame continuously. (turn clockwise), and in 110V operation the element will stay on until the desired temperature is reached inside the freezer.
  • Page 13 U N I Q U E U G P Never use strong chemicals or abrasives to clean these parts as the protective surfaces will be damaged. It is important to always keep the freezer clean. Dishwasher detergent is recommended.
  • Page 14: Maintenance & Service

    Chapter U N I Q U E U G P Maintenance & Service The user should be aware of service that must be done on a regular schedule to keep the freezer operating properly. Installation must be by a licensed gas fitter in accordance with local codes or must comply with Propane Installation Code CAN/CGA-B149.2 (latest edition) ...
  • Page 15 U N I Q U E U G P Check all connectors in the complete freezer LP gas system for gas leaks. The LP  gas supply must be turned on. Apply a non-corrosive bubble solution to all LP connections. The appearance of bubbles indicates a leak and should be repaired immediately by a qualified serviceman.
  • Page 16 U N I Q U E U G P blow it out with compressed air. Do not use thin objects to either clean or unblock the injector. Re-install and tighten burner orifice. 5. Replace burner Warning - DO NOT use a pin or wire when cleaning the burner orifice as damage can occur to the precision opening.
  • Page 17 U N I Q U E U G P – Button (A) Fig#1, page 7, must be manually depressed to allow gas ARNING pressure to flow to the burner orifice. Be sure to apply the leak check solution before depressing this button. DO NOT allow any open flame, sparks, smoking, etc. in the area of the test.
  • Page 18: Troubleshooting & Suggested Spares

    Chapter U N I Q U E U G P TROUBLESHOOTING INSTRUCTIONS & SUGGESTED SPARE PARTS TO KEEP ON HAND FREEZER DOES NOT COOL, CHECK LIKELY CAUSES: Burner orifice clogged. Clean. See section M & S AINTENANCE ERVICE HAPTER Check to ensure freezer is level – (left to right and front to back). Restriction on air flow across cooling unit.
  • Page 19 U N I Q U E U G P Suggested Spare Parts The following is a list of commonly used parts which are available: Burner orifice  Burner  Electrode  Thermocouple  Baffle  Contact your dealer or an authorized service center for parts and repairs as needed. Quote Model &...
  • Page 20 Chapter U N I Q U E U G P Food Storage Ideas ROZEN TORAGE The freezer compartment should be kept at 8.6°F (-13°C) at a 77°F (25°C) room  ambient A freezer operates most efficiently when it is slowly loaded to 2/3 full. ...
  • Page 21: Cleaning

    U N I Q U E U G P Care and Cleaning Keep your freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface.
  • Page 22: Wiring Diagram

    Chapter U N I Q U E U G P Wiring Diagram...
  • Page 23 Chapter U N I Q U E U G P Parts Diagram and List UNIQUE UGP 2 - E XPLODED IAGRAM...
  • Page 24: Parts & Warranty

    U N I Q U E U G P UNIQUE UGP 2 – Parts List UNIQUE – UGP 2 Item Code UGP 2 Cabinet Cooling unit UGP-DL90000015 Heat-sink holder UGP-DL07001057 Heat-sink cover UGP-DL07001123 Left heat-Sink UGP-DL07001143 Right heat-Sink UGP-DL07001156 Insulation cover UGP-DL10001273...
  • Page 25 U N I Q U E U G P Item Code Indicator lamp UGP-DL10001299 Flame indicator UGP-DL18301013 Level UGP-DL00009368 Gas pipe UGP-DL07001038 Sealing ring UGP-DL10001136 UGP-DL10001407 Inlet nipple UGP-DL10001506 Nut for gas inlet nipple UGP-DL00003077 Inlet nipple holder UGP-DL07001080 Burner gas pipe UGP-DL07001037 Check point body UGP-DL10001498...
  • Page 26 Unique Appliances Ltd. and by the Seller. 2. Any part of this freezer returned to the Seller or Unique Appliances Ltd., which upon examination is determined by them to have been defective in material or workmanship, will at their option be either repaired or replaced under this warranty, without charge for materials/parts.
