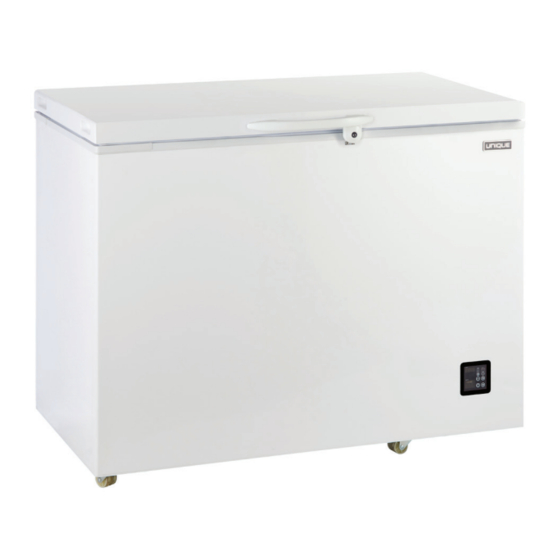

- Page 1 265L / 9.3 cu. ft. SOLAR POWERED DC CHEST FREEZER UGP-265L1 OWNER’S GUIDE serial number: JUN18V1...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important safety notes Installation Parts list DC power connection Operation Error codes Cleaning Energy saving tips Troubleshooting Parts diagram and list Appliance information Notes Contact us Limited warranty Back Technical specifications... -
Page 3: Important Safety Notes
Congratulations! You have purchased one of the most efficient freezers available on the market today. The Unique 265L1 solar pow- ered DC chest freezer is designed to provide years of trouble-free operation. The design is optimized for energy savings with an effi- cient DC compressor and highly efficient insulation. - Page 4 IMPORTANT SAFETY NOTES continued • To allow the interior to cool down properly, run the freezer for at least 4 hours empty before adding food. • This freezer is designed to operate on 12 or 24 volts DC ONLY. DO NOT CONNECT THIS FREEZER TO AN AC (alternating current) POWER SOURCE (UNLESS USING AN AC/DC CONVERTER - SOLD SEPARATELY)
- Page 5 It is not advised to connect an ap- pliance that has been damaged, especially damage to the electrical supply cable or refrigerant circuit. In the event of damage please contact your local product dealer or Unique Off-Grid Appliances for assistance. GENERAL SAFETY •...
- Page 6 IMPORTANT SAFETY NOTES continued supply cable. Also, be sure the electrical cable is not squeezed or bent when the appliance is being installed or moved. • Installation work and adjustments on the appliance must be carried out by qualified personnel only. Work performed by persons with inadequate technical knowledge may adversely effect the perfor- mance of the appliance, causing damage to the equipment, and void the warranty.
-
Page 7: Installation
INSTALLATION UNPACKING AND CLEANING Remove all packaging and securing tapes from the appliance. To avoid injury and causing damage to the appliance, be extremely cautious when using sharp or pointed tools to complete this task. There is a protective film on the lid of the unit which can be removed. Keep children away from the packaging material - DANGER OF SUF- FOCATION! Wash the inside and outside of the appliance with luke warm water and a mild soap or detergent. -
Page 8: Parts List
PARTS LIST PARTS LIST 1: Lid 7: Wheels 13: Ice tray 2 x Storage 2: Handle 8: Glass sliders 14: DC Power Cable Baskets 3: Lock 9: Control panel 15: Ice scraper 4: Keys 10: Left hinge 16: AC/DC Plug 5: LED light 11: Right hinge (optional for... -
Page 9: Dc Power Connection
DC POWER CONNECTION THIS FREEZER MUST NEVER BE CONNECTED DIRECTLY TO ANY AC (alternating current) POWER SOURCE! THE FREEZER MUST ONLY BE CONNECTED TO A 12V OR 24V DC POWER SOURCE, SUCH AS A SOLAR BATTERY SYSTEM OR CHARGE CONTROLLER. THE FREEZER WILL AUTOMATICALLY OPERATE ON EITHER 12V OR 24V DC. - Page 10 DC POWER CONNECTION continued REPLACING THE FUSE Remove 3 screws from grates to access the 15A fuse. OPERATING FUSE VOLTAGE 12 V / 24 V 15 A ATTENTION If a longer connection cable is necessary, the cable cross section (or gauge) must be equal to or greater than the cable sizes recom- mended on the following table.
-
Page 11: Operation
OPERATION Your Unique freezer, like any battery-powered refrigerating appli- ance, requires different care than appliances plugged into an elec- tric utility. Prudent operation is the key to extended service. STARTING THE FREEZER After the freezer has been properly connected to the 12 or 24 V DC power source or the AC/DC adaptor (sold separately), the compres- sor will automatically turn on and the cabinet will begin cooling. - Page 12 OPERATION continued ADJUSTMENTS As the ambient temperature changes with the season, it may be nec- essary to adjust the thermostat to achieve the proper internal tem- perature. If the room/ambient temperature approaches the appliance’s internal operating temperature, the appliance will not function as it should.
- Page 13 OPERATION continued DEFROSTING Before cleaning or repositioning the freezer, you must DISCONNECT the appliance from the electrical power supply. DEFROSTING THE UNIT As solar freezers do not have automatic defrost the freezer compartment could become progressively cov- ered with frost. When 5mm of frost forms in the freezer, this should be removed with the supplied plastic scraper.
-
Page 14: Error Codes
ERROR CODES on control panel display Error Error type can be read out on the Code control display Thermostat failure (if the thermostat Err 9 is not connected) Err 5 Over heating of compressor Err 4 Compressor speed error Err 3 Compressor start error Err 2 Over-current on cooling fan... -
Page 15: Cleaning
CLEANING Internal Cleaning Wash the inside of the appliance with luke warm water and a mild soap. Never use abrasive or corrosive cleaning agents, steel wool, scouring sponges, chemical cleaning agents, or highly perfumed cleaning products to clean the interior as these will damage the sur- face and leave behind a strong odor. -
Page 16: Troubleshooting
TROUBLESHOOTING Before contacting a service technician, your local product dealer or Unique Off-Grid Appliances, please check the following points. If you contact a technician to repair a fault listed below, or to repair a fault caused by misuse, abuse, or faulty installation, a charge will be made even if the appliance is under warranty. - Page 17 TROUBLESHOOTING continued Excessive frost • Is the weather hot and humid? If so, this will increase the rate of frost build-up in the cabinet. and ice has Glass sliders will help prevent build up. built up • Ensure that stored food is properly packaged. •...
-
Page 18: Parts Diagram And List
UGP-265L1 PARTS DIAGRAM AND LIST ITEM # PART # DESCRIPTION UGP-265L 1 Door UGP-265L 2 Door handle UGP-265L 3 LED light UGP-265L 4 Door Seal UGP-265L 5 Freeze Cabinet UGP-265L 6 Hinge UGP-265L 7 Hinge Cover UGP-265L 8 Glass lid UGP-265L 9 Wire Basket UGP-265L 10... -
Page 19: Appliance Information
APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your solar powered DC freezer easy and effi- cient, please record the following information for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES... -
Page 20: Contact Us
This Warranty is made only to the first purchaser (”original purchaser”) who acquires this freezer for his/her own use and will be honored by Unique Gas Products Ltd. and by the Seller. Purchaser must retain their receipt as proof of purchase date. - Page 21 +25˚C ambient) (24 DC) POWER CONSUMPTION 69 W 12V/24V AV. RUN CURRENT 5.75A on 12V - 2.88A on 24V FREEZER TEMP. RANGE -18˚C to +10˚C © 2018 Unique Gas Products Ltd., 2245 Wyecroft Road, Oakville, Ontario, Canada, L6L 5L7 www.uniqueoffgrid.com...
