Benefit B425 91105 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Benefit B425
Bike
91105
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the B425 91105 and is the answer not in the manual?

Questions and answers

Related Manuals for Benefit B425 91105

Summary of Contents for Benefit B425 91105

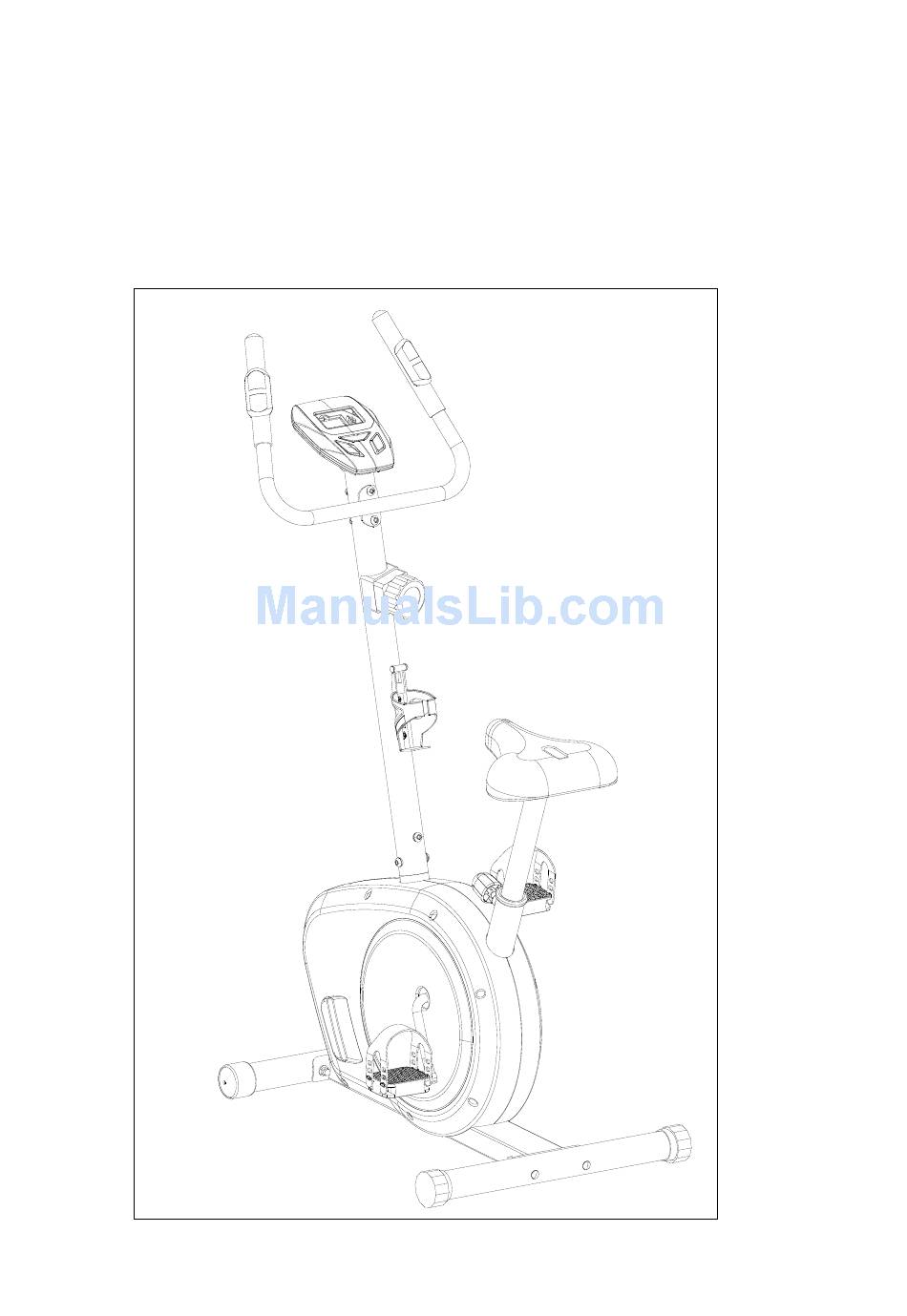

  • Page 1 Benefit B425 Bike 91105...
  • Page 2 B 425 M8X65mm Carriage Bolt(52)-4 M8Acorn Nut (51)-6 Curved Washer(53)-10 M8X65mmBolt(57)-2 M5X20mm Screw(68)- 2 Allen Key(1) M8X16mm Screw(19)-4 Screwdriver (1) Wrench （1） (MM)
  • Page 3 Assembly Diagram...
  • Page 4 EXPLODED DIAGRAM...

  • Page 5: Parts List Description

    PARTS LIST PARTS NO. DESCRIPTION Q'TY 1 & 2 Console & Screw 1PCS Pulley wheel 1PCS Crank 1PCS Belt 1PCS 8~11,9~14 Flywheel set 1SET Pattern nut 3/8” 2PCS Hand pulse 2PCS Screw M4x20 2PCS Allen bolt M8xP1.25x16L 4PCS 1PCS Main Frame Knob for Seat post 1PCS 2PCS...
  • Page 6 Front stabilizer 1PCS Screw M3x8 2PCS Transport wheel for front stabilizer 1SET Seat post 1PCS Seat 1PCS Handlebar 1PCS Cap for handlebar 2PCS 51~57 Bolt & nut part 1SET 58~64 B.B. SET 1SET Foam grip 1SET Flat washer φ5xφ10x1t 2PCS Bottle holder 1PCS Screw M5xP0.8x20L...
  • Page 7 Step 1 1. Install the front stabilizer (41) with 2 carriage bolts(52), curved washers (53) and acorn nuts (51) by using the hand tools. Make sure the transportation wheels are in correct direction. 2. Assemble the Rear Stabilizer (39) with 2 carriage bolts(52), curved washers (53) and acorn nuts (51) by using the hand tools.
  • Page 8 Step 3 . Attach the seat (46) to the seat post (45) with three M8 locknuts and three M8 flat washers; start all the locknuts, and then tighten them. 2. Loosen and remove the seat knob (22). 3. Insert the seat post (45) into the main frame, then choose the desired position and tighten the knob.
  • Page 9 Step 4 1. Pull the upper tension control (36) of the handlebar post (34) and ensure the tension knob is at the lightest position (minimum position) 2. Connect the upper tension control (36) and down tension control (32), then connect the upper sensor wire (35) and down sensor wire (25).
  • Page 10 Step 5 1. Pass the hand-pulse wire (69) through the hand post hole. 2. Attach the handlebar (48) to the hand post (34) with two M8 x 65mm bolts (57), two M8 curved washers (53), and two M8 acorn nuts (51); start both bolts, and then tighten them. 2.
  • Page 11 Step 6 1. The console (1) can use two AA batteries (not 11 included); alkaline batteries are recommended. Do not use old and new batteries together or alkaline, standard, and rechargeable batteries together. IMPORTANT: If the console has been exposed to cold temperatures, allow it to warm to room temperature before you insert batteries.
  • Page 12 Instruction Manual of ST3627-67 For simple exercise, it is not always necessary to select a training program or manually set the TIME, DISTANCE, or other values. You can simply start pedaling.

  • Page 13: Display & Button Functions

    As soon as user install batteries, computer will power on and LCD full display all segments then enter into the SCAN function mode after one second. Press the MODE key to select function. When there is pedaling signal transmitted to the console without pressing any key, console starts to work, all function TMR/SPD/DST/CAL will start to count up automatically.
  • Page 14 * CAL – Press SET key to set target CALORIES, each time it will increase by 1.0cl. If CALORIE counts down to 0.0 from target value, console will stop work and 0.0 is flashing for reminder, press any key to stop it. Then CALORIE will start to count up from 0.
