Benefit S420 FRW Assembly Manual

Indoor
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
91107

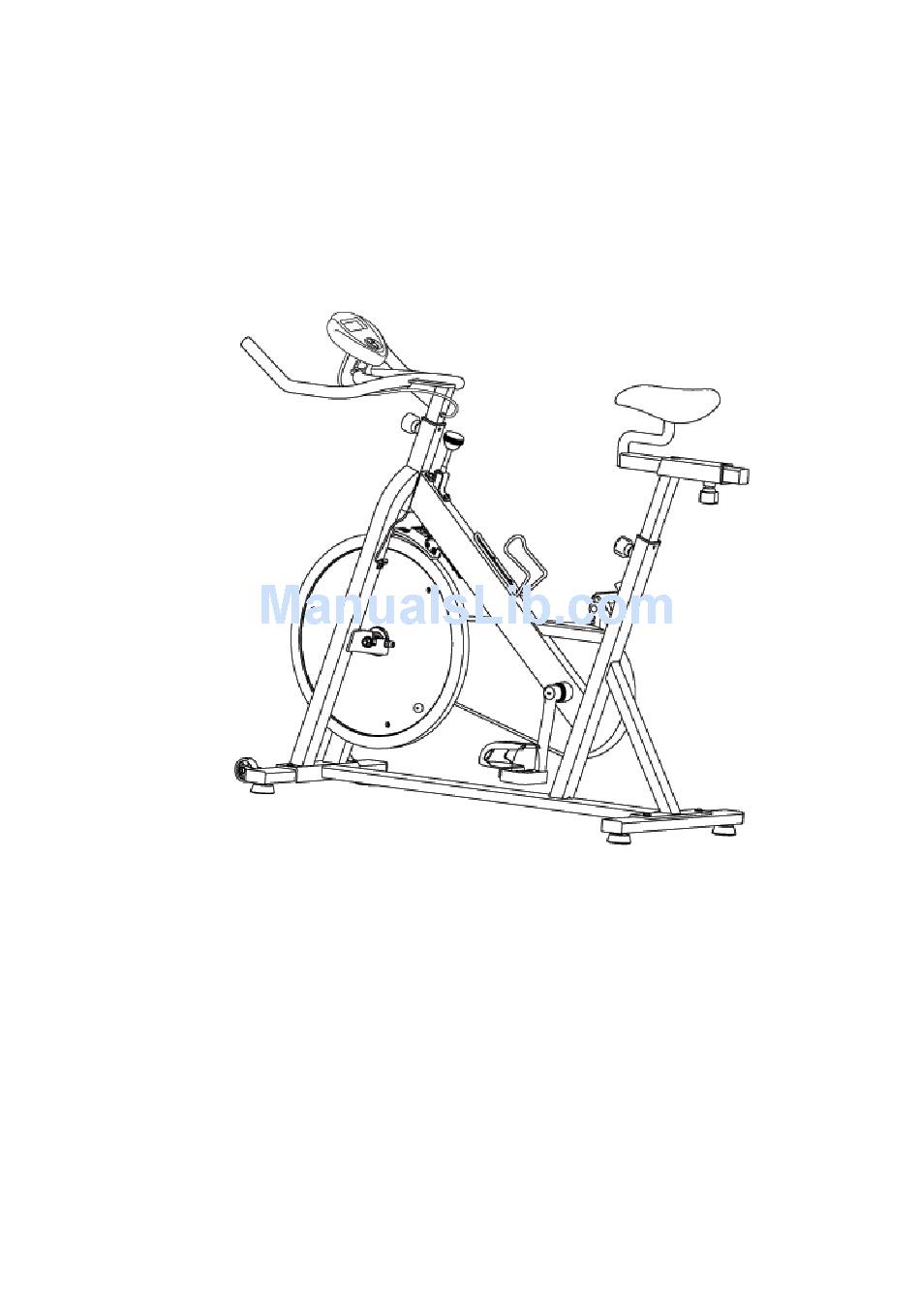

BENEFIT S420 FRW INDOOR BIKE
ASSEMBLE

Advertisement

loading
Need help?

Need help?

Do you have a question about the S420 FRW and is the answer not in the manual?

Questions and answers

Related Manuals for Benefit S420 FRW

Summary of Contents for Benefit S420 FRW

  • Page 1 91107 BENEFIT S420 FRW INDOOR BIKE ASSEMBLE...
  • Page 2 STEP 1 Attach the front Stabilizer (4) to the frame using two M8 X 25mm Bolt (52) and two Flat washers (53). STEP 2 ttach the Rear Stabilizer (5) to the frame using two M8 X 25mm Bolt (52) and two Flat washers (53).
  • Page 3 Attach the pedal (27(L) + 29(R) ) into the crank arm (24, 28), each pedal is marked with letter L (left) or R (right) to denote the side of the indoor bike they are on, Note – the right hand crank is on the same side as the chain guard (30). Be careful to align the threads correctly to avoid any damage.
  • Page 4 Insert the Seat Post (2) into the Frame (1), adjust the height and then fix in position with Knob (51). STEP 5 Insert the Seat Bracket (3) into the Seat Post (2), and fix using the knob (51). STEP 6...
  • Page 5 Insert the seat bracket (3) into seat post (2), 10 position can be available as per use’s requirement. The seat can be slide horizontally following the arrow, then rocked strongly by the adjustable knob (51). Insert the seat post (2) into frame (1), 10 position can be available as per use’s requirement.
  • Page 6 Connect the Upper Wire Harness (A) to the Down Wire harness (B). And put the upright (6) to the frame (1) . then fix up with the knob (51) STEP 8 ttach the console holder (57) on the handlebar (6) first, then attach the Console (59) to the console holder (57).
  • Page 7 Prevent the sensor cable to touch the flywheel while the handlebar (6) is in the lowest position, Pull out the upper wire harness (56) from the hole...

  • Page 9: Parts List

    Parts List Part No. Description Unit Part No. Description Unit ψ12*ψ6.5*T8 washer of Chain Frame Cover ψ12*ψ5.5*T2.0 washer of Chain Seat Post Cover Seat Bracket M5*20 Screw of Chain Cover Front Stabilizer M4*12 Screw of Chain Cover Rear Stabilizer M5*15 Screw of Chain Cover Handlebar Lining of Adjustment Group of Flywheel...
