Benefit ESB440 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Benefit ESB440
Bike
91104

Advertisement

Table of Contents
loading

Related Manuals for Benefit ESB440

Summary of Contents for Benefit ESB440

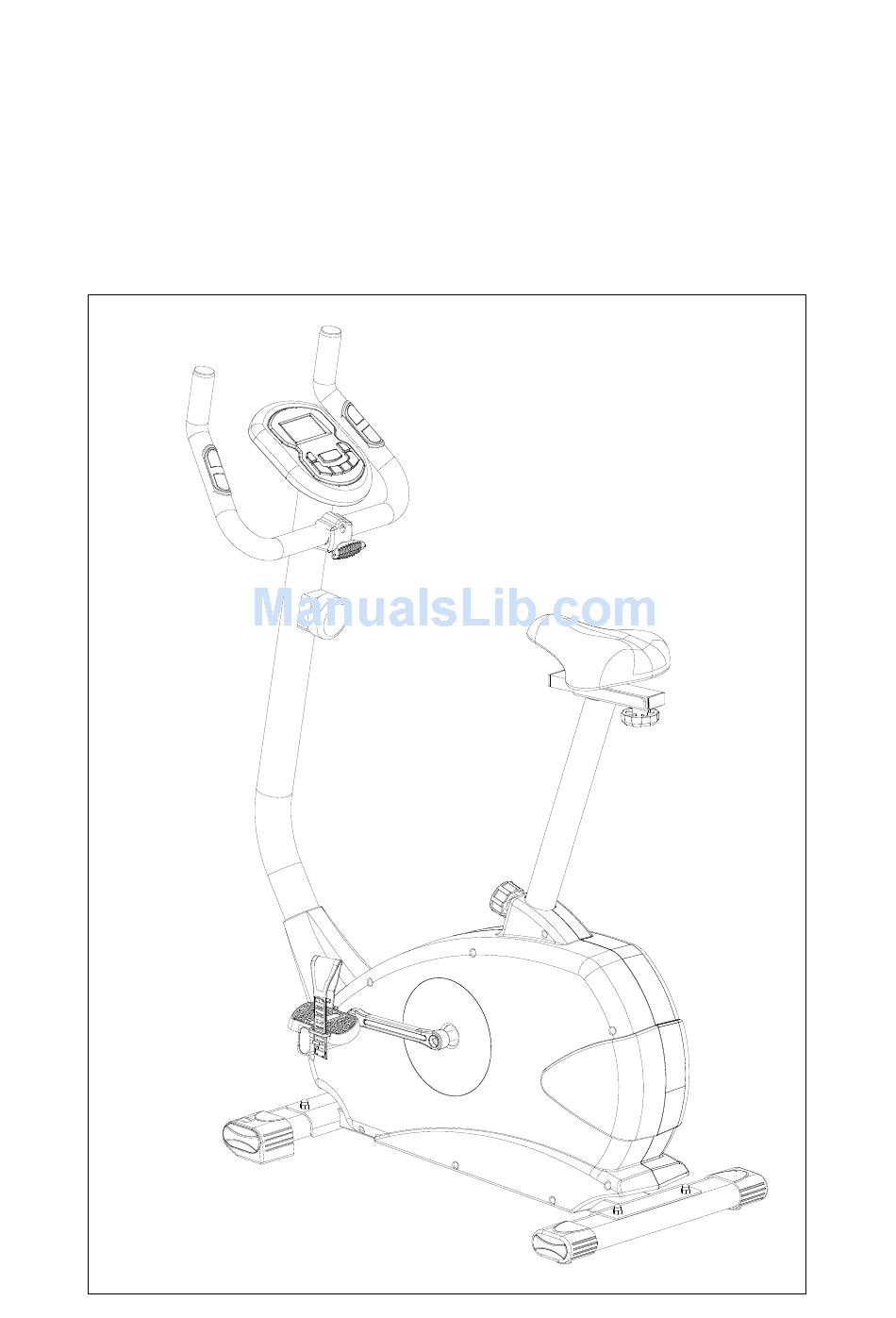

  • Page 1 Benefit ESB440 Bike 91104...
  • Page 2 91104 I-8 Box Spanner(1) I-7 Allen Key(1) I-3 Carriage Bolt M8*55MM (4) I-5 Acorn Nut for M8 Bolt (4) NO.I-1 T-shape knob M8*65L(1) I-6 Screwdriver(1) I-4 Curved Washer 8* 19*2t(4)

  • Page 3: Explode Drawing

    EXPLODE DRAWING...

  • Page 4: Complete Bike Assembly

    COMPLETE BIKE ASSEMBLY...

  • Page 5: Parts List

    PARTS LIST Description Spec. A,A-1 Computer and screw 1SET Cap for handlebar 2PCS Hand pulse 2PCS Foam grip 2PCS Hand pulse wire 1PCS Handlebar 1PCS Handlebar post 1PCS Sensor wire (Upper) 1PCS Tension control w/upper cable 1PCS Front stabilizer 1PCS End cap (Left) 1PCS End cap (Right)
  • Page 6 I-1~I-8 Bolts & nuts pack 1SET Hex. Bolt M8xP1.25x12Lx5t 3PCS Pulley wheel 1PCS Bushing φ22xφ17x7.5mmL 1PCS Axle 1PCS L-1~L-13 Flywheel set 1SET 1SET Magnetic brake set M6xP1.0*16L 2PCS Hex. Bolt φ6xφ13x1t 2PCS Flat washer φ6 2PCS Spring washer N-1~N-10 1SET Idler wheel...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Using box spanner install the front stabilizer (D-1) with the main frame by using 2 carriage bolts (I-3), flat washers (I-4) and nuts (I-5). Make sure the transportation wheels are in correct direction. Install the rear stabilizer (G-1) with the main frame by using 2 carriage bolts (I-3), flat washers (I-4) and nuts (I-5).
  • Page 8 STEP 2 Assemble the seat (E-24) to the slider (H-1). The slider can be adjusted in different angles. Tighten the two Nuts under the Seat using a screwdriver. In addition, the Slider can be adjusted in horizontal level by loosening the Knob. Insert the seat post (H) into the main frame, then choose the desired position and tighten the knob.
  • Page 9 STEP 3 Please remove the allen bolt (E-21) and semi-circular washers (E-22) from the main frame (E-20) Take the handlebar post cover (E-14) and pass it through handlebar post (C-1). Connect the Upper sensor wire (C-2) and Down sensor wire (E-6). Connect the upper tension control wire (C-3) and down tension control wire (E-13).
  • Page 10 STEP 4 Assembly the handlebar (B-5) onto the handlebar post (C-1). Place the plastic cover (I-2) on the handlebar (B-5). Insert the T- knob (I-1) into the metal cover. Make sure it is tightened very well. Pass the hand-pulse wire (B-4) through the handlebar post hole. NO.I-1 T-shape knob M8*65L(1) NO.
  • Page 11 STEP 5 Attach the computer (A) to the computer bracket with the enclosed screws (A-1), then connect the upper sensor wire (B-4) as well as the Hand pulse wire (C-2).
  • Page 12 INSTRUCTIONAL MANUAL FOR BENEFIT ST3604 CONSOLE DISPLAY FUNCTION : ITEM DESCRIPTION . The sequence of display: TMR→SPD→ DST→CAL→PULSE SCAN . In SCAN mode, press MODE key to choose other functions. . Automatically scan through each mode in sequence every 6 seconds.

  • Page 13: Button Function

    BUTTON FUNCTION: ITEM DESCRIPTION . In setting condition, press RESET key once to reset the current function figures. Reset . Press RESET key and hold for 2 seconds to reset all function figures, and have Bi sound for prompt at the same time. .
  • Page 14 Trouble shooting: . When the display of LCD is weak, it means the batteries need to be changed. . If there is no signal when you pedal, please check if the cable is well connected. NOTE : 1. Stop training for 4 minutes, the main screen will be off. 2.
