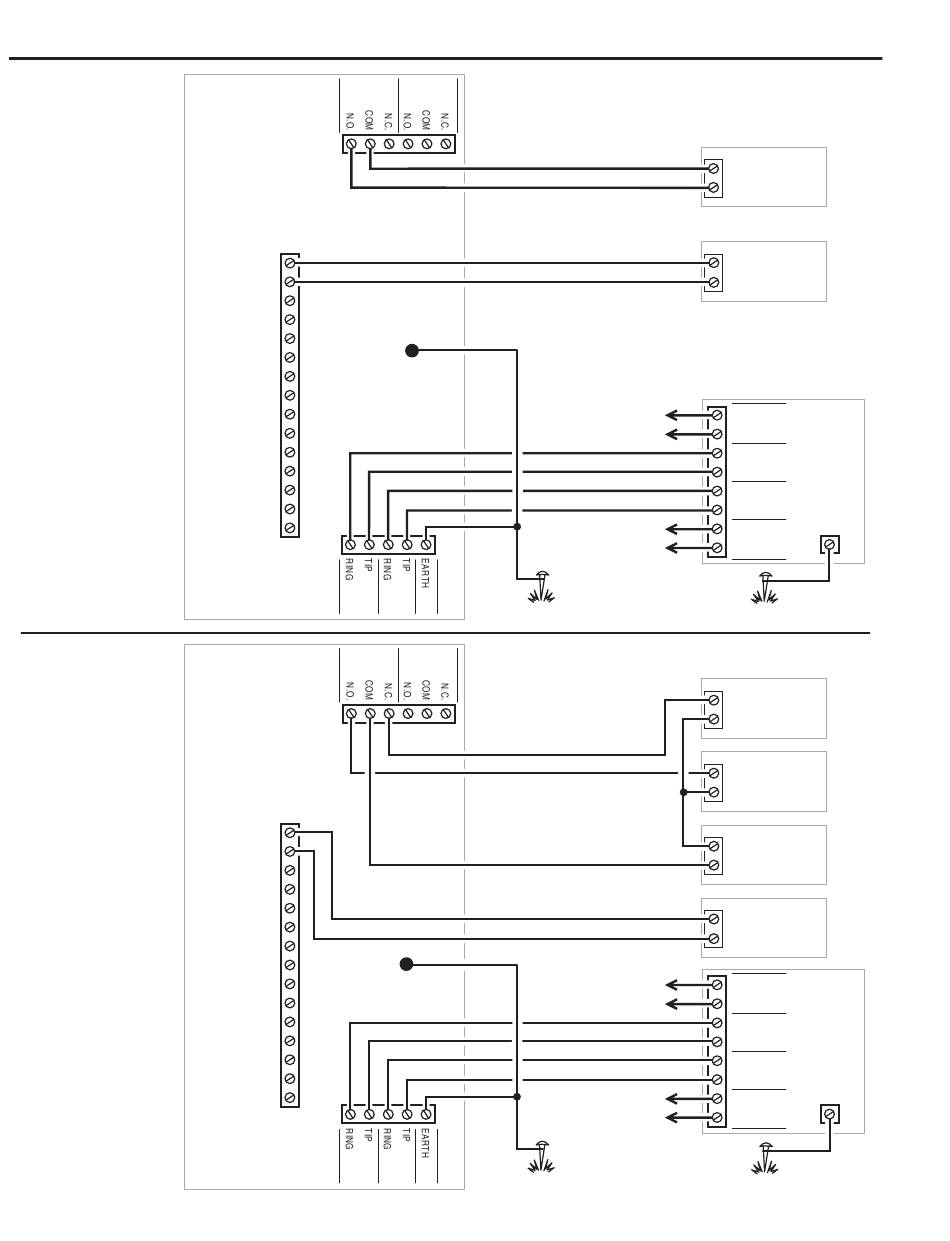

WIRING DIAGRAM

TYPICAL
GATE INSTALLATION
WIRING
TYPICAL
DOOR INSTALLATION
WIRING
NOTE: A MAGNETIC LOCK AND
DOOR STRIKE ARE BOTH SHOWN,
TYPICALLY ONLY ONE IS USED
NOTE: DO NOT POWER
THE LOCKING DEVICE FROM
THE RE-2 TRANSFORMER
4
RELAY
RELAY RATING:
#1
3 AMPS AT
30 VOLTS AC OR DC
MAXIMUM
RE-2
TELEPHONE ENTRY
SYSTEM
TRANSFORMER
TRANSFORMER
BATTERY NEG
BATTERY POS
SENSE #1
OPEN #1
SENSE #2
OPEN #2
COMMON
KEYPAD CLK
KEYPAD DVAL
KEYPAD DAT 0
KEYPAD DAT 1
KEYPAD GND
KEYPAD PWR
HOUSE TELCO
RELAY
RELAY RATING:
#1
3 AMPS AT
30 VOLTS AC OR DC
MAXIMUM
RE-2
TELEPHONE ENTRY
SYSTEM
TRANSFORMER
TRANSFORMER
BATTERY NEG
BATTERY POS
SENSE #1
OPEN #1
SENSE #2
OPEN #2
COMMON
KEYPAD CLK
KEYPAD DVAL
KEYPAD DAT 0
KEYPAD DAT 1
KEYPAD GND
KEYPAD PWR
HOUSE TELCO
RELAY
#2
CASE
GROUND
10' MAXIMUM
WIRE RUN
GROUND
STAKE
RELAY
#2
CASE
GROUND
10' MAXIMUM
WIRE RUN
GROUND
STAKE
GATE
OPEN
OPERATOR
16 VAC
20 VA
TRANSFORMER
RING
TO HOUSE
HOUSE
PHONES
TIP
RING
RE-2
HOUSE
TIP
RING
RE-2
TELCO
TIP
RING
TO TELCO
TELCO
LINE TIP
GROUND
STAKE
MAGNETIC
DOOR LOCK
ELECTRIC
DOOR STRIKE
ACCESS
DEVICE
POWER
SUPPLY
16 VAC
20 VA
TRANSFORMER
RING
TO HOUSE
HOUSE
PHONES TIP
RING
RE-2
HOUSE
TIP
RING
RE-2
TELCO
TIP
RING
TO TELCO
TELCO
LINE
TIP
GROUND
STAKE
TELEPHONE
BYPASS
MODULE
EARTH
GROUND
10' MAXIMUM
WIRE RUN
TELEPHONE
BYPASS
MODULE
EARTH
GROUND
10' MAXIMUM
WIRE RUN
