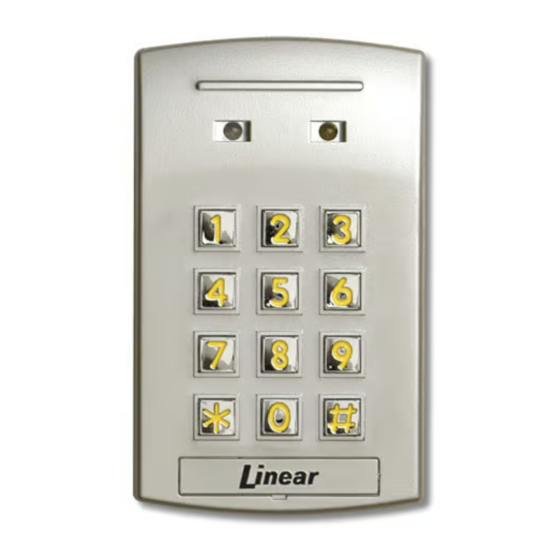

  • Page 1 AK-31 Digital Keyless Entry System 4 5 6 7 8 9 Installation and Programming Instructions (760) 438-7000 USA & Canada (800) 421-1587 & (800) 392-0123 Toll Free FAX (800) 468-1340 www.linearcorp.com...

  • Page 2: Table Of Contents

    AK-31 OPERATION ........

  • Page 3: Component Locations

    7 8 9 BEEPER LEVEL KEYPAD MOUNTING JUMPER (P4) PLATE Figure 1. Component Locations WIRING DIAGRAM TYPICAL DOOR INSTALLATION WIRING AK-31 TERMINALS TERMINAL WIRES BLOCK 1 GRAY 12-24 VOLT 1 - AC OR DC SENSE - 8 POWER N.C. DOOR...

  • Page 4: Installation

    INSTALLATION Before installing the keypad, the unit must be partially disassembled Final Keypad Installation to access the mounting plate. After wiring the keypad (see next page), complete the installation by securing the keypad to the mounting plate. Opening the Keypad ❑...

  • Page 5: Keypad Wiring

    ❑ To avoid damage to the unit from static discharges, connect the EARTH GROUND black wires E1, 4, 5 or 7 to a good earth grounding point. Suggested wiring size is 18 AWG for earth WIRES ground. AK-31 REAR VIEW GRAY N.C. DOOR SENSE - 8 SENSE...

  • Page 6: Factory Defaults

    BEEPER SOUNDS DURING OUTPUT #4 ........NO to be entered when programming a new entry code. The AK-31 will internally KEYPAD LOCKOUT COUNT .

  • Page 7: Programming Options

    Select Request-to-Exit Output Default: Main Relay Sets which output activates when the Request-to-Exit input is grounded. This There are several AK-31 programming options. For most output may be timed or toggled. installations, the factory set default options are suffi cient. The keypad must be in Programming Mode to make these changes.

  • Page 8: Resetting Keypad

    Default: 3 Tries Sets the number of incorrect entry code attempts allowed before the keypad Keypad users request access by entering their code. ❑ Users of the AK-31 have up to 40 seconds to key in their “locks out”. entry code.
