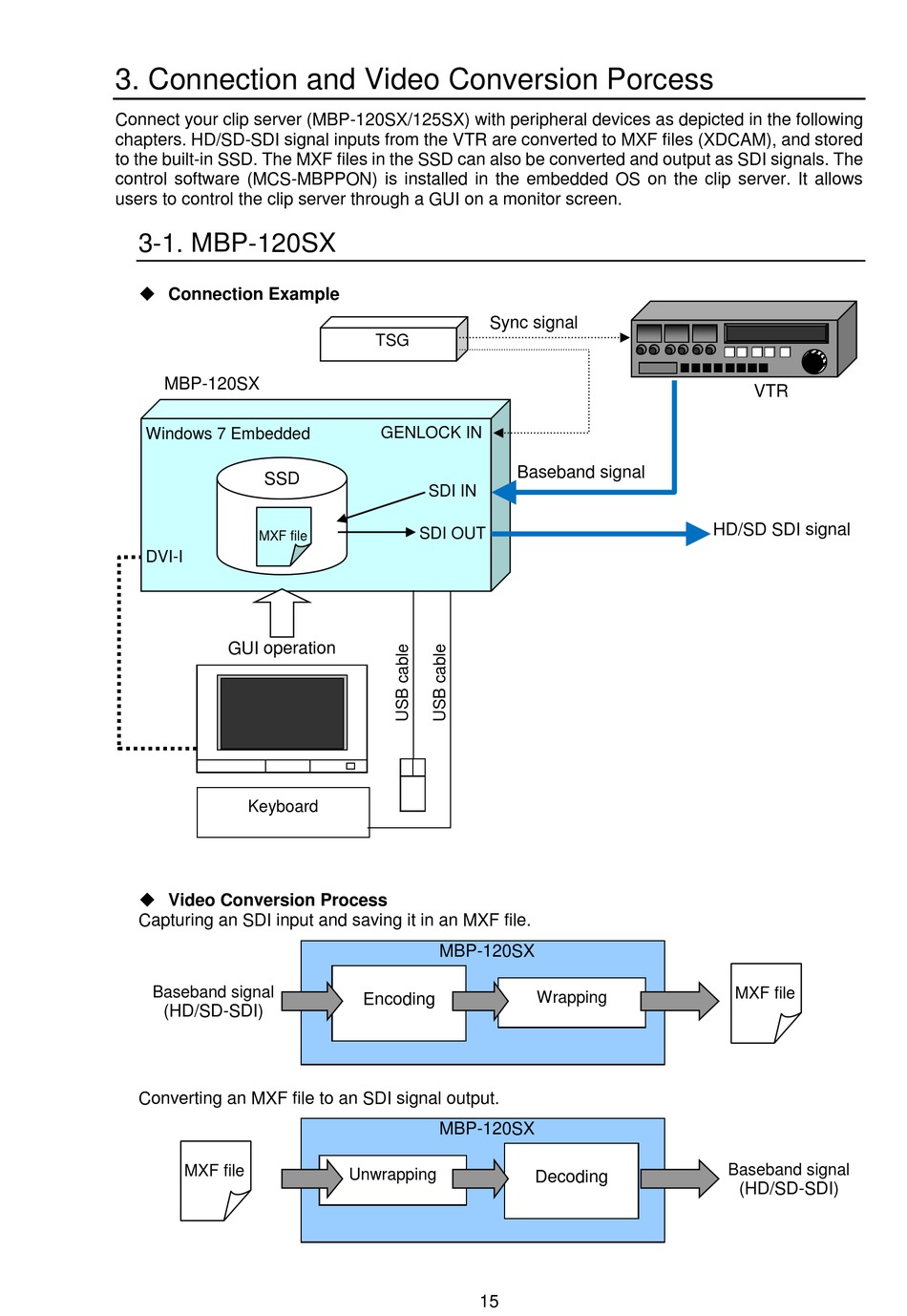

3. Connection and Video Conversion Porcess

Connect your clip server (MBP-120SX/125SX) with peripheral devices as depicted in the following
chapters. HD/SD-SDI signal inputs from the VTR are converted to MXF files (XDCAM), and stored
to the built-in SSD. The MXF files in the SSD can also be converted and output as SDI signals. The
control software (MCS-MBPPON) is installed in the embedded OS on the clip server. It allows
users to control the clip server through a GUI on a monitor screen.

3-1. MBP-120SX

 Connection Example
MBP-120SX
Windows 7 Embedded
SSD
MXF file
DVI-I
GUI operation
Keyboard
 Video Conversion Process
Capturing an SDI input and saving it in an MXF file.
Baseband signal
(HD/SD-SDI)
Converting an MXF file to an SDI signal output.
MXF file
Sync signal
TSG
GENLOCK IN
Baseband signal
SDI IN
SDI OUT
MBP-120SX
Encoding
MBP-120SX
Unwrapping
15
Wrapping
Decoding
VTR
HD/SD SDI signal
MXF file
Baseband signal
(HD/SD-SDI)
