SPEAKER SIGNAL

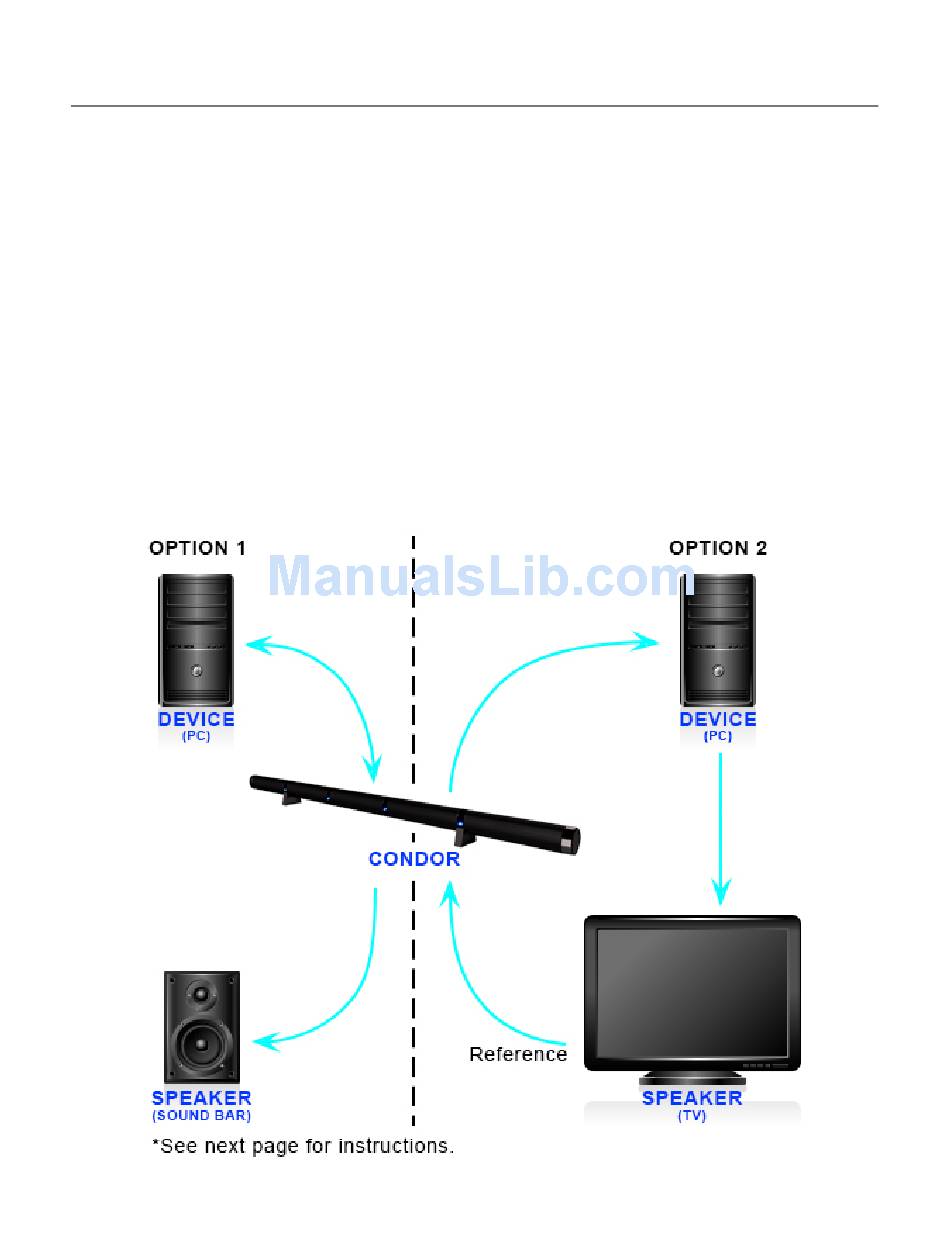

To achieve echo canceling, a loudspeaker signal should be connected into the Condor. There
are two options for this setup:
‣
OPTION ONE- Connecting a loudspeaker directly into the Condor. In this setup, the
Condor will act as both a microphone and a speaker, and will feed the speaker signal
directly into the external speakers of your choosing.
‣
OPTION TWO- The Condor will act only as a microphone. The speakers will be
connected directly into the conferencing device, without going through the Condor. In
order to feed a reference signal into the Condor, we will need to send the speaker signal
to it from the loudspeakers. This setup is typical when using a TV's integrated speakers.
NOTE: This can only be done if the loudspeaker has an audio out connection. Without this, the
Condor's echo canceler will not work.
Page 5
