SPECIFICATIONS
PRO-XD
Operating Freq.:
2.4GHz ISM Band
Dynamic Range:
90dB
Signal-To-Noise:
80dB
Operating Range:
35m typical; up to 120m in ideal
conditions.
Freq. Response:
20Hz - 20kHz, ± 1dB
Digital Sampling:
48kHz/16bit
System Latency:
14ms
Battery Life Span:
300 cycles
Battery Type:
Lithium-ion
Power Supply:
USB 5V
Warranty:
2 Years (Registration Required)
Accessories:
Audio output cable, TRRS
adapter, USB mini to USB-A
cable, AC adapter, lapel clip.
RECEIVER (PRO-XDR)
RF Output Power:
10mW
Max Output Level:
-14dBV
Mic Output:
Φ3.5mm dual-mono/stereo
Headphone Output:
Φ3.5mm stereo
Output Impedance:
Mic: 600Ω; Headphone: 16Ω
Battery Life:
16 hours
Battery Charge Time:
3 hours
Dimensions:
48x79x14mm (W/H/D)
Weight:
68g
Register For Your 2 Year Warranty

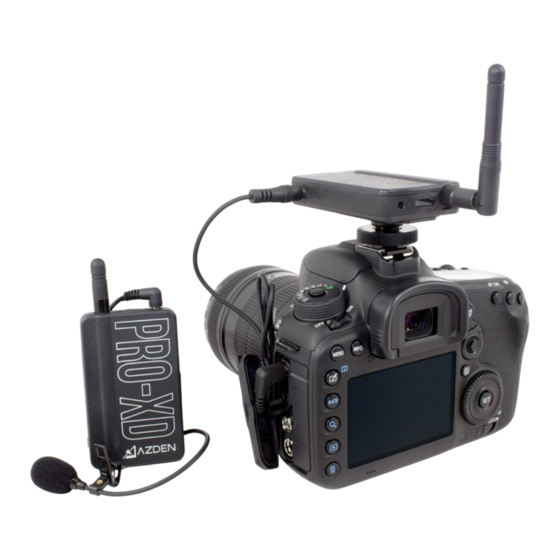

Congratulations on your purchase of the PRO-XD Digital Wireless Microphone System. The PRO-XD is
covered by a limited warranty for two (2) years from the date of original purchase by the end user.
Registration is required for this warranty to be valid. Registration may be completed anytime within two years
from the date of purchase. To register this product, please go online to warranty.azden.com.
Azden Two Year Limited Warranty
Azden Corporation warrants, to the first purchaser, that the Azden brand product purchased is free from defects
in material and workmanship. Azden's sole obligation under this warranty shall be to provide, without charge,
repair or replacement (at Azden's sole discretion), within two years from the date of purchase. A dated receipt is
required to establish the date of purchase and registration is required to receive warranty service under this two
year limited warranty. The cost to ship a failed product to and from Azden or to its dealer shall not be covered by
this warranty.
This warranty is the sole and exclusive express warranty given with respect to the product and all other
warranties, expressed or implied, are hereby excluded. Neither Azden, nor the dealer who sells this product, is
responsible for indirect, incidental or consequential damages.
This warranty does not extend to any defect, malfunction or failure caused by misuse, abuse, accident, act of
God, faulty hookup, unauthorized modification, connecting this product to equipment for which this product is not
intended or defective associated equipment.
Full details on this warranty agreement can be found online at www.azden.com/warranty.
Customers in the Asian and Oceania markets contact:
Azden Corp., 1-12-17 Kamirenjaku Mitaka-shi, Tokyo, 181-8533 Japan
phone - 81-1-422-55-5115 (Japan) • fax - 81-1-422-55-0131 (Japan)
www.azden.co.jp • email - sales@azden.co.jp
Customers in the North/South American and European markets contact:
Azden Corp., 200 Valley Rd. Ste 101, Mt. Arlington, NJ 07856
phone - +1 973.810.3070 • fax - +1 973.810.3076
www.azden.com • email - sales@azden.com
TRANSMITTER (PRO-XDT)
RF Output Power:
10mW
Mic Input:
Φ3.5mm mono TRRS
Aux Input:
Φ3.5mm stereo, line level
Input Impedance:
Mic: 2.2kΩ; Aux: 10kΩ
Max Input:
300mV RMS
Battery Life:
11 hours
Battery Charge Time:
3 hours 30 min
Dimensions:
48x79x14mm (W/H/D)
Weight:
62g
MICROPHONE (EX-503XD)
Mic Element:
Electret Condenser
Polar Pattern:
Omni-Directional
Freq. Response:
30Hz - 20kHz
Sensitivity:
-46dB at 1kHz (0dB=1V/Pa)
Impedance:
2.2kΩ (at 1kHz)
Power Requirement:
Plug-in power DC 1-10V
Connector Type:
Φ3.5mm TRRS
Cord Length:
105cm
DIGITAL WIRELESS
MICROPHONE SYSTEM
OPERATION MANUAL
