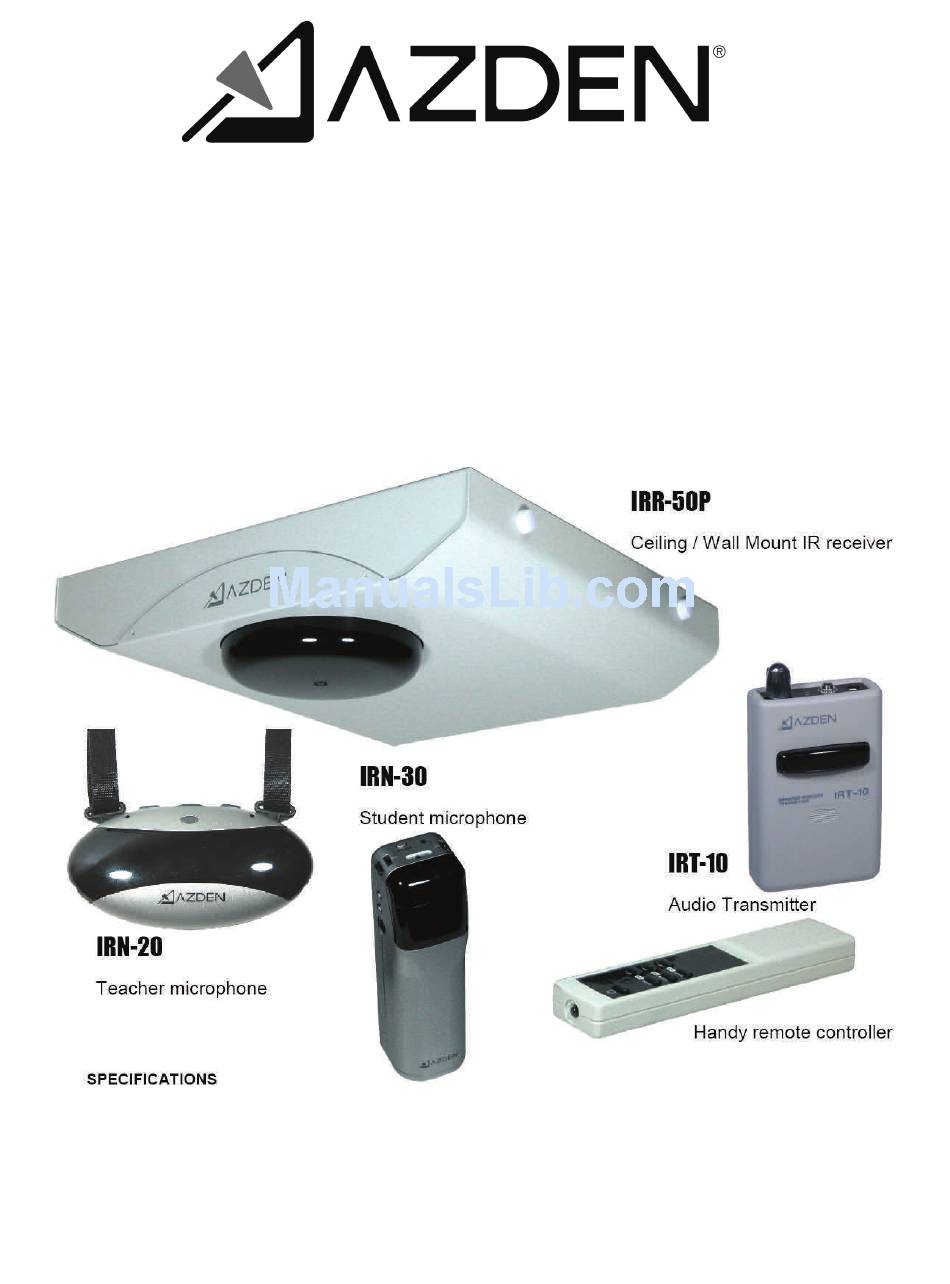

- Page 1 IR-CSX Infrared Wireless Microphone System INSTRUCTION MANUAL ...
- Page 2 INTRODUCTION Thank you for selec ng the Azden INFRARED system as your wireless audio solu on for your classroom or conference room. We are confident that it will perform beyond your expecta ons. For over 60 years, Azden has been crea ng highest quality, reliable prod- ucts adap ng the most advanced technology available. By taking advantage of the lat- est CAD design and SMT produc on techniques, Azden engineers are able to produce products that exceed the published specifica ons and perform flawlessly for years to come. Azden INFRARED represents a breakthrough in wireless. Instead of the normal radio waves that other wireless systems use, Azden INFRARED uses invisible light beams in the infrared range. INFRARED’s enhanced performance assures you of the finest in au- dio clarity and reliability. The specially selected high-frequencies provide you with trou- ble-free performance, even in the fluorescently lit classroom/conference room environ- ment. Infrared (IR) wireless microphone systems are the best solu on for classrooms or con- ference rooms. In today’s RF saturated world, a regular (VHF or UHF) microphone sys- tem risks interference from a variety of other devices and sources. Cell phones, radios, TV, PA systems, police and emergency service systems, etc. can all interfere with VHF and UHF—but not with IR. Furthermore, IR is perfect for classroom audio since, unlike other systems, it is short-range and cannot penetrate walls. This means that your school can have as many classrooms as desired with individual audio systems without fear of interference. Since the Azden system is dual-channel, a teacher can have one microphone and a second person can also have a microphone. In addi on, since each system is on the same pair of channels, teachers can move from room to room without having to switch microphones. In the real world, the ability to use mul ple systems in the same loca on without fre- quency interference will prove to be a tremendous benefit to you. Using IR means that ...
- Page 3 INSTALLING IRR‐50P TO CEILING A. Prepare Ceiling Panel Drill 4 holes for the supplied moun ng screws (maximum diameter 6 mm) and make a 140 mm x 40 mm rectangular opening as specified in the drawing below. For power connec on, drill an appropriate size hole within the area specified below. Ceiling Panel For wiring For power plug Note: Measurements are in mili meters (mm) B. Remove the Top Cover Undo the 4 screws on each side of the top cov- er and pull the cover apart from the body. 3 ...
- Page 4 C. Mount the IRR‐50P to Ceiling Panel Mount the IRR-50P to the ceiling panel so that the panel will be held between the IRR- 50P and the supplied brackets by the moun ng screw. Do not over torque the moun ng screws. Doing so may deform the brackets. Recom- mended torque rate is 10 kgf-cm WARNING: Secure the IRR-50P to a beam by a chain or the like to prevent it from falling. Brackets (supplied) A ach a chain or the like to this hook to connect the unit directly to a beam to prevent it from falling. 4 ...
-
Page 5: Replace The Top Cover
D. Wiring Route the speaker wires from the connectors in the back of the receiver unit through the hole to behind the ceiling panel. Power source needs to be placed in the ceiling where the power plug can reach. Speaker wires to be routed through this hole to behind the ceiling panel. Power source needs to be located where the power plug can reach. E. Replace the Top Cover Align the holes and fasten the screws to replace the top cover. WARNING: Hold the top cover by hand while fastening the screws to prevent the cover from falling. 5 ... -
Page 6: Remote Control
IRR‐50P RECEIVER A. Turning It On When the unit is plugged into power source, the LED indicator in the middle of the emi er dome will light in RED. This indicates that the unit is now in the standby mode. Note that LED Indicator the unit will not accept commands from the RED: Standby Remote for the first 7 seconds since it is GREEN: Power on GREEN BLINKING: Receiving command from Remote plugged in. Turn the power on by pressing the Power Switch on the Remote Control and the LED indicator on the dome will turn to GREEN and the unit is ready to receive signals from the Transmi ers. The LED indicator will turn to RED when you turn the power off by using the Remote. The unit is now in the Standby mode. B. Remote Control Power Switch Remove the ba ery compartment door by slid- ing it towards the arrow on the cover and insert 2 AAA alkaline ba eries following the polarity marked inside the compartment. Use the Power Switch to turn the unit on and off and the appropriate volume bu ons to change the volume of the respec ve channels. ... - Page 7 C. Pager Interrupt Feature When the Pager Interrupt feature is ac vated, the pager signals will override all other sig- nals. In order to ac vate the Pager Interrupt feature, connect the pager wires to the Pager Con- nectors and turn the Select Switch to 100V/70V (for high impedance output) or 20V (for low impedance output). Use the Pager Volume Control Knob to adjust the pager volume. When the pager signal is received while the unit is on, all 3 channels Pager Connectors will be immediately muted and only the pager signals will be output. A er the pager signals stopped, the Pager Volume Control 3 channels will automa cally be re- instated in a few seconds. When the pager signals are received when the unit is in standby, the unit External Sensor Connector will automa cally be turned on and the pager signals will be output. Select Switch D. PREOUT & RECOUT PREOUT is an output RCA jack for an external amplifier, etc. The output volume level will not be controlled by the Remote. RECOUT is an output RCA jack for an external recorder, etc. The output volume level will ...
- Page 8 The opera ng range of the Remote Control is approximately 30 (10 m) from the Receiv- er (IRR-50P). The range is subject to the environment. When using the Remote while a Transmi er(s) is in use, make sure to operate the Trans- mi er well within the opera ng range. If the signals from the Transmi er to the Receiver is weak, using the Remote may cause some interrup ons. The IRR-50P’s built-in amplifier is designed to accept up to 4 speakers with 4Ω imped- ance. Do not use speakers with smaller impedance since doing so may cause troubles in the amplifier. IRN‐20 MICROPHONE/TRANSMITTER ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 8 ...
- Page 9 To separate the clasp, grab the both end of the clasp and firmly pull them apart. To rea ach, simply snap the ends back in or slide one end to the other un l clicks. The strap length can easily be adjusted by moving the sliders. ○ Microphone Jack Plug in an external microphone with 3.5mm mini plug here to override the IRN-20’s microphones. ○ Ba ery Charge Jack Plug the BC-31 Ba ery Charger (included in the Azden Classroom System IR-CSX ) to charge the supplied rechargeable ba ery (1HR-3U). Connec ng the charger will automa cally turn off the IRN-20 and start charging (the red LED will be lit). The charge me from flat is typically 10 hours. When charged, the indicator will be lit orange. ○ Auxiliary Jack An external audio source with a mini plug, such as iPod or computer, can be plugged in here. The IRN-20 will then transmit the audio signals to the IRR-40P receiver to ...
- Page 10 IRN‐30 MICROPHONE/TRANSMITTER ○ ○ ○ ○ ○ ○ ○ ○ ○ Power Switch Turns the microphone/transmi er ON and OFF. ○ Status Indicator The indicator LED shows GREEN, RED or ORANGE depending on the status or mode of the IRN-30. GREEN = on Alterna ng RED/GREEN = recharge soon RED = charging ○ Microphone Uni-direc onal electret condenser microphone. In order to avoid the wind noise caused by the breath of the user, hold the microphone below and approximately 4” from the chin. 10 ...
- Page 11 ○ Ba ery Charge Jack Plug the BC-31 Ba ery Charger (included in the Azden Classroom System IR-CSX) to charge the supplied rechargeable ba ery (1HR-3U). Connec ng the charger will automa cally turn off the IRN-30 and start charging (the red LED will be lit). The charge me from flat is typically 10 hours. When charged, the indicator will be lit orange. WARNING: Do NOT a empt to charge a non-chargeable Alkaline ba ery. Doing so is DANGEROUS and may cause fire. ○ Infrared Emi er In order for the transmi er to send the infrared signals, the emi er will always have to be exposed. Do not cover the emi er area. ○ Ba ery Compartment Lid To open the ba ery compartment lid, hold the IRN-30 upside down, the lid facing ...
- Page 12 This indicator will light in RED when the volume level is excessive. Adjust the volume by turning the Volume Control (○ ) so that this indicator will not light. ○ Line‐Level Mini Jack Plug in an external audio source (i.e. MP3, computer, etc.) here and the audio will be transmi ed to the IRR-50P Receiver and play through the speaker system. ○ Ba ery Charge Jack Plug the BC-31 Ba ery Charger (included in the Azden Classroom System IR-CSX) to charge the supplied rechargeable ba ery (1HR-3U). The c harge me from flat is typi- cally 8-10 hours. There is no indicator to show when the ba eries are charged. The IRT-10 may be used while it is charging. WARNING: Do NOT a empt to charge a non-chargeable Alkaline ba ery. Doing so is DANGEROUS and may cause fire. ○ Infrared Emi er ...
- Page 13 ○ Hi/Lo Emission Selector The strength of Infrared emission may be changed by this Selector. Facing the Selector, the right side is High and the le side is Low. When set High, the unit reaches its maxi- mum range. When Low, the range will reduce but the ba ery life will increase. ○ Ba ery Compartment To open the ba ery compartment lid, slide the lid downward. Insert two AA recharge able Ni-MH ba ery (1HR-3U: included in the Azden Classroom Systems IR-CSX) or two AA Alkaline ba ery following the polarity marked inside the ba ery compartment. WARNING: Do NOT a empt to charge a non-chargeable Alkaline ba ery. Doing so is DANGEROUS and may cause fire. 13 ...
-
Page 14: Specifications
SPECIFICATIONS IRR‐50P 3-Channel IR Receiver with Built-in Amplifier Sub-carrier frequencies 2.06 MHz, 2.56 MHz & 2.80 MHz Type Super heterodyne - crystal controlled Modula on FM Tone squelch 38.4 kHz Frequency response devia on 100 Hz - 4.5 kHz / Less than 1% Pager input impedance Over 10 kΩ Pager input 100Vrms Speaker output Over 5.0W (4Ω x 4) Signal to noise ra o 60 dB Power consump on 28mA (standby) / 560mA (at 1/8W output) Size W250 x D250 x H50 (mm) Weight 2.2 kg IRT‐10 Sub-carrier frequencies 2.80 Mhz Modula on FM ±40 kHz Max Frequency devia on ... - Page 15 IRN‐20 IRN‐30 Sub-carrier frequencies 2.06 MHz 2.56 MHz Modula on FM Max Frequency devia on <±15 kHz Frequency response devia on 50-10 kHz ±3dB 100-8 kHz ±3dB External Mic input 3.5 mm mini jack Aux input 3.5 mm mini jack Mic gain adjustment From +6dB to -10dB Power consump on Size W95 x D25 x H50 (mm) W27 x D27 x H90 (mm) Weight 74 g w/ ba ery 74 g w/ ba ery 15 ...
-
Page 16: Limited Two-Year Warranty
LIMITED TWO‐YEAR WARRANTY Azden Corpora on warrants, to the first purchaser, that the Azden brand product purchased is free from defects in material and workmanship. Azden’s sole obliga on under this warran- ty shall be to provide, without charge, repair or replacement (at Azden’s sole discre on), within two years from the date of purchase. The cost to ship a failed product to and from Azden or to its dealer shall not be covered by this warranty. A dated receipt acts to establish the date of purchase and no registra on is necessary to receive warranty service. This warranty is the sole and exclusive express warranty given with respect to the product and all other warran es, expressed or implied, are hereby excluded. Neither Azden, nor the dealer who sells this product, is responsible for indirect, incidental or consequen al damages. This warranty does not extend to any defect, malfunc on or failure caused by misuse, abuse, accident, Act of God, faulty hookup, unauthorized modifica on, connec ng this product to equipment for which this product is not intended or defec ve associated equipment. Please read your owner’s manual carefully. Azden Corpora on 200 Valley Road, Suite 101, Mt. Arlington, NJ 07856 Phone: 973-810-3070 Email: sales@azdencorp.com Website: www.azden.com 16 ...
