4.The compressor

a.

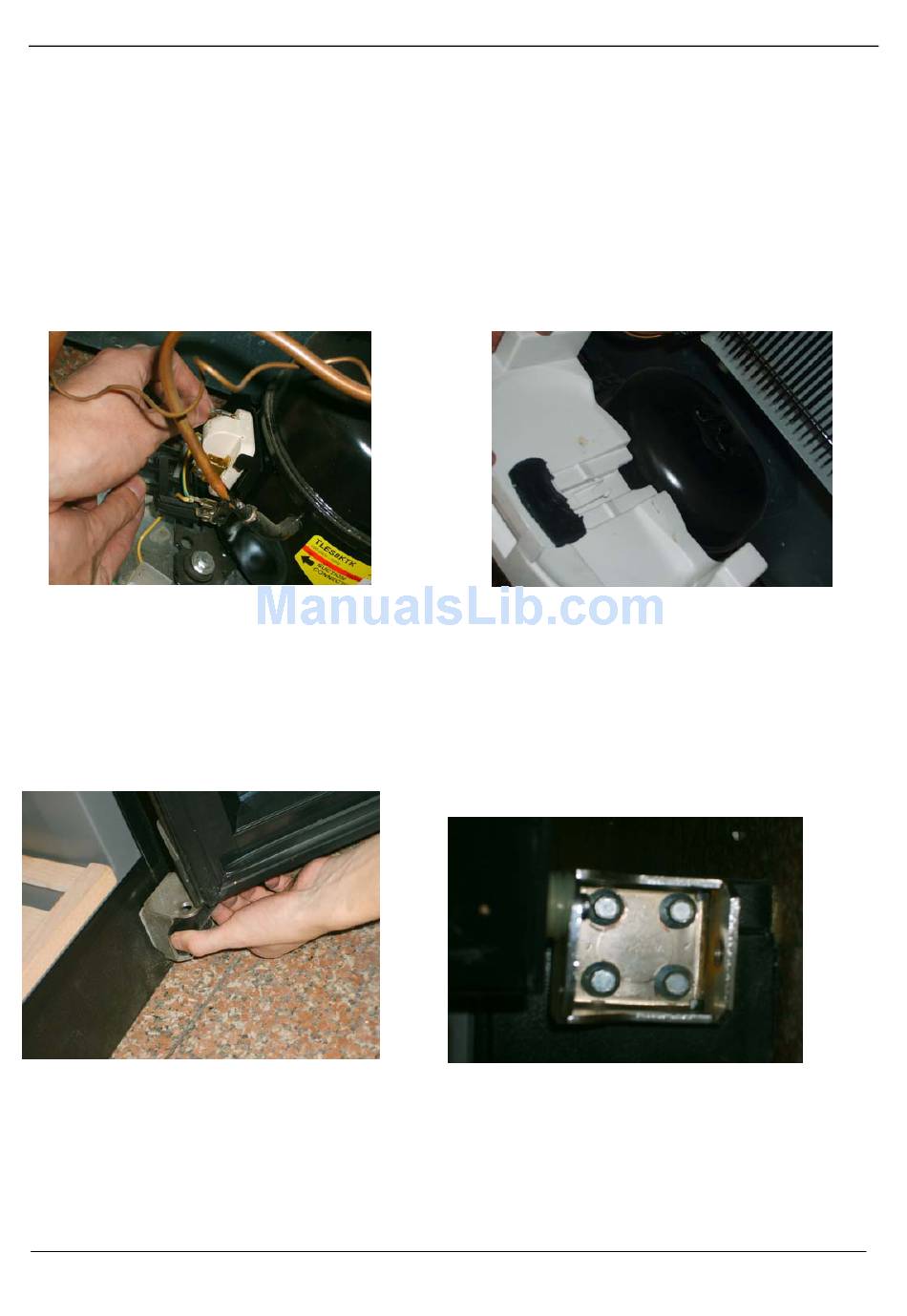

The assemble step of the compressor accessory
is showing on the picture. The earth wire is connecting to
the compressor, the live wire and zero wire is connected
to the compressor power panel, rotate the plastic bolt to fix
the wire. The compressor power panel is one whole part.

5.Fix the door

a.
Pull the bottom Hinge cover out flatly.
b.
There is buckle on the Water box
to fix on the compressor, and
also some anti-shock material
between them.
b.
The bottom Hinge is fixed with four bolts,
you should use a M6 sleeve to unfix it,
then you can take the door out.
