Enterasys SSR-GTX32-04 Quick Start Manual

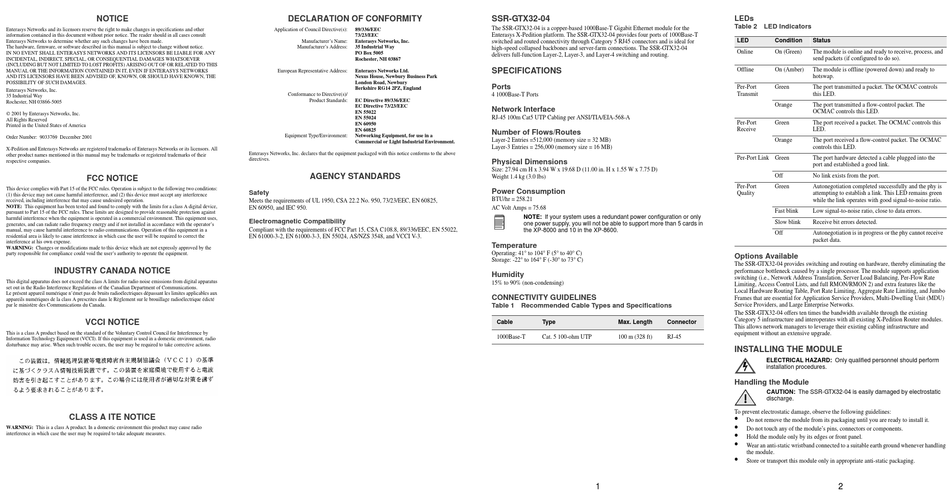

NOTICE
Enterasys Networks and its licensors reserve the right to make changes in specifications and other
information contained in this document without prior notice. The reader should in all cases consult
Enterasys Networks to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL ENTERASYS NETWORKS AND ITS LICENSORS BE LIABLE FOR ANY
INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER
(INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS
MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF ENTERASYS NETWORKS
AND ITS LICENSORS HAVE BEEN ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE
POSSIBILITY OF SUCH DAMAGES.
Enterasys Networks, Inc.
35 Industrial Way
Rochester, NH 03866-5005
 2001 by Enterasys Networks, Inc.
All Rights Reserved
Printed in the United States of America
Order Number: 9033769 December 2001
X-Pedition and Enterasys Networks are registered trademarks of Enterasys Networks or its licensors. All
other product names mentioned in this manual may be trademarks or registered trademarks of their
respective companies.
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment uses,
generates, and can radiate radio frequency energy and if not installed in accordance with the operator's
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause interference in which case the user will be required to correct the
interference at his own expense.
WARNING: Changes or modifications made to this device which are not expressly approved by the
party responsible for compliance could void the user's authority to operate the equipment.
INDUSTRY CANADA NOTICE
This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus
set out in the Radio Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux
appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté
par le ministère des Communications du Canada.
VCCI NOTICE
This is a class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio
disturbance may arise. When such trouble occurs, the user may be required to take corrective actions.
CLASS A ITE NOTICE
WARNING: This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
DECLARATION OF CONFORMITY
Application of Council Directive(s): 89/336/EEC
73/23/EEC
Manufacturer's Name: Enterasys Networks, Inc.
Manufacturer's Address: 35 Industrial Way
PO Box 5005
Rochester, NH 03867
European Representative Address: Enterasys Networks Ltd.
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG14 2PZ, England
Conformance to Directive(s)/
Product Standards: EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 55024
EN 60950
EN 60825
Equipment Type/Environment: Networking Equipment, for use in a
Commercial or Light Industrial Environment.
Enterasys Networks, Inc. declares that the equipment packaged with this notice conforms to the above
directives.
AGENCY STANDARDS
Safety
Meets the requirements of UL 1950, CSA 22.2 No. 950, 73/23/EEC, EN 60825,
EN 60950, and IEC 950.
Electromagnetic Compatibility
Compliant with the requirements of FCC Part 15, CSA C108.8, 89/336/EEC, EN 55022,
EN 61000-3-2, EN 61000-3-3, EN 55024, AS/NZS 3548, and VCCI V-3.
SSR-GTX32-04
The SSR-GTX32-04 is a copper-based 1000Base-T Gigabit Ethernet module for the
Enterasys X-Pedition platform. The SSR-GTX32-04 provides four ports of 1000Base-T
switched and routed connectivity through Category 5 RJ45 connectors and is ideal for
high-speed collapsed backbones and server-farm connections. The SSR-GTX32-04
delivers full-function Layer-2, Layer-3, and Layer-4 switching and routing.
SPECIFICATIONS
Ports
4 1000Base-T Ports
Network Interface
RJ-45 100m Cat5 UTP Cabling per ANSI/TIA/EIA-568-A
Number of Flows/Routes
Layer-2 Entries =512,000 (memory size = 32 MB)
Layer-3 Entries = 256,000 (memory size = 16 MB)
Physical Dimensions
Size: 27.94 cm H x 3.94 W x 19.68 D (11.00 in. H x 1.55 W x 7.75 D)
Weight 1.4 kg (3.0 lbs)
Power Consumption
BTU/hr = 258.21
AC Volt Amps = 75.68
NOTE: If your system uses a redundant power configuration or only
one power supply, you will not be able to support more than 5 cards in
the XP-8000 and 10 in the XP-8600.
Temperature
Operating: 41° to 104° F (5° to 40° C)
Storage: -22° to 164° F (-30° to 73° C)
Humidity
15% to 90% (non-condensing)
CONNECTIVITY GUIDELINES
Table 1 Recommended Cable Types and Specifications
Cable Type Max. Length Connector
1000Base-T Cat. 5 100-ohm UTP 100 m (328 ft) RJ-45
1
LEDs
Table 2 LED Indicators
LED Condition Status
Online On (Green) The module is online and ready to receive, process, and
send packets (if configured to do so).
Offline On (Amber) The module is offline (powered down) and ready to
hotswap.
Per-Port Green The port transmitted a packet. The OCMAC controls
Transmit this LED.
Orange The port transmitted a flow-control packet. The
OCMAC controls this LED.
Per-Port Green The port received a packet. The OCMAC controls this
Receive LED.
Orange The port received a flow-control packet. The OCMAC
controls this LED.
Per-Port Link Green The port hardware detected a cable plugged into the
port and established a good link.
Off No link exists from the port.
Per-Port Green Autonegotiation completed successfully and the phy is
Quality attempting to establish a link. This LED remains green
while the link operates with good signal-to-noise ratio.
Fast blink Low signal-to-noise ratio, close to data errors.
Slow blink Receive bit errors detected.
Off Autonegotiation is in progress or the phy cannot receive
packet data.
Options Available
The SSR-GTX32-04 provides switching and routing on hardware, thereby eliminating the
performance bottleneck caused by a single processor. The module supports application
switching (i.e., Network Address Translation, Server Load Balancing, Per-Flow Rate
Limiting, Access Control Lists, and full RMON/RMON 2) and extra features like the
Local Hardware Routing Table, Port Rate Limiting, Aggregate Rate Limiting, and Jumbo
Frames that are essential for Application Service Providers, Multi-Dwelling Unit (MDU)
Service Providers, and Large Enterprise Networks.
The SSR-GTX32-04 offers ten times the bandwidth available through the existing
Category 5 infrastructure and interoperates with all existing X-Pedition Router modules.
This allows network managers to leverage their existing cabling infrastructure and
equipment without an extensive upgrade.
INSTALLING THE MODULE
ELECTRICAL HAZARD: Only qualified personnel should perform
installation procedures.
Handling the Module
CAUTION: The SSR-GTX32-04 is easily damaged by electrostatic
discharge.
To prevent electrostatic damage, observe the following guidelines:
•
Do not remove the module from its packaging until you are ready to install it.
•
Do not touch any of the module's pins, connectors or components.
•
Hold the module only by its edges or front panel.
•
Wear an anti-static wristband connected to a suitable earth ground whenever handling
the module.
•
Store or transport this module only in appropriate anti-static packaging.
2
