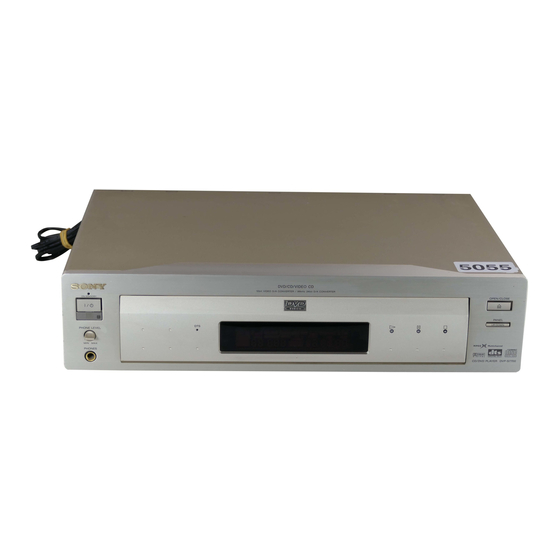

Sony DVP-S7700 Service Manual

Cd/dvd player
Hide thumbs Also See for DVP-S7700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Training Manual
DVP-S7700
RMT-D107E/D107P
SERVICE MANUAL
AEP Model
Hong Kong Model
UK Model
SPECIFICATIONS
CD/DVD PLAYER
MICROFILM

Advertisement

Table of Contents
loading

Related Manuals for Sony DVP-S7700

Summary of Contents for Sony DVP-S7700

  • Page 1 DVP-S7700 RMT-D107E/D107P SERVICE MANUAL AEP Model Hong Kong Model UK Model SPECIFICATIONS CD/DVD PLAYER MICROFILM...

  • Page 2: Rf, Servo 1) Schematic Diagram

    DVP-S7700 TK-47 (RF, SERVO 1) SCHEMATIC DIAGRAM – Ref. No.: TK-47 board; 3,000 series – • Waveforms 4 IC005 !£ (CD play) 1 IC006 %¡ – %™ (DVD play) 270 mVp-p (V) 500 mV/DIV 1 ms/DIV 5 IC005 !∞ (CD play) 2 IC006 ^¡...

  • Page 3: Rf, Servo 2) Schematic Diagram

    DVP-S7700 TK-47 (RF, SERVO 2) SCHEMATIC DIAGRAM – Ref. No.: TK-47 board; 3,000 series – RF, SERVO 2 TK-47 (2/2) 4-13 4-14...
  • Page 4 DVP-S7700 MB-84 (AV DECODER) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – AV DECODER MB-84 (1/14) 4-19 4-20...

  • Page 5: Clock Generator

    DVP-S7700 MB-84 (CLOCK GENERATOR) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveforms 1 IC206 8 3.28 Vp-p 27 MHz 2 IC209 1 1.4 Vp-p 27 MHz...
  • Page 6 DVP-S7700 MB-84 (DNR) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – MB-84 (3/14) 4-23 4-24...

  • Page 7: Video Encoder

    DVP-S7700 MB-84 (VIDEO ENCODER) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. • Waveforms 3 IC252 ^§ – Ref. No.: MB-84 board; 2,000 series – 1 IC252 &¢ (AEP, UK model: RGB output mode) 0.7 Vp-p (H) 0.7 Vp-p (H)
  • Page 8 DVP-S7700 MB-84 (DRIVE 1) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveforms 1 IC303 !ª, @™, @£ (DVD play) 5.2 Vp-p 160 Hz 2 IC303 !ª, @™, @£ (CD play) 1.84 Vp-p 45 Hz...
  • Page 9 DVP-S7700 MB-84 (DRIVE 2), FG-43 (SLED) SCHEMATIC DIAGRAMS • See page 4-15 to 4-18 for printed wiring boards. – Ref. No.: MB-84 board; 2,000 series, FG-43 board; 1,000 series – DRIVE 2, SLED MB-84 (6/14), FG-43 4-29 4-30...
  • Page 10 DVP-S7700 MB-84 (DSP 1) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – DSP 1 MB-84 (7/14) 4-31 4-32...
  • Page 11 DVP-S7700 MB-84 (DSP 2) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveform 1 IC506 ^∞ 3.6 Vp-p 27 MHz DSP 2 MB-84 (8/14) 4-33 4-34...
  • Page 12 DVP-S7700 MB-84 (BIAS) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 boards; 2,000 series – Note: The components identified by mark ! or dotted line with mark ! are critical for safety.
  • Page 13 DVP-S7700 MB-84 (IF µ-COM) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveform 1 IC604 *™ 5.6 Vp-p 4 MHz IF µ-COM MB-84 (10/14) 4-37 4-38...
  • Page 14 DVP-S7700 MB-84 (L GATE ARRAY) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveforms 4 IC806 `⁄¤› 1 IC804 `⁄⁄° 225 mVp-p 13.5 MHz 3.0 Vp-p 33 MHz 2 IC804 `⁄⁄fi...
  • Page 15 DVP-S7700 MB-84 (ARP, DECRYPT) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – ARP, DECRYPT MB-84 (12/14) 4-41 4-42...
  • Page 16 DVP-S7700 MB-84 (SYSTEM µ-COM) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – SYSTEM µ-COM MB-84 (13/14) 4-43 4-44...
  • Page 17 DVP-S7700 MB-84 (S GATE ARRAY) SCHEMATIC DIAGRAM • See page 4-15 to 4-18 for printed wiring board. – Ref. No.: MB-84 board; 2,000 series – • Waveform 1 IC805 &£ 4.4 Vp-p 20 MHz S GATE ARRAY MB-84 (14/14) 4-45...
  • Page 18 DVP-S7700 AU-218 (AUDIO 1) SCHEMATIC DIAGRAM • See page 4-47 to 4-50 for printed wiring board. – Ref. No.: AU-218 board; 3,000 series – AUDIO 1 AU-218(1/3) 4-51 4-52...
  • Page 19 DVP-S7700 AU-218 (AUDIO 2) SCHEMATIC DIAGRAM • See page 4-47 to 4-50 for printed wiring board. – Ref. No.: AU-218 board; 3,000 series – AUDIO 2 AU-218 (2/3) 4-53 4-54...

  • Page 20: Video Buffer

    DVP-S7700 AU-218 (VIDEO BUFFER) SCHEMATIC DIAGRAM • See page 4-47 to 4-50 for printed wiring board. – Ref. No.: AU-218 board; 3,000 series – • Waveforms 1 IC209 !∞ 1.1 Vp-p (H) 2 IC209 !£ 1.0 Vp-p (H) 3 IC209 0 0.7 Vp-p (H)

  • Page 21: Component Video

    DVP-S7700 YS-19 (COMPONENT VIDEO) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM POWER BLOCK (HS-930SH) – Ref. No.: YS-19 board; 1,000 series – (SWITCHING REGULATOR) There are few cases that the part isn't mounted in this model is printed on this diagram.
  • Page 22 DVP-S7700 ER-8 (EURO AV 1) SCHEMATIC DIAGRAM • See page 4-59 to 4-62 for printed wiring board. – Ref. No.: ER-8 board; 1,000 series – – AEP, UK – EURO AV 1 ER-8 (1/3) 4-63 4-64...
  • Page 23 DVP-S7700 ER-8 (EURO AV 2) SCHEMATIC DIAGRAM • See page 4-59 to 4-62 for printed wiring board. – Ref. No.: ER-8 board; 1,000 series – – AEP, UK – EURO AV 2 ER-8 (2/3) 4-65 4-66...
  • Page 24 DVP-S7700 ER-8 (EURO AV 3) SCHEMATIC DIAGRAM • See page 4-59 to 4-62 for printed wiring board. – Ref. No.: ER-8 board; 1,000 series – – AEP, UK – EURO AV 3 ER-8 (3/3) 4-67 4-68...
  • Page 25 DVP-S7700 HP-120 (HEAD PHONE) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM – Ref. No.: HP-120 board; 1,000 series – There are few cases that the part isn't mounted in this model is printed on this diagram. HP-120 HP-120 BOARD(SIDE A) BOARD(SIDE B)
  • Page 26 DVP-S7700 FP-75 (FL DRIVER) SCHEMATIC DIAGRAM – Ref. No.: FP-75 board; 1,000 series – FL DRIVER FP-75 4-73 4-74...
  • Page 27 DVP-S7700 CN-113 (DOOR MOTOR), DR-88 (DOOR SENSOR), FL-108 (FUNCTION SWITCH), FR-160 (FUNCTION SWITCH), PW-120 (IR/POWER SWITCH) SCHEMATIC DIAGRAMS – Ref. No.: CN-113 board, DR-88 board, FL-108 board, FR-160 board, PW-120 board; 1,000 series – Note: The components identified by mark ! or dotted line with mark ! are critical for safety.

  • Page 28: Audio Power

    DVP-S7700 PS-421 (AUDIO POWER) SCHEMATIC DIAGRAM – Ref. No.: PS-421 board; 1,000 series – Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. AUDIO POWER PS-421...

  • Page 29: Power Block (Hs-930Sh) (Switching Regulator) Schematic Diagram

    DVP-S7700 POWER BLOCK (HS-930SH) (SWITCHING REGULATOR) SCHEMATIC DIAGRAM – Ref. No.: HS-930SH board; 4,000 series – HS-930SH BOARD T101 D211 S2L20U L211 11.8 11.8 10µH C112 D109 2.6A 0.047µF D1N60 630V C114 R211 Q211 1µF C211 C212 2SJ488 400V 330µF 47µF...
