Page 3: Table Of Contents
Table of contents Introduction Alarm About this handbook........7 Principle of operation......43 Symbols glossary........7 Arming the alarm........45 Parts and accessories......7 Disarming the alarm........45 Quick start Steering wheel Quick start..........10 Adjusting the steering wheel....46 Audio control...........46 Child safety Wipers and washers Child seats..........18 Booster cushions........19 Windscreen wipers.........48 Child seat positioning......21...
Page 4 Table of contents Auto-dimming mirror......72 Glove box..........122 Storage compartments......122 Instruments Map pockets..........123 Gauges.............73 Memory function........123 Warning lamps and indicators....75 Glasses holder........124 Audible warnings and indicators...77 CD changer..........124 Auxiliary input (AUX IN) socket....124 Information displays USB port..........125 General information........78 Floor mats..........125 Trip computer..........87 Starting the engine Personalised settings......89...
Page 5 Table of contents Hints on driving with ABS......141 Luggage covers........163 Parking brake..........141 Roof racks and load carriers....164 Dog guard..........164 Stability control Load retaining fixtures......166 Principle of operation......142 Towing Using stability control......142 Towing a trailer........168 Hill start assist Detachable tow ball......168 Principle of operation......143 Driving hints Using hill start assist......143...
Page 6 Table of contents Engine compartment overview - 2.3L Run flat tyres..........224 Duratec-HE (MI4)......203 Tyre repair kit.........225 Engine compartment overview - 2.5L Tyre care..........229 Duratec (VI5)........204 Using winter tyres.........229 Engine compartment overview - 1.8L Using snow chains.......229 Duratorq-TDCi (Lynx) Diesel...205 Tyre pressure monitoring system..229 Engine compartment overview - 2.0L Duratorq-TDCi (DW) Diesel.....206 Technical specifications......231...
Page 7 Table of contents Navigation introduction Road Safety...........276 Navigation system Getting started........277 Appendices Type approvals........279 Type approvals........279 Type approvals........279 Electromagnetic compatibility....280...
Page 9: Introduction
Ford parts are Ford parts Criteria Catalogue for Vehicle Interiors by TÜV Produkt and Umwelt GmbH and are Your Ford has been built to the highest designed to minimize the risk of allergic standards using high quality Ford Original reactions.
Page 10 Now it is easier to tell if you have really been given Ford Original Parts. The Ford logo is clearly visible on the following parts if they are Ford Original Parts. If your vehicle has to be repaired, look for the clearly visible Ford branding and make sure that only Ford Original Parts have been used.
Page 11 Introduction Exterior mirror E88506 E88508 Glass • Rear window • Side glass • Windscreen E88507 Lighting • Rear lamps • Headlamp...
Page 12: Quick Start
Quick start QUICK START Instrument panel overview - left-hand drive E87719...
Page 13 Quick start Instrument panel overview - right-hand drive E87720 Lighting controls. See Lighting control (page 52). Air vents. See Air vents (page 100). Direction indicators. See Direction indicators (page 57). Telephone control buttons. See Telephone controls (page 245). Voice control buttons. See Using voice control (page 250).
Page 14 Quick start Parking aid switch. See Using the parking aid (page 147). Hazard warning flasher switch. See Hazard warning flashers (page 55). Passenger airbag deactivation warning lamp. See Disabling the passenger airbag (page 29). Heated windscreen and heated rear window switches. See Heated windows and mirrors (page 105).
Page 15 Quick start Locking the vehicle E87384 E95178 E87435 See Keyless entry (page 39). Adjusting the steering wheel E95179 WARNING See Adjusting the steering wheel Never adjust the steering wheel (page 46). when the vehicle is moving.
Page 16 Quick start Autowipers Autolamps E70719 The headlamps will come on and go off automatically depending on the ambient E70696 light. See Lighting control (page 52). Single wipe Autowipers Electric folding mirrors Normal wipe High speed wipe E70316 High sensitivity Low sensitivity E72623 See Autowipers (page 48).
Page 17 Quick start Information displays Defrosting and demisting the windscreen E70499 E71382 Use the arrow buttons to navigate through the menus and press OK to See Manual climate control (page make a selection. 101). See Information displays (page 78). Automatic climate control Manual climate control Heating the interior quickly E70304...
Page 18 Quick start Keyless starting Press the flap to open it. Open the flap fully until it engages. E85766 Press the start button. See Keyless starting (page 126). E119080 Insert the fuel nozzle up to and including Diesel particulate filter (DPF) the first notch on the nozzle.
Page 19 Quick start Manual transmission Selecting reverse gear E80836 E99067 On some vehicles it is necessary to raise Park the collar whilst selecting reverse gear. Reverse See Manual transmission (page 138). Neutral Automatic transmission Drive Manual shifting and sport mode Note: Do not press the brake pedal when removing the key from the ignition switch.
Page 20: Child Safety
Child safety Only child restraints certified to CHILD SEATS ECE-R44.03 (or later) have been tested and approved for use in your vehicle. A choice of these are available from your Dealer. Child restraints for different mass groups Use the correct child restraint as follows: Baby safety seat E68916 WARNINGS...
Page 21: Booster Cushions
Child safety Booster seat Child safety seat E70710 E68920 Secure children that weigh between 13 We recommend that you use a booster and 18 kilograms in a child safety seat seat that combines a cushion with a (Group 1) in the rear seat. backrest instead of a booster cushion only.
Page 22 Child safety Integrated booster cushion WARNINGS Do not use the raised integrated booster cushion together with a child safety seat. The integrated booster cushion can be used for children that weigh between 22 and 36 kilogrammes (49 and 79 pounds). CAUTION Remove the rear seat head restraint E94861...
Page 23: Child Seat Positioning
Child safety CHILD SEAT POSITIONING WARNINGS When using a child restraint with a support leg on a second row seat, make sure the support leg rests securely on the floor. When using a forward facing child seat on a second row seat, always remove the head restraint from that seat.
Page 24 Child safety ISOFIX child restraints Seating positions Mass group categories Up to 10 kg Up to 13 kg 9 - 18 kg Rear seat ISOFIX restraints IL, IUF** Rear seat ISOFIX classes* C, D, E A, B, B1, C, D IUF Suitable for universal category ISOFIX child restraints approved for use in this mass group.
Page 25: Isofix Anchor Points
Child safety ISOFIX ANCHOR POINTS WARNING Use an anti-rotation device when using the ISOFIX system. We recommend the use of a top tether or support leg. Your vehicle is fitted with ISOFIX anchor points that accommodate universally approved ISOFIX child restraints. The ISOFIX system comprises two rigid attachment arms on the child restraint E93616...
Page 26: Child Safety Locks
Child safety E87591 E87145 1. Place the child seat on the back seat 5. Push the child seat back firmly to cushion and fold the relevant seatback engage the ISOFIX lower anchor forwards. See Rear seats (page 117). points. 2. Remove the head restraint. See 6.
Page 27 Child safety E78298 Left-hand side Turn anti-clockwise to lock and clockwise to unlock. Right-hand side Turn clockwise to lock and anti-clockwise to unlock.
Page 28: Occupant Protection
Occupant protection Driver and front passenger airbags PRINCIPLE OF OPERATION Airbags WARNINGS Do not modify the front of your vehicle in any way. This could adversely affect deployment of the airbags. Original text according to ECE R94.01: Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an airbag in front of E74302...
Page 29 Occupant protection Note: The knee airbag has a lower Curtain airbags deployment threshold than the front airbags. During a minor collision, it is possible that only the knee airbag deploys. Side airbags E75004 Curtain airbags are fitted inside the trim E72658 panels over the front and rear side windows.
Page 30: Fastening The Seat Belts
Occupant protection WARNINGS Do not use a seat belt that is slack or twisted. Do not wear thick clothing. The seat belt must fit tightly around your body to achieve its optimum effect. Position the shoulder strap of the seat belt over the centre of your shoulder and position the lap strap tightly across your hips.
Page 31: Seat Belt Height Adjustment
Occupant protection Deactivating the seat belt SEAT BELT HEIGHT reminder ADJUSTMENT See your dealer. USING SEAT BELTS DURING PREGNANCY E87511 E68587 Note: Lifting the slider slightly while pressing the locking button makes it WARNING easier to release the locking mechanism. Position the seat belt correctly for To raise or lower, press the locking button your safety and that of your unborn...
Page 32 Occupant protection Disabling the passenger airbag E71312 Disabled E71313 Enabled Fitting the passenger airbag deactivation switch Turn the switch to position A. WARNING When you switch the ignition on, check that the passenger airbag deactivation If you need to fit a child restraint on warning lamp illuminates.
Page 33: Keys And Remote Controls
Keys and remote controls Reprogramming the unlocking GENERALINFORMATIONON function RADIO FREQUENCIES Note: When you press the unlock button either all the doors are unlocked or only CAUTION the driver’s door is unlocked. Pressing the The radio frequency used by your unlock button again unlocks all the doors.
Page 34 Keys and remote controls CAUTION Do not touch the battery contacts or the printed circuit board with the screwdriver. 4. Carefully prise out the battery with the screwdriver. 5. Install a new battery (3V CR 2032) with the + facing downwards. 6.
Page 35 Keys and remote controls 6. Install the key blade. Type 2 E126153 E78284 2. Release the retaining clips with the 1. Slide the release slider in the direction screwdriver and separate the two of the arrow. halves of the remote control. 2.
Page 36 Keys and remote controls 5. Install a new battery (3V CR 2032) with the + facing downwards. 6. Assemble the two halves of the remote control. 7. Install the key blade. Type 3 E119190 4. Carefully insert the screwdriver in the position shown to open the remote control.
Page 37: Locks
Locks Locking and unlocking LOCKING AND UNLOCKING confirmation Central locking When you unlock the doors, the direction indicators will flash once. You can only centrally lock the doors if they are all closed. When you lock the doors, the direction indicators will flash twice.
Page 38 Locks Locking and unlocking the Locking and unlocking the doors and the luggage doors from inside compartment lid with the Driver's door remote control E87379 Unlock Lock Luggage compartment lid unlock E71958 Lock all doors Locking the doors and the luggage compartment lid with the remote Unlock all doors control...
Page 39: Global Opening And Closing
Locks Luggage compartment lid Estate Opening the luggage compartment lid with the remote control Press button C on the remote control twice within three seconds. Closing the luggage compartment 4-door E89133 A recessed grip is incorporated inside the luggage compartment lid to facilitate closing.
Page 40 Locks Global opening To close all the windows, press and hold the lock button for at least three seconds. Press any button again to stop the closing function. The anti-trap function is also active during global closing. Vehicles with keyless entry E71955 To open all the windows, press and hold the unlock button for at least three...
Page 41: Keyless Entry
Locks Passive locking and unlocking requires a KEYLESS ENTRY valid passive key to be located within one of the three external detection ranges. General information These are located approximately one and a half metres from the driver and front WARNING passenger door handles and the luggage The keyless entry system may not compartment lid.
Page 42 Locks Note: If locking from the luggage compartment lid, the passive key must be within the luggage compartment lid detection range. Locking buttons are located on each of the front doors and the luggage compartment lid. To activate central locking and arm the alarm: •...
Page 43 Locks Disabled keys Type 2 Any keys left inside the vehicle interior when it is locked will be disabled. A disabled key cannot be used to turn the ignition on or start the engine. In order to use these passive keys again, they have to be enabled.
Page 44: Engine Immobiliser
If you lose a key, you can obtain a replacement from your Ford Dealer. If possible, provide them with the key number from the tag provided with the original keys. You can also obtain additional keys from your Ford Dealer.
Page 45: Alarm
Alarm Battery back-up sounder PRINCIPLE OF OPERATION The battery back-up sounder is an extra Alarm system alarm system which will sound a siren when the alarm is triggered. It is armed Your vehicle may be equipped with one directly when you lock the vehicle. The of the following alarm systems: sounder has its own battery and will •...
Page 46 Alarm Any further attempts to perform one of Selecting full or reduced guard the above will trigger the alarm again. Note: Selecting Reduced does not set the alarm permanently to reduced guard. Full and reduced guard It sets it to reduced guard only for the Full guard current ignition cycle.
Page 47: Arming The Alarm
Alarm 4. Highlight Reduced or Full guard. If Perimeter alarm you prefer to be asked each time you Disarm and silence the alarm by unlocking switch off the ignition, select Ask on the doors and switching the ignition on, Exit. or unlocking the doors or the luggage 5.
Page 48: Steering Wheel
Steering wheel ADJUSTING THE STEERING WARNING WHEEL Make sure that you fully engage the locking lever when returning it to its original position. WARNING Never adjust the steering wheel AUDIO CONTROL when the vehicle is moving. Note: Make sure that you are sitting in the correct position.
Page 49 Steering wheel Seek Press a seek button to: • tune the radio to the next station up or down the frequency band • play the next or the previous CD track • fast forward or rewind the cassette tape. Press and hold a seek button to: •...
Page 50: Wipers And Washers
Wipers and washers WINDSCREEN WIPERS AUTOWIPERS CAUTIONS Do not switch autowipers on in dry weather conditions. The rain sensor is very sensitive and the wipers may operate if dirt, mist or flies hit the windscreen. Replace the wiper blades as soon as they begin to leave bands of water and smears.
Page 51: Windscreen Washers
Wipers and washers If you switch autowipers on, the wipers REAR WINDOW WIPER AND will not cycle until water is detected on WASHERS the windscreen. The rain sensor will then continuously measure the amount of Intermittent wipe water on the windscreen and adjust the speed of the wipers automatically.
Page 52: Headlamp Washers
Wipers and washers HEADLAMP WASHERS CAUTIONS You can use the service position in The headlamp washers will operate with winter to provide easier access to the windscreen washers when the the wiper blades for freeing them headlamps are on. from snow and ice. The windscreen wipers will return to their normal position Note: To stop the washer fluid reservoir as soon as you switch on the ignition so...
Page 53 Wipers and washers Changing the windscreen wiper 4. Remove the wiper blade. blades Note: Make sure that the wiper blade locks into place. Set the windscreen wipers in the service position and lift the wiper arms. 5. Install in the reverse order. Changing the rear window wiper blades - 5-door 1.
Page 54: Lighting
Lighting One side LIGHTING CONTROL Lighting control positions E75505 Right-hand side Left-hand side E70718 Main and dipped beam Side and tail lamps Headlamps Parking lamps CAUTION Prolonged use of the parking lamps will discharge the battery. E70725 Switch off the ignition. Pull the lever fully towards the steering Both sides wheel to switch between main and...
Page 55: Autolamps
Lighting Home safe lighting FRONT FOG LAMPS Switch the ignition off and pull the direction indicator lever towards the steering wheel to switch the headlamps on. You will hear a short tone. The headlamps will go off automatically after three minutes with any door open, or 30 seconds after the last door has been closed.
Page 56: Adjusting The Headlamps - Vehicles With: Adaptive Front Lighting/Xenon Headlamps
Lighting ADJUSTING THE HEADLAMPS - VEHICLES WITH: ADAPTIVE FRONT LIGHTING/XENON HEADLAMPS To adjust the headlamps for driving on the left or right hand side of the road, see your dealer. E70722 HEADLAMP LEVELLING Raised headlamp beams Note: Vehicles with Xenon headlamps Lowered headlamp beams are equipped with automatic headlamp You can adjust the level of the headlamp...
Page 57: Hazard Warning Flashers
Lighting HAZARD WARNING FLASHERS E71943 For item location: See Quick start (page Note: Depending on applicable laws and 10). regulations in the country for which your vehicle was originally built, the hazard warning flashers may flash if you brake heavily. ADAPTIVE FRONT LIGHTING SYSTEM (AFS) E72897 without AFS...
Page 58 Lighting A message will appear in the information display if the system malfunctions. See Information messages (page 91). The headlamps will move to a fixed central or dipped position. Have the system checked as soon as possible. Cornering lamps E72898 Headlamp beam Cornering lamp beam The cornering lamps illuminate the inside...
Page 59: Direction Indicators
Lighting If you set the switch to position B, the DIRECTION INDICATORS courtesy lamp will come on when you unlock or open a door or the luggage compartment lid. If you leave a door open with the ignition switch off, the courtesy lamp will go off automatically after some time to prevent the vehicle battery from discharging.
Page 60: Removing A Headlamp
Lighting Vanity mirror lamps E72900 E85995 2. Remove the screws. If you switch off the ignition, the vanity mirror lamps will go off automatically after a short time to prevent the vehicle battery from discharging. To switch them back on, switch on the ignition for a short time. REMOVING A HEADLAMP WARNING Have Xenon bulbs changed by a...
Page 61: Changing A Bulb
Lighting CAUTION When fitting the headlamp, take care not to damage the locating points. Note: When fitting the headlamp, make sure that you fully engage the headlamp in the lower outer fixing point. Note: When fitting the headlamp, tighten the front screw first and then the rear screw.
Page 62 Lighting Headlamp dipped beam 1. Remove the headlamp. See Removing a headlamp (page 58). E72259 E72260 2. Turn the bulb holder anti-clockwise 2. Turn the bulb holder anti-clockwise and remove it. and remove it. 3. Gently press the bulb into the bulb 3.
Page 63 Lighting Side repeaters E72265 2. Remove the lamp. E85999 3. Remove the bulb. 1. Carefully remove the side repeater. Front fog lamps 2. Hold the bulb holder, turn the housing anti-clockwise and remove it. 3. Remove the bulb. Approach lamp E72264 E72267 Note: Position the mirror glass as far...
Page 64 Lighting 2. Remove the lamp. 3. Disconnect the electrical connector. 4. Turn the bulb holder anti-clockwise and remove it. Rear lamps Direction indicator, tail and brake lamp E86005 Direction indicator Tail and brake lamp 3. Gently press the bulb into the bulb holder, turn it anti-clockwise and remove Reversing lamp, tail lamp and fog E86003...
Page 65 Lighting Central high mounted brake lamp Remove the trim panel 4-door E86007 2. Unclip the bulb holder. E87617 1. Detach the clips. 5-door E87618 E86008 1. Remove the screws. Reversing lamp 2. Detach the clips. Tail lamp Fog lamp 3. Gently press the bulb into the bulb holder, turn it anti-clockwise and remove...
Page 66 Lighting Estate E87619 1. Detach the clips. E86002 Remove the lamp 3. Remove the lamp. E87620 E79601 1. Insert a suitable object into the holes. 4. Unclip the bulb holder. 2. Carefully pull the lamp towards the 5. Remove the bulb. front of the vehicle to release the spring clips.
Page 67 Lighting Number plate lamp Vehicles with interior sensors E72789 1. Carefully release the spring clip. 2. Remove the lamp. E72787 3. Remove the bulb. 1. Carefully prise out the lens. Interior lamp 2. Remove the lens. Vehicles without interior sensors 3.
Page 68: Bulb Specification Chart
Lighting Vanity mirror lamp Vehicles with interior sensors E72785 1. Carefully prise out the lamp. E72786 2. Remove the bulb. 1. Carefully prise out the lamp. Luggage compartment lamp 2. Turn the bulb holder anti-clockwise and remove it. E73939 3. Remove the bulb. E72784 1.
Page 69 Lighting Lamp Specification Power (watt) Headlamp dipped beam Cornering lamp Side repeater Approach lamp Front fog lamp Front fog lamp Side lamp Rear direction indicator PY21W Brake and tail lamp P21/5W 21/5 Tail lamp P21/4W Rear fog lamp P21/5W 21/5 Reversing lamp P21W Central high mounted brake lamp...
Page 70: Windows And Mirrors
Windows and mirrors Driver’s door switches ELECTRIC WINDOWS WARNING Do not operate the electric windows unless they are free from obstruction. Note: If you operate the switches often during a short period of time, the system might become inoperable for a certain time to prevent damage due to overheating.
Page 71 Windows and mirrors Safety switch for rear windows Overriding the anti-trap function Note: You can always operate the rear CAUTION windows from the driver’s door. While you close the window for the third time, the anti-trap function is disabled. Make sure there are no obstacles in the way of the closing window.
Page 72: Exterior Mirrors
Windows and mirrors Safety mode ELECTRIC EXTERIOR MIRRORS WARNING The anti-trap function is not active during this procedure. If the system detects a malfunction, it enters a safety mode. The windows will move for only about 0.5 seconds at a time and then stop again.
Page 73 Windows and mirrors Electric folding mirrors If you press the switch again while the mirrors are moving, they will stop and Automatic folding and unfolding reverse the direction of movement. Note: If the mirrors have been folded Note: When the mirrors are operated using the manual fold button they can only often during a short period of time, the be unfolded using the manual fold button.
Page 74: Auto-Dimming Mirror
Windows and mirrors AUTO-DIMMING MIRROR E71028 The auto-dimming mirror will adjust automatically when hit by glaring light from behind. It will not work when you have selected reverse gear.
Page 75: Instruments
Instruments GAUGES Type 1 and 2 E72984 Tachometer Engine coolant temperature gauge Fuel gauge Speedometer...
Page 76 Instruments Type 3 E87713 Tachometer Speedometer Engine coolant temperature gauge Fuel gauge Message centre. See Information displays (page 78). If the needle moves towards 120°C, the Engine coolant temperature engine is overheating. Stop the engine, gauge switch the ignition off and determine the cause once the engine has cooled Shows the temperature of the engine down.
Page 77: Warning Lamps And Indicators
Instruments WARNING LAMPS AND WARNING INDICATORS Reduce your speed gradually and stop your vehicle as soon as it is The following warning lamps and safe to do so. Use your brakes with indicators will illuminate briefly when you care. switch the ignition on to confirm that the system is operational: If it illuminates when you are driving, check •...
Page 78 Instruments Ignition warning lamp CAUTION If the engine warning lamp illuminates If it illuminates when you are in conjunction with a message, have driving, this indicates a the system checked as soon as malfunction. Switch off all possible. unnecessary electrical equipment. Have the system checked by a properly trained technician immediately.
Page 79: Audible Warnings And Indicators
Instruments Rear fog lamp indicator It will illuminate when you switch the rear fog lamps on. Seat belt reminder See Seat belt reminder (page 29). Shift indicator E70499 1. Press the right arrow button on the It will illuminate to inform you steering wheel to enter the main that shifting to a higher gear menu.
Page 80: Information Displays
Information displays Press the up and down arrow buttons: GENERAL INFORMATION • to scroll through the trip computer WARNING displays • to scroll through and highlight the Do not operate the information options within a menu. display controls when the vehicle is moving.
Page 81 Information displays Function Type 1 Type 2 Type 3 Navigation control CD control CD changer control Radio control Phone control Auxiliary input control Press the up and down arrow buttons Type 1 on the steering wheel to scroll through the trip computer displays. See Trip computer (page 87).
Page 82 Information displays Type 2 Press the up and down arrow buttons on the steering wheel to scroll through the trip computer displays. See Trip computer (page 87). 09:00 Average Fuel 100km 123456 km 234.2 km E74426...
Page 83 Information displays Menu structure BLIS Reset Trip Trip Odo Avg fuel Avg speed Messages Information Tyre Press. Set Clock Clock 24 Hour Mode 12 Hour Mode Display Help Screen Configure Setup Radio Info Phone Info NAV info Always off On guidance Always on English Language...
Page 84 Information displays Low Fuel Chimes General info. General warn. Home light Forw Alert Normal High Hill Launch Auto Manual Check Tyre Pressure Low load High load Full guard Alarm Reduced Ask on exit Time 1 Set Time Aux. Heater Monday Tuesday Wednesday Parkheater...
Page 85 Information displays Type 3 CD changer Radio Phone E88048 Trip computer Use the controls to scroll through the menu displays. Settings Device list The highlighted icon shows the current Auxiliary input menu in use. Navigation...
Page 86 Information displays Menu structure BLIS Navigation Home Destinations Destinat. mem. Destinations Destinat. A-Z Destinations Last destinat. Cancel guidan. Folder / Tracks CD changer Folder / Tracks CD 1 CD 2 Folder / Tracks CD 3 Folder / Tracks CD 4 Folder / Tracks CD 5 Folder / Tracks...
Page 87 Information displays Trip computer Distance to empty Average fuel Average speed Reset selected element Reset trip odometer Messages Information Settings Tyre Pressure Set Clock Clock 24-hour mode 12-hour mode Colour themes Display Setup Configure Help Screen NAV info Always off On guidance Always on Language...
Page 88 Information displays Low Fuel Chimes General info. General warn. Home light Forw Alert Normal High Hill Launch Auto Manual Check Tyre Pressure Low load High load Full guard Alarm Reduced Ask on exit Aux Heater E87756...
Page 89: Trip Computer
Information displays Set Time Time 1 Park heater Monday Tuesday Wednesday Thursday Friday Saturday Sunday Set Time Time 2 Monday Tuesday Wednesday Thursday Friday Saturday Sunday Once Active now Auxiliary input E88067 Average fuel consumption TRIP COMPUTER Indicates the average fuel consumption since the function was last reset.
Page 90: Outside Air
Information displays Type 1 and 2 Resetting the trip computer using the main menu To reset a particular display: 10:20 1. Press the right arrow button on the steering wheel to enter the main menu. 2. Highlight Reset Trip with the up and Average Fuel down arrow buttons and press the right arrow button.
Page 91: Personalised Settings
Information displays 2. Highlight the function to be reset. Type 3 3. Hold the OK button pressed. 1. Highlight Settings with the up and down arrow buttons and press the right arrow button. PERSONALISED SETTINGS 2. Highlight Setup with the up and down The following information is displayed in arrow buttons and press the right the information display if you have...
Page 92 Information displays 3. Highlight Display and press the right 2. Highlight Setup with the up and down arrow button. arrow buttons and press the right arrow button. 4. Highlight Configure and press the right arrow button. 3. Highlight Display and press the right arrow button.
Page 93: Information Messages
Information displays 3. Highlight Display and press the right With instrument cluster type 3, certain arrow button. messages need to be confirmed before you can access the menus. 4. Highlight Measure Unit and press the right arrow button. Message indicator 5.
Page 94 Information displays 2. Highlight Settings with the up and 4. Highlight Messages and press the down arrow buttons and press the right arrow button. right arrow button. 5. Use the up and down buttons to view 3. Highlight Information with the up the current messages.
Page 95 Information displays Battery and charging system Message Message Meaning warning lamp Overvoltage: Stop The charging system voltage is above its normal safely! operating range. Stop your vehicle as soon as it is safe to do so and switch off the ignition. Have this checked as soon as possible.
Page 96 Information displays Doors open Message Message Meaning warning lamp Driver door open The driver side front door is open. Driver side rear The driver side rear door is open. door open Passenger door The passenger side front door is open. open Passenger side The passenger side rear door is open.
Page 97 Information displays Keyless system Message Message Meaning warning lamp Steering malfunc- The steering system has malfunctioned. Have tion this checked as soon as possible. Key not detected amber A valid passive key has not been recognised. Car operative amber The engine is still running. Switch the ignition off. Press STOP See Keyless starting (page 126).
Page 98 Information displays Maintenance Message Message Meaning warning lamp Engine malfunction The engine system has malfunctioned. Have this checked as soon as possible. Check engine oil amber The engine oil level is low. Check the engine oil level level as soon as possible. See Engine oil check (page 210).
Page 99 Information displays Power steering Message Message Meaning warning lamp Power steering amber The power steering system has malfunctioned. malfunction Have this checked as soon as possible. Stability control (ESP) Message Message Meaning warning lamp ESP off Stability control is off. ESP malfunction Stability control has malfunctioned.
Page 100 Information displays Message Message Meaning warning lamp Check ..tyre amber The tyre indicated is significantly under-inflated. Check your tyres and inflate them to the recommended pressure. See Technical specifications (page 231). Tyre monitor amber You have installed a temporary spare wheel. malfunction Install a correctly inflated full size wheel with a sensor as soon as possible.
Page 101 Information displays Voice control Message Message Meaning warning lamp Voice control Voice control is on. Please speak Voice control Not Check voice control. recognised Voice control Not Voice control is not allowed in this mode. allowed...
Page 102: Climate Control
Climate control Warming the interior PRINCIPLE OF OPERATION Direct the air towards your feet. In cold or Outside air humid weather conditions, direct some of the air towards the windscreen and the Keep the air intakes forward of the door windows. windscreen free from obstruction (snow, leaves etc.) to allow the climate control Cooling the interior...
Page 103: Manual Climate Control
Climate control Blower MANUAL CLIMATE CONTROL Air distribution control E75470 Note: If you switch the blower off, the E71379 windscreen may mist up. Windscreen Recirculated air Footwell and windscreen Footwell Face level and footwell Press the button to toggle between Face level outside air and recirculated air.
Page 104 Climate control Ventilation Cooling the interior quickly E71378 Set the air distribution control, blower and E71381 air vents to suit your requirements. Defrosting and demisting the Air conditioning windscreen Switching the air conditioning on and off If you turn the blower off, the air conditioning will turn off.
Page 105: Automatic Climate Control
Climate control Reducing interior air humidity E71383 AUTOMATIC CLIMATE CONTROL E80737 Note: Avoid adjusting the settings when The system controls the temperature, the vehicle interior is extremely hot or amount and distribution of the air flow cold. The automatic climate control automatically and adjusts them according adjusts to the current circumstances to the driving and weather conditions.
Page 106 Climate control Note: For information on the automatic Note: If you set a difference of greater climate control, on vehicles fitted with a than 4°C (7ºF), the temperature on the combined Navigation and automatic other side will be adjusted so that the climate control system, see separate difference remains at 4°C (7ºF).
Page 107: Heated Windows And Mirrors
Climate control Press the button. A/C OFF or A/C ON is shown in the display. Recirculated air E70308 Press the button to change between Footwell automatic mode and recirculated air. Face level Note: When the system is in auto mode and the interior and exterior air Windscreen temperatures are quite hot, the system...
Page 108: Auxiliary Heater
Climate control Heated windscreen Note: The parking heater will only operate if there is at least 7.5 litres (1.6 gallons) of fuel in the fuel tank and the ambient temperature is below 15°C E72506 (59°F). The heater will not operate if the battery is low.
Page 109 Climate control • The functions Program 1 and Program 2 allow you to programme up to two heating cycles for each day of the week. These times will remain stored and the heater will warm up the vehicle at these times on these days every week.
Page 110 Climate control 5. To set the time at which the vehicle Active now should be warmed up, highlight the Highlight Active now and press the OK time at the top of the display and button. A cross appears in the box next press the right arrow button.
Page 111 Climate control Remote start in combination Changing the remote control with direct start or timer battery Make sure that you dispose of old batteries in an environmentally friendly way. Seek advice from your local authority regarding recycling. E114360 Remote start is integrated with normal heater control.
Page 112 Climate control Note: The programming procedure may be repeated as often as is required. The oldest programmed transmitter will be deleted each time. 1. Install the battery in the new transmitter. 2. Turn off the power to the receiver by removing fuse F32 from the engine compartment fuse box.
Page 113: Electric Sunroof
Climate control The power sunroof is operated by a ELECTRIC SUNROOF switch located between the sun visors. Opening and closing the sunroof E78054 WARNING Before operating the electric sunroof you should verify it is free of obstructions and ensure that children and/or pets are not in the E72188 proximity of the sunroof opening.
Page 114 Climate control Tilting the sunroof To open or close the sunroof automatically press either side of the switch to the second action point and release it completely. Press again to stop. When the closed position is reached, the sunroof stops automatically. Sunroof anti-trap protection WARNINGS The anti-trap function is deactivated...
Page 115 Climate control Sunroof safety mode WARNING The anti-trap function is not active during this procedure. Make sure that there are no obstacles in the way of the closing sunroof. If the system detects a malfunction, it enters a safety mode. The sunroof will move for only about 0.5 seconds at a time and then stop again.
Page 116: Seats
Seats • hold the steering wheel with your arms SITTING IN THE CORRECT slightly bent. POSITION • bend your legs slightly so that you can press the pedals fully. • position the shoulder strap of the seat belt over the centre of your shoulder and position the lap strap tightly across your hips.
Page 117: Electric Seats
Seats Adjusting the lumbar support Adjusting the angle of the seatback E70729 E70731 Adjusting the height of the driver’s seat ELECTRIC SEATS 2-way electric seat E70730 E70733...
Page 118 Seats 8-way electric seat E70734...
Page 119: Head Restraints
Seats HEAD RESTRAINTS REAR SEATS Adjusting the head restraint WARNINGS When folding the seatbacks down, WARNINGS take care not to get your fingers Raise the rear head restraint when caught between the seatback and the rear seat is occupied by a seat frame.
Page 120: Heated Seats
Seats CAUTION Lower the head restraints. E70601 E86612 1. Insert your fingers between the seat cushion and seatback and fold the seat cushion forwards. 2. Press the unlock buttons down and hold them there. 3. Push the seatback forwards. Folding the seatbacks up WARNING E71224 When folding the seatbacks up,...
Page 121 Seats E70601 E70602 Note: The settings are stored when the ignition is switched off. Note: When the seat is being ventilated, the heater may switch on automatically. This is to prevent the flow of air becoming uncomfortably cool. Note: The air in the vehicle interior is used to ventilate the seats.
Page 122: Convenience Features
Convenience features SUN BLINDS INSTRUMENT LIGHTING DIMMER Pull the blind up and attach it to the hooks (A). Side windows E70723 CLOCK Note: Some navigation systems will E74809 automatically set the date and time on the clock using GPS signals. Rear window Note: See General information (page 78).
Page 123: Ashtray
Note: You can use the socket to power 12 volt appliances that have a maximum current rating of 15 Amperes. Use only Ford accessory connectors or connectors specified for use with SAE standard sockets. E73705 To remove the ashtray, open it, press it down against the spring and remove it.
Page 124: Cup Holders
Convenience features STORAGECOMPARTMENTS WARNING Do not drive with any storage compartment lid open. Make sure that you secure the lid before setting off. CAUTION Do not keep heat-sensitive items and liquids in any storage compartment. E86470 CUP HOLDERS WARNING Do not place hot drinks in the cup holders when the vehicle is moving.
Page 125: Map Pockets
Convenience features MAP POCKETS E86768 Seat adjustment controls See E74686 Electric seats (page 115). Memory pre-set buttons MEMORY FUNCTION Up to four different driver's seat and WARNINGS exterior mirror positions can be stored in the memory. Your preferred setting for Before activating the seat memory, the reverse mirror dipping feature can also make sure that the area immediately...
Page 126: Glasses Holder
Convenience features 3. Press and hold the desired pre-set CD CHANGER button B until a single chime sounds to confirm. This is located in the luggage compartment. Recalling a stored seat position Note: To stop seat movement during a AUXILIARY INPUT (AUX IN) recall, press any driver seat adjustment SOCKET control, any of the memory buttons or any...
Page 127: Usb Port
Convenience features USB PORT E104423 See Connectivity (page 268). FLOOR MATS WARNING When using the floor mats, always make sure the floor mat is properly secured using the appropriate fixings and positioned so that it does not interfere with the operation of the pedals.
Page 128: Starting The Engine
Starting the engine II The ignition is switched on. All electrical GENERAL INFORMATION circuits are operational. Warning lamps and indicators illuminate. This is the key General points on starting position when driving. You must also If the battery has been disconnected the select it when being towed.
Page 129 Starting the engine Starting with automatic Type 1 transmission Note: Releasing the brake pedal during engine start will stop the engine cranking and return to ignition on. 1. Make sure the transmission is in P or 2. Fully depress the brake pedal. 3.
Page 130: Steering Wheel Lock
Starting the engine Vehicles with keyless starting Note: The steering wheel lock will not activate when the ignition is on or the vehicle is moving. Your vehicle has an electronically controlled steering wheel lock. This operates automatically. The steering wheel lock will activate after a short period of time once you have parked your vehicle and the passive key is outside of the vehicle.
Page 131: Starting A Petrol Engine - E85
Starting the engine Engine idle speed after starting 2. Start the engine. The speed at which the engine idles Vehicles with automatic immediately after starting will vary transmission depending on the engine temperature. Note: Do not touch the accelerator If the engine is cold then the idle speed pedal.
Page 132: Starting A Diesel Engine
Starting the engine If the engine fails to start, proceed as Switch the ignition on and wait follows: until the glow plug indicator goes off. 1. Fully depress the accelerator pedal. 2. Turn the ignition key to position III. Vehicles with manual transmission CAUTION Note: Do not touch the accelerator Release the ignition key as soon as...
Page 133: Switching Off The Engine
Starting the engine Note: After you have switched your ENGINE HEATER engine off the fans may continue to run for a short period of time. CAUTION Unlike a normal filter which requires Make sure you disconnect the power periodic replacement, the DPF has been cable from the engine heater designed to regenerate, or clean itself to connector before driving away.
Page 134: Fuel And Refuelling
Note: The use of additives or other Do not use methanol instead of E85. engine treatments not approved by Ford is not recommended. Note: We do not recommend the Note: We recommend that you use only...
Page 135: Catalytic Converter
Fuel and refuelling Long-term storage WARNINGS Do not use any kind of flames or Most diesel fuels contain bio-diesel, it is heat near the fuel system. The fuel recommended to fill the tank with purely system is under pressure. There is mineral diesel (where available) or add an a risk of injury if the fuel system is leaking.
Page 136: Refuelling
A funnel is located in the spare wheel well. stop/start driving, air conditioning usage, Use this when refilling with a fuel can. the accessories fitted and towing etc. Your Ford dealer can give you advice on improving your fuel consumption. TECHNICAL SPECIFICATIONS...
Page 137 Fuel and refuelling 4-door and 5-door Fuel consumption figures CO2 emis- Urban Extra-urban Combined sions Variant l/100 km l/100 km l/100 km g/km (mpg) (mpg) (mpg) 1.6L Duratec-Ti-VCT 10 (28.2) 5.6 (50.4) 7.2 (39.2) 2.0L Duratec-HE Stage IV 11.2 (25.2) 6 (47.1) 7.9 (35.8) (107kW/145PS)
Page 138 Fuel and refuelling CO2 emis- Urban Extra-urban Combined sions Variant l/100 km l/100 km l/100 km g/km (mpg) (mpg) (mpg) 2.2L Duratorq-TDCi (175PS), 6-speed manual 8.4(33.6) 4.9 (57.6) 6.2 (45.6) transmission Estate Fuel consumption figures CO2 emis- Urban Extra-urban Combined sions Variant l/100 km...
Page 139 Fuel and refuelling CO2 emis- Urban Extra-urban Combined sions Variant l/100 km l/100 km l/100 km g/km (mpg) (mpg) (mpg) 2.0L Duratorq-TDCi (85 kW/115PS), 6-speed 6.6 (42.8) 4.4 (64.2) 5.2 (54.3) manual transmission ECONETIC 2.0L Duratorq-TDCi Stage IV (100 kW/136PS), 6-speed 9.7 (29.1) 5.5 (51.4) 7.1 (39.8)
Page 140: Transmission
Transmission MANUAL TRANSMISSION Neutral Drive CAUTION Sport mode and manual shifting Do not engage reverse gear when the vehicle is moving. This can cause WARNING damage to the transmission. Apply the brakes before moving the selector lever and keep them applied until you are ready to move off.
Page 141 Transmission Drive modes Neutral In this position, power is not transmitted The transmission will select the to the drive wheels but the transmission appropriate gear for optimum is not locked. You can start the engine performance based on ambient with the selector lever in this position. temperature, road gradient, vehicle load and driver input.
Page 142 Transmission E87934 1. Remove the centre console side panel. E87935 Note: The lever is yellow. 1. Insert a flat-bladed screwdriver into the slot and turn the screwdriver clockwise 90 degrees.
Page 143: Brakes
Brakes PRINCIPLE OF OPERATION PARKING BRAKE Disc brakes Applying the parking brake Wet brake discs result in reduced braking efficiency. Dab the brake pedal when driving from a car wash to remove the film of water. WARNING E66567 The ABS does not relieve you of your responsibility to drive with due WARNING care and attention.
Page 144: Stability Control
Stability control Stability control (ESP) warning lamp PRINCIPLE OF OPERATION The ESP warning lamp will flash when the Electronic stability programme system is operating. See Warning (ESP) lamps and indicators (page 75). WARNING Emergency brake assist ESP does not relieve you of your WARNING responsibility to drive with due care and attention.
Page 145: Hill Start Assist
Hill start assist PRINCIPLE OF OPERATION The system makes it easier to pull away when the vehicle is on a slope without the need to use the parking brake. When the system is active, the vehicle will remain stationary on the slope for two to three seconds after you release the brake pedal.
Page 146 Hill start assist Note: When the system is in manual 2. If the sensors detect that the vehicle activation mode, only use the system is on a slope and the right driving when pulling away uphill on gradients direction is selected (first gear if the greater than 3%.
Page 147 Hill start assist Deactivating the system To deactivate the system, perform one of the following: • Apply the parking brake. • Wait for two to three seconds until the system deactivates automatically. • If a forward gear was selected when the system became active, select reverse gear.
Page 148: Active Suspension
Active suspension System malfunction PRINCIPLE OF OPERATION The active suspension system will switch The active suspension provides improved off automatically if it malfunctions. The handling, comfort and stability by suspension will be set to a fail-safe continuously adjusting the damper condition that will enable you to continue properties to the current road and driving driving but you will not be able to change...
Page 149: Parking Aid
Parking aid Note: The parking aid may emit false PRINCIPLE OF OPERATION tones if it detects a signal using the same frequency as the sensors or if the vehicle WARNING is fully laden. The parking aid does not relieve you Note: The outer sensors may detect the of your responsibility to drive with side walls of a garage.
Page 150 Parking aid Note: If a high pitch warning tone sounds for three seconds and the light in the switch is flashing, it indicates a malfunction. The system will be disabled. Have the system checked by properly trained technicians. You will hear an intermittent tone at a distance of up to approximately 150 centimetres (59 inches) between the obstacle and rear bumper, 80 centimetres...
Page 151: Cruise Control
Cruise control Press the SET+ switch or the SET- PRINCIPLE OF OPERATION switch to store and maintain your current speed. The cruise control indicator Cruise control allows you to control your illuminates. speed using the switches on the steering wheel. You can use cruise control when Changing the set speed you exceed 30 km/h (20 mph).
Page 152 Cruise control Resuming the set speed E70616 Press the RES switch. The cruise control indicator illuminates and the system will attempt to resume the speed that you previously set. Switching cruise control off E70613 Press the OFF switch. The system will not retain the speed that you previously set.
Page 153: Adaptive Cruise Control (Acc)
The radar sensor is mounted behind the PRINCIPLE OF OPERATION front grille, immediately to the right of the Ford badge (when viewed from the front The adaptive cruise control system is of the vehicle). designed to help you maintain a gap from...
Page 154: Using Acc
Adaptive cruise control (ACC) Detection beam issues Automatic braking with ACC Adaptive cruise control will automatically brake for you, if required to maintain the set gap between your vehicle and the one detected in front. This braking capacity is limited to approximately 30% of the total manual braking capacity to ensure smooth and comfortable cruising.
Page 155 Adaptive cruise control (ACC) Vehicles without speed limiter ACC gap increase ACC gap decrease Switching ACC on Press switch A. The system is set to standby mode and Standby is displayed in the information display. Setting a speed E124908 ACC on ACC cancel ACC off ACC gap increase...
Page 156 Adaptive cruise control (ACC) Setting the vehicle gap E82312 E82311 This is a follow mode, and the system will accelerate or decelerate as necessary to The distance between you and the vehicle maintain the set gap. detected in front is maintained by a Press switch E to decrease the gap or variable setting.
Page 157: Forward Alert Function
Adaptive cruise control (ACC) Note: The system may be deactivated if • vehicle speed falling below 30 km/h the clutch is depressed. (20 mph) • wheels lose traction Resuming ACC • brake temperature is high, for Press the RES switch. The ACC indicator example when driving on mountainous illuminates and the system will resume or hilly roads...
Page 158 Adaptive cruise control (ACC) WARNINGS CAUTION Never wait for a collision warning. Warnings may be triggered late, be When driving you are responsible absent or triggered unnecessarily if for maintaining the correct distance the traffic situation means that the and speed, even when the system is radar sensor cannot accurately detect a used.
Page 159: Speed Limiter
Speed limiter PRINCIPLE OF OPERATION WARNING When you are going downhill, your speed may increase above the set speed. The system will not apply the brakes but a warning will be given. The system allows you to set a speed, to which the vehicle then becomes limited.
Page 160 Speed limiter System warnings If the set limit is accidentally exceeded the information display will show the set speed flashing together with an audible warning chime. If the set limit is intentionally exceeded the information display will show the set speed crossed out.
Page 161: Load Carrying
Load carrying GENERAL INFORMATION WARNINGS Use load securing straps to an approved standard, e.g. DIN. Make sure that you secure all loose items properly. Place luggage and other loads as low and as far forward as possible within the luggage or loadspace. Do not drive with the tailgate or rear E97377 door open.
Page 162: Sliding Loadspace Floor
Load carrying 4-door and 5-door E74810 E86913 Press the unlocking handle and pull the loadspace floor rearwards. It will stop and engage at a midway position. SLIDING LOADSPACE FLOOR WARNING Do not slide the loadspace floor rearwards when the vehicle is standing on an incline of 15 degrees or more and facing uphill.
Page 163 Load carrying Storage compartment A storage compartment is located in the floor at the rear of the luggage compartment. To gain access to the storage compartment, lift up the sliding loadspace floor as follows: E74812 E74813 1. Press the unlocking handle and pull the loadspace floor rearwards a short way.
Page 164: Rear Under Floor Storage
Load carrying 3. Lower the floor. CARGO NETS 4. Press the unlocking handle and pull Luggage retention net the loadspace floor rearwards until it drops into position on the rails. Installing the net REAR UNDER FLOOR STORAGE Vehicles with a sliding loadspace floor Raise the loadspace floor to gain access to the storage compartment.
Page 165: Luggage Covers
Load carrying E72969 E87054 Pull out the cover and secure it in the 3. Tighten the belts. retaining points. Removing the net Release it from the retaining points and let it roll back into the case. Clip the retaining hook onto the case. E72970 E87135 To remove or install the cover, push either...
Page 166: Roof Racks And Load Carriers
Load carrying Installing behind the front seats ROOF RACKS AND LOAD CARRIERS Roof rack WARNINGS If you use a roof rack, the fuel consumption of your vehicle will be higher and you may experience different driving characteristics. Read and follow the manufacturer’s instructions when you are fitting a roof rack.
Page 167 Load carrying 1. Push the ends of the bar on the grille towards each other and insert them into the retainers on the roof. Push the bar forwards into the narrow section of the retainers. E87783 3. Attach the grille to the lower bar with the handwheels.
Page 168: Load Retaining Fixtures
Load carrying Installing the load bracket LOAD RETAINING FIXTURES WARNINGS WARNING Install the load bracket with the Do not exceed the maximum longest section towards the rear of permissible load of 60 kilogrammes the vehicle. If you install it the wrong (132 pounds) on two load retaining way round, it may not hold the box in fixtures and 30 kilogrammes (66 pounds)
Page 169 Load carrying 4. Slide the captured bolts onto the load retaining fixture. E76380 5. Secure the load bracket with the two wing nuts. 6. Remove in the reverse order.
Page 170: Towing
Towing Change down a gear before you reach a TOWING A TRAILER steep downhill gradient. WARNINGS DETACHABLE TOW BALL Do not exceed 100 km/h (62 mph). WARNINGS The rear tyre pressures must be When not in use, always transport increased by 0.2 bar (3 psi) above the tow ball arm securely fastened specification.
Page 171 Towing Unlocking the tow ball arm Inserting the tow ball arm mechanism E71329 1. Remove the protecting cap (1). Insert the key and turn it clockwise to unlock (2). 2. Hold the tow ball arm. Pull the handwheel out and turn it clockwise until it clicks (3).
Page 172 Towing Driving with a trailer Removing the tow ball arm E71331 WARNING If any of the below conditions cannot be met, do not use the tow bar and have it checked by a properly trained technician. Before starting your journey, make sure E71332 that the tow ball arm is properly locked.
Page 173 Towing Driving without a trailer E94771 1. Remove the tow ball arm. 2. Insert the plug into its seat (1). WARNING Never unlock the tow ball arm with the trailer attached. Maintenance CAUTION Remove the tow ball arm and protect the seat with the plug before steam cleaning your vehicle.
Page 174: Driving Hints
Driving hints RUNNING-IN COLD WEATHER PRECAUTIONS Tyres The functional operation of some WARNING components and systems can be New tyres need to be run-in for affected at temperatures below -30°C approximately 500 kilometres (300 (-22°F). miles). During this time, you may experience different driving DRIVING THROUGH WATER characteristics.
Page 175: Emergency Equipment
Emergency equipment Estate FIRST AID KIT Space is provided in the luggage compartment. 4-door E87656 WARNING TRIANGLE 4-door and 5-door E87654 5-door E87657 E87655 Space is provided in the luggage compartment. Estate and vehicles with tyre repair kit Space is provided under the carpet. See Rear under floor storage (page 162).
Page 176: Fuses
Fuses FUSE BOX LOCATIONS Engine compartment fuse box E72590 2. Turn the knob through 90 degrees and release the fuse box from the retaining bracket. E72588 3. Lower the fuse box and pull it towards you. Central fuse box Vehicles built up to: 07-02-2010 All vehicles E72622 E72589...
Page 177 Fuses Rear fuse box - 4-door and 5- Rear fuse box - Estate door E87479 E87481 1. Release the catches. 1. Remove the cover. 2. Remove the cover. E87482 E87480 2. Remove the relevant fuse box cover. 3. Remove the relevant fuse box cover.
Page 178: Changing A Fuse
Fuses CHANGING A FUSE CAUTION Fit a replacement fuse with the same WARNINGS rating as the one you have removed. Do not modify the electrical system of your vehicle in any way. Have Note: You can identify a blown fuse by repairs to the electrical system and a break in the filament.
Page 179: Fuse Specification Chart - Vehicles Built Up To: 07-02-2010
Fuses FUSE SPECIFICATION CHART - VEHICLES BUILT UP TO: 07- 02-2010 Engine compartment fuse box E75525 Ampere Fuse Colour Circuits protected rating Transmission control module Glow plug monitoring (diesel engines)
Page 180 Fuses Ampere Fuse Colour Circuits protected rating Engine cooling fan - twin fan (2.3L Duratec- brown Electric hydraulic power steering (EHPAS) clear (2.0L Duratorq-TDCi) yellow Glow plugs yellow Engine cooling fan HEGO sensors 1 (engine management), variable valve timing (engine management), CMS sensor, Oxygen sensor Relay coils Powertrain control module...
Page 181 Fuses Ampere Fuse Colour Circuits protected rating – – Not used green Windscreen wiper module Heated rear window clear green Headlamp washer green ABS valves orange ABS pump green Fuel fired heater orange Heater blower – – Not used – –...
Page 182 Fuses Ampere Fuse Colour Circuits protected rating blue Rear window wiper Fit a replacement with the same rating as the one you have removed. Central fuse box E75527 Ampere Fuse Colour Circuits protected rating Rain sensor SRS (airbag) supply Yaw rate sensor (ESP), accelerator pedal brown supply...
Page 183 Fuses Ampere Fuse Colour Circuits protected rating brown Electronic feed, electronic fuse Not used blue Audio system (including voice control) brown Steering wheel module Instrument cluster blue Main beam yellow Power sunroof brown Reversing lamps – – Not used blue Front fog lamp blue Windscreen washers...
Page 184 Fuses Ampere Fuse Colour Circuits protected rating Brake lamp switch Rear fuse box 4-door and 5-door E87483...
Page 185 Fuses Estate E75526 Ampere Fuse Colour Circuits protected rating Door module (left-hand front) (window up/ clear down, central locking, electric folding mirror, heated mirror)
Page 186 Fuses Ampere Fuse Colour Circuits protected rating Door module (right-hand front) (window up/ clear down, central locking, electric folding mirror, heated mirror) Door module (left-hand rear) (window up/ clear down) Door module (right-hand rear) (window up/ clear down) Rear locking (without rear door modules) blue Auxiliary power socket Relay coils...
Page 187 Fuses Ampere Fuse Colour Circuits protected rating Not used Not used Not used brown CD changer, rear seat entertainment system Not used Seat memory function module yellow Keyless entry – – Not used FC10 – – Not used FC11 – –...
Page 188: Fuse Specification Chart - Vehicles Built From: 08-02-2010
Fuses FUSE SPECIFICATION CHART - VEHICLES BUILT FROM: 08- 02-2010 Engine compartment fuse box E75525 Ampere Fuse Colour Circuits protected rating Transmission control module (AWF21) blue Transmission control module (MPS6)
Page 189 Fuses Ampere Fuse Colour Circuits protected rating Glow plug monitoring (diesel engines) Vaporiser glow plug monitoring (DW10c) Engine cooling fan - twin fan (2.3L Duratec- brown Electric hydraulic power steering (EHPAS) clear (2.0L Duratorq-TDCi) yellow Glow plugs yellow Engine cooling fan HEGO sensors 1 (engine management), variable valve timing (engine management), CMS sensor, Oxygen sensor...
Page 190 Fuses Ampere Fuse Colour Circuits protected rating EGR Throttle, Variable Turbo Control Valve, Coil on Plug; Canister Purge Valve, Power Steering Pressure Switch (engine manage- ment) Relay coils (DW10c) blue Air conditioning relay blue Diesel filter heater yellow Brake vacuum pump orange Starter relay clear...
Page 191 Fuses Ampere Fuse Colour Circuits protected rating orange Heated windscreen (left-hand side) orange Heated windscreen (right-hand side) Heated front washer jets Adaptive cruise control (ACC) blue Adaptive front lighting system (AFS) – – Not used yellow Instrument panel Engine control module, transmission control module, electric hydraulic power steering (EHPAS) 15 feed Headlamp levelling, adaptive front lighting...
Page 192 Fuses Central fuse box E124888 Ampere Fuse Colour Circuits protected rating brown Steering wheel module Instrument cluster Interior lamps Engine immobiliser...
Page 193 Fuses Ampere Fuse Colour Circuits protected rating brown Adaptive cruise control (ACC) Rain sensor blue Cigar lighter Fuel filler flap unlock supply blue Windscreen washers - rear blue Windscreen washers - front Luggage compartment release supply Fuel filler flap lock supply yellow Fuel pump brown...
Page 194 Fuses Rear fuse box 4-door and 5-door E87483...
Page 195 Fuses Estate E75526 Ampere Fuse Colour Circuits protected rating Door module (left-hand front) (window up/ clear down, central locking, electric folding mirror, heated mirror)
Page 196 Fuses Ampere Fuse Colour Circuits protected rating Door module (right-hand front) (window up/ clear down, central locking, electric folding mirror, heated mirror) Door module (left-hand rear) (window up/ clear down) Door module (right-hand rear) (window up/ clear down) Rear locking (without rear door modules) blue Auxiliary power socket Relay coils...
Page 197 Fuses Ampere Fuse Colour Circuits protected rating Not used Not used Not used brown CD changer, rear seat entertainment system Not used Seat memory function module yellow Keyless entry – – Not used FC10 – – Not used FC11 – –...
Page 198: Vehicle Recovery
Vehicle recovery Insert your finger into the hole on the TOWING POINTS underside of the cover and prise off the cover. Install the towing eye. CAUTION The screw-in towing eye has a TOWING THE VEHICLE ON left-hand thread. Turn it FOUR WHEELS anti-clockwise to install it.
Page 199 Vehicle recovery CAUTIONS If a speed of 50 km/h (30 mph) and a distance of 50 kilometres (30 miles) is to be exceeded the drive wheels must be lifted clear of the ground. In the event of a mechanical failure of the transmission the drive wheels must be lifted clear of the ground.
Page 200: Maintenance
• Brake fluid level. See Brake and resale value. There is a large network of clutch fluid check (page 211). Ford Authorised Repairers that are there to help you with their professional • Washer fluid level. See Washer fluid servicing expertise. We believe that their check (page 211).
Page 201: Opening And Closing The Bonnet
Maintenance Raise the bonnet slightly and move the OPENING AND CLOSING catch upwards. THE BONNET Opening the bonnet E73698 E87786 Open the bonnet and support it with the strut. Closing the bonnet WARNING Make sure that the bonnet is closed properly.
Page 202: Engine Compartment Overview - 1.6L Duratec-16V Ti-Vct (Sigma)
Maintenance ENGINE COMPARTMENT OVERVIEW - 1.6L DURATEC-16V TI-VCT (SIGMA) E87714 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 203: Engine Compartment Overview - 2.0L Duratec-He (Mi4)
Maintenance ENGINE COMPARTMENT OVERVIEW - 2.0L DURATEC-HE (MI4) E73231 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 204: Engine Compartment Overview - 2.0L Ecoboost Scti (Mi4)
Maintenance ENGINE COMPARTMENT OVERVIEW - 2.0L ECOBOOST SCTI (MI4) E124921 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 205: Engine Compartment Overview - 2.3L Duratec-He (Mi4)
Maintenance ENGINE COMPARTMENT OVERVIEW - 2.3L DURATEC-HE (MI4) E81313 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 206: Engine Compartment Overview - 2.5L Duratec (Vi5)
Maintenance ENGINE COMPARTMENT OVERVIEW - 2.5L DURATEC (VI5) E73232 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 207: Engine Compartment Overview - 1.8L Duratorq-Tdci (Lynx) Diesel
Maintenance ENGINE COMPARTMENT OVERVIEW - 1.8L DURATORQ-TDCI (LYNX) DIESEL E73233 Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211).
Page 208: Engine Compartment Overview - 2.0L Duratorq-Tdci (Dw) Diesel
Maintenance ENGINE COMPARTMENT OVERVIEW - 2.0L DURATORQ- TDCI (DW) DIESEL E73234 E124913...
Page 209: Engine Compartment Overview - 2.2L Duratorq-Tdci (Dw) Diesel
Maintenance Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch fluid check (page 211). Engine oil filler cap . See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch fluid check (page 211). Battery.
Page 210: Engine Oil Dipstick - 1.6L Duratec-16V Ti-Vct (Sigma)
Maintenance Brake and clutch fluid reservoir (right-hand drive): See Brake and clutch fluid check (page 211). Engine oil filler cap : See Engine oil check (page 210). Brake and clutch fluid reservoir (left-hand drive): See Brake and clutch fluid check (page 211). Battery: See Vehicle battery (page 217).
Page 211: Engine Oil Dipstick - 2.0L Ecoboost Scti (Mi4)
Maintenance ENGINE OIL DIPSTICK - 2.0L ENGINE OIL DIPSTICK - 1.8L ECOBOOST SCTI (MI4) DURATORQ-TDCI (LYNX) DIESEL E124917 ENGINE OIL DIPSTICK - 2.5L DURATEC (VI5) E95527 ENGINE OIL DIPSTICK - 2.0L DURATORQ-TDCI (DW) DIESEL/2.2L DURATORQ- E95542 TDCI (DW) DIESEL E95543...
Page 212: Engine Oil Check
Do not top up further than the MAX CAUTION mark. Do not use oil additives or other engine treatments. Under certain Top up with fluid that meets the Ford conditions, they could damage the specification. See Technical engine. specifications (page 212).
Page 213: Brake And Clutch Fluid Check
In an emergency, you can add just water to the cooling system to reach Top up with fluid that meets the Ford a vehicle service station. The system specification. See Technical must then be drained and refilled with a specifications (page 212).
Page 214: Technical Specifications
DOT 4 Brake Fluid Providing it meets the specification defined by WSS-M2C913-C, you can also use Ford Engine Oil or an alternative engine oil. Topping up the oil: If you are unable to find an oil that meets the specification defined...
Page 215 Maintenance Variant Item Capacity in litres (gallons) 1.6L Duratec-16V Ti-VCT Fuel tank 70 (15.4) Engine lubrication system - 2.0L Duratec-HE 4.3 (1.0) including the oil filter Engine lubrication system - 2.0L Duratec-HE 3.9 (0.9) excluding the oil filter 2.0L Duratec-HE Engine cooling system 6.2 (1.4) 2.0L Duratec-HE...
Page 216 Maintenance Variant Item Capacity in litres (gallons) Engine lubrication system - 2.0L Duratorq-TDCi 5.5 (1.2) including the oil filter Engine lubrication system - 2.0L Duratorq-TDCi 5.0 (1.1) excluding the oil filter 2.0L Duratorq-TDCi Engine cooling system 8.1 (1.8) 2.0L Duratorq-TDCi Fuel tank 70 (15.4) Engine lubrication system -...
Page 217: Vehicle Care
Vehicle care Cleaning the chrome trim CLEANING THE EXTERIOR CAUTION WARNING Do not use abrasives or chemical If you use a car wash with a waxing solvents. Use soapy water. cycle, make sure that you remove the wax from the windscreen. Body paintwork preservation CAUTIONS CAUTIONS...
Page 218: Repairing Minor Paint Damage
You should repair paintwork damage caused by stones from the road or minor scratches as soon as possible. A choice of products is available from your Ford Dealer. Read and follow the manufacturer’s instructions.
Page 219: Vehicle Battery
Vehicle battery 1. Position the vehicles so that they do USING BOOSTER CABLES not touch one another. 2. Switch off the engine and any CAUTIONS electrical equipment. Connect batteries with only the same nominal voltage. 3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal Always use booster cables with of vehicle A (cable C).
Page 220: Battery Connection Points
Vehicle battery BATTERY CONNECTION POINTS E114494 CAUTION Do not connect to the negative (–) terminal of the flat battery.
Page 221: Wheels And Tyres
Wheels and tyres GENERAL INFORMATION WARNINGS Do not use snow chains on this type of wheel. CAUTIONS Use only approved wheel and tyre Do not drive through an automatic sizes. Using other sizes could car wash. damage the vehicle and will make the National Type Approval invalid.
Page 222 Wheels and tyres Vehicles without tyre repair kit Jack Wheel brace Space for locking wheel nut key Your vehicle jack and wheel brace are located in the spare wheel well. Jacking and lifting points CAUTION Use only the specified jacking points. If you use other positions, you may damage the body, steering, suspension, engine, braking system or...
Page 223 Wheels and tyres Vehicles with side skirts E93184 Indentations in the sills A show the E95345 location of the jacking points. Assembling the wheel brace Type one WARNING When returning the wheel brace extension to its original position, take care not to get your fingers caught. Note: Make sure that the wheel brace is fully extended.
Page 224 Wheels and tyres Removing a road wheel WARNINGS Park your vehicle in such a position that neither the traffic nor you are hindered or endangered. Set up a warning triangle. Make sure that the vehicle is on firm, level ground with the wheels E122502 pointing straight ahead.
Page 225 Wheels and tyres Note: The spare wheel is located under CAUTION the floor cover in the luggage Do not install alloy wheels using compartment. wheel nuts designed for use with steel wheels. Note: Make sure the wheel and hub contact surfaces are free from foreign matter.
Page 226: Run Flat Tyres
Wheels and tyres Note: If the spare wheel is different in size Tyre or construction to the road wheels, have Reinforced sidewall this replaced as soon as possible. When a standard tyre experiences a RUN FLAT TYRES drastic loss of inflation pressure, the rim of the wheel brings the full weight of the Principle of operation vehicle to bear on the collapsed sidewalls.
Page 227: Tyre Repair Kit
Wheels and tyres WARNINGS WARNINGS If a run flat tyre has to be replaced, have Do not try to seal damage other the respective wheel rim inspected for than that located within the visible any damage. tread of the tyre. Do not fit a mixture of run flat and Do not try to seal damage to the standard tyres.
Page 228 Wheels and tyres CAUTION WARNINGS Watch the sidewall of the tyre. If any Do not keep the compressor cracks, bumps or similar damage operating for more than 10 minutes. appear, turn off the compressor and let the air out by means of the pressure Note: Use the tyre repair kit only for the relief valve B.
Page 229 Wheels and tyres Bottle lid Sealant bottle 1. Open the lid of the tyre repair kit. 2. Peel off the label I showing the maximum permissible speed of 80 km/h (50 mph) from the casing and attach it to the instrument panel in the driver’s field of view.
Page 230 Wheels and tyres Quickly unscrew the hose C from 4. Follow the inflation procedure once the tyre valve and replace the again to top up the tyre. protective cap A. Fasten the valve 5. Check the tyre pressure again from cap again.
Page 231: Tyre Care
Wheels and tyres TYRE CARE USING SNOW CHAINS WARNINGS Do not exceed 50 km/h (30 mph). Do not use snow chains on snow-free roads. Do not fit snow chains to 235/45 R 17, 235/40 R 18 or T125/90 R 16 tyres.
Page 232 Wheels and tyres 3. Highlight Tyre Pressures with the CAUTIONS up and down buttons and press the Do not bend or damage the valves right arrow button. when you are inflating the tyres. 4. Highlight the desired setting and press Have tyres installed by properly the OK button to confirm the setting.
Page 233: Technical Specifications
Wheels and tyres TECHNICAL SPECIFICATIONS Wheel nut torque Wheel type Nm (Ib-ft) 140 (103) Tyre pressures (cold tyres) Up to 80 km/h (50 mph) Tyre pressures Normal load Full load Front Rear Front Rear Variant Tyre size (lbf/in²) (lbf/in²) (lbf/in²) (lbf/in²) T125/90 R 16 4.2 (61)
Page 234 Wheels and tyres Normal load Full load Front Rear Front Rear Variant Tyre size (lbf/in²) (lbf/in²) (lbf/in²) (lbf/in²) 2.5L Duratec-ST and 235/45 R 17 2.4 (35) 2.2 (32) 2.5 (36) 2.9 (42) 2.0L EcoBoost SCTi 2.5L Duratec-ST and 235/40 R 18 2.4 (35) 2.2 (32) 2.6 (38)
Page 235 Wheels and tyres Normal load Full load Front Rear Front Rear Variant Tyre size (lbf/in²) (lbf/in²) (lbf/in²) (lbf/in²) 2.0L EcoBoost SCTi 215/55 R 16 2.5 (36) 2.3 (33) 2.8 (41) 3.2 (46) 2.0L EcoBoost SCTi 235/45 R 17 2.5 (36) 2.3 (33) 2.8 (41) 3.2 (46)
Page 236: Vehicle Identification
Vehicle identification VEHICLE IDENTIFICATION VEHICLE IDENTIFICATION PLATE NUMBER (VIN) E85610 E87496 Vehicle identification number The vehicle identification number is stamped into the floor panel on the Gross vehicle weight right-hand side, beside the front seat. It is Gross train weight also shown on the left-hand side of the instrument panel.
Page 237: Technical Specifications
Technical specifications TECHNICAL SPECIFICATIONS Vehicle dimensions 4-door E87088 Item Dimension description Dimension in mm (inches) Maximum length 4 844 (190.7) Overall width including exterior mirrors 2 078 (81.8) 1 453 - 1 500 Overall height at EC kerb weight (57.2 - 59.1)
Page 238 Technical specifications Item Dimension description Dimension in mm (inches) Wheelbase 2 850 (112.2) 1 579 - 1 589 (62.2 - Front track 62.6) 1 595 - 1 605 (62.8 - Rear track 63.2) 5-door E87089...
Page 239 Technical specifications Item Dimension description Dimension in mm (inches) 4 778 - 4 802 (188.1 - Maximum length 189.1) Overall width including exterior mirrors 2 078 (81.8) 1 453 - 1 500 Overall height at EC kerb weight (57.2 - 59.1) Wheelbase 2 850 (112.2) 1 579 - 1 589 (62.2 -...
Page 240 Technical specifications Estate E87090 Item Dimension description Dimension in mm (inches) 4 830 - 4 856 (190.2 - Maximum length 191.2) Overall width including exterior mirrors 2 078 (81.8) 1 466 - 1 512 Overall height at EC kerb weight without roof bars (57.7 - 59.5) Overall height at EC kerb weight including roof bars 1 502 - 1 548 (59.1 - 61)
Page 241 Technical specifications Item Dimension description Dimension in mm (inches) 1 579 - 1 589 (62.2 - Front track 62.6) 1 595 - 1 605 (62.8 - Rear track 63.2) Towing equipment dimensions 4-door E87091 Item Dimension description Dimension in mm (inches) Bumper –...
Page 242 Technical specifications Item Dimension description Dimension in mm (inches) Wheel centre – centre of tow ball 1 150 (45.3) Centre of tow ball – side member 438 (17.2) Inner side of side member 876 (34.5) Centre of tow ball – centre 1. attachment point 434 (17.1) Centre of tow ball –...
Page 243 Technical specifications Item Dimension description Dimension in mm (inches) Bumper – end of tow ball 100 (3.9) Bumper – end of tow ball (with sport bumper) 90 (3.5) Attachment point – centre of tow ball 1 (0.04) Wheel centre – centre of tow ball 1 082 (42.6) Centre of tow ball –...
Page 244 Technical specifications Item Dimension description Dimension in mm (inches) Bumper – end of tow ball 100 - 110 (3.9 - 4.3) Attachment point – centre of tow ball 1 (0.04) Wheel centre – centre of tow ball 1 134 - 1 144 (44.7 - 45) Centre of tow ball –...
Page 245: Telephone
E87992 system performance. To avoid this Office situation, only recommended phones should be used. E87993 Please visit the website www.ford- mobile-connectivity.com for full E87994 details. Making a phone an active TELEPHONE SETUP phone When using the system for the first time, Phonebook no phone is connected to the system.
Page 246: Bluetooth Setup
3. Search for audio device. accessible by using the phone list on the audio unit. 4. Select Ford Audio. Note: A maximum of six devices may be 5. Enter the code number shown on the bonded. If six Bluetooth devices have...
Page 247: Telephone Controls
Telephone Note: You can exit the phone menu by TELEPHONE CONTROLS pressing any source button CD, AM/FM or AUX. Remote control Making a call Voice, accept and reject button Dialling a number using voice control Phone numbers can be dialled using voice control.
Page 248 Telephone 4. Press the PHONE or the call accept 5. Press the PHONE or the call accept button to dial the selected phone button to dial the desired phone number. number. Dialling a number using the Redialling a number - Sony radio telephone keypad 1.
Page 249 Telephone If there is an incoming call whilst there is 2. Press the preset number required an ongoing call, a beep will be heard and (using the station preset buttons 1 - you will have the option to end the active call and to accept the incoming call.
Page 250: Using The Telephone - Vehicles With: Navigation System
Telephone Receiving an incoming call 2. Press the up/down arrow buttons until you reach the DEBOND option. Accepting an incoming call 3. Scroll through the different phones by using the seek buttons and display the Incoming calls can be accepted by phone to be debonded.
Page 251 Telephone DVD navigation units Press the mute button (symbol of a microphone with a line through it). Press the button once again to turn this function off. CD navigation units Press the microphone mute button. Press the button once again to turn this function off.
Page 252: Voice Control
Voice control Do not try to give any commands until the PRINCIPLE OF OPERATION beep tone has been heard. The voice control system will repeat each spoken CAUTION command back to you. Using the system with the engine off If you are not sure how to continue say will drain the battery.
Page 253: Audio Unit Commands
Voice control Name tag • automatic climate control: "TEMPERATURE", "AUTO MODE", The name tag functionality can support "DEFROSTING/DEMISTING ON" and the phone, audio and navigation features "DEFROSTING/DEMISTING OFF" by using the "STORE NAME" function. You • radio: "TUNE NAME" can assign name tags to items such as •...
Page 254 Voice control "CD PLAYER" "REPEAT TRACK" "REPEAT OFF" * Can be used as a shortcut. ** Only available if the CD contains audio data files like MP3 or WMA. Track You can choose a track on your CD directly. Steps User says System answer "CD PLAYER"...
Page 255 Voice control "CD CHANGER" "HELP" "PLAY" "DISC" "TRACK" "SHUFFLE ALL" "SHUFFLE CD" "SHUFFLE FOLDER" "SHUFFLE OFF" "REPEAT CD" "REPEAT FOLDER" "REPEAT TRACK" "REPEAT OFF" * Can be used as a shortcut. ** Only available if the CD contains audio data files like MP3 or WMA. Disc If you have a CD changer you can choose the disc number.
Page 256 Voice control Steps User says System answer "CD CHANGER" "CD CHANGER" "TRACK NUMBER PLEASE" "TRACK" "TRACK <number>" "<a number between 1 and 99>" * Can be used as a shortcut. ** Additionally, numbers can be spoken as up to four single digits (for example "2", "4", "5"...
Page 257 Voice control "RADIO" "PLAY" * Can be used as a shortcut. Tune frequency This function allows you to tune your radio by voice commands. Steps User says System answer "RADIO" "RADIO" "AM" "AM FREQUENCY PLEASE" "FM" "FM FREQUENCY PLEASE" "TUNE <frequency>" "<frequency>"...
Page 258 Voice control Tune name This function allows you to call up a stored radio station. Steps User says System answer "RADIO" "RADIO" "NAME PLEASE" "TUNE NAME" "<name>" "TUNE <name>" * Can be used as a shortcut. Delete name This function allows you to delete a stored radio station.
Page 259 Voice control Steps User says System answer "RADIO" "RADIO" "DELETE DIRECTORY" "DELETE DIRECTORY" "CONFIRM YES OR NO" "YES" "RADIO DIRECTORY DELETED" "NO" "COMMAND CANCELLED" Play This function switches the audio source to the radio mode. Steps User says System answer "RADIO"...
Page 260 Voice control "EXTERNAL DEVICE", "USB" "PLAY" "TRACK" "PLAYLIST" "FOLDER" "SHUFFLE ALL" "SHUFFLE FOLDER" "SHUFFLE PLAYLIST" "SHUFFLE OFF" "REPEAT TRACK" "REPEAT FOLDER" "REPEAT OFF" * Can be used as a shortcut. ** Playlists and folders activated by voice control must be assigned special filenames. See General information (page 268).
Page 261 Voice control Steps User says System answer "EXTERNAL DEVICE" "EXTERNAL DEVICE" "USB" "USB" "TRACK" "TRACK NUMBER PLEASE" "TRACK <number>" "<a number between 1 and 99>" * Additionally, numbers can be spoken as up to four single digits (for example "2", "4", "5"...
Page 262: Telephone Commands
Voice control iPod Track You can choose a track off the all titles list of your iPod directly. Steps User says System answer "EXTERNAL DEVICE" "EXTERNAL DEVICE" "IPOD" "IPOD" "TRACK NUMBER PLEASE" "TRACK" "TRACK <number>" "<a number between 1 and 99>" * Can be used as a shortcut.
Page 263 Voice control "PHONE" "HELP" "MOBILE NAME" "DIAL NUMBER" "DIAL NAME" "DELETE NAME" "DELETE DIRECTORY" "PLAY DIRECTORY" "STORE NAME" "REDIAL" "ACCEPT CALLS" "REJECT CALLS" * Can be used as a shortcut. Phone functions Dial number Phone numbers can be dialled after giving the name tag voice command.
Page 264 Voice control Dial name Phone numbers can be dialled after giving the name tag voice command. Steps User says System answer "PHONE" "PHONE" "NAME PLEASE" "DIAL NAME" "<name>" "DIAL <name>" "CONFIRM YES OR NO" "YES" "DIALLING" "NO" "COMMAND CANCELLED" * Can be used as a shortcut. Redial This function allows you to redial the last dialled phone number.
Page 265 Voice control DTMF (Tone dialling) Note: DTMF can only be used during an ongoing call. Press the VOICE button and This function transfers spoken numbers wait for the system prompt. into DTMF tones. For example, to make Can only be used with vehicles installed a remote enquiry to your home answering with a dedicated VOICE button.
Page 266 Voice control Steps User says System answer "PHONE" "PHONE" "DELETE NAME" "NAME PLEASE" "<name>" "DELETE <name>" "CONFIRM YES OR NO" "YES" "<name> DELETED" "NO" "COMMAND CANCELLED" Play directory Use this function to let the system tell you all stored entries. Steps User says System answer...
Page 267: Navigation System Commands
Voice control Steps User says System answer "PHONE" "PHONE" "REJECT CALLS" "REJECT CALLS" "ACCEPT CALLS" "ACCEPT CALLS" * use this command to turn the reject mode off CLIMATE CONTROL NAVIGATION SYSTEM COMMANDS COMMANDS Climate Please refer to your separate Navigation handbook for details of the command The climate voice commands supports menus.
Page 268 Voice control This function allows you to adjust the fan speed. Steps User says System answer "CLIMATE" "CLIMATE" "FAN SPEED PLEASE" "‘FAN" "MINIMUM" "FAN MINIMUM" "<a number between 1 and 7>" "FAN <number>" "MAXIMUM" "FAN MAXIMUM" * Can be used as a shortcut. On vehicles fitted with an English language module the "FAN"...
Page 269 Voice control Steps User says System answer "MAXIMUM" "TEMPERATURE MAXIMUM" * Can be used as a shortcut. Auto mode Steps User says System answer "CLIMATE" "CLIMATE" "AUTO MODE" "AUTO MODE" * Can be used as a shortcut. Can be deactivated by selecting a different temperature or fan speed.
Page 270: Connectivity
MP3 players with USB connection socket in the vehicle. Cover the • iPod media players (refer to socket when not in use. www.ford-mobile Only use USB Mass-Storage device -connectivity.com for latest compliant devices. compatibility list). Always switch your audio unit to a The system is USB 2.0 full speed...
Page 271: Connectinganexternal Device
Plug in the device, and if necessary below: secure it to prevent movement within the • Create folders named with the vehicle. structure "Ford<*>" where <*> is a number 1-10. For example "Ford3" Connecting an iPod without an extension. For optimum convenience and audio •...
Page 272: Using A Usb Device
Connectivity Bonding the device Information not available Note: Some audio and navigation units E100028 have a separate Bluetooth audio menu. Use this to access setup and control. Sony radio To connect the device to the system Operation follow the same procedure as for Bluetooth hands free phones.
Page 273 Connectivity Note: If you wish to jump to the top level To browse the device contents, press the of the USB device contents, press and SELECT button once. hold the left arrow key. The display will show the track information, together with other important Audio control information described below: Press the left and right arrow keys to skip...
Page 274: Using An Ipod
Connectivity Press the SCAN button to scan the • "<" to the left hand side of the display current playlist if it is in operation, or the indicates that a further level up is complete USB device or folder. readable. •...
Page 275 Connectivity iPod is the active source The display will show the track information, together with other important information described below: E100030 iPod playlist • A vertical scroll bar on the right side of the display shows the current position E100031 of the list view.
Page 276 Connectivity Press the INFO button to display the To navigate the iPod contents, use the following: rotary scroll/select button to browse through lists. Push the button to expand • title the contents within the highlighted playlist, • artist album, artist, genre or to commence •...
Page 277 Connectivity The iPod menu list for browsing contents Press the SCAN button to scan the will be available through the display. currently selected tracks. Navigation of the contents follows the Press the INFO button to display the same principles as for iPod standalone following: use (for example search by artist, title, •...
Page 278: Navigation Introduction
Read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines.
Page 279: Navigation System
GPS receiver. system performance. To avoid this situation, only recommended phones Note: The Ford Mobile Navigation must should be used. be installed and activated on your mobile phone. Please visit the website Note: It is possible to activate up to a www.ford-mobile-connectivity.com for...
Page 280 Navigation system E114213 2. Switch your mobile phone on and start the "Ford Mobile Navigation". 3. Choose "Select Destination". 4. Choose "Enter Address". 5. Change route options if necessary and start the route guidance. 6. The vehicle display will show the turn information.
Page 281: Appendices
The Bluetooth word mark and logos are FCC/INDUSTRY CANADA owned by the Bluetooth SIG, Inc. and any NOTICE use of such marks by Ford Motor Company is under license. Other This device complies with Part 15 of the trademarks and trade names are those FCC Rules.
Page 282: Electromagnetic Compatibility
Appendices E114220 WARNINGS ELECTROMAGNETIC Radio frequency (RF) transmitter COMPATIBILITY equipment (e.g. cellular telephones, amateur radio transmitters etc.) may only be fitted to your vehicle if they comply WARNINGS with the parameters shown in the table Your vehicle has been tested and below.
Page 283 Appendices WARNINGS WARNINGS Keep antenna and power cables at modules and airbags. least 100mm from any electronic E85998 Frequency Maximum output power Watt Antenna Positions Band MHz (Peak RMS) 1 – 30 50 W 3, 8 30 – 54 50 W 2, 3 68 –...
Page 284 Appendices Note: After the installation of RF transmitters, check for disturbances from and to all electrical equipment in the vehicle, both in the standby and transmit modes. Check all electrical equipment: • with the ignition ON • with the engine running •...
Page 285 Index Audio control...........46 Mode..............46 Seek..............47 Audio unit commands......251 See: Climate control........100 Auxiliary input..........257 About this handbook........7 CD Changer..........252 CD Player.............251 See: Brakes..........141 External devices - iPod......259 ABS driving hints External devices - USB......257 See: Hints on driving with ABS....141 Radio............254 Auto-dimming mirror......72 See: Adaptive cruise control (ACC)..151 Autolamps..........53...
Page 286 Index Changing a road wheel......219 Assembling the wheel brace....221 Installing a road wheel.......223 Battery connection points....218 Jacking and lifting points......220 Bluetooth setup........244 Locking wheel nuts........219 Handling of phones........244 Removing a road wheel......222 Requirements for Bluetooth Removing the wheel trim......222 connection..........244 Vehicle jack..........219 Bonnet lock Vehicles with a temporary spare...
Page 287 Index Connecting an external device - Vehicles With: Bluetooth....269 Connecting a Bluetooth audio Electric exterior mirrors......70 device............269 Electric folding mirrors........71 Connectivity...........268 Mirror tilting positions........70 General information........268 Reverse mirror dipping.........71 Convenience features......120 Electric seats...........115 Coolant check 2-way electric seat........115 See: Engine coolant check.......210 8-way electric seat........116 Cruise control.........149 Electric sunroof........111...
Page 288 Index Engine coolant check......210 Fuel quality - E85........132 Checking the coolant level......210 Long-term storage........132 Fuel quality - Petrol........132 Topping up...........210 Engine heater.........131 Fuse box locations........174 Engine immobiliser........42 Central fuse box..........174 Principle of operation........42 Engine compartment fuse box....174 Engine oil check........210 Rear fuse box - 4-door and 5-door..175 Checking the oil level.........210 Rear fuse box - Estate.......175...
Page 289 Index Headlamp adjustment Information messages......91 See: Adjusting the headlamps - Vehicles Active suspension........92 With: Adaptive Front Lighting/Xenon Airbag.............92 Headlamps..........54 Alarm..............92 Headlamp levelling........54 Battery and charging system.....93 Recommended headlamp levelling switch Climate control..........93 positions............54 Cruise control and Adaptive cruise control Headlamp washers........50 (ACC)............93 Head restraints........117 Doors open...........94...
Page 290 Index Locking and unlocking......35 Automatic relocking........37 Central locking..........35 Keyless entry...........39 Double locking..........35 Disabled keys..........41 Double locking the doors with the General information........39 key..............35 Locking and unlocking the doors with the Locking and unlocking confirmation..35 key blade............41 Locking and unlocking the doors and the Locking the vehicle........39 luggage compartment lid with the Passive key...........39...
Page 291 Rear under floor storage......162 Look for the Ford logo on the following Vehicles with a sliding loadspace parts .............8 floor............162 Now you can be sure that your Ford parts Vehicles without a sliding loadspace are Ford parts..........7 floor............162 Personalised settings......89 Rear window wiper and washers..49...
Page 292 Index Refuelling..........134 Starting a petrol engine......128 Remote control battery Cold or hot engine........128 See: Changing the remote control Engine idle speed after starting....129 battery............31 Flooded engine...........129 Remote control programming Starting the engine........126 See: Programming the remote control..31 General information........126 Removing a headlamp......58 Steering wheel lock.......128 Repairing minor paint damage....216 Vehicles with keyless starting....128...
Page 293 Index Towing the vehicle on four Using ACC..........152 wheels..........196 Automatic deactivation......155 All vehicles............196 Cancelling ACC...........154 Vehicles with 2.0L Duratorq-TDCi (DW) Changing the set speed......153 Diesel (Stage V) or 2.0L EcoBoost SCTi Resuming ACC...........155 (MI4) and 6-Speed Automatic Setting a speed...........153 Transmission..........197 Setting the vehicle gap......154 Vehicles with automatic transmission,...
Page 294 Index Using the telephone - Vehicles With: Navigation System......248 Changing the active phone......249 Warning lamps and indicators....75 Debonding a bonded phone....249 ABS warning lamp........75 Making a call..........248 Airbag warning lamp........75 Muting the microphone......248 Brake system lamp........75 Receiving an incoming call.......248 Cruise control indicator.......75 Receiving a second incoming call...248 Direction indicators........75...
Page 296 Feel the difference...

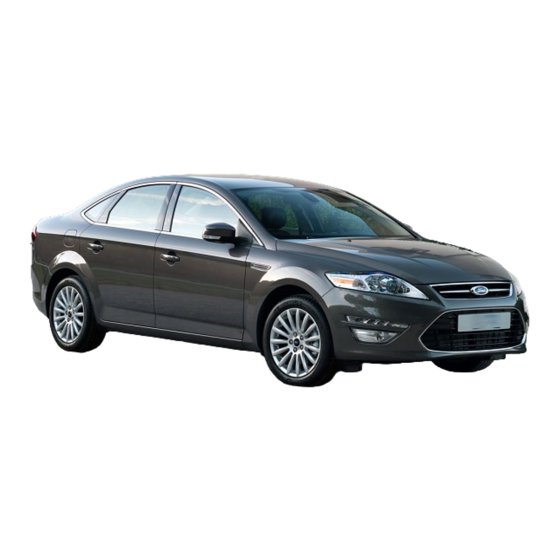

Ford Mondeo Owner's Handbook Manual

Introduction

Quick Start

Child Safety

Occupant Protection

Keys and Remote Controls

Locks

Engine Immobiliser

Alarm

Steering Wheel

Wipers and Washers

Lighting

Windows and Mirrors

Instruments

Information Displays

Climate Control

Seats

Convenience Features

Starting the Engine

Fuel and Refuelling

Transmission

Brakes

Stability Control

Hill Start Assist

Active Suspension

Parking Aid

Cruise Control

Adaptive Cruise Control (ACC)

Speed Limiter

Load Carrying

Towing

Driving Hints

Emergency Equipment

Fuses

Vehicle Recovery

Maintenance

Vehicle Care

Vehicle Battery

Wheels and Tyres

Vehicle Identification

Technical Specifications

Telephone

Voice Control

Connectivity

Navigation Introduction

Navigation System

Appendices

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ford Mondeo

Summary of Contents for Ford Mondeo
