Page 1: Instruction Manual

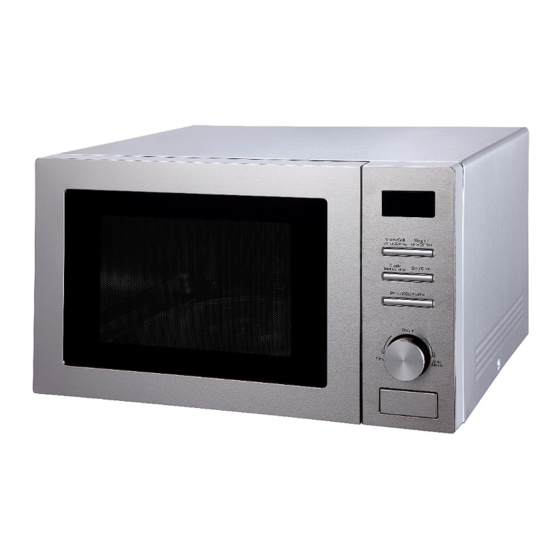

34L Microwave Oven Model: BMWO34 INSTRUCTION MANUAL Read these instructions carefully before using your microwave oven, and keep as a reference guide. -
Page 2: Specifications
ADDENDUM If the unit is not maintained sufficiently, its surface could be degraded and affect the lifespan of the unit. Surface degradation can be dangerous. Specifications Model: BMWO34 Rated Voltage: 240V~ 50Hz Rated Input Power(Microwave): 1500 W Rated Output Power(Microwave):... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic pre-cautions including the following: Warning: Liquids and other foods must not be heated in sealed containers due to risk of explosion. - Page 4 Removable wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. Install or locate this oven only in accordance with the installation instructions provided. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- Page 5 The appliances are not intended to be operated by means of an external timer or separate remote control. Accessible parts may become hot during use. Young children should be kept away. Do not clean the unit with a steam cleaner. During use the appliance becomes hot.
-
Page 6: Electric Shock Hazard
WARNING TO PERSONS GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble the appliance. Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. - Page 7 c. The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. CLEANING Be sure to unplug the appliance from the power supply before cleaning. 1.
- Page 8 utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following below steps: Utensil Test: 1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2.
-
Page 9: Materials You Can Use In Amicrowave Oven
MATERIALS YOU CAN USE IN A MICROWAVE OVEN Aluminium Foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 10: Materials To Be Avoided In Amicrowave Oven
Paper Towels Use to cover food for re-heating and absorbing fat. Use with supervision for short-term cooking only. Parchment Paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow manufacturer’s instructions. Should be labelled “Microwave Safe”. - Page 11 Food Carton with Metal Handle Metal shields the food from microwave energy. Metal trim may cause arcing. Metal Twist Ties May cause arcing and could cause a fire in the oven. Paper Bags May cause a fire in the oven. Plastic Foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
-
Page 12: Setting Up Your Oven
SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: 1 x Glass Tray 1 x Turntable Ring Assembly 1 x Instruction Manual A) Control Panel B) Turntable Shaft C) Turntable Ring Assembly... -
Page 13: Turntable Installation
Turntable Installation Hub (underside) Glass Tray Turntable Shaft Turntable Ring Assembly a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. -
Page 14: Installation
Installation 1. Select a level surface that provides enough open space for the inlet and/or outlet vents. 30cm 20cm 20cm Min 85cm a. The minimum installation height is 85cm above floor level. b. The rear surface of appliance must be placed against a wall. Leave a minimum clearance of 30cm above the oven, and a minimum clearance of 20cm is required between the oven and any adjacent walls. -
Page 15: Operating Instructions
WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and void the warranty. The accessible surface may be hot during operation. Operating Instructions This microwave uses electronic controls to adjust cooking parameters to achieve your desired cooking results. - Page 16 4) Turn to adjust cooking time (The time setting should be 0:05 – 95:00) 5) Press “Start/+30Sec/Confirm” to start cooking. Note: the step quantities for the adjustment time of the coding switch are as follows: 0—1 min 5 seconds 1—5 min 10 seconds 5—10 min 30 seconds...
- Page 17 Timer 1) Press “TIMER/CLOCK” once, and the oven will display 00:00. 2) Turn to enter correct timer (the maximum cooking time is 95 minutes). 3) Press “Start/+30Sec/Confirm” to confirm setting. 4) When the time is reached, the clock indicator will go out and the buzzer will ring 5 times.
- Page 18 Auto Menu 1) Turn right to choose the menu, and “A-1” to “A-8” will display, which means pizza, meat, vegetables, pasta, potato, fish, beverage and popcorn. 2) Press “Start/+30Sec/Confirm” to confirm. 3) Turn to choose the default weight as per the menu chart. 4) Press “Start/+30Sec/Confirm”...
-
Page 19: Auto Menu
Auto Menu Menu Weight Display 200g Pizza 400g 250g 350g Meat 450g 200g 300g Vegetable 400g 50g (with water 450g) Pasta 100g(with water 800g) 200g 400g Potato 600g 250g 350g Fish 450g 1 cup (120ml) 2 cup (240ml) Beverage 3 cup (360ml) Popcorn 100g... -
Page 20: Warranty
Glen Dimplex New Zealand Ltd Unit 1, 21 Lionel Road 38 Harris Road, East Tamaki Mount Waverley VIC 3149 Manukau, Auckland 2013 Australia New Zealand 1300 556 816 09 274 8265 Fax: 1800 058 900 Fax: 09 274 8472 Web: www.belling.com.au Web: www.belling.co.nz... -
Page 21: Troubleshooting
TROUBLE SHOOTING - Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities. - Contact your local government for more information regarding the collection systems available. - If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into ground water, polluting the food chain and damaging health and well-being.
