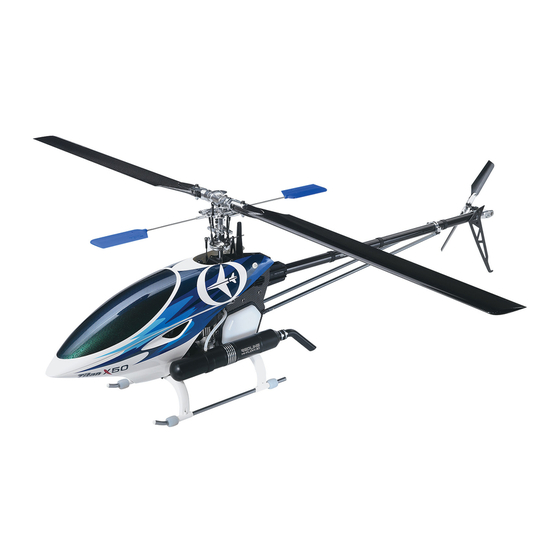

THUNDER TIGER titan x50 Instruction Manual

Torque-tube version
Hide thumbs Also See for titan x50:

Advertisement

Quick Links

Download this manual See also: Manual

INSTRUCTION MANUAL

INSTRUCTION MANUAL
Torque-tube Version
This radio control model is not a toy! Before beginning assembly, please read
this manual thoroughly.
本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。
The contents are subject to change without prior notice due to product
improvements and specification changes.
本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原
因，我們將保留產品規格變更權力，不再另行通知使用者。
組裝說明書
組裝說明書
No.4856

Advertisement

loading

Related Manuals for THUNDER TIGER titan x50

Summary of Contents for THUNDER TIGER titan x50

  • Page 1: Instruction Manual

    INSTRUCTION MANUAL INSTRUCTION MANUAL 組裝說明書 組裝說明書 Torque-tube Version No.4856 This radio control model is not a toy! Before beginning assembly, please read this manual thoroughly. 本產品為高性能模型非一般玩具，組裝與操作前請詳閱本產品說明書。 The contents are subject to change without prior notice due to product improvements and specification changes. 本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原...

  • Page 7: Assembly / 組裝步驟

    ASSEMBLY / 組裝步驟 Main Rotor-1 / 主旋翼機構組裝-1 Bag A Material No. Description Material No. Description 名稱 名稱 BV2181 金屬主旋翼固定座 HSA3-10 半圓頭內六角螺絲,M3x10 METAL MAIN ROTOR HUB BUTTON HEAD SOCKET SCREW,M3x10 金屬穩定桿固定座 內六角螺絲,M2.5×8 BV2186 HMC25-8B METAL SEESAW HUB SOCKET SCREW,M2.5×8 BK2187 軸環,d3xD4xW3.8 BK2182 金屬旋翼頭制動器...
  • Page 8 Main Rotor-2 / 主旋翼機構組裝-2 Bag A Material No. Description Material No. Description 名稱 名稱 BV2183 METAL MIXING LEVER 金屬混控臂 BK0077 COLLAR,d3xD4xW6 軸環,d3xD4xW6 BK0649-1 LINKAGE BALL(A) 內六角連接頭螺絲(A) HSA3-10 BUTTON HEAD SOCKET SCREW,M3x10 半圓頭內六角螺絲,M3x10 Step 1 / 步驟一 Secure the Linkage Balls to the Mixing Lever. BK0077 依圖示，安裝控制臂球頭，並適量使用螺絲防鬆劑。...
  • Page 9 Main Rotor-3 / 主旋翼機構組裝-3 Bag B Material No. Description Material No. Description 名稱 名稱 BK2184 METAL FLYBAR CONTROL ARM BK0649-1 LINKAGE BALL(A) 金屬穩定翼轉臂 內六角連接頭螺絲(A) METAL FLYBAR CONTROL ARM POST SUS FLYBAR BK2185 BK0631 金屬穩定翼轉臂支柱 穩定桿 SOCKET SCREW, M2.5×10 SET SCREW,M3x10 HMC2510B 內六角螺絲, M2.5×10 HME3-10B...
  • Page 10 Main Rotor-4 / 主旋翼機構組裝-4 Bag B Material No. Description Material No. Description 名稱 名稱 BV2574 METAL MAIN ROTOR GRIP SET 金屬旋翼轉座組 BK2214 HARDENED FEATHERING SHAFT 強化固定軸(D7) BK2579 METAL ROTOR GRIP LEVER 金屬轉座擺臂 BK2573 OUTER DAMPER, 7mm 外避震墊圈, 7mm BK2578 METAL ROTOR GRIP POST 金屬連接座...
  • Page 11 Main Rotor-5 / 主旋翼機構組裝-5 Bag B Material No. Description Material No. Description 名稱 名稱 滾珠軸承, d4xD7xW2.5 BK2289 強化主軸 HMV740ZZY BEARING, d4xD7xW2.5 HARDENED MAIN SHAFT 插銷 BK0616 內六角螺絲(半牙),M3x20 BK0171 SOCKET SCREW,M3x20 E型扣環 HMM3Z 止鬆螺帽,M3 HMS15 E RING NYLON NUT,M3 內六角連接頭螺絲(A) 金屬十字盤組 LINKAGE BALL(A) BV2188A BK0649-1...
  • Page 12 Main Rotor Head Linkage Rod Installation / 主旋翼頭連桿組裝 Bag B Material No. Description Material No. Description 名稱 名稱 BK2236 UPPER BRG 上軸承座 BK2179 DOUBLE JOINT BALL LINK 雙頭連接桿 BK2219 FRAME SPACER 六角連接支柱 BK2228 FLYBAR JOINT BALL LINK 穩定翼連接桿 HMV6800ZZY BEARING,d10xD19xW5 滾珠軸承,d10xD19xW5 BK2516 LINKAGE ROD,40mm...
  • Page 23 Main Frame Assembly-8 / 本體組裝-8 Bag H+K Material No. Description Material No. Description 名稱 名稱 HMM3Z HME3-30B NYLON NUT,M3 止鬆螺帽,M3 SET SCREW,M3x30 無頭內六角螺絲,M3x30 傳動軸軸承套 BK0077 COLLAR,d3xD4xW6 BK2529 TAIL DRIVE SHAFT BRG 軸環,d3xD4xW6 滾珠軸承, d8xD16xW5 HMV740ZZY BEARING,d4xD7xW2.5 滾珠軸承,d4xD7xW2.5 HMV1680ZZY BEARING, d8xD16xW5 BK0649-2 BK2552 尾驅動軸...
  • Page 24 Tail Unit Assembly-1 / 尾旋翼組組裝-1 Bag I Material No. Description Material No. Description 名稱 名稱 BK0028 TAIL PITCH CONTROL SLIDER BUSHING HMV1050ZZWY BEARING, d5xD10xW3 滾珠軸承, d5xD10xW3 尾旋翼控制軸套 HMV1060ZZY BEARING,d6xD10xW3 滾珠軸承,d6xD10xW3 BK0082 COLLAR, d2xD3xW4.2 軸環, d2xD3xW4.2 BK0027 TAIL PITCH CONTROL SLIDER HMC2-10B SOCKET SCREW, M2×10 尾旋翼控制滑座...
  • Page 25 Tail Unit Assembly-2 / 尾旋翼組組裝-2 Bag J+K Material No. Description Material No. Description 名稱 名稱 BK2501 METAL TAIL UNIT HOUSING 金屬尾座 HMC3-10B SOCKET SCREW, M3x10 內六角螺絲, M3x10 尾旋翼控制桿座 碳纖維垂直尾翼 BK2502 METAL TAIL PITCH CONTROL HOUSING BK2190 CARBON VERTICAL FIN 內六角螺絲, M2.5x8 內六角螺絲, M3x6 HMC25-8B SOCKET SCREW, M2.5x8...
  • Page 26 Tail Boom Assembly / 尾管組裝 Bag J+K Material No. Description Material No. Description 名稱 名稱 BK2219 FRAME SPACER 六角連接支柱 BK0524-T TAIL SUPPORT ROD 尾管支撐架 內六角螺絲, M3x14 HMC3-14B SOCKET SCREW , M3x14 BK0447 TAIL SUPPORT ROD END 尾管支撐架接頭 半圓頭內六角螺絲, M3x6 HSA3-6 BUTTON HEAD SOCKET SCREW, M3X6 HMJ2-8N SELF TAPPING SCREW-M2x8...
  • Page 29 -28-...

  • Page 36: Swashplate Type Setting / 十字盤模式設定

    Swashplate Type Setting / 十字盤模式設定 Set the model type for helicopter in your Transmitter and set the swashplate Nose / 機首方向 type as 120°CCPM. Refer your Transmitter manual to find a proper 120° swashplate setting. 請參閱遙控器說明書，設定正確之十字盤設定模式。 120° 120° Swashplate & Servo Movement Setting / 十字盤及伺服機動作設定 As going through these setup procedures, ensure there is none of the controls bind at full travel.

  • Page 37: Blade Tracking Adjustment 主旋翼軌跡調整

    Blade Tracking Adjustment 主旋翼軌跡調整 CAUTION / 警告 For safety, ensure to keep a safe distance from the helicopter at least 10 meter (30 feet) while making tracking adjustment. 安全起見，進行主旋翼軌跡調整時，請至少與直昇機保持10米（30呎）的安全距離。 color tape / 色標貼 Out of Track / 雙槳 Adjustment is necessary.
  • Page 40 PARTS LIST SECTION / 零件包目錄 SPARE PARTS / 零件包 1179 3878 AV0143 PV0035-2 PV0035-3 SILCONE FUEL LINE,2ft TT V2 CARBON BLADE 600mm COOLING FAN LANDING SKID SET LANDING SKID 耐熱油管(透明),2ft 碳纖主旋翼600mm 冷卻風扇 腳架組 腳架 PV0052 PV0041 PV0050 PV0051 PV0053 TAIL SLIDER BRG, d6xD10xW3 BALL LINK BEARING SET, d5xD13xW4 ROTOR BOLT...

  • Page 42: Spare Parts / 零件包

    SPARE PARTS / 零件包 PV1319 PV1320 PV1321 PV1322 PV1323 DOUBLE LINK COLLAR SET METAL SEESAW HUB METAL MIXING LEVER METAL HEAD BUTTON 雙頭連接桿 軸環組 金屬穩定桿固定座 金屬混控臂 金屬旋翼頭制動器 PV1324 PV1325 PV1326 PV1327 PV1328 METAL MAIN ROTOR HUB METAL WASHOUT BASE METAL SWASHPLATE SET SWASHPLATE CONTROL ROD FUEL TANK SET 金屬主旋翼固定座...
  • Page 43 SPARE PARTS / 零件包 PV1350 PV1351 PV1352 PV1353 PV1354 TAIL BOOM BRACKET ROD GUIDE MOUNTING BLOCK METAL MOUNTING BLOCK TANK RUBBER GROMMETS CARBON BOTTOM FRAME 尾管固定座 尾拉桿座 金屬側板補強肋 油箱保護膠套 碳纖維底盤 (12) (12) PV1355 PV1356 PV1357 PV1358 PV1359 COOLING FAN CASING BLADE SUPPORT SCREW BAG FRAME SPACER...

  • Page 46: Spare Parts List / 維修零件包表格

    SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page PV0115-1 WASHOUT LINKAGE 連接座 BK0016-1 WASHOUT LINKAGE 連接座 BK0171 插銷 HMS15 E RING E 型扣環 PV0149-1 TAIL GEAR,X50 尾齒輪,X50 BA1144-1 WASHER(d5xD8xW0.15) 軸承墊片, d5xD8xW0.15 BK0372 TAIL INPUT GEAR 尾齒輪, INPUT-20T BK0373-2 TAIL OUTPUT GEAR...
  • Page 47 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page HSE2-10B SELFTAPPING SCREW, M2x8 扁圓自攻螺絲（細）, M2x8 HMS15 E RING E 型扣環 HMV1060ZZY BEARING, d6xD10xW3 滾珠軸承, d6xD10xW3 PV0512-W SKID DAMPER (WHITE) 腳架墊圈(螢光白) BK0819W SKID DAMPER, WHITE 腳架墊圈, 螢光白 PV0523-1 CARBON TAIL BOOM 碳纖維尾管...
  • Page 48 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page HMC3-10B SOCKET SCREW, M3x10 內六角螺絲, M3x10 BK2515 COLLAR, d3xD5xW4.2 控制臂軸環, d3xD5xW4.2 PV1314-2 METAL ELEVATOR WASHER MOUNT SET(R) 金屬升降舵墊片座組(右) BV2237 ELEVATOR WASHER MOUNT SET(R) 升降舵墊片座組(右) HMC2-4B SOCKET SCREW, M2x4 內六角螺絲, M2x4 HME3-8B SET SCREW, M3x8...
  • Page 49 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page PV1332 THROTTLE SERVO TRAY 油門伺服機座 BK2232 SERVO FRAME A 伺服機座A, 76x65x25 PV1334 HARDENED MAIN SHAFT 強化主軸 BK2289 HARDENED MAIN SHAFT 強化主軸 BK0616 SOCKET SCREW, M3x20 內六角螺絲(半牙), M3x20 HMM3Z NYLON NUT, M3 止鬆螺帽, M3...
  • Page 50 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page HMC3-10B SOCKET SCREW, M3x10 內六角螺絲, M3x10 PV1352 METAL MOUNTING BLOCK 金屬側板補強肋 BK2229 MOUNTING BLOCK 側板補強肋 15,16 HMC3-10B SOCKET SCREW, M3x10 內六角螺絲, M3x10 15,16 PV1353 TANK RUBBER GROMMETS 油箱保護膠套...
  • Page 51 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page BK2502 METAL TAIL PITCH CONTROL HOUSING 尾旋翼控制桿座 BK2503 TAIL ROTOR CASE BUTTON 尾管固定片 BK2291 COLLAR, d15xD18x6.8L 軸環, d15xD18x6.8L HMV1350ZZY BEARING, d5xD13xW4 滾珠軸承, d5xD13xW4 HMV6701ZZY BEARING, d12xD18xW4 滾珠軸承, d12xD18xW4 HMC2-5B SOCKET SCREW, M2x5...
  • Page 52 SPARE PARTS LIST / 維修零件包表格 Description 中文名稱 Part No. Description 中文名稱 Qty Index Page HMC3-16B SOCKET SCREW 內六角螺絲 PV1417 METAL ROTOR GRIP LEVER 金屬轉座擺臂 BK2579 METAL ROTOR GRIP LEVER 金屬轉座擺臂 HSA3-6 BUTTON HEAD SOCKET SCREW, M3x6 圓頭內六角螺絲 HMC3-8B SOCKET SCREW, M3×8 內六角螺絲...

  • Page 57: Exploded View / 爆炸圖檢索

    Exploded View / 爆炸圖檢索 TAIL UNIT PV1375 PV1376 PV0347 PV1377 PV1337 PV1380 PV0679-T PV0677 PV1331-1 PV0149-1 PV1330 PV1378 PV0504 PV1378 PV1318 PV01372 PV0670-1 PV1379 PV1367 -56-...
  • Page 58 1200 SPECIFICATION / 規格表 Fuselage Length / 全長: 1200mm (47.24") Fuselage Width / 全寬: 200mm (7.87") Main Rotor Diameter / 主旋翼旋轉直徑: 1345mm (52.95") Main Rotor Length / 主旋翼長度: 600mm (23.62") Tail Rotor Length / 尾旋翼長度: 95mm (3.74") Tail Rotor Diameter / 尾旋翼旋轉直徑: 260mm (10.24") Gear Ratio / 齒輪傳動比: 1:8.5:5...
