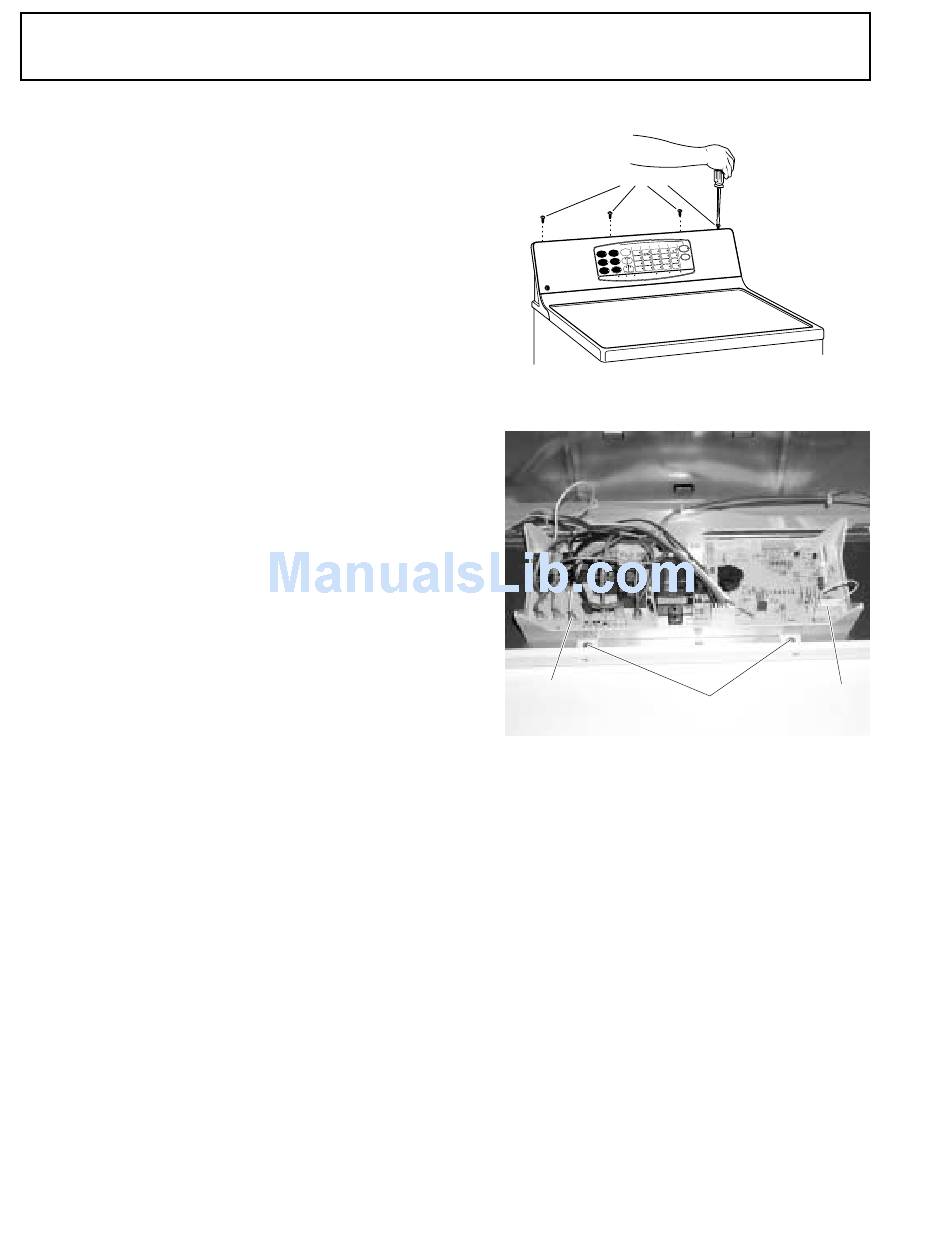

Remove Electronic Control Board
1. Remove 4 screws from the top of the
backsplash and rotate the top forward.
2. Tag and remove 11 electrical connections.
Note: Remove and retain the model selector
harness plug for reassembly.
3. Remove 2 screws (1/4-in.) from the control
board.
Caution: To prevent electrostatic discharge,
ground yourself to the dryer cabinet, or use an
ESD wristband.
4. Remove the electronic control board.
Note: When reassembling, align the LEDs with
the appropriate control panel indicators.
5. Reverse the above procedure to reinstall.

Removal and Replacement

– 22 –
Remove 4 Screws
Electrical
Electrical
Screws
Screws
Connections
Connections
GEA00545
Model
Model
Selector
Selector
Harness
Harness
GEA00544
