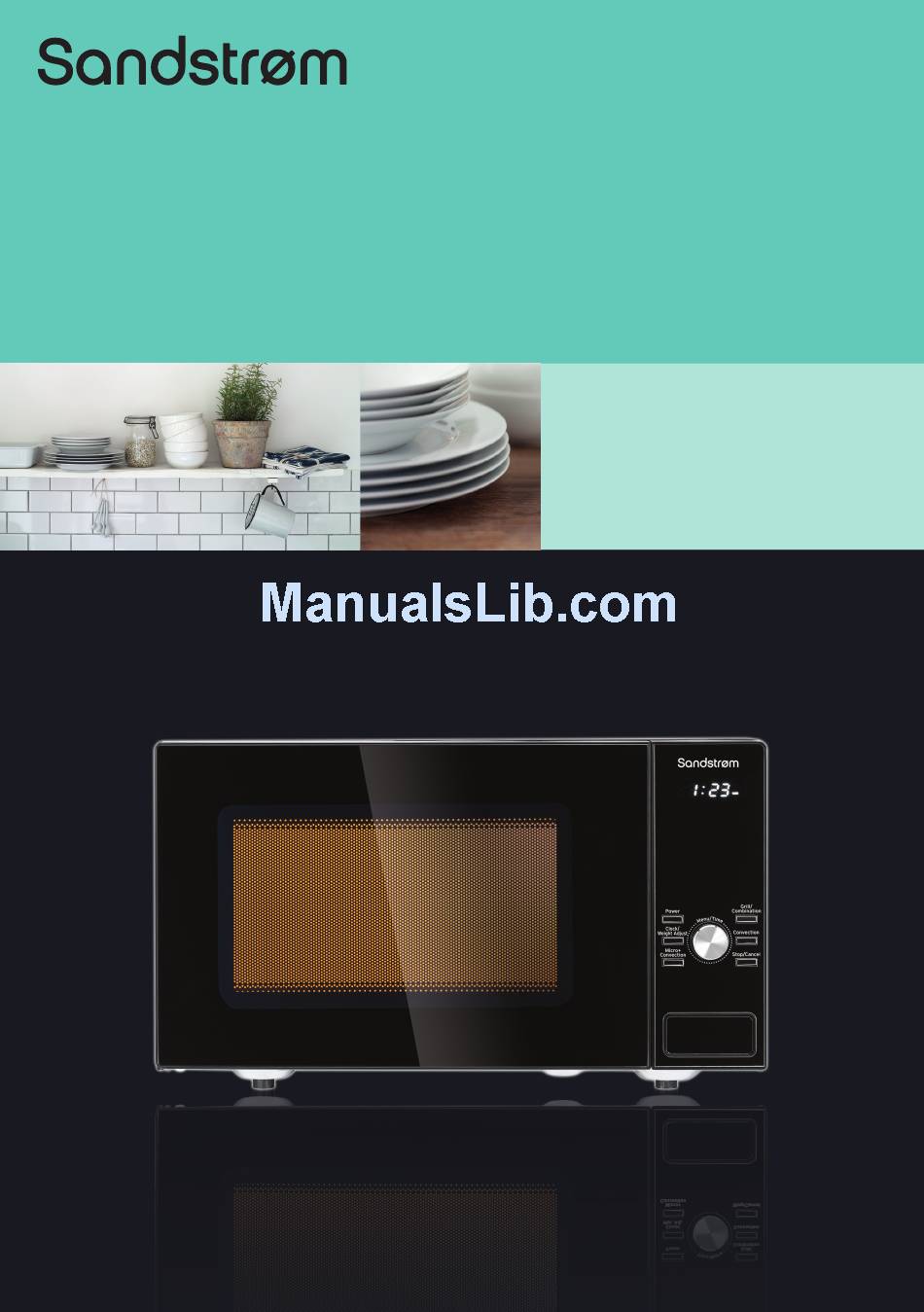

Page 1: Instruction Manual
Instruction Manual 25 Litre Combination Microwave S25CDMB12... -
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Getting Ready ..........................5 Introducing Microwave Cooking ....................6 Cooking with a Microwave ................................ 6 Checking Your Cooking Utensils ............................. 7 Using Aluminium Foil in Your Microwave ..........................7 Microwave Heating Categories..............................8 Steam ........................................ 9 Condensation .................................... -
Page 4: Unpacking
Thank you for purchasing your new Sandstrøm 25 Ltr Combination. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Getting Ready
Getting Ready This microwave is designed for home use only. It should not be used for commercial catering. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents on the microwave, and the door closes properly. A dented or damaged microwave could allow microwave energy to escape. -
Page 6: Introducing Microwave Cooking
Introducing Microwave Cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. See below for basic guidelines in microwave cooking. If you are unfamiliar with using a microwave, refer to the back of this instruction booklet for more information. -
Page 7: Checking Your Cooking Utensils
Checking Your Cooking Utensils Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar. If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the microwave. -
Page 8: Microwave Heating Categories
Microwave Heating Categories Your microwave has been tested and labelled to meet the UK government’s voluntary agreement on the reheating of pre-cooked food. The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams. -
Page 9: Steam
Steam When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door. -
Page 10: Product Overview
Product Overview The Main Unit Control Panel CLOCK Grill/ Power Combination Clock/ Weight Adjust Convection Micro+ Convection Stop/Cancel Grill Rack For use when grilling, convection, combination or Door Open Button auto cooking. The Control Panel LED Display CLOCK Shows the clock, cooking time and setting. -
Page 11: Checking Your Microwave
Checking your Microwave Check your microwave after unpacking. For your safety, the microwave stops if the door is opened during cooking. Close the door and press the Start/Quick Start button to continue the cooking cycle. Push the Door Open button to open the door. Place a cup of water on the glass turntable plate. -
Page 12: Clock Setting
Clock Setting When the microwave is connected to the mains power, the LED display will show “1:00”, and the microwave will sound once. Please ensure that you have set the clock prior to use. Please follow the steps below to set the clock. Press the Clock/Weight Adjust button and the “1:”... -
Page 13: Setting The Child Lock
Setting the Child Lock This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it. Please follow the steps below to set the child lock. Press the Stop/Cancel button for 3 seconds and a long tone will sound and the child lock indicator LOCK will illuminate to indicate the microwave has set the child lock. -
Page 14: Microwave Cooking
Microwave Cooking For simple Microwave Cooking, follow the steps below. For instance: If you want to use 60% microwave power to cook for 5 minutes. Press the Power button 5 times and the LED display will show “P-60”. Turn the Menu/Time dial until the LED display shows “5:00”. -
Page 15: Grilling Or Combination Cooking
Grilling or Combination Cooking For Grilling, follow the steps below. For instance: If you want to program gril cooking for 12 minutes. We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate. - Page 16 For Combination Cooking, follow the steps below. This feature allows you to combine grill and microwave cooking on two different settings. Combination 1 30% of time for microwave cooking, 70% for grill cooking. Use for fish or au gratin. For instance: If you want to set combination 1 cooking for 25 minutes.
-
Page 17: Convection Cooking (Without Preheating)
Convection Cooking (without Preheating) For Convection Cooking without preheating, please follow the steps below. For instance: If you want to cook your food for 40 minutes at 170°C. We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate. -
Page 18: Multi-Stage Cooking
Multi-Stage Cooking For Multi-Stage Cooking, please follow the steps below. For instance: If you want to set microwave cooking and then convection cooking without preheat. You can set a maximum of 3 stages for Multi-Stage Cooking. If defrosting is among one of the stages, then it will be set as the first stage. -
Page 19: Auto Cooking
Auto Cooking This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the default weight of the food. For quick reference of the cooking time and the default weight, please refer to the Auto-cook Menu table. -
Page 20: Auto-Cook Menu Table
The density and thickness of food can affect its cooking time. Ensure all food is piping hot and cooked thoroughly before serving. It is essential that food is checked during and after the recommended cooking time, even if Auto Menu was used. Auto-cook Menu Table Menu Weight... -
Page 21: Defrosting
Defrosting This feature allows you to defrost your frozen foods simply by entering the weight or time. For defrosting please follow the steps below. Turn the Menu/Time dial anti-clockwise to select code “09”. Press the Clock/Weight Adjust button once. CLOCK Turn the Menu/Time dial to enter your needed time. -
Page 22: Quick Start Cooking
Quick Start Cooking This feature allows you to quickly cook your food with 100% microwave power. Please follow the steps below. Press the Start/Quick Start button to start the quick start cooking. The longest time you can set is 10 minutes. Press the Stop/Cancel button once to stop the cooking. -
Page 23: Micro + Convection Cooking
Micro + Convection Cooking This feature allows you to quickly cook your food with both convection heat and microwave automatically. This oven has 4 pre-programmed settings. For Micro+Convection cooking, please follow the steps below. For instance, you want to cook food for 24 minutes at 170°C. Press the Micro+Convection button to select temperature. -
Page 24: Cleaning Your Microwave
Cleaning Your Microwave Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean. Unplug your microwave from the mains and wait for it to completely cool down before cleaning. On the right hand side wall of the cavity is the wave guide cover. -
Page 25: Frequently Asked Questions
Frequently Asked Questions If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem. Questions Answers Why doesn’t the food seem to cook? Check that: • the cooking time has been set • the door is closed • the mains socket is not overloaded causing the fuse to blow. -
Page 26: Specifications
Specifications Model S25CDMB12 Input 230 - 240V~ 50Hz Microwave Output 850 - 900 Watts Microwave Frequency 2450 MHz Outside Dimensions 413mm(D) x 483mm(W) x 281mm(H) (width x deep x height) Power consumption Microwave Input 1350 - 1450 Watts Grill Input... -
Page 27: Safety Warnings
Safety Warnings General safety • Switch off and unplug before fitting or removing parts/attachments, after use and before cleaning. • Keep your fingers away from moving parts and fitted attachments. • Never use a damaged appliance. • Never operate the appliance when it is empty. •... - Page 28 Cooking Use • As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected. • Do not leave the microwave unattended during use. • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.
-
Page 29: Earthing Instructions
Delayed boiling Liquids heated in a microwave can boil up when removing them from the microwave. Take the following precautions : • Always stir liquids, before and after cooking. • Allow them to stand. • Use containers that are wider at the top than at the bottom. Preparing food for babies Extra care must be taken when preparing food or drink for babies and small children. - Page 30 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Baking Rack XGALS25CDMB12P66 Glass Turntable Plate XGALS25CDMB12P12 Turntable Support XGALS25CDMB12P11 DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 0844 561 6263 (Currys).
