Intel Pentium II Xeon Installation Notes

Boxed Intel

Pentium

Failure to properly install and integrate the processor may void your

warranty coverage.

Integration Issues and Information

Before you install the processor(s) into a system, integration issues need to be consid-

ered. See document number 24544, "Integration Notes for the boxed Intel

Xeon™ Processor" on the World Wide Web at: http://support.intel.com.

Ensure proper cooling and adequate airflow for the processor(s) by referring to docu-

ment number 24545 "Thermal Management Notes for the Intel Pentium II Xeon

processor" on the World Wide Web at http://support.intel.com.

Intel Pentium II Xeon processor specifications can be found on the on the World Wide

Web at http://developer.intel.com. Refer to the "Intel Pentium II Xeon Processor

Datasheet" Order number 2437701.

Install the retention mechanism(s) onto the motherboard using the motherboard

manufacturer's instructions. The illustrations shown in this manual correspond with

the retention mechanisms that are supplied with the boxed Intel MS440GX worksta-

tion motherboard.

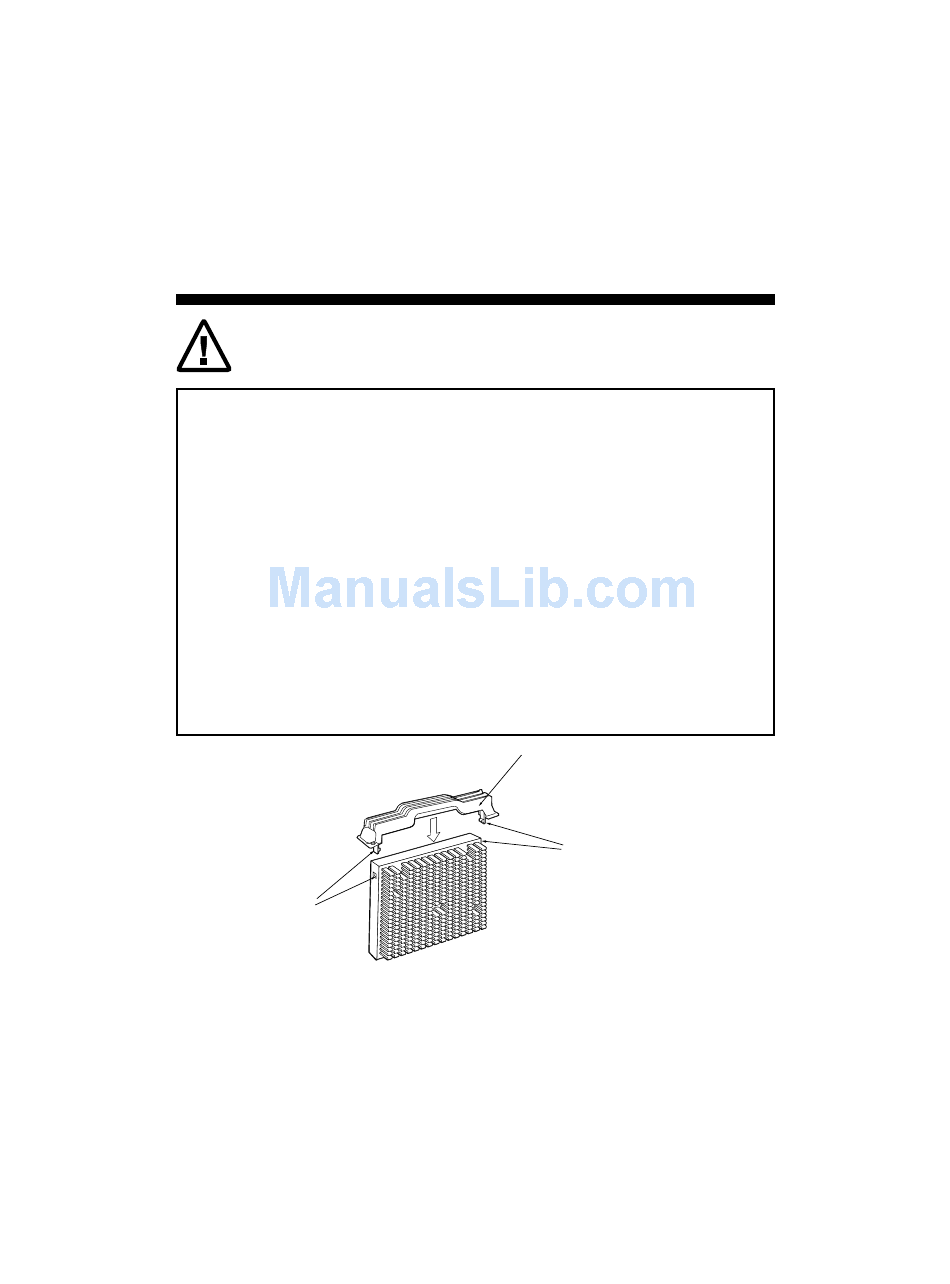

Attach the Dual Retention Mechanism (DRM) top (D) to the processor by snapping the

clips (H1, H2) into the two recesses on the sides of the processor.

Xeon

Processor Installation Notes

™

OM08281

Pentium

Table of Contents

Do you have a question about the Pentium II Xeon and is the answer not in the manual?

Page 1 24545 “Thermal Management Notes for the Intel Pentium II Xeon processor” on the World Wide Web at http://support.intel.com. Intel Pentium II Xeon processor specifications can be found on the on the World Wide Web at http://developer.intel.com. Refer to the “Intel Pentium II Xeon Processor Datasheet”...
Page 2 DIMM Slots OM08285X Orient the processor (A) so that the heatsink (B) faces the DIMM slots. Slide the processor into the retention mechanism (E) ensuring that the Dual Retention Mechanism (DRM) top screw holes align with the retention mechanism screw holes. Press down firmly until the processor is seated in the processor connector (G).
Page 3 connector P0 connector DIMM Slots OM08284X To install a second processor, remove any termination card located in the processor connector labeled P1. Orient the second processor (A) so that the heat sink (B) faces the DIMM slots. Slide the processor into the processor retention mechanism (E). Press down firmly until it is seated in the processor connector labeled P1.
Page 4 Except as provided in Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.
