WARNING:
Improper connection of the equipment-grounding (earthing) conductor can
result in a risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is properly grounded
(earthed). Do not modify the plug provided with the appliance. If it will not fit
the outlet, have the proper outlet installed by a qualified electrician. This
appliance is for use on a nominal 120 volt (see rating plate for correct
voltage) circuit and has a ground (earth) plug that looks like the plug
illustrated in Figure 2. Make sure that the appliance is connected to an
outlet having the same configuration as the plug. No adapter should be
used with this appliance.
• If the power cable is damaged, use only an OEM replacement cable.
• Check the power unit on/off button and all inlet valves for operation.
• This power unit is intended for household and commercial use only.
English

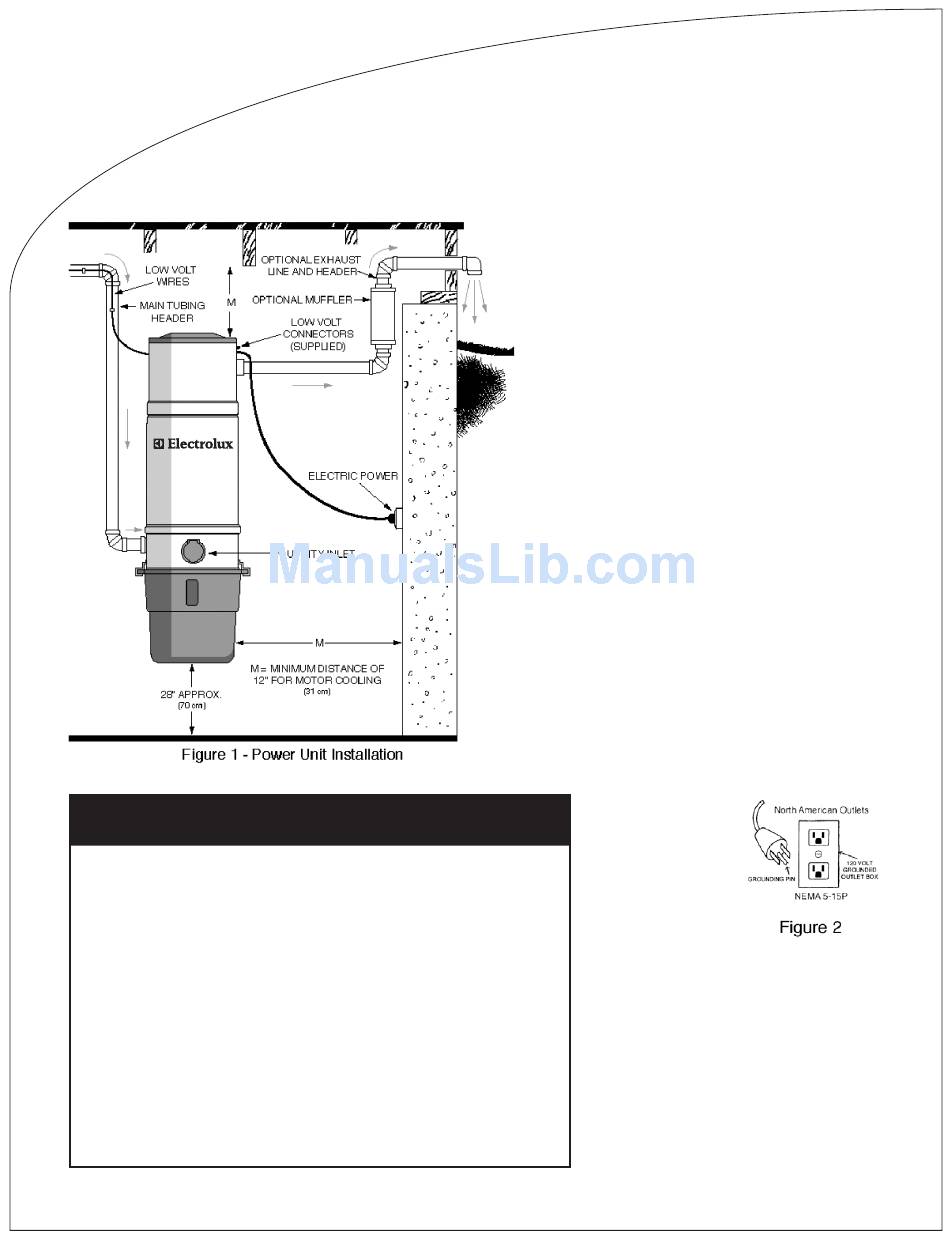

Installation Of Power Unit
The power unit hangs on the mounting bracket
which is screwed to the wall. The bottom screws
of the mounting bracket should be about 48"
(122 cm) up from the floor to allow convenient
removal of the dirt receptacle. For proper motor
cooling, there must be at least 12" (31 cm)
between unit and the ceiling (see Figure 1). If
mounting on plaster or panel walls, be sure
mounting screws enter studs. If mounting on
concrete wall, drill the wall with a masonry bit
and insert the appropriate wall anchors. Strip
the low-voltage wires that were installed with
the main trunk line. Connect the wires to the
spring loaded connectors on the back side of
the power unit. Connect the main tube line to
the left side of the power unit with the connector
and clamp provided. Do not cement this
connection to the power unit in case you wish
to remove at some future date. NOTE: For
paper bag units, follow directions provided with
unit. This unit may be vented outside to exhaust
fumes and germs. For optimum noise reduction,
this unit must be vented outside. Use the same
tubing and fittings as before. Do not vent power
unit exhaust into a wall, ceiling or concealed
space of a building. Use two exhaust lines for
twin motor units. NOTE: On/off button on
power unit is only used for the inlet on power
unit. All other inlets operate automatically when
hose end is inserted into inlet valve. The power
cable has a three-prong female connector on
one end. This connector must be plugged into
the mating connector on the power unit. Plug
the other end of the power cable into the wall
electrical outlet. WIRING: Check local codes,
but use not less than #12-2 wire with ground.
Plug power unit cord into appropriate electrical
outlet. Be sure line voltage is sufficient to
handle 20 amp load.
Grounding (Earthing)
Instructions
This appliance must be grounded (earthed). If it
should malfunction or break down, grounding
(earthing) provides a path of least resistance or
electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having
an equipment-grounding (earthing) plug. The
plug must be plugged into an appropriate outlet
that is properly installed and grounded (earthed)
in accordance with all local codes and ordinances.
