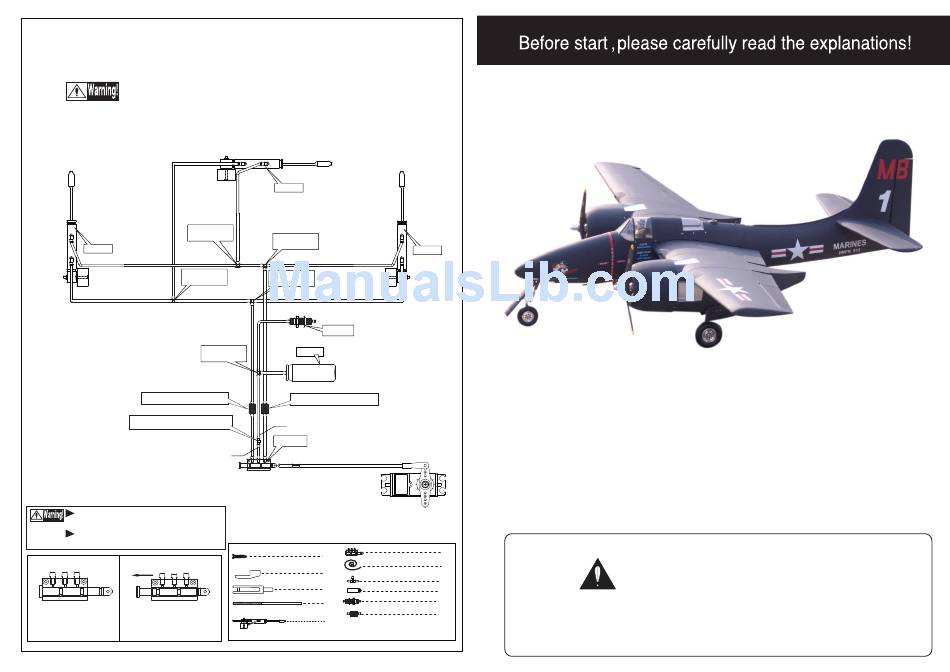

Three wheel retract system
Make sure to assemble retracts as instructed below.
3-way
pressure inlet
Air switch
3-way
pressure inlet
3-way
pressure inlet
Quick release connector
Pressure reduction inlet
Ø1.7mm
Please insure the sealing of the air switch
system before flight .
Pleas notice the inner diameter
of each side the pressure reduction inlet.
Air valve
Air valve
Pull out length of 8mm
The status when the
to make gear door open.
gear door closed.
(Option accessories)
Air switch
3-way
pressure inlet
Air switch
3-way
pressure inlet
Air inlet
Air tank
Quick release connector
Ø0.2mm
S wi tc h
Switch
TP Screw(2.6x14mm)
2
Air line (3000mm)
Retainer
1
3-way pressure inlet
Clevis
Air tank
1
Rod (2X300mm)
Air inlet
1
Quick release connector
Air switch
3

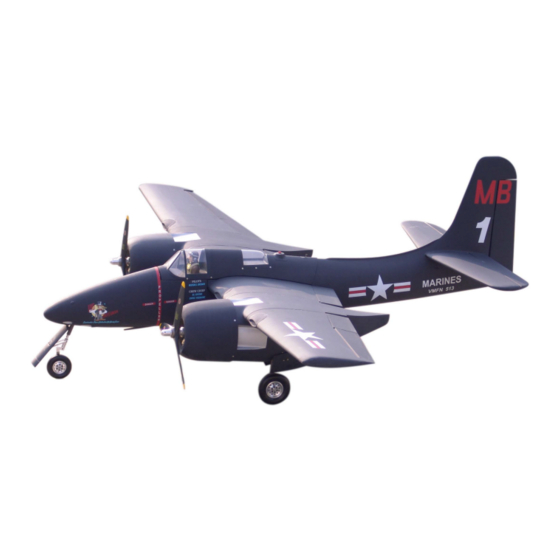

F7F Tigercat
Specification:
Length
:1840 mm(72.4")
Wing Span
:2105 mm(82.9")
Wing Area
:60.98 sq. dm
6.56 sq. ft
Wing Loading :172.2 g/sq. dm
56.5 oz/sq. ft
Flying Weight :10.5 kg(23.2 lbs)
Radio
:6ch&13 servos
Engine
:70 2-cycle
91 4-cycle
1
1
5
1
1
SAFETY PRECAUTIONS
2
INSTRUCTION MANUAL
This R/C airplane is not a toy!
(The people under 18 years old is forbidden from flying this model)
First-time builders should seek advice from people having building
experience.If misused or abused,it can cause serious bodily injury
and damage to property.
Fly only in open areas and preferably at a dedicated R/C flying site.
We suggest having a qualified instructor carefully inspect your
airplane before its first flight.Please carefully read and follow all
instructions included with this airplane,your radio control system
and any other components purchased separately.
